Литейный клапан порошкового покрытия под заказ Гравитационное литье
- Категория: Valve Bodies >>>
- Поставщик: Shanghai,Matech,Machinery,Manufacture,Corporation,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7.99 $* | 7.27 $* |
| Aug-16-2025 | 7.80 $* | 7.7 $* |
| Jul-16-2025 | 6.40 $* | 6.42 $* |
| Jun-16-2025 | 7.76 $* | 7.38 $* |
| May-16-2025 | 6.91 $* | 6.30 $* |
| Apr-16-2025 | 7.71 $* | 7.80 $* |
| Mar-16-2025 | 7.90 $* | 7.93 $* |
| Feb-16-2025 | 7.99 $* | 7.71 $* |
| Jan-16-2025 | 7.47 $* | 7.80 $* |
Характеристики
PRODUCT INFORMATION
Item Name | Foundry Custom Powder Coating Valve Gravity Die Casting |
General Products | Metal Parts Solution for Vehicle and Machinery, Industry parts, bracket,cover, cap, handle, corner,gear, case,housing,gear etc. |
Main Blank Process | Die casting and low pressure casting |
Blanks Tolerance -Casting Tolerance | Low pressure casting CT7-8 Die casting ISO 2786-m |
Applicable Materia | Die casting: ADC12, A380,etc. Low pressure casting :A356,ZL101,etc. |
Casting Blank Size | 2 mm-600mm / 0.08inch-24inch according to customer requirement |
Casting Blank Weight | Range from 0.01kg-55kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Grinding and etc. |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Primer Painting , Powder coating, ED- Coating, Finish Painting,as customers request etc. |
MOQ for batch order | For die casting:200Kg Forlow pressure casting: 300kg |
| Lead Time | 50 days for gravity casting |

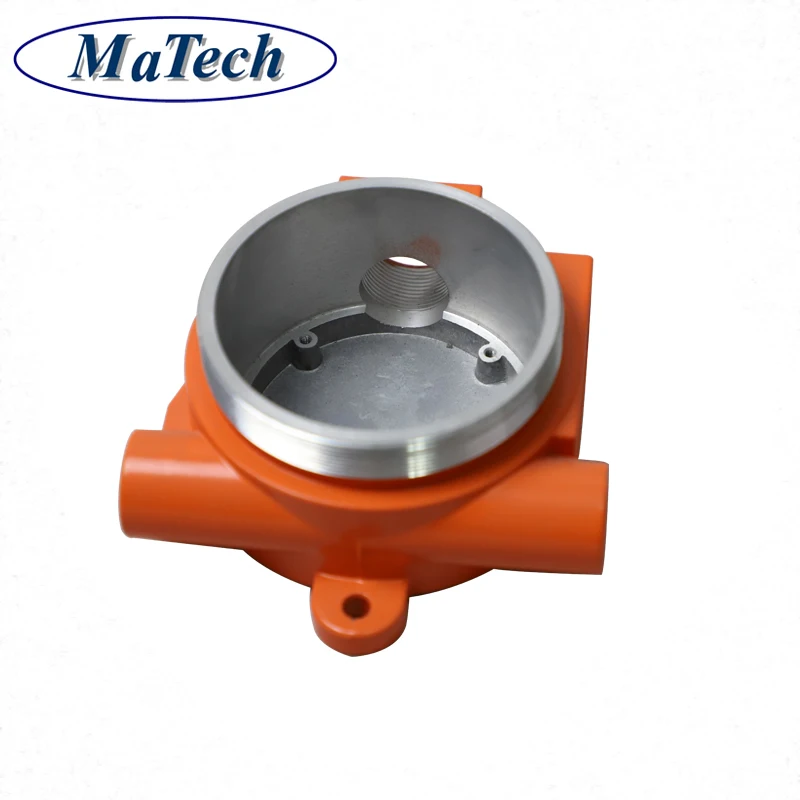

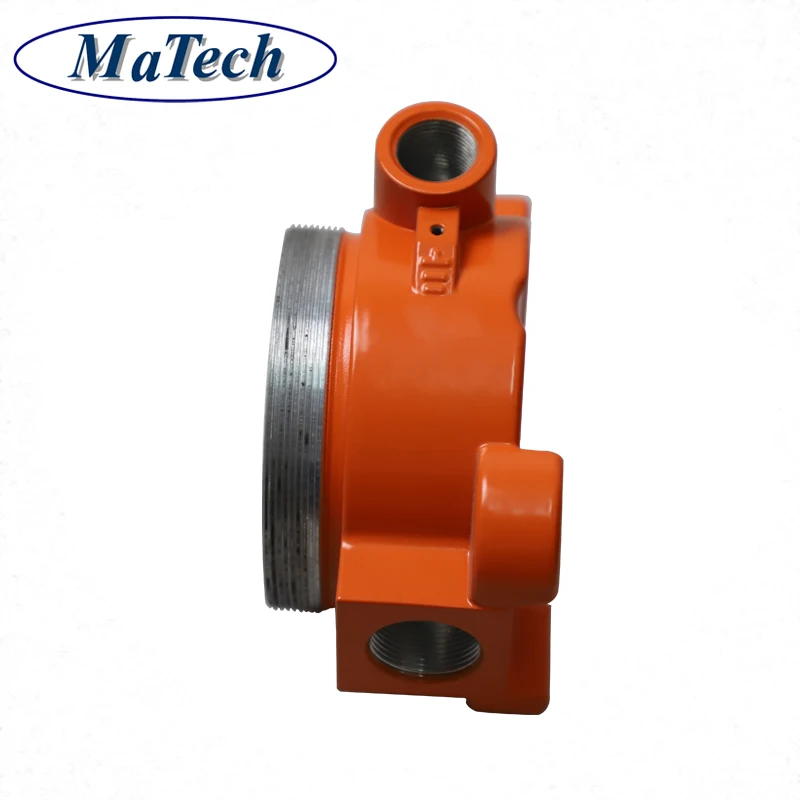

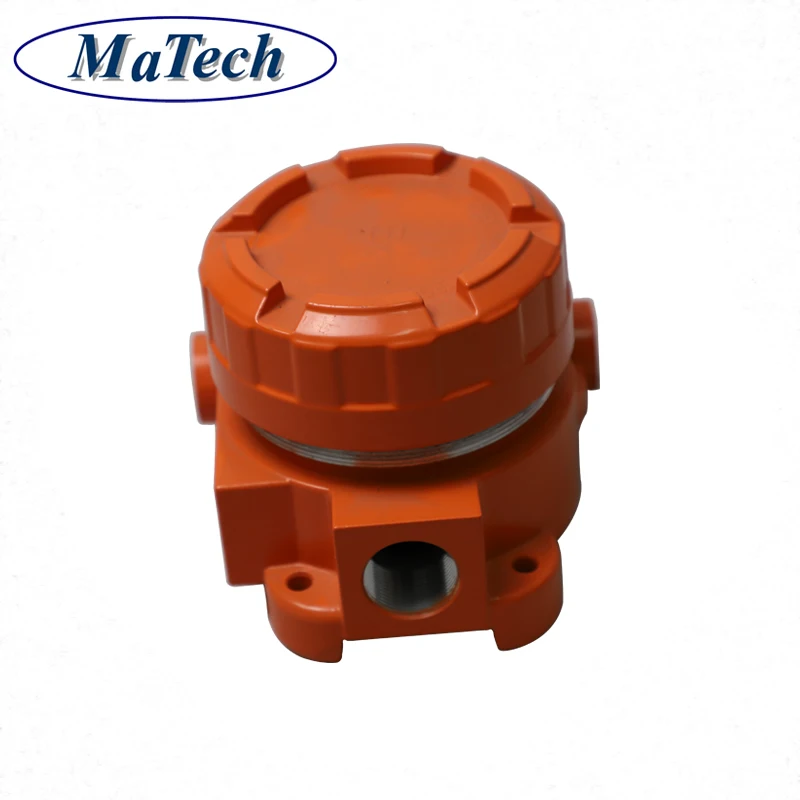

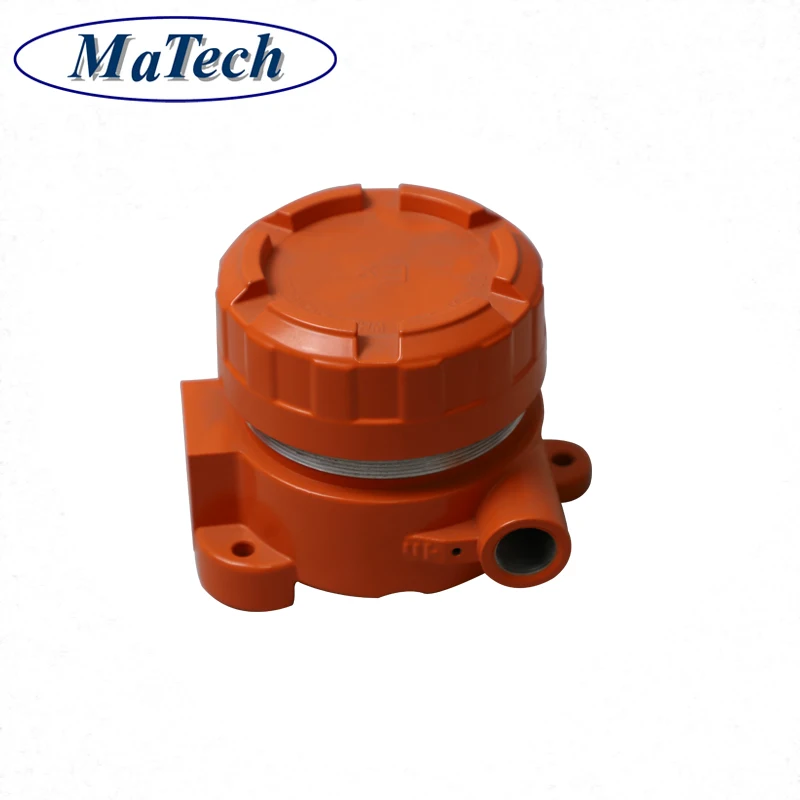

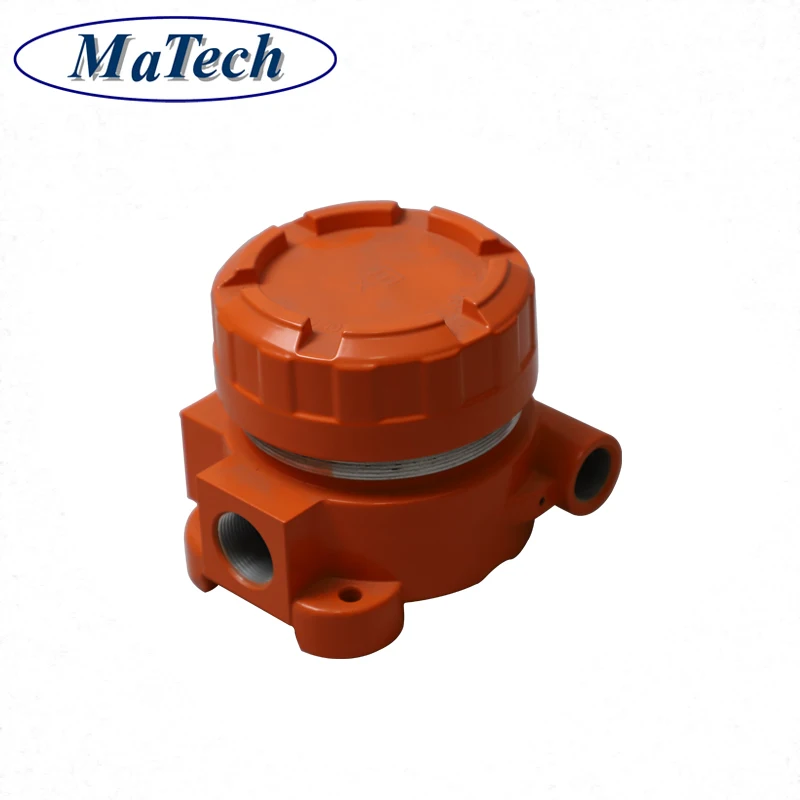

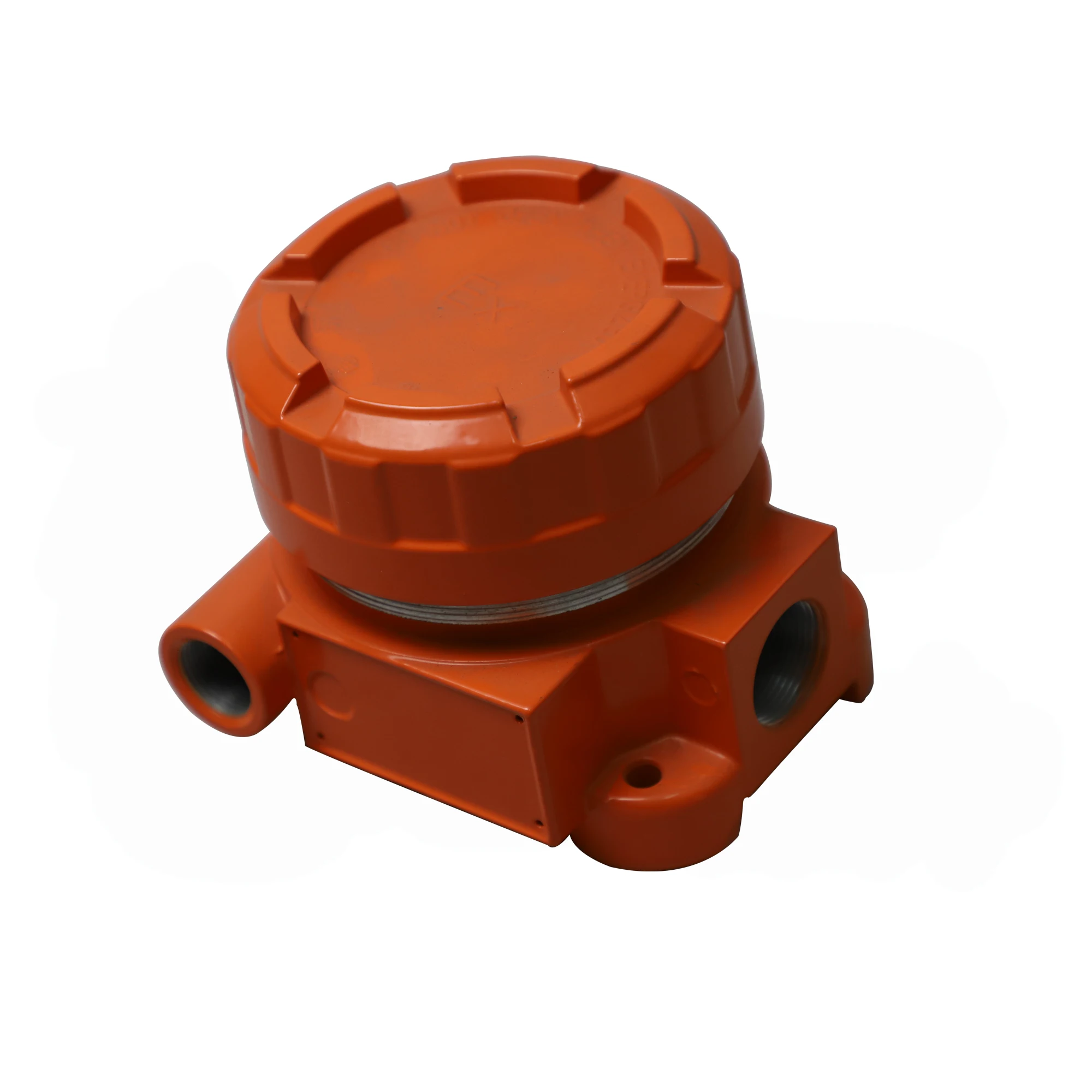

PRODUCT SHOW
Company Information
PRODUCTION SHOW
PACKING & SHIPPIN
FAQ
![]()
1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 15 years’ export experience for designing and producing aluminum casting parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
