SAE J1772 портативное зарядное устройство для электромобиля зарядки EV 8a/10А/16А регулируемое ev gtb
- Категория: Charging Stations >>>
- Поставщик: Sichuan,Weiyu,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 187.12 $* | 191.40 $* |
| Jul-15-2025 | 151.22 $* | 154.43 $* |
| Jun-15-2025 | 184.82 $* | 188.56 $* |
| May-15-2025 | 182.19 $* | 186.34 $* |
| Apr-15-2025 | 146.13 $* | 149.34 $* |
| Mar-15-2025 | 179.12 $* | 183.48 $* |
| Feb-15-2025 | 178.70 $* | 182.4 $* |
| Jan-15-2025 | 176.51 $* | 180.45 $* |
Характеристики
PRODUCT OVERVIEW

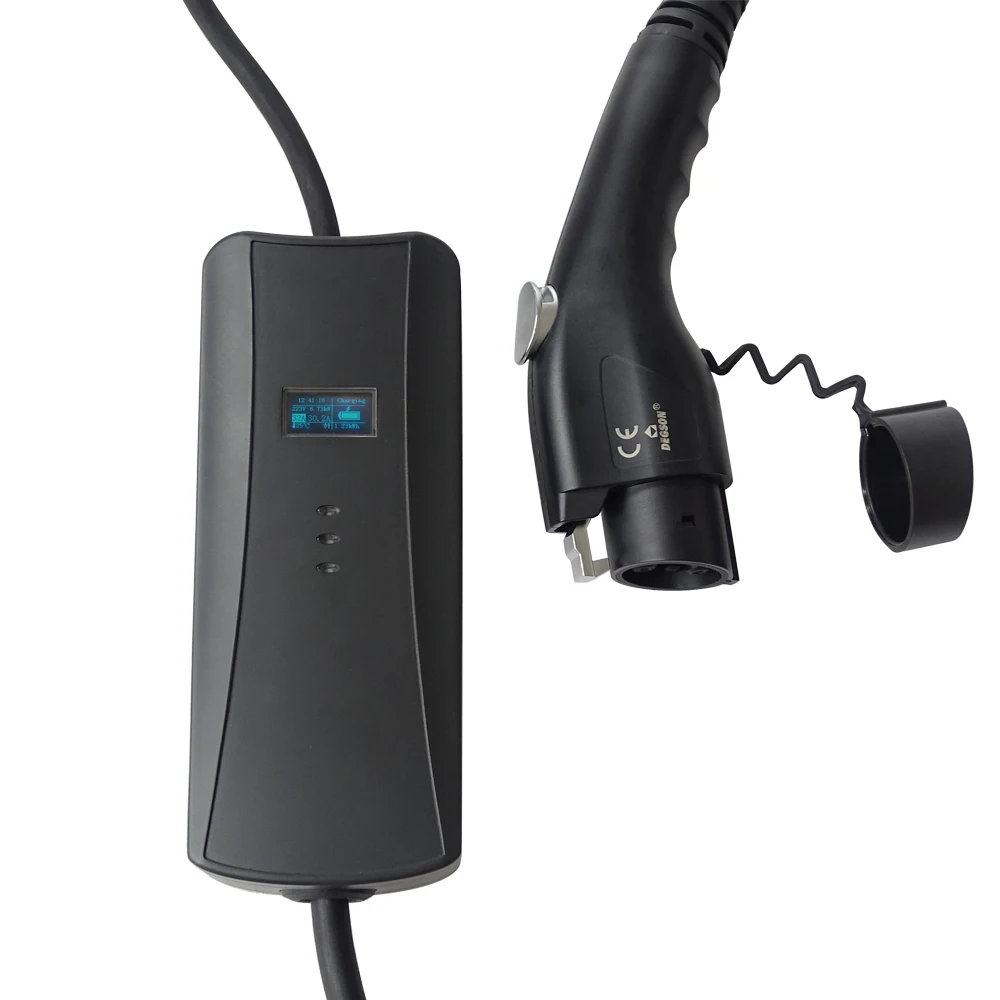

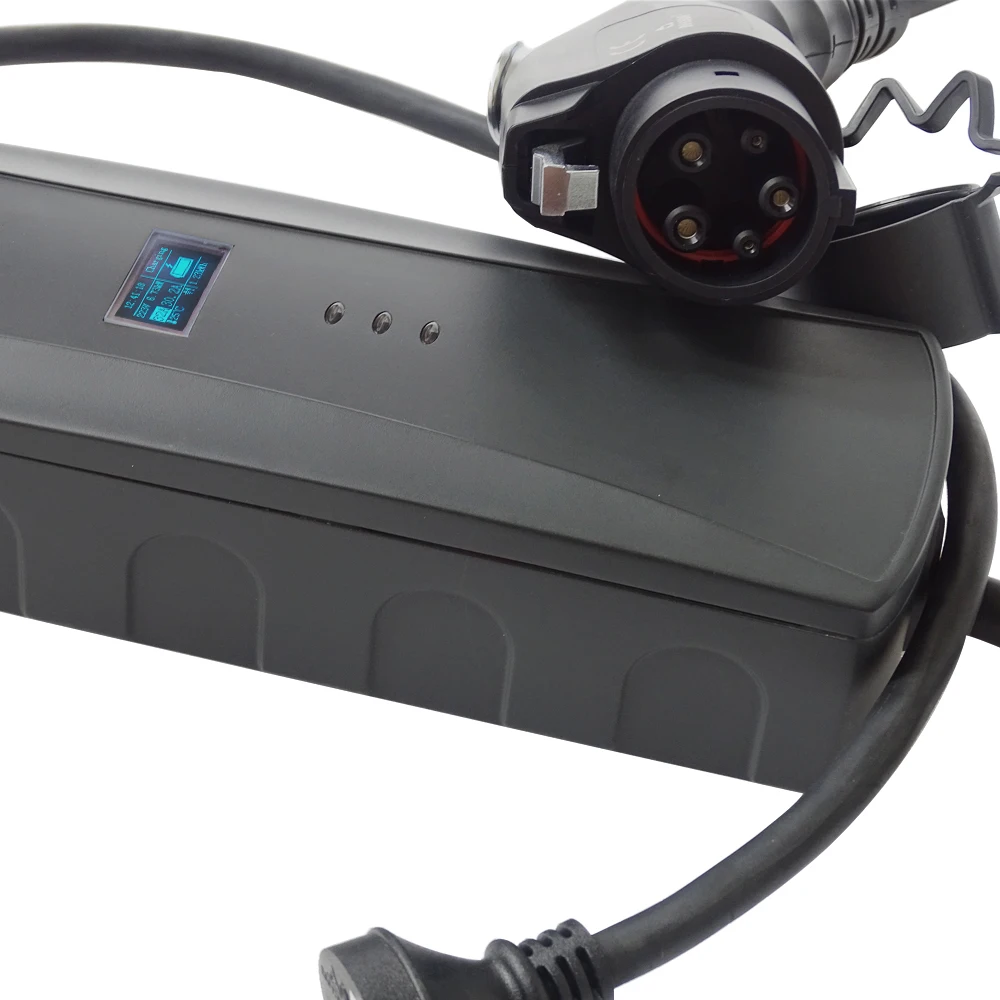

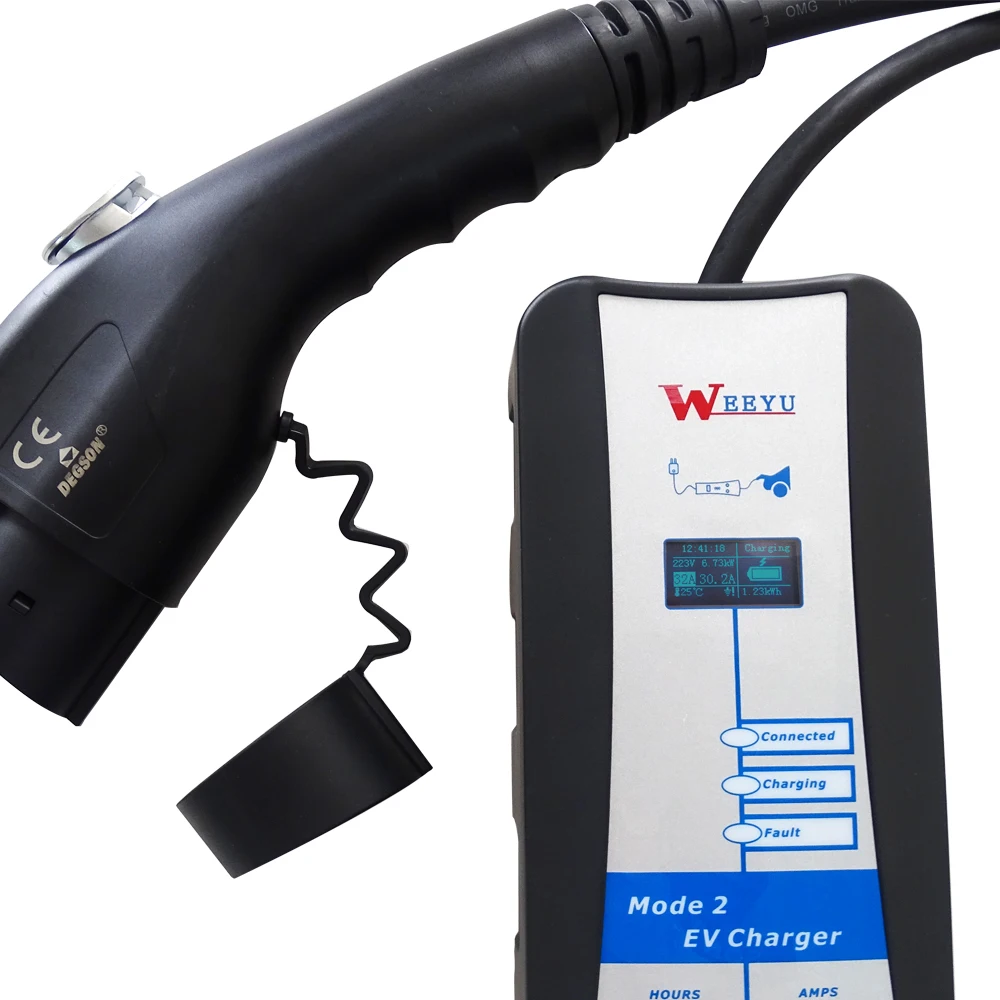

WEEYU Portable AC EV Charger
PRODUCT PARAMETERS
Power Specification | ||||||||
AC Power Input Rating | SAE Standard | IEC Standard | ||||||
AC Level 2 | 1-Phase | |||||||
240V | 220V ± 15% | |||||||
AC Power Output Rating | 3.5kW | 3.5kW | 8/10/13/16A | |||||
7kW | 7kW | 8/10/13/16/32A | ||||||
Rated Frequency | 50/60Hz | 50/60Hz | ||||||
Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||||||
User Interface & Control | ||||||||
Charging Control | Plug and Play | |||||||
Display Screen | 1.3-inch LCD Screen | |||||||
Indicators | 3 LED indicators-Power/Charging/Fault | |||||||
Environmental | ||||||||
Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||||||
Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||||||
Operating Humidity | Up to 95% non-condensing | |||||||
Altitude | ≤2000m | |||||||
Protection | ||||||||
Protection Ratings | IP 66 | RCD | Type A / Type B | |||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||||
Over-temp Protection | Yes | Surge Protection | Yes | |||||
Wallbox Mechanical | ||||||||
Dimension (H x W x D, mm) | 405 x 300 x 115 (dimension without charging cable) | |||||||
Weight | ＜5kg | |||||||
Charging Cable Length | 5m or Customize Length | |||||||
Enclosure Material | PC | |||||||
PRODUCT INTRODUCTION
✔ 3 indicator lights (indicate 3 status include power, charging and fault).
✔ Current adjustment button: select an output current as follow, 8A/10A/13A/16/32A
✔ Delay Control Button: set the delay time to start charging.
✔ OLED screen: display charging current, voltage, output energy, charging time, state information, fault information and etc.
✔ According to customer requirements, the portable EV charger can be equipped with the above plugs. And charging connector can meet IEC 62196-2 or SAE J1772.
RECOMMOND PRODUCTS
ABOUT WEEYU
WEEYU is a manufacturer specializing in EV Charging products include EV charging stations, EV cables and EV connectors. Meanwhile, we also offer product customization service upon the request in order to meet the local market preferences and needs. We strive to provide constantly updated products, perfect project solutions and efficient after-sales service to ensure our customers rank top in the market. We are committed to become the most professional EV charging equipment manufacturer in China and will keep working hard for it. Our factory has sufficient capacity to accommodate large scale production of EVSE.
FAQ
Q1: What is your terms of payment? |
A: We will recommend our customer to use different terms of payment based on difference in quantity of order. |
Q2: Do you test all your goods before delivery? |
A: Yes, we have 100% test before delivery. |
Q3:Can you produce according to the samples? |
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
Q4: What is your terms of packing? |
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
Q6: Are you Trading Company or manufacturer? |
A: We are professional EV charger manufacturer. |
