 5 inch ALL IN ONE CCTV Tester

 5 inch IPS touch screen, 1920x1080 resolutions

 8MP CVI/ TVI/ AHD camera test

 8MP EX-SDI, HD-SDI, 3G-SDI test

 H.265 & H .264 4K camera’s mainstream video display.

 VGA input, support 1920 x 1200P 60FPS

 HD  Input, support 4K 30FPS

 DC12V 3A, 48V POE power output

 Rapid ONVIF, create the test report and modify IP address, etc.

 Auto HD, auto recognize HD coax camera type and resolution

 RJ45 TDR cable test, cable quality test

 UTP cable test, detect the near-end, mid-end and far-end fault point

of the network cable crystal head.

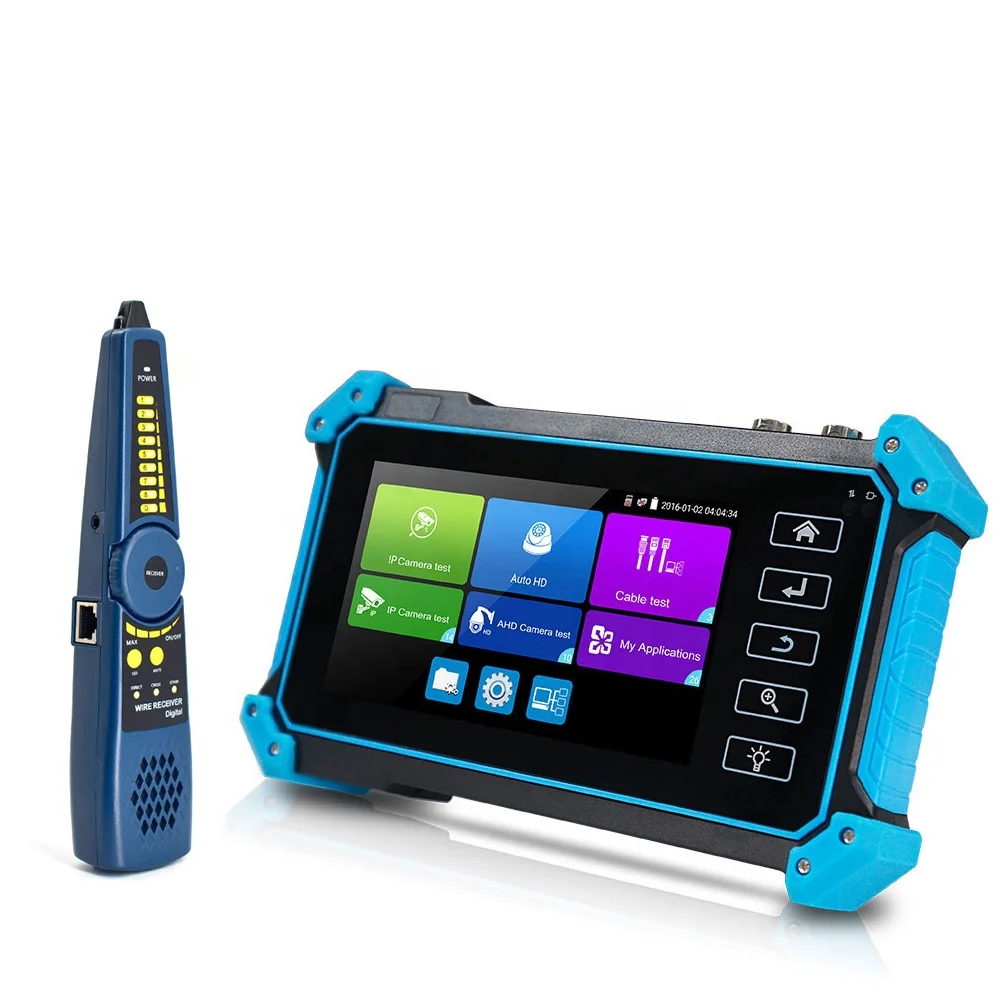

The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920 x 1080 resolution enables it to display network HD cameras and coaxial cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If multiple functions are integrated in one device, CCTV engineering will be implemented more efficiently.

—CCTV system installation and maintenance

—Network cabling project installation and maintenance

—Dome camera, TVI/CVI/AHD camera, IP 4K H.265 camera testing

—HD-SDI/3G-SDI/EX-SDI camera testing

—Video transmission channel testing

—PTZ controller

Camera test:

 5 inch IPS touch screen, 1920 x 1080 resolutions.

 H.265 & H .264 4K camera’s mainstream video display.

 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, 4x zoom, video record and playback, coaxial PTZ control and call OSD menu.

Display genuine resolution of the IP camera image.

 Audio in, support record and save the audio.

 Application tools, LED lamp, calculators, music players etc.

The K52 and K51 have 7.4 V /3350mAh Lithium Ion Polymer Battery, when the battery is fully charged, it lasts about 6 hours.

 The K50 have 7.4 V /2600mAh Lithium Ion Polymer Battery, when the battery is fully charged, it lasts about 5 hours.

8MP AHD camera test, 3840 x 2160P 15 FPS, 4x zoom, video record and playback, coaxial PTZ control and call OSD menu.

 8MP CVI camera test, 3840 x 2160P 12.5/15FPS, 4x zoom, video record and playback, coaxial PTZ control and call OSD menu

 8MP EX-SDI camera test, 3840 x 2160P 25/30FPS, 4x zoom, video record and playback, coaxial PTZ control and call OSD menu.

3G-SDI test, 1920 x 1080P 50/60 FPS, 4x zoom, video record and playback, coaxial PTZ and call OSD menu.

 Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record and playback, coaxial PTZ control and call OSD menu.

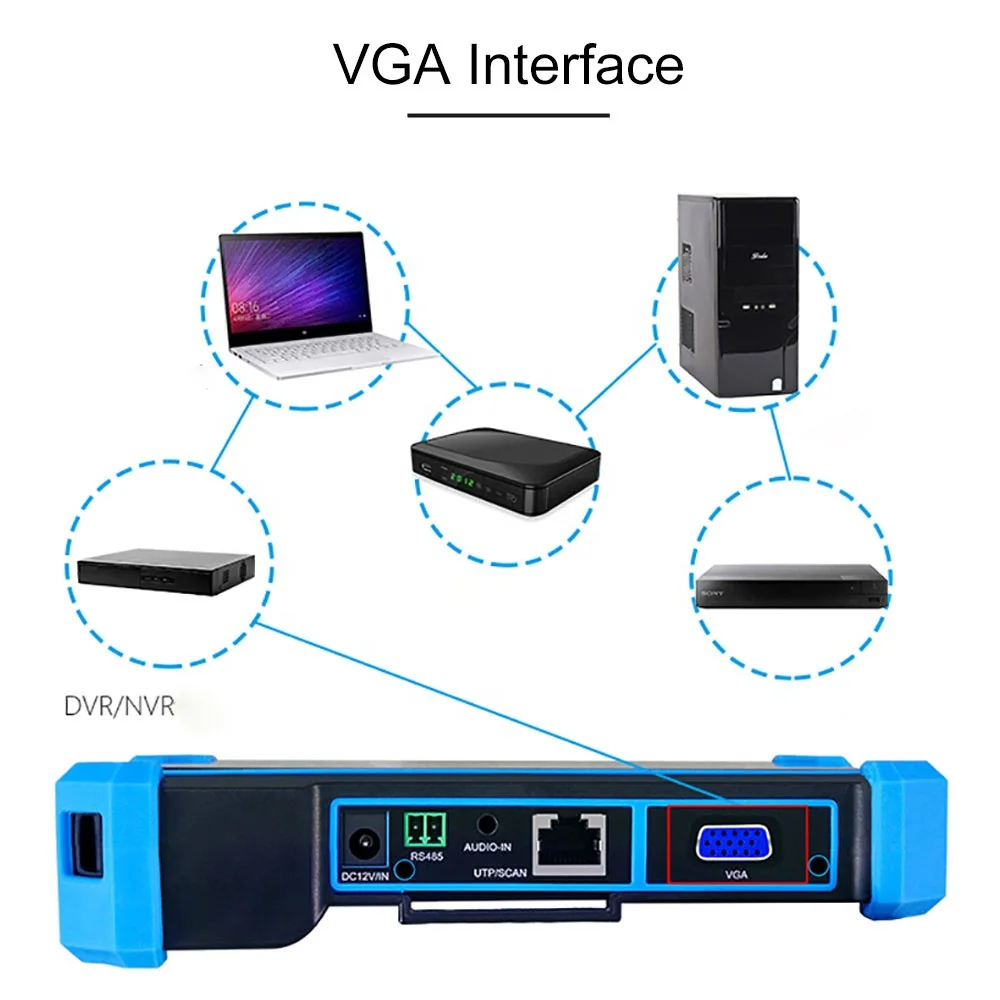

 VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback.

 HD  input, up to 4K 30FPS, and support snapshot, video record& playback.

 Rapid ONVIF, Auto log in and display image, create testing report.

 IPC test pro software, auto scan all network segments IP, auto open POE power and display the power supply. Input username and password, can preview camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and camera test tools.

Webcam test, enter ONVIF app, input username and password to test.

 HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, and can quickly switch the video encoding formats of the camera to H.264 or H.265, open wide dynamic mode. Factory restore, etc.

 Dahua test tool, support batch activate DAHUA cameras and modify IP address, change user name and password. Self-defined modify channel name. Factory restore, etc.

 Display IP and analog camera’s image at the same time.

IPC TEST (used to test Non-ONVIF protocol camera), HIK test tool (for the Hikvision camera), DH test tool (for the Dahua camera).

 CVBS camera test, PTZ controller.

DC12V/3A power output port, which can be used for temporary power supply of camera.

 Rapid Video software, just by one key to detect all network cameras and auto display.

Built in Wi-Fi, which can be used to connect wireless camera image, and create WIFI hotspot.

Item chart
