Качественное оборудование для Извлечения мелкого этанола извлечения нефти
- Категория: Extractor >>>
- Поставщик: Xian,Toption,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.16 $* | 0.16 $* |
| Aug-18-2025 | 0.76 $* | 0.57 $* |
| Jul-18-2025 | 0.15 $* | 0.19 $* |
| Jun-18-2025 | 0.75 $* | 0.58 $* |
| May-18-2025 | 0.98 $* | 0.24 $* |
| Apr-18-2025 | 0.22 $* | 0.37 $* |
| Mar-18-2025 | 0.66 $* | 0.46 $* |
| Feb-18-2025 | 0.80 $* | 0.0 $* |
| Jan-18-2025 | 0.29 $* | 0.84 $* |
Характеристики
Product Description

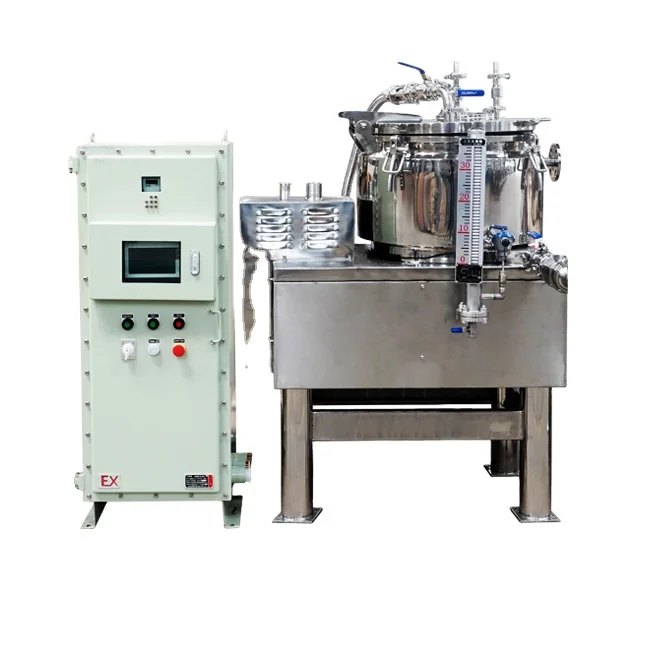

TOP-C series centrifuges are specially used for the separation and extraction of ethanol from plant raw materials. Put the dried plant raw materials in bag and wash in two directions by immersing in ethanol. After washing, the plant material is dried with medium strength even high-speed spin drying, so as to remove ethanol as much as possible from the plant material,the ethanol washing solution is collected in a container for further processing.
Main parameters | TOP-C15 | TOP-C30 | TOP-C50 | TOP-C110 | TOP-C160 |
Vessel diameter(inch) | 12 | 18 | 24 | 32 | 40 |
Vessel volume(L) | 18 | 48 | 110 | 251 | 393 |
Biomass/batch（lbs） | 15 | 30 | 50 | 110 | 160 |
Alcohol solvent (L) | 57 | 110 | 201 | 377 | 546 |
Standard Max speed(r/min) | 3000 | 2000 | 1500 | 1000 | 900 |
Optional 1： speed | 4000 | 3000 | 2000 | 1500 | 1200 |
Main motor power (kw) | 2.2/3 | 3/4 | 5.5/7.5 | 7.5/11 | 11.0/15 |
Vessel load-bearing (lbs) | 25 | 50 | 100 | 320 | 450 |
Dimension (L*W*H)mm | 850*610*900 | 980*680*1000 | 1350*990*1300 | 1700*1200*1500 | 1970*1400*1500 |
Machine weight(kg) | ≈300 | ≈500 | ≈800 | ≈1400 | ≈1900 |
Production process
Process Overview:
* Operator fills filter bag with milled plant material and places it into the machine.
* Then flooded the centrifuge, and bi-directionally agitated for full target compound removal.
* After washing, the plant material undergoes a high speed spin dry to remove the liquid as much as possible.
* The alcohol wash is then collected to containers for further processing.
* Operator fills filter bag with milled plant material and places it into the machine.
* Then flooded the centrifuge, and bi-directionally agitated for full target compound removal.
* After washing, the plant material undergoes a high speed spin dry to remove the liquid as much as possible.
* The alcohol wash is then collected to containers for further processing.
