Балансировщик активного аккумулятора Bluetooth 2A эквалайзер подходит для литий-ионных литиевых батарей 2S-24S Lifepo4
Балансировщик активного аккумулятора Bluetooth 2A эквалайзер подходит для литий-ионных литиевых батарей 2S-24S Lifepo4
Балансировщик активного аккумулятора Bluetooth 2A эквалайзер подходит для литий-ионных литиевых батарей 2S-24S Lifepo4
Балансировщик активного аккумулятора Bluetooth 2A эквалайзер подходит для литий-ионных литиевых батарей 2S-24S Lifepo4
Балансировщик активного аккумулятора Bluetooth 2A эквалайзер подходит для литий-ионных литиевых батарей 2S-24S Lifepo4
Балансировщик активного аккумулятора Bluetooth 2A эквалайзер подходит для литий-ионных литиевых батарей 2S-24S Lifepo4

Балансировщик активного аккумулятора Bluetooth 2A эквалайзер подходит для литий-ионных литиевых батарей 2S-24S Lifepo4


Поделиться:


Цена:110,00 $ - 160,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 131.38 $* 138.49 $*
Aug-18-2025 130.25 $* 137.66 $*
Jul-18-2025 109.40 $* 114.6 $*
Jun-18-2025 128.12 $* 134.9 $*
May-18-2025 111.69 $* 117.7 $*
Apr-18-2025 125.19 $* 131.49 $*
Mar-18-2025 124.52 $* 130.89 $*
Feb-18-2025 123.36 $* 129.5 $*
Jan-18-2025 122.15 $* 128.31 $*

Характеристики







Products Description


◆Support 2～24 battery packs;
◆ Real-time, active, energy transfer balance, the voltage difference between the batteries after balance is ≤5mV;
◆ The battery voltage range is 1V～5V, and the accuracy is ±5mV;
◆ Support all battery types such as ternary, iron-lithium, lead-acid, super capacitor, etc.;
◆ Equilibrium current is independently set in the range of 0.1～2A, independent of battery pressure difference;
◆ Supports balanced cascading to be suitable for battery packs with more than 24 strings, theoretically unlimited cascading;
◆ Bluetooth communication function, equipped with mobile phone APP, support Android and IOS, real-time check battery status;
◆ Balance line resistance detection, find wiring errors in advance;
◆ Power supply range: 40V~100V;
◆Low voltage shutdown function to prevent battery damage.

Use environmental conditions
◆Operating temperature range: -20℃～70℃;
◆ Power requirements: 40~100V, can use battery self-powered or external power supply.
◆ Power consumption: 10mA@100V in balanced state, 6mA@100V in unbalanced state.


Product name

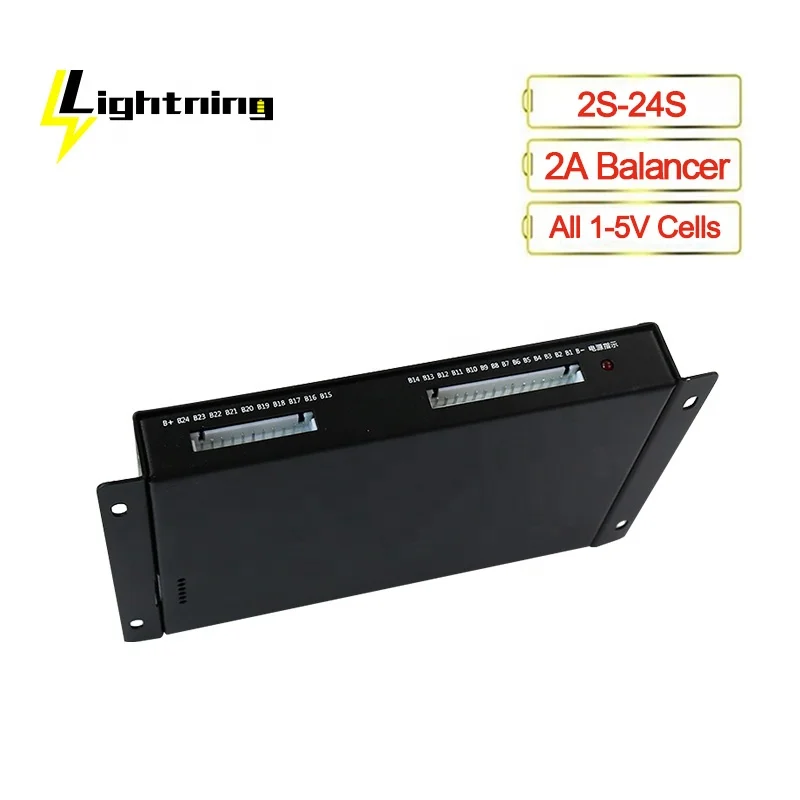

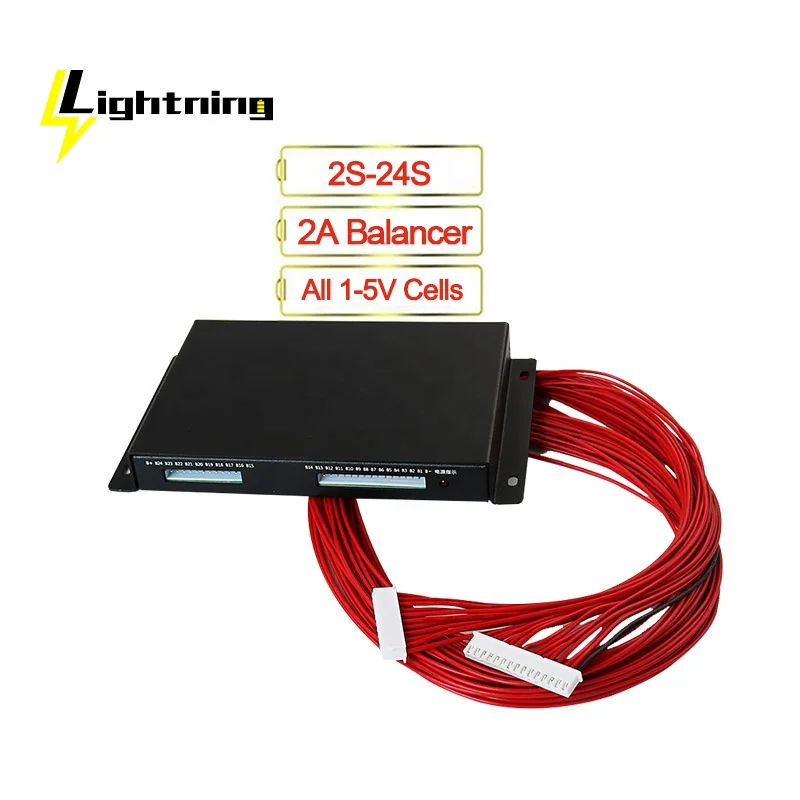

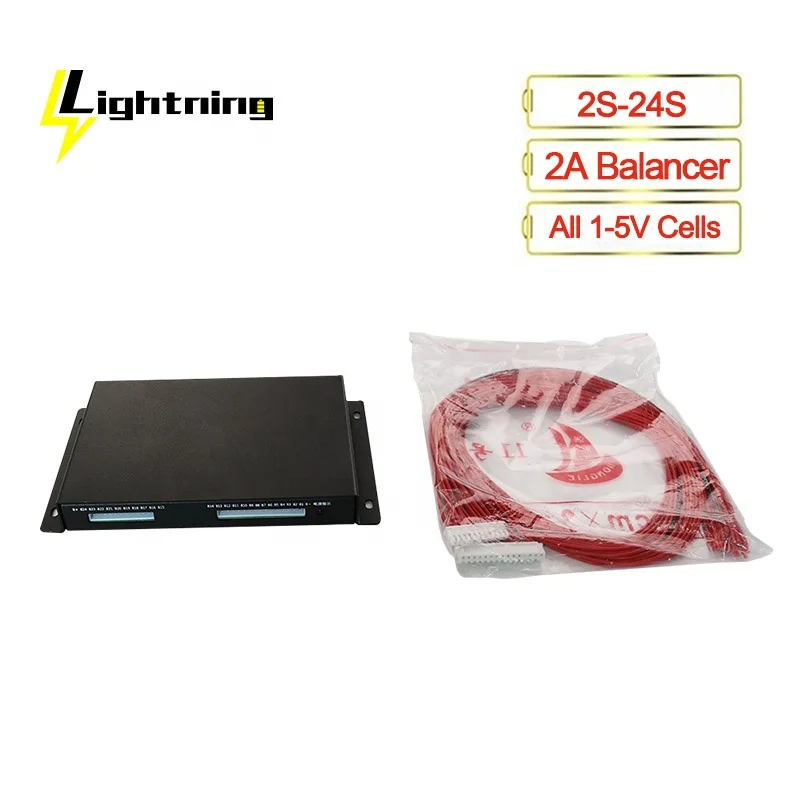

Bluetooth 2A Active Battery Balancer Equalizer suit for 2S-24S Li ion Lifepo4 LTO Lithium Battery
Support series
2-24S
Applicable battery type
Lifepo4 (3.2V）,Li-ion(3.7V),LTO(2.3V) and Lead Acid which single cell 1-5V
Protection function
Active voltage balance,Over discharge protection，Overcharge protection，Short circuit protection，Temperature protectionVoltage balancing
Current
0.1-2A
Accuracy
±5mV
Power supply range:
40V~100V;
Internal resistance
≤10mΩ
Self-consuming
Equilibrium state:10mA@100V
Disequilibrium state:6mA@100V
Size

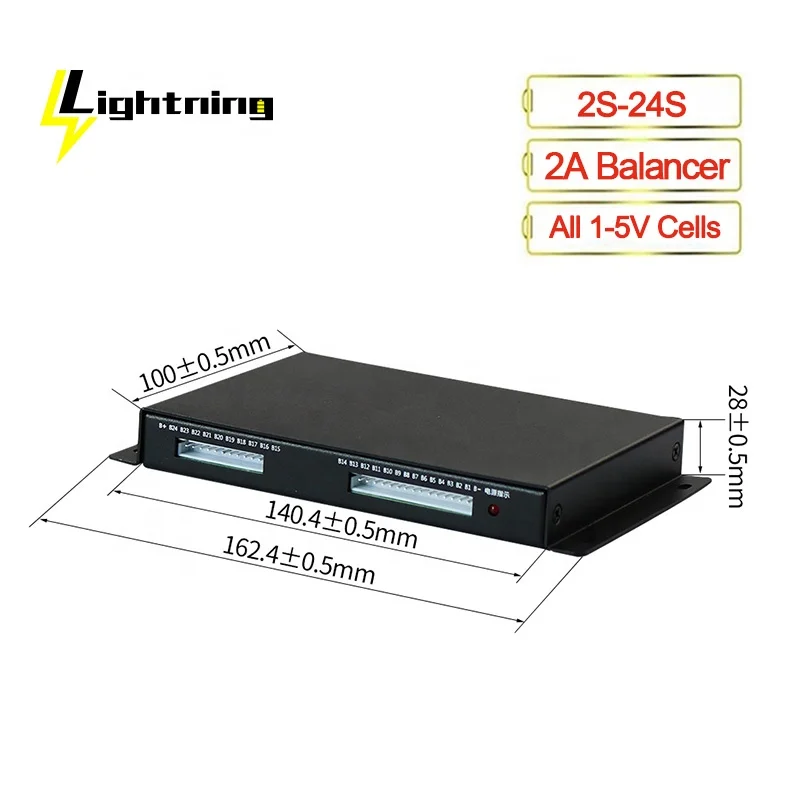

163*100*28mm


For More Specification Click Here
























Why Choose Us




Company Profile

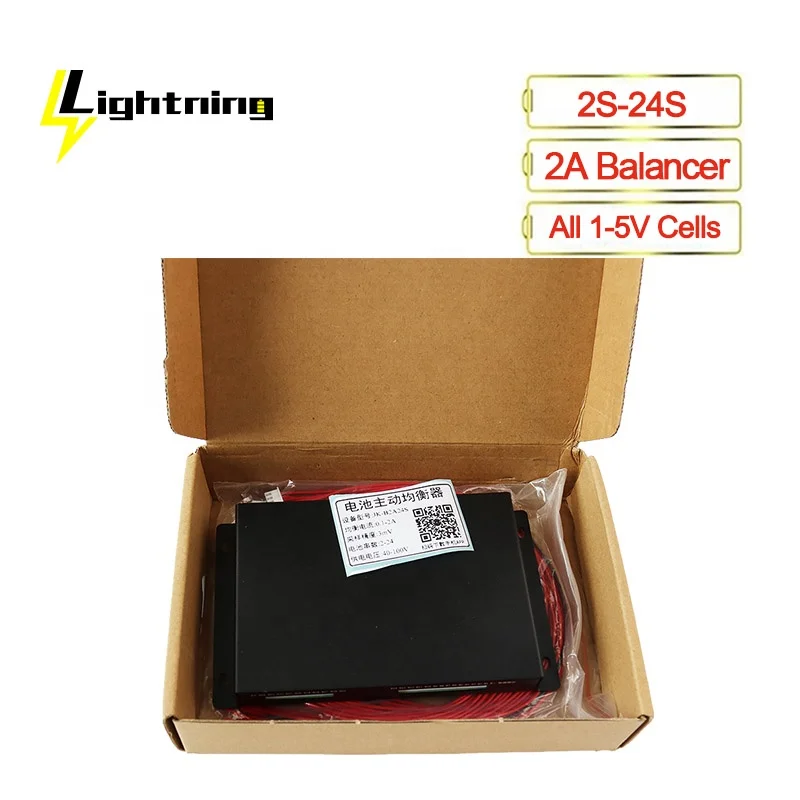

Product packaging




Packing
1). Best Quality 5-layers exporting carton or Customized Outer Packaging for Paper Bags;
2). Carton Size: Customized or based on actual weight and volume.

Shipping
1). By Express (3-45working days),there are express shipping or economic shipping,suitable for Small Quantity.
2). By Sea (15-30 days), it suitable for regular Mass Production.

Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your budget and meet your need !


FAQ


Why Battery Packs Need BMS
Lithium batteries are known to have no protection of their own.The main function of lithium battery protection board(BMS) is to protect the battery from overdischarge, overcharge, overcurrent and short circuit protection, etc.


How to Select BMS
What is the discharge you choose depends on the power of your motor and the controller.
Current limiting, instantaneous current. The current of the BMS must be greater than that of the controller current limiting
value.If need any help please contact with our sales.


What is the balance function of the BMS?
When one piece of your battery voltage reaches (Ternary lithium-ion 4.18V, LiFePO4 lithium-ion 3.6V)the balance will be turned and the equalization resistance of BMS will start at 35MA current for discharging (When equalization starts discharging, the back of the protective plate will heat up. This is positive Frequent reaction.) This battery will be charged while it is discharging, and the rest is not yet achieved(Ternary lithium-ion 4.18V, LiFePO4 lithium-ion 3.6V) is charging only, until the highest one reaches(Ternary lithium-ion 4.25V, LiFePO4 lithium-ion 3.75V), it will be disconnected and all other batteries will stop charging. Themain function is to let each batteries are equally charged.If the voltage gap is large, then equalization function has littleeffect.


How to Choose Charger
Lithium batteries must be charged with lithium
battery type chargers, and lead-acid battery chargers should not be used. If the lead-acid battery charger is used, it may damage protection plate(BMS) and cause the overcharge and unprotected of the battery pack.
Calculating method of charging voltage of lithium battery: Series X overcharging voltage = charging voltage. (Ternary lithium:Series number X4.2V;LiFePO4 lithium: Series number X3.6V)
For example,if Ternary lithium battery pack is 10S,the charger voltage should be 10X4.2=42V
