Eaton airflex 12CB350 142098

Категория: Industrial Brake >>>
Поставщик: Henan,Dalin,Rubber,And,Telecommunications,Apparatus,Co.,Ltd.

Цена:50,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	60.56 $*	63.45 $*
Aug-16-2025	59.26 $*	62.24 $*
Jul-16-2025	50.66 $*	53.58 $*
Jun-16-2025	58.38 $*	61.79 $*
May-16-2025	51.28 $*	54.19 $*
Apr-16-2025	57.31 $*	60.30 $*
Mar-16-2025	57.81 $*	60.53 $*
Feb-16-2025	56.54 $*	59.50 $*
Jan-16-2025	56.78 $*	59.29 $*

Характеристики

Product Description

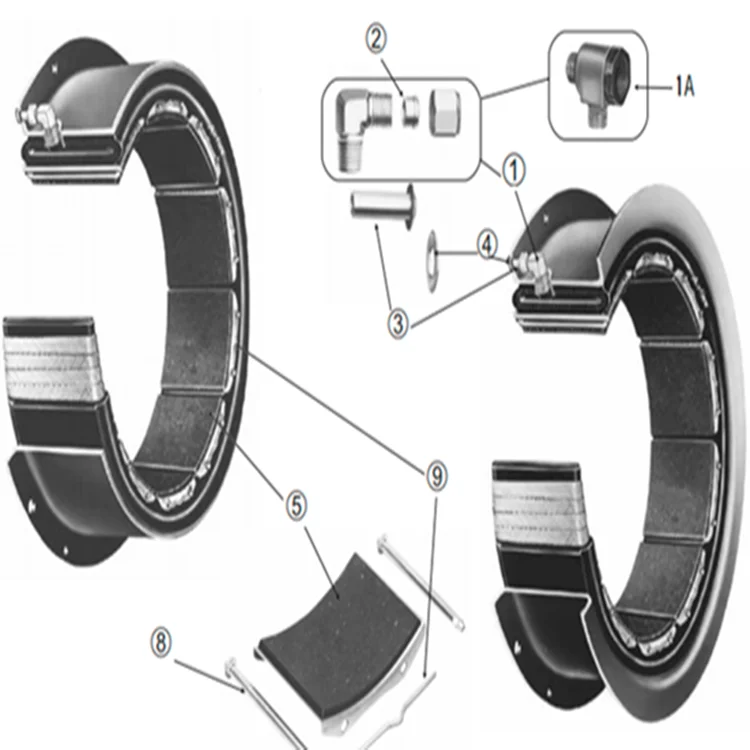

CB Clutch is a kind of drum type air clutch, it consist of rim,air tube, firction shoe assembly, shoe pin, lockwire.

Except this CB element , we also has VC clutches brakes, Disc clutches brakes and its spare parts, such as friction disc,pressure plate,center plate, floating plate,etc.

Size	12CB350
Brand	Dalin
Interchangeability Brand	Eaton airflex, Fawick clutch, Gummi,Coremo,OSI
Eaton PN	142098JA/142098JC/142098JH/142098JB,142098JG,142098JN,142098Z,142098KG,142098KF
Delivery time	In stock
Weight	15kgs
Package	Carton box
Spare part	FSA(friction shoe assembly)
Warranty	12 months
Other sizes	6CB200,8CB250,10CB300,12CB350 14CB400,16CB500,18CB500,20CB500 22CB500,24CB500,26CB525,30CB525 32CB525, 36CB525,45CB525

Details:

Size 10CB300

One flange

One air inlet & two air inlet

10pcs friction shoe

Stardard pressure 5.2Bar

Max air pressure 7.5Bar

Color: Gold or Blue

MOQ 1PC

PLEASE DO NOT INFLATE IT WITHOUT HAVING A DRUM IN PLACE!

Application:

Marine

Mining

Oilfied -Drilling rig

Textile Machine

Rubber -Tire builders

Printing machine-Book Binder

Paper Machine

Commercial washing Laundry

Leather -Blade grinder

Detailed Images

10CB300 *Drum Type* Air clutch

Interchangeablity* Eaton airflex*Fawick*NPR*Coremo*Gummi

Size Information

Specification:

Size from 4CB200 TO 45CB525

SIZE	Rated speed nr/min	Rated torque N·m	Working pressure Mpa	OD MM	ID MM	Thickness MM	Bolt No.
4CB200	2000	113	0.7±0.1	184.1	105	67	8
6CB200	1800	231	0.7±0.1	273.1	156	75	8
8CB250	1800	485	0.7±0.1	327	207	87	8
10CB300	1800	921	0.7±0.1	390.5	257	105	12
12CB350	1800	1500	0.7±0.1	447.7	308	120	14
14CB400	1800	2230	0.7±0.1	498.5	359	133	16
16CB500	1550	3980	0.7±0.1	596.9	411	168	8
18CB500	1400	4970	0.7±0.1	647.7	462	168	12
20CB500	1300	6060	0.7±0.1	698.5	513	168	12
22CB500	1250	7040	0.7±0.1	749.3	564	168	12
24CB500	1200	8480	0.7±0.1	800.1	614	168	16
26CB525	1100	10400	0.7±0.1	863.6	665	176	16
28CB525	1000	12000	0.7±0.1	914.4	716	176	16
30CB525	950	13700	0.7±0.1	965.2	767	176	16
32CB525	900	15500	0.7±0.1	1016.0	818	176	18
36CB525	800	19400	0.7±0.1	1133.5	919	176	18
40CB525	750	23800	0.7±0.1	1235.1	1021	176	20
45CB525	670	29400	0.7±0.1	1362.1	1148	176	24
