Product Description

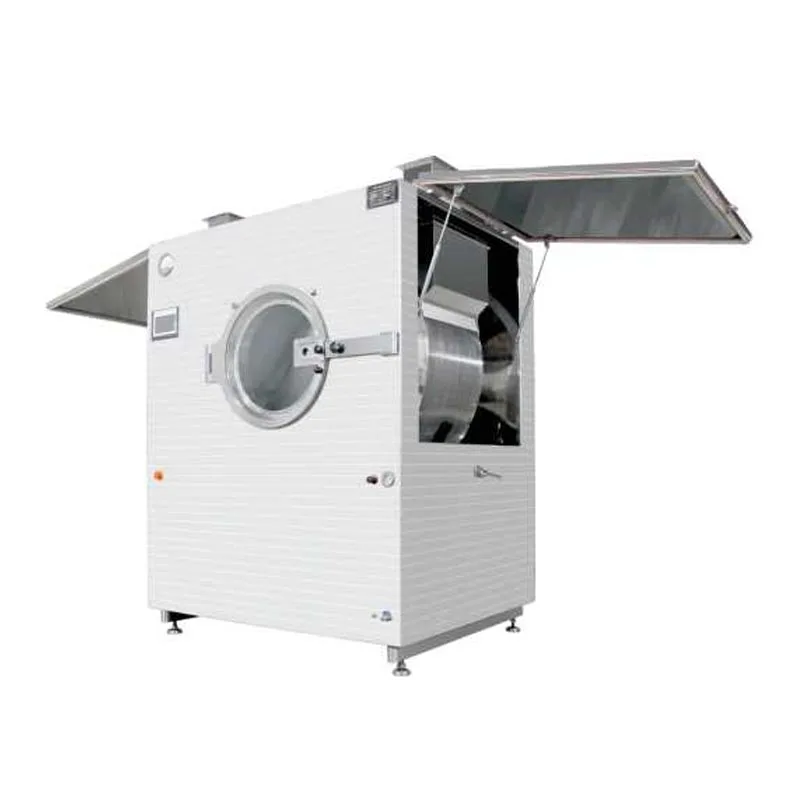

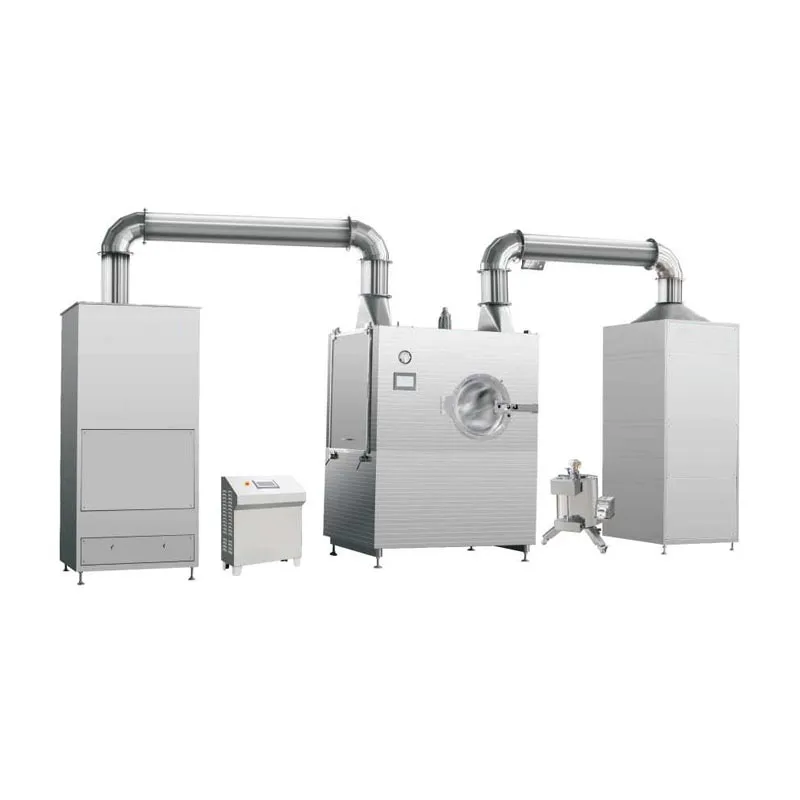

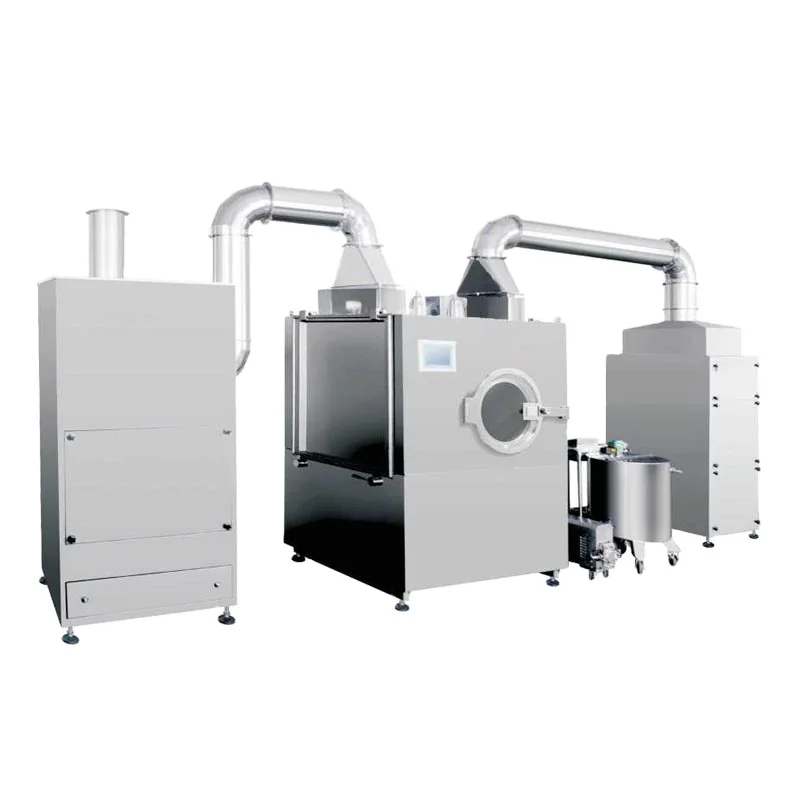

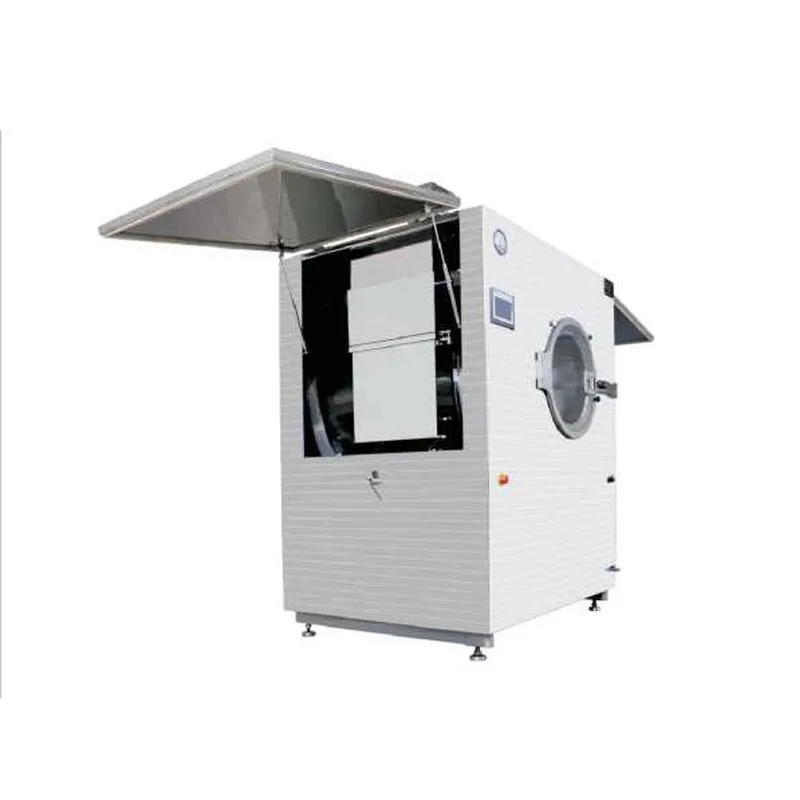

High efficient intelligent coating machine
The BG coating machine is mainly used in medicine and food industries. Metting GMP requirement, it is a kind of mechanically and electrically integrated coating equipment with high efficiency, energy conservation, good safety and good cleanliness for organic film coating, water soluble coating, dripping pill coating, sugar coating, chocolate and candy coating of tablets, pills and candies.
Principle:
Under the rotation action of the coating roller, the tablets or pills to be coated make continuous movement in the roller, The peristaltic pump conveys the coating media to the spray gun for spraying them on the surfaces of the tablets or pills to be coated. Under negative pressure, the inlet air handling unit supplies clean hot air to tablet bed according to the set procedures and process parameters to dry the tablets or pills. The hot air is discharged from the outlet air handing unit at the bottom of the larer of tablets or pills, so that the coating media sprayed on the tablets or pills rapidly form solid. dense, flat and smooth film to complete the coating operation.
Details Images
Technical parameters
Model | BG-5 | BG-80 | BG-250 | BG-400 |
Maximum capacity | 5 | 80 | 250 | 400 |
Roller speed adjustment range(rpm) | 2-25 | 2-20 | 2-15 | 2-15 |
Main machine outline dimensions(L*W*H) | 900*800*1700 | 1210*1000*2100 | 2000*1550*2550 | 2050*1680*2650 |
Coating roller diameter | φ400 | φ940 | φ1500 | φ1580 |
Hot air temperature control range(℃) | ＜80 | ＜80 | ＜80 | ＜80 |
Feature：
1.The control syster consisting of PLC and HMI is designed reasonably with flexible programming,meeting various pharmaceutical process requirements with reliable work and stable performance and conforming to GMP requirements.
2.Under the action of the steamlined dicersion plate mixer,the tablets or pills turn smoothly and exchange frequentky,so that the occurrence of the tablets or pills dropping from high position and colliding is eliminated,broken edges are avoided and the rate of finished products is enhanced. The upper surface of the diversion plate is narrow,avoiding the adhesion of dressing onto its surface,saving the dressing and improving medicine quality.
3.The returen flow pipe is canceled in the constant pressure variable peristalic pump.The rotation radius of the roller changes with the change of pressure,so that the output paste and paste volume are automatically balanced,and atomizing effect is stabilized,the spray system is optimized,the blocking of the spray gun is avoided,the dressing is saved.In addition,it is easy to clean without any dead corners.
4.It adopts the new type spray gun with even atomizing,large spraying area,adjustable direction.The nozzle is not affected by the loading volume,the device for cleaning and blocked spray gun can ensure continuous coating,shorten coating time nad save coating dressing.
5.Quantitative display and control of technical parameters are realized.SOP operation can be compiled to guide the operation by using quantitative indicators and ensure the consistence of quality of each batch of medicine,fully meeting GMP requirements.
