Характеристики
Product Description

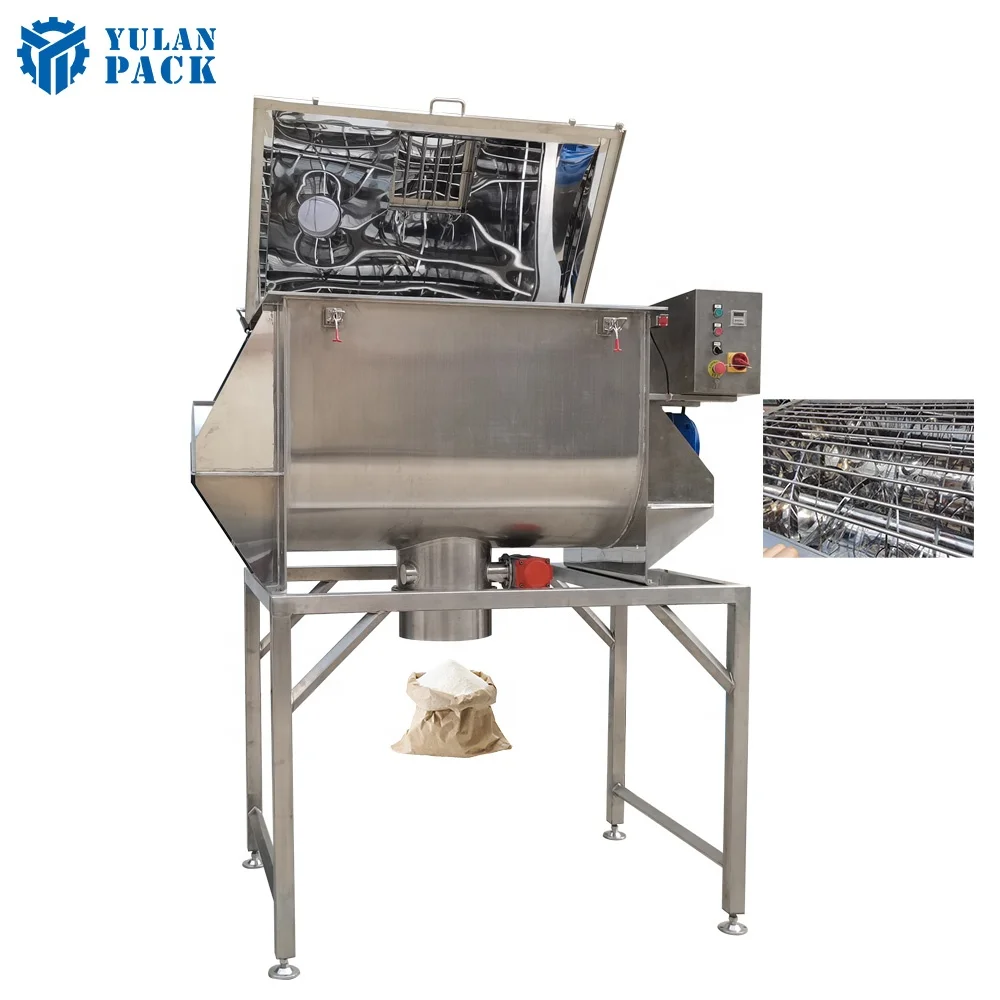

1. What is a ribbon blender？
Ribbon blenders are made of shell having a U shape in which is rotating an agitator. The agitator is designed as a double helical ribbon which allows to create convective movement of the materials in 2 directions achieving mixing of powders and bulk solids.
2.What is a ribbon blender used for ?
Ribbon blenders are actually used in many industries and applications : pharmaceuticals, food and bakery, cosmetics,
plastics,spices, mixes for drinks, cements grouts and mortars, coffee and tea, tobacco...
plastics,spices, mixes for drinks, cements grouts and mortars, coffee and tea, tobacco...
3.Mixing operating parameters
* Mixing batch size : 70-80% of mixer total volume. Visually, the top of the blades must be slightly above the level of product,and some head space to the top cover must always be available. It is a very common problem to find ribbon blenders overloaded which is strongly decreasing their performance. To be noted that it is not advised to under-fill a ribbon blender, since the level of powder must reach inner ribbon in order to be moved and thus mixed.
* Mixing speed : one should follow the supplier's recommendation, typical mixing speed for medium size blenders (500-2000 l) is around 50 rpm
* Small and Minor ingredients to be introduced in the mixer after the main ingredients (or in sandwich), preferably in the
central area of the mixer
* Mixing speed : one should follow the supplier's recommendation, typical mixing speed for medium size blenders (500-2000 l) is around 50 rpm
* Small and Minor ingredients to be introduced in the mixer after the main ingredients (or in sandwich), preferably in the
central area of the mixer
4.Main Technical Data
Model | YH-100 | YH-200 | YH-300 | YH-500 | YH-1000 | YH-1500 |
Capacity | 100L | 200L | 300L | 500L | 1000L | 1500L |
Total volume | 140L | 280L | 420L | 710L | 1420L | 1800L |
Total power | 3KW | 4KW | 5.5KW | 7.5KW | 11KW | 15KW |
Weight | 200kg | 250kg | 350kg | 500kg | 700kg | 1000kg |
Length(mm) | 1100 | 1370 | 1550 | 1773 | 2394 | 2715 |
Width(mm) | 750 | 834 | 970 | 1100 | 1320 | 1397 |
Height(mm) | 1300 | 1647 | 1655 | 1855 | 2187 | 2313 |
Radius of barrel(mm) | 210 | 277 | 307 | 377 | 450 | 485 |
Motor speed | 46 rpm | 46 rpm | 46 rpm | 46 rpm | 36 rpm | 32 rpm |
Shaft diameter(mm) | 57 | 57 | 76 | 76 | 83 | 102 |
Tank body thickness(mm) | 3 | 3 | 3 | 4 | 4 | 4 |
Side body thickness(mm) | 6 | 6 | 8 | 8 | 10 | 12 |
Ribbon thickness(mm) | 6 | 6 | 6 | 6 | 8 | 10 |
5.Application
6.Electrical Brand
No. | Name | Brand |
1 | Stainless steel 304 | China |
2 | Circuit breaker | Schneider |
3 | Emergency switch | Schneider |
4 | Main Switch | China changxin |
5 | Contactor | Schneider |
6 | Heat relay | Schneider |
7 | Relay | Omron |
8 | Timer relay | Omron |
9 | Motor & reducer | China ZIK |
7.How to select a suitable ribbon blender？
1 | What is the expected throughput of the line ? What is the product density to be mixed ? What is the expected mixing time and cycle time ? | This will give the size of the ribbon blender to buy. Don't forget that the ribbon blender should not be filled at more than 80% of its total volume |
2 | Is it an application requiring cleaning ? | if yes, consider access doors on top of the blender to clean, consider safety locks on the access |
3 | Is the application handling an abrasive product ? | if yes, discuss with the ribbon blender supplier the alloy in which the blender can be supplied |
4 | How fast is the blender to be discharged ? | This will give you the inputs necessary for the discharge valve |
5 | Is it in ATEX(powder explosion risks) area ? | If yes, the blender must be certified, the clearance paddle / housing guaranteed, the seals of bearing must be pressurized. |
6 | Optional Device | 1.Liquid spraying device 2.Frequency inverter |
8.Product Details
9.Real Show
Mixer size
The capacity of the installation should be a given and a batch size should be chosen in consequence, considering as well an estimated number of batches / h
Batch size (kg) = Capacity (kg/h) / Number batches per hour (/h)
Batch size (kg) = Capacity (kg/h) / Number batches per hour (/h)
Batch size (l) = Batch size (kg) / Loose density mix (kg/l).
Total mixer size (l) = Batch size (l) / 0.7.
Mixers have maximum filling coefficient in between 0.65 to 0.8 usually.
Mixers have maximum filling coefficient in between 0.65 to 0.8 usually.
Ribbon Blade &Safty Grid
Safety grid:Prevent people or other objects from falling into the tank.
Ribbon Blade:the ribbon is actually made in 2 parts, 1 external ribbon circulates the product in 1 direction while another ribbon located inside the 1st one moves the product in the other direction (it can be possible to have even more complex profiles to attempt
optimizing the mixing efficiency and thus the mixing time).
optimizing the mixing efficiency and thus the mixing time).

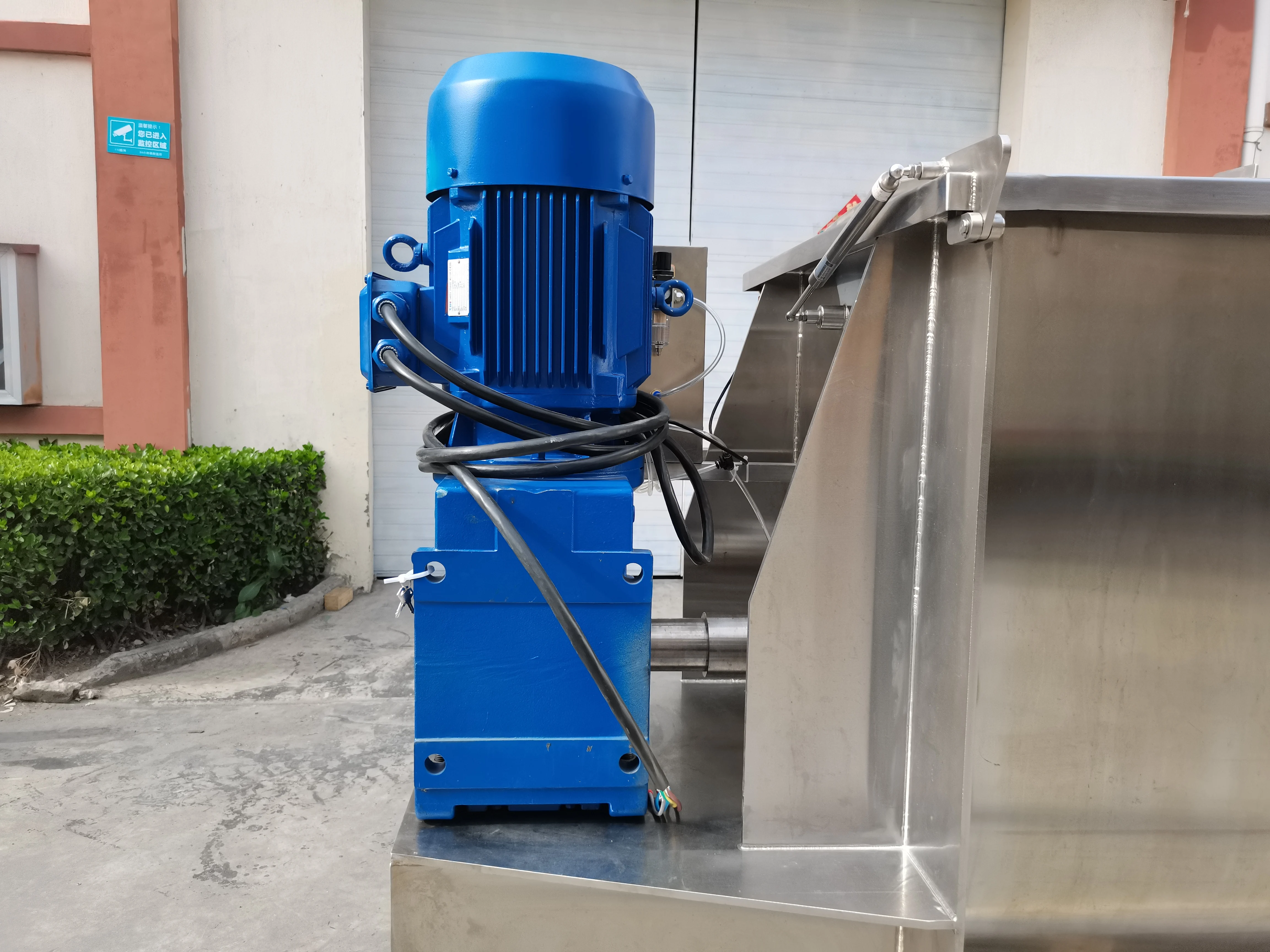

One-piece motor reducer
The blender’s drive arrangement is another major factor that varies from supplier to supplier. To date, the most reliable drive design is the one-piece motor reducer, also called a gearmotor. This direct drive arrangement is more efficient and compact compared to a belt drive.
Belt-driven and chain-driven ribbon blenders tend to suffer from horsepower and efficiency losses through slippage.
Hygienic round discharge valve
The valve has a round shape and, once closed, minimizes the gaps where product can settle and avoid being mixed
Air Purge Our Seals
1.When the air is piped from existing plant air directly into the seal, it creates pressure to push the rotor against the stator and closes the sliding interface to stop material from going into or out of the screw conveyor.
2.The air keeps the rotating seal faces cooler by reducing temperature caused by friction. This helps prolong the life of the seal as well. From our experience, customers usually get 1 to 2 times longer life out of their seals when they use air.
2.The air keeps the rotating seal faces cooler by reducing temperature caused by friction. This helps prolong the life of the seal as well. From our experience, customers usually get 1 to 2 times longer life out of their seals when they use air.
Dust cover
Prevent dust from entering shafts and bearings from outside
Operation panel
It controls the start, stop and discharge of the mixer through buttons.Simple and convenient, easy to operate.
Emergency stop button（e-stop）:When an emergency occurs, people can quickly press this button to achieve protective measures.
Electric control box
MOTOR CIRCUITS AND CONTROL
Use high-quality electronic components
Safety Locks
It placed on each access door, ensure the safety of the machine by preventing operator to access the mixer while it runs, or start the mixer if an access point is opened.
Observation window of top cover
It is convenient to observe the internal situation of the machine, and can also be used to add a small amount of mixed materials.
Company Profile
1.Factory Show
2.Certificate
3.Our Service
After- Sales Service
Training services: | We will train your engineer to install our machine. You can send your engineer to our factory . We will introduce your engineer how to install the machine and how to fix problem. |
Trouble shooting service: | Usually we will help you solve the problem quickly. Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. Of course,you need to afford the round trip flight ticket and accommodation fee. |
Spare Parts replacement: | For machine in guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare partsback. when machine is out of guarantee period, we will provide you the spare parts in cost price. |
FAQ
Q | Are you factory or trading company? |
A | We have two Yulan brand companies. Shanghai Yulan is a trading company for export trade Nantong Yulan is a factory for processing and production equipment. You can check these details in our CE certificate. |
Q | Can i visit your factory? |
A | Yes,you are always welcomed. |
Q | What's your warrantly and after-sale service? |
A | One year warrantly and lifelong after-sale service via skype/email/mobile/whatsapp. |
Q | What's the payment term? |
A | 30% T/T despoit and 70% T/T balance payment before shipping. |
Q | How long it takes for delivery? |
A | It takes about 20-40 working days. |
