80ton 120ton 160ton 200ton hydraulic solid tyre press tire

Описание и отзывы

Трекер стоимости

Характеристики

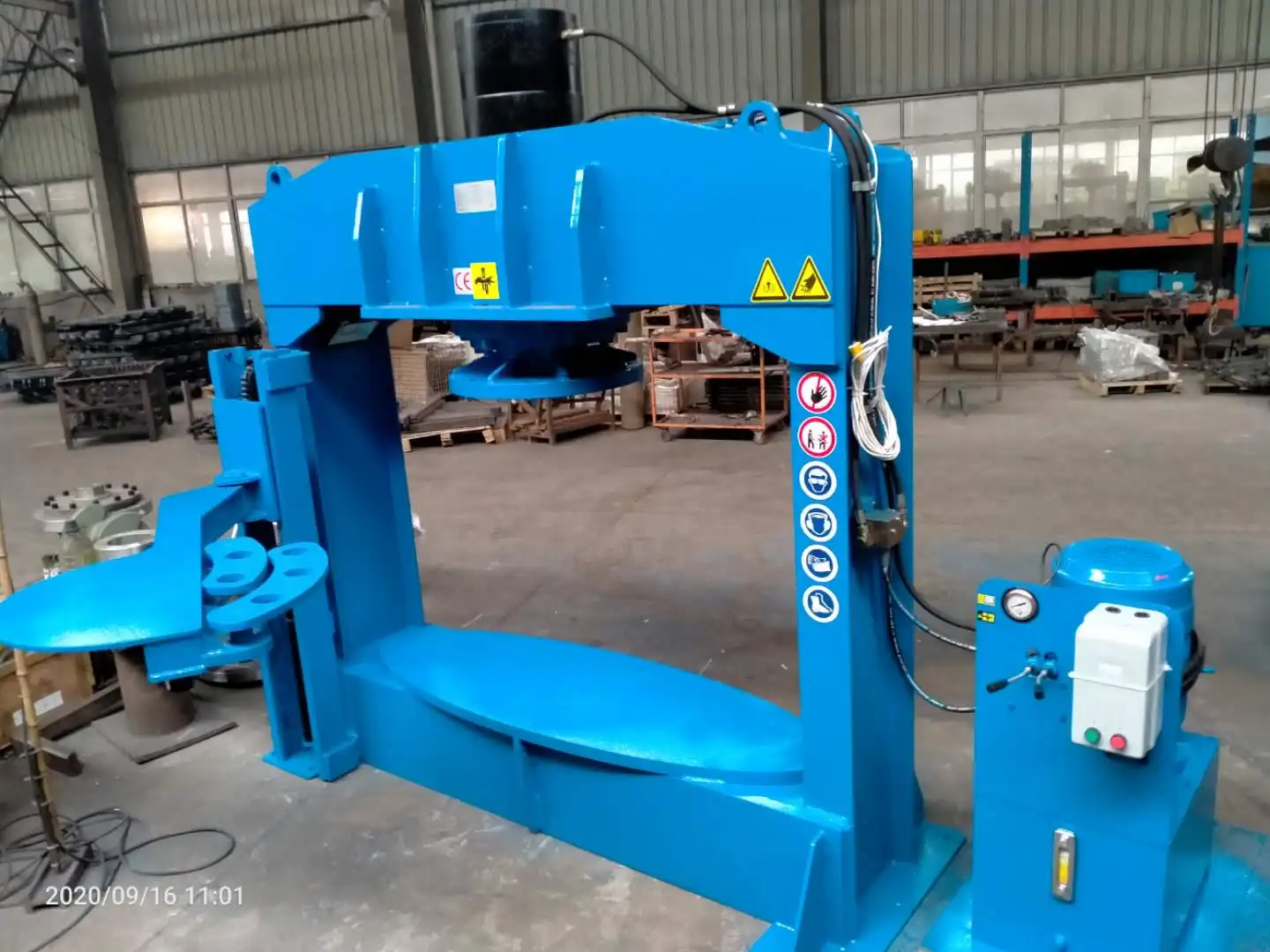

80ton 120ton 160ton 200ton hydraulic solid tyre press

Model		TP80	TP120	TP130	TP150/TP160	TP180/TP200	TP250/TP300
Pressure Capacity	T	80	120	130	150/160	180/200	250/300
Max. Piston Stroke	mm	500	500	500	600	600	800
Cylinder Diameter	mm	220	220	220	270	270	350
Motor Rated Power	kw	2.8	3	4	5.5	7.5	15
Inner width	mm	900	900	1000	1200	1200	2000
Inner height	mm	1200	1200	1200	1200	1200	1600
Platform&Indenter Diameter	mm	Φ620	Φ620	Φ620	Φ730	Φ730	Φ880
Overall Dimension	mm	2100*1200*300	2100*1200*300	2100*1300*300	2500*1700*500	2500*1700*500	3200*2600*800
(H*W*T)
Max.Tire size		825-15	825-15	825-15	1200-20	1200-20	1900
Weight                                (without attachment)	Kg	1300	1500	1600	2500	2700	3500/4000
