Светодиодный маячок, мини-лайтбар для приборной панели, фары скорой помощи
US $145.00-$159.00
200 мм 300 Красный Зеленый пешеходный
- Категория: LED Lighting >>>
- Поставщик: Hangzhou,Zgsm,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 121.60 $* | 123.73 $* |
| Jul-15-2025 | 98.46 $* | 100.47 $* |
| Jun-15-2025 | 119.23 $* | 121.56 $* |
| May-15-2025 | 118.35 $* | 120.97 $* |
| Apr-15-2025 | 94.7 $* | 96.55 $* |
| Mar-15-2025 | 116.55 $* | 118.54 $* |
| Feb-15-2025 | 115.82 $* | 117.54 $* |
| Jan-15-2025 | 114.11 $* | 116.61 $* |
Характеристики

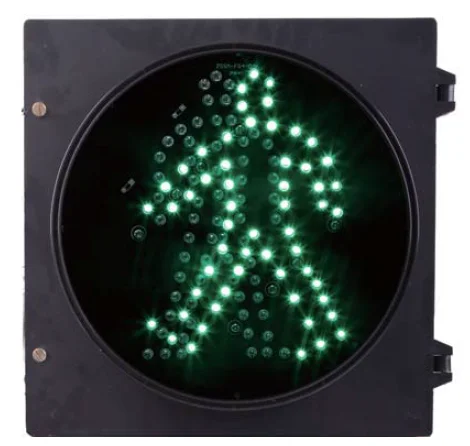

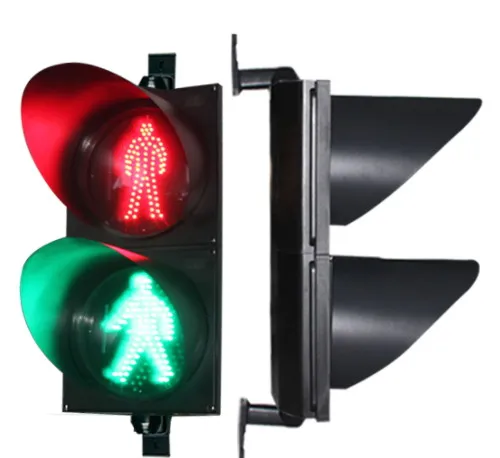

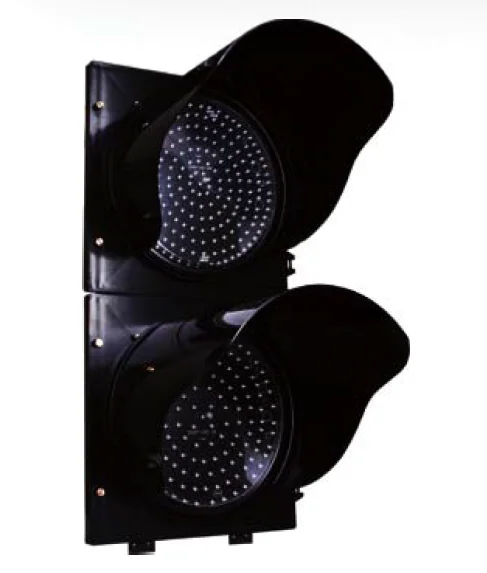

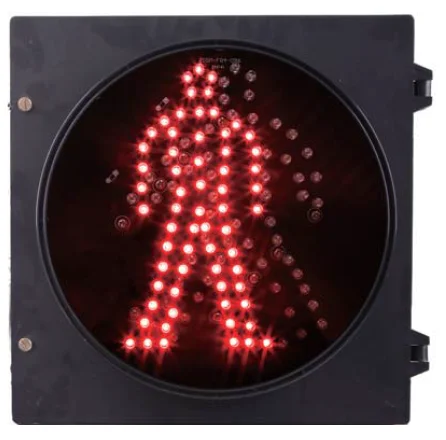

200mm 300mm Red Green pedestrian traffic signal light
| Model No. | JD200-3-ZGSM-3 | |||||
| Electrical Specifications | ||||||
| Power | Red: <5W | Yellow: <5W | Green: <5W | |||||
| LED Q'ty | Red: 96 pcs | Yellow: 96 pcs | Green: 96 pcs | |||||
| Operating Voltage | 100V-240V AC(±10%), 50/60Hz | 12V or 24V DC | |||||
| Operating Temp. | -40ºC ~ +75ºC | |||||
| Operating Humidity | 10% ~ 90% | |||||
| Photometric Specifications | ||||||
| Apply Diameter | 200 mm (8 inches) | |||||
| Visible Range | 200m (656ft) | |||||
| Wavelength | Red: 625±5nm | Yellow: 590±5nm | Green:500±5nm | |||||
| Intensity | Red: 5000~7000mcd | Yellow: 5000~7000mcd | Green: 8000-13000mcd | |||||
| Visual Angle | <30° | |||||
| Mechanical Specifications | ||||||
| IP Rating | IP54 | |||||
| Warranty | 1 Year | |||||
| Housing Material | PC | |||||
| Lens Material | PC | |||||
| Fixture Dimension | 750 x250 x160 mm (29.5 x9.8 x6.3 inches) | |||||
| Fixture Weight | 7.6 kg (16.8 lbs) | |||||
| Standard(s) | GB14887-2011 | |||||
| Certificate(s) | CE, RoHS | |||||
| Packing Information | ||||||
| Packing Type | 2unit /ctn. | |||||
| Packing Dimension | 770 x390 x290 mm (30.3 x15.4 x11.4 inches) | |||||
| Model No. | JD300-3-ZGSM-3 | |||||
| Electrical Specifications | ||||||
| Power | Red: ≤ 8W | Yellow: ≤ 8W | Green: ≤ 10W | |||||
| LED Q'ty | Red: 168 pcs | Yellow: 168 pcs | Green: 168 pcs | |||||
| Operating Voltage | 100-240VAC ,50/60Hz | |||||
| Operating Temp. | -40ºC ~ +75ºC | |||||
| Operating Humidity | 10% ~ 90% | |||||
| Photometric Specifications | ||||||
| Apply Diameter | 300 mm (12 inches) | |||||
| Visible Range | 200m (656ft) | |||||
| Wavelength | Red:625±5nm | Yellow:590±5nm | Green: 500±5nm | |||||
| Intensity | R: 5000-7000mcd |Y: 5000-7000mcd G:8000-13000mcd | |||||
| Visual Angle | <30º | |||||
| Mechanical Specifications | ||||||
| IP Rating | IP54 | |||||
| Warranty | 1 Year | |||||
| Housing Material | PC or Aluminum | |||||
| Lens Material | PC Housing: PC | Aluminum Housing: Glass | |||||
| Fixture Dimension | PC: 1110 x367 x150 mm | |||||
| Aluminum: 1050 x367 x125 mm (41.3 x15.2 x5.9 inches) | ||||||
| Fixture Weight | PC: 12.5 kg (27.6 lbs) | Aluminum: 17.0 kg (37.5 lbs) | |||||
| Standard(s) | GB14887-2011, EN50293:2000 & EN12368:2006 | |||||
| Certificate(s) | CE, RoHS | |||||
| Packing Information | ||||||
| Packing Type | 2unit /ctn. | |||||
| Packing Dimension | 1190 x380 x440 mm (46.9 x15.0 x17.3 inches) | |||||
| Gross Weight | PC: 27.5 kg (60.6 lbs) | Aluminum: 36.5 kg (80.5 lbs) | |||||
| Accessories | Visor, Bracket | |||||
