Горячая Распродажа ручка для сварки портативный аппарат мини-точечной «сделай сам» с аккумулятором 18650 точечный сварщик
- Категория: Stick Welders >>>
- Поставщик: Foshan,Jindayu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.12 $* | 0.30 $* |
| Aug-18-2025 | 0.2 $* | 0.11 $* |
| Jul-18-2025 | 0.55 $* | 0.54 $* |
| Jun-18-2025 | 0.71 $* | 0.91 $* |
| May-18-2025 | 0.49 $* | 0.41 $* |
| Apr-18-2025 | 0.65 $* | 0.49 $* |
| Mar-18-2025 | 0.0 $* | 0.63 $* |
| Feb-18-2025 | 0.56 $* | 0.67 $* |
| Jan-18-2025 | 0.0 $* | 0.58 $* |
Характеристики
Product Description
Production name: | Rechargeable spot welder |
Battery type: | rechargeable polymer lithium battery |
Battery capacity: | 5000mah |
Output voltage: | 4.2V (max) |
Output current: | 650a (max) |
Design current: | 1000A (max) |
Input interface: | type-C charging port |
Input parameter: | 5V / 2A |
Product size: | 178x87x27mm |
Recommended thickness of nickel strip: | 0.1-0.15mm |
Upgraded portable spot welder.
Equipped with 3.7-4.2V 6.7Ah high-rate power lithium battery with a discharge rate of 100C and a load capacity of about 400A.
Instantaneous load capacity of about 650A. Ultra-low internal resistance, full Power. The battery has a capacity of 7,500 mAh and lasts longer.
It also comes with a charging control module, charging the battery through type-C interface, with a maximum input of 5V/2A.
And is charged with hundreds of welding points on commonly used nickel-plated sheets with the thickness less than 0.2mm.
Equipped with 3.7-4.2V 6.7Ah high-rate power lithium battery with a discharge rate of 100C and a load capacity of about 400A.
Instantaneous load capacity of about 650A. Ultra-low internal resistance, full Power. The battery has a capacity of 7,500 mAh and lasts longer.
It also comes with a charging control module, charging the battery through type-C interface, with a maximum input of 5V/2A.
And is charged with hundreds of welding points on commonly used nickel-plated sheets with the thickness less than 0.2mm.
The following are suggestions we give you during the operation.
* 1.In the process of using, you don't need to use too much strength, just a little bit.
* 2.Regarding the use of equipment, ensure sufficient power when using, and there will be better spot welding effect.
* 3.Check whether the soldering pen is in good contact, and whether the contacted head is sunken.
* 4.According to the material and thickness , you can choose to adjust the gear, we have 1-6 gears adjustable.
* 5.The most important thing is that you need to practice more, because you are not familiar with the product after receiving it.
* If you operate it a few times, you will find that this product is really worth owning.
* 1.In the process of using, you don't need to use too much strength, just a little bit.
* 2.Regarding the use of equipment, ensure sufficient power when using, and there will be better spot welding effect.
* 3.Check whether the soldering pen is in good contact, and whether the contacted head is sunken.
* 4.According to the material and thickness , you can choose to adjust the gear, we have 1-6 gears adjustable.
* 5.The most important thing is that you need to practice more, because you are not familiar with the product after receiving it.
* If you operate it a few times, you will find that this product is really worth owning.

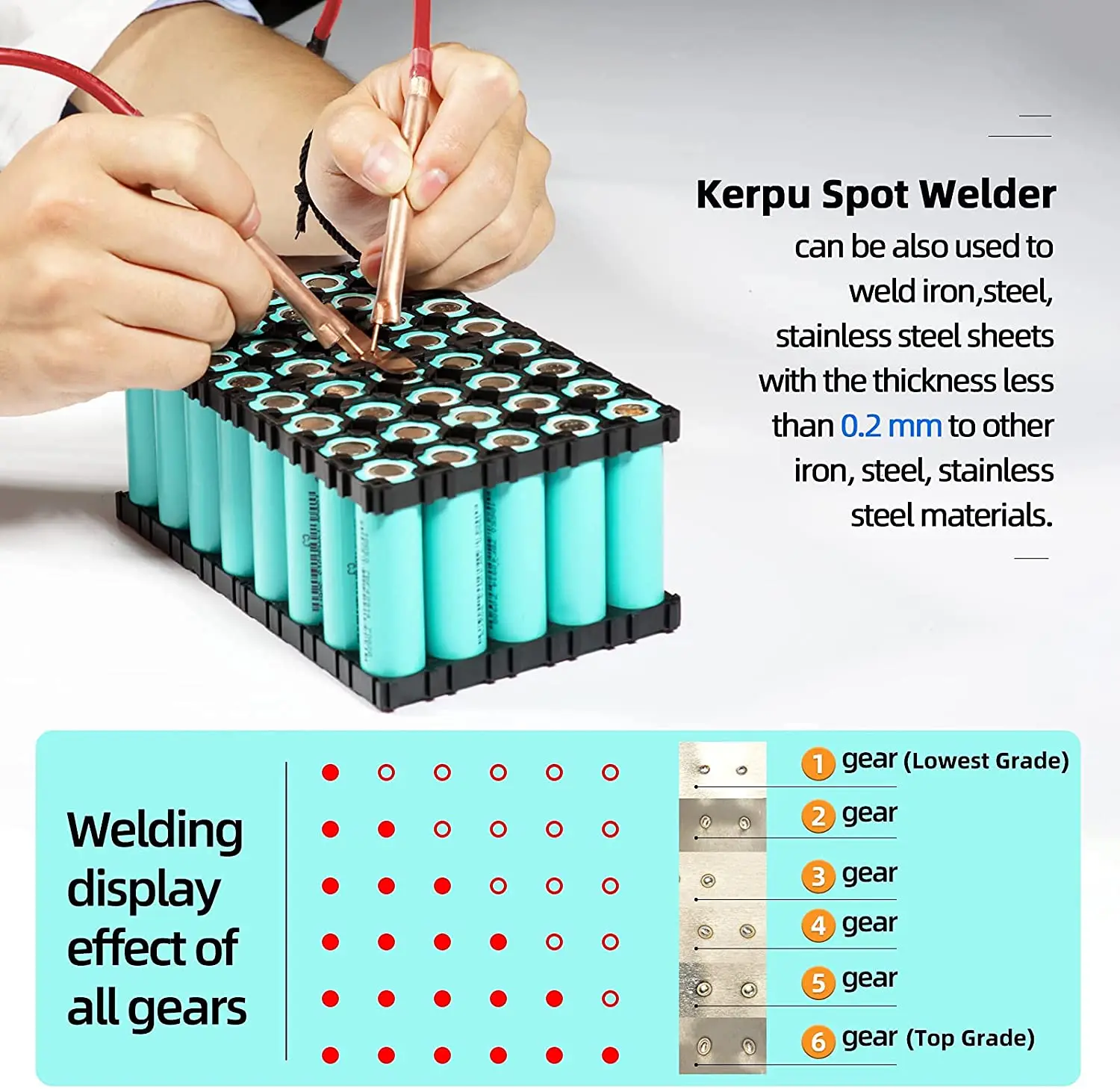

6 gears can be adjusted cyclically, welding is more precise.
Each time you press it, it will have a different melting point strength.
Advanced power management and software design will not return to zero or reset during work.
Each time you press it, it will have a different melting point strength.
Advanced power management and software design will not return to zero or reset during work.
Battery capacity 0500 mAh, longer use time.
If it is idle for a long time, please discharge or charge the battery at 50%. Too hight or too low power storage will affect the
battery life.
If it is idle for a long time, please discharge or charge the battery at 50%. Too hight or too low power storage will affect the
battery life.

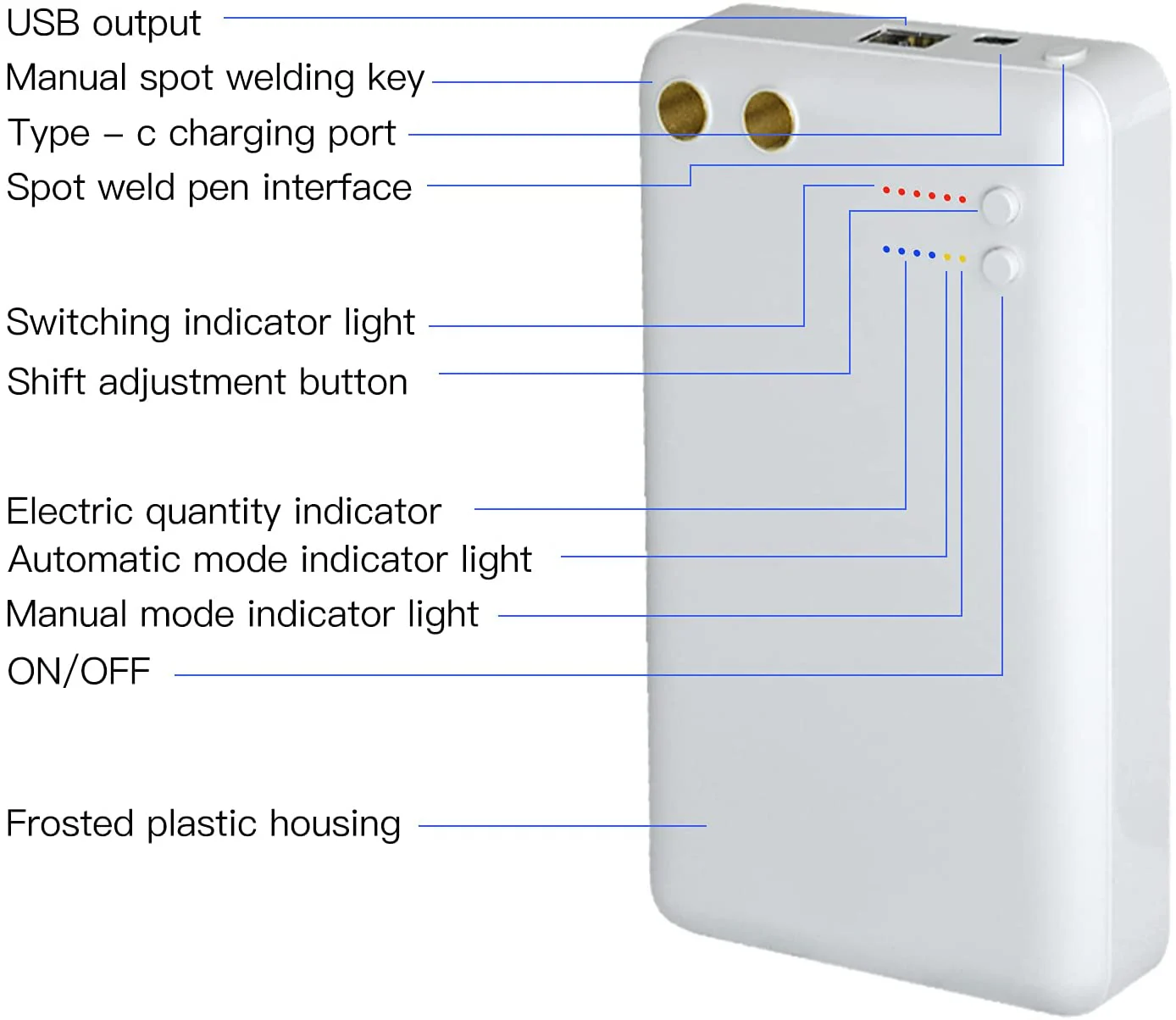

Automatic and Manual modes are adjustable, easy to use.
There is a button dedicated to operating mode.
Press to the left and the yellow light is on, it is Automatic mode.
Press to the right, the yellow light is on, it is Manual mode.
There is a button dedicated to operating mode.
Press to the left and the yellow light is on, it is Automatic mode.
Press to the right, the yellow light is on, it is Manual mode.

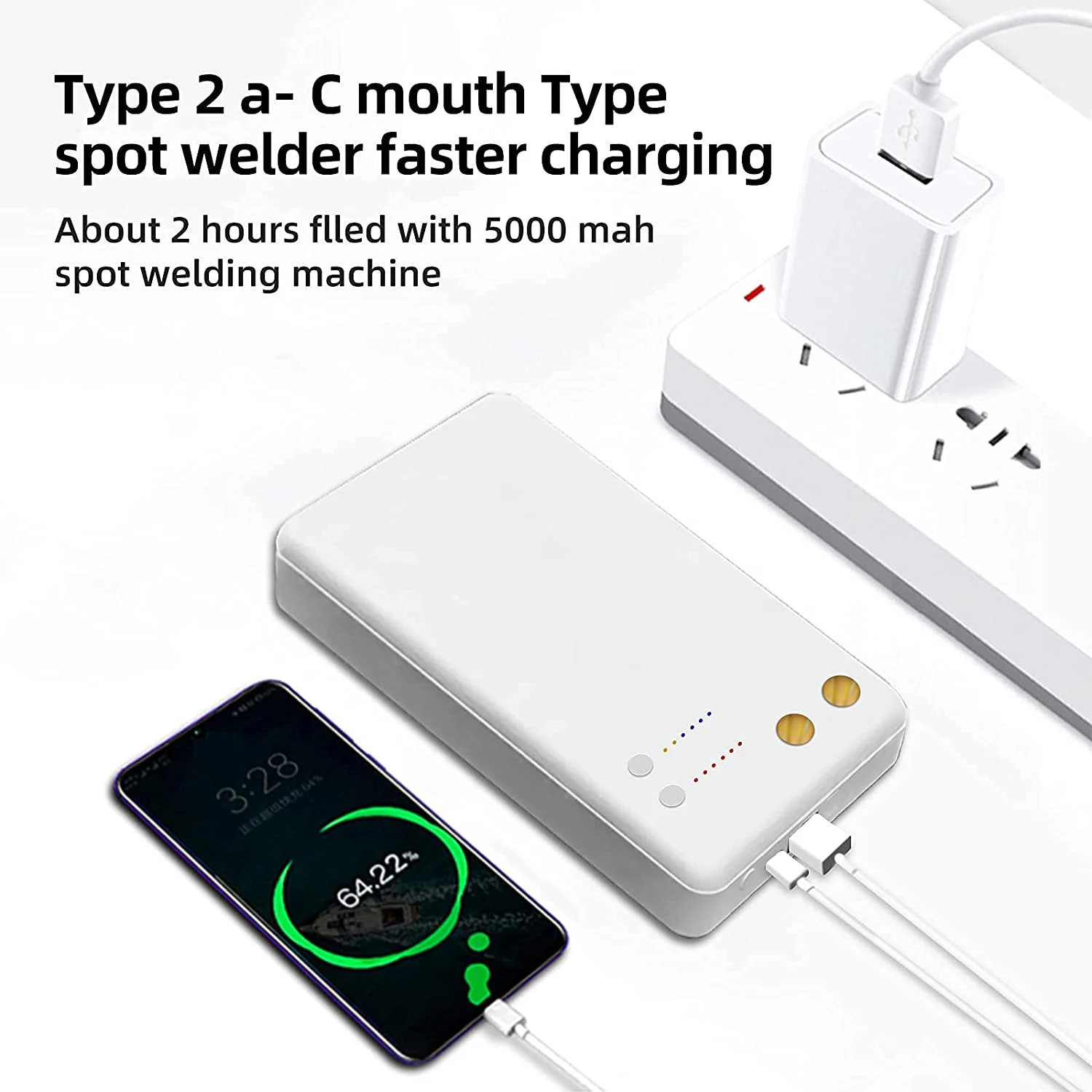

Type-C port 2A input and USB port output
The electric welder charges faster.
It takes about 3 hours to charge 5000mAh.
The electric welder charges faster.
It takes about 3 hours to charge 5000mAh.

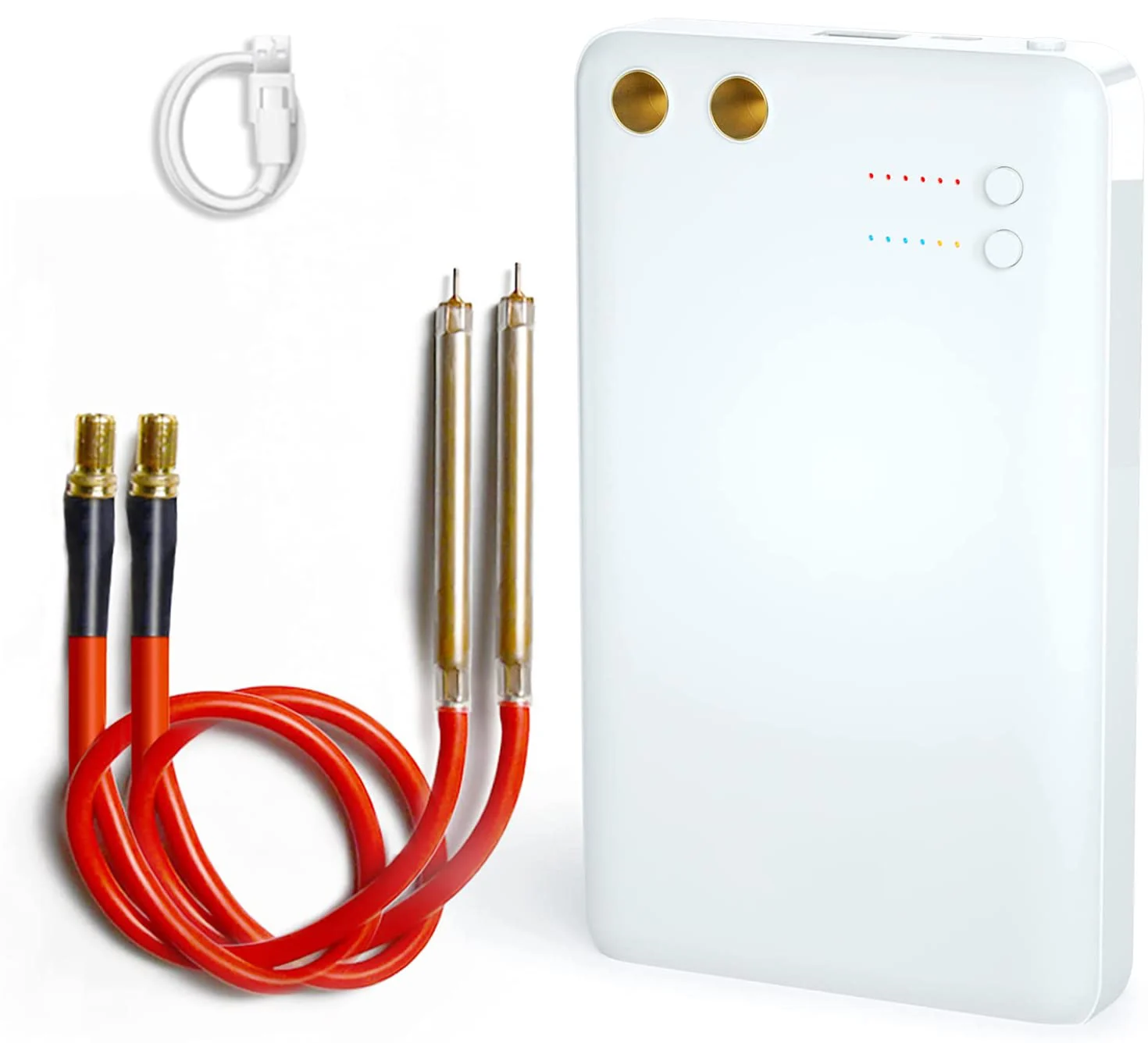

The spot welding pen is longer.
About 16 inches, which allows us to operate more flexibly.
After receiving the product, please confirm whether the contact port is defective.
About 16 inches, which allows us to operate more flexibly.
After receiving the product, please confirm whether the contact port is defective.
Temperature control protection.
When the temperature is higher than 140 degrees Fahrenheit during our work, the spot welder will automatically power off.
Kerpu Portable Spot Welder, 8 minutes without any operating will automatically be turned off.
When the temperature is higher than 140 degrees Fahrenheit during our work, the spot welder will automatically power off.
Kerpu Portable Spot Welder, 8 minutes without any operating will automatically be turned off.
Packing & Delivery

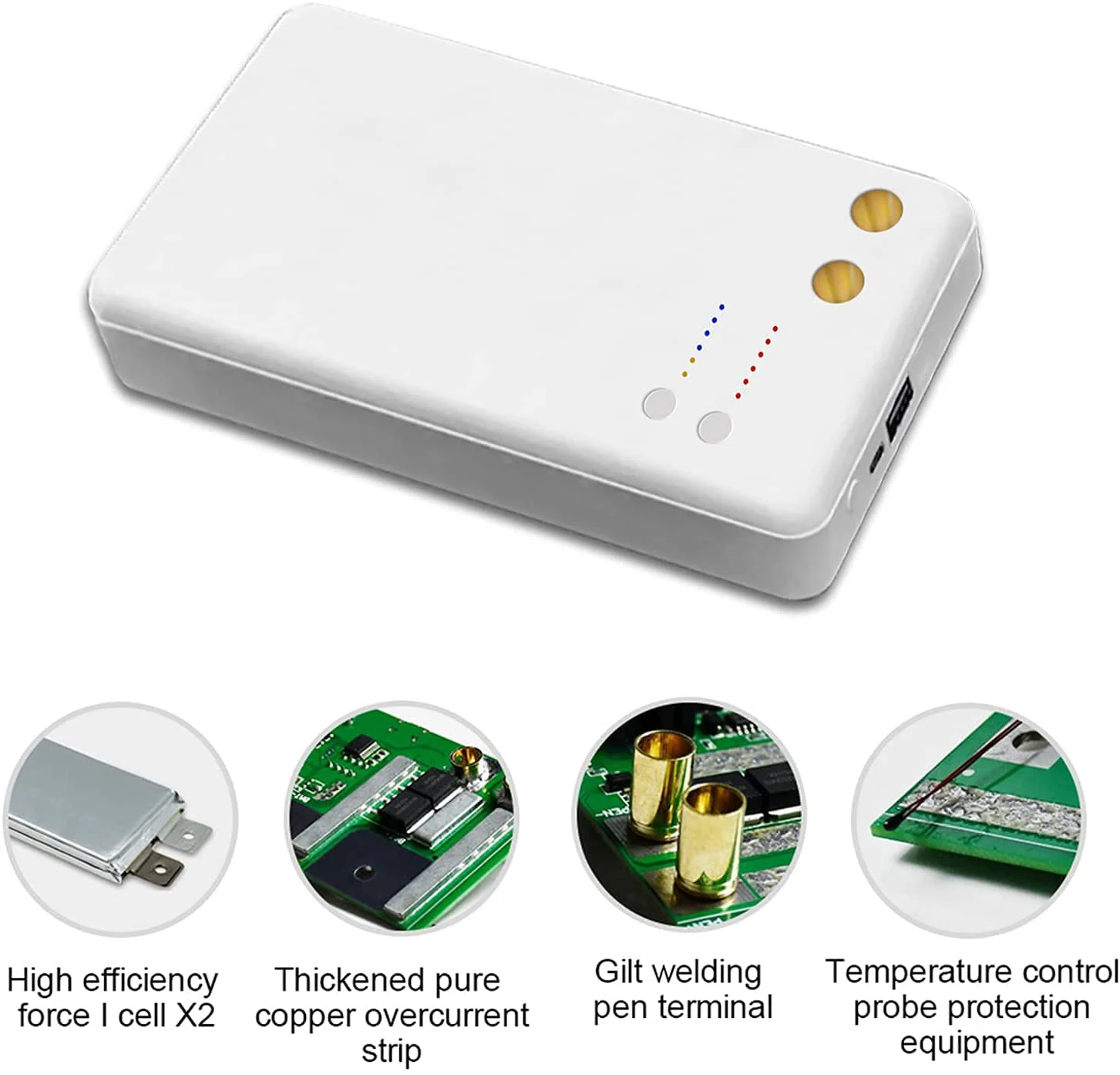

This spot welder is a portable battery energy storage type, mainly used for welding 18650 cylindrical batteries such as nickel.
* Built-in capacity: The spot welder has a built-in high-multiple 5000mAh polymer power battery, and the maximum output current
can reach 650A.

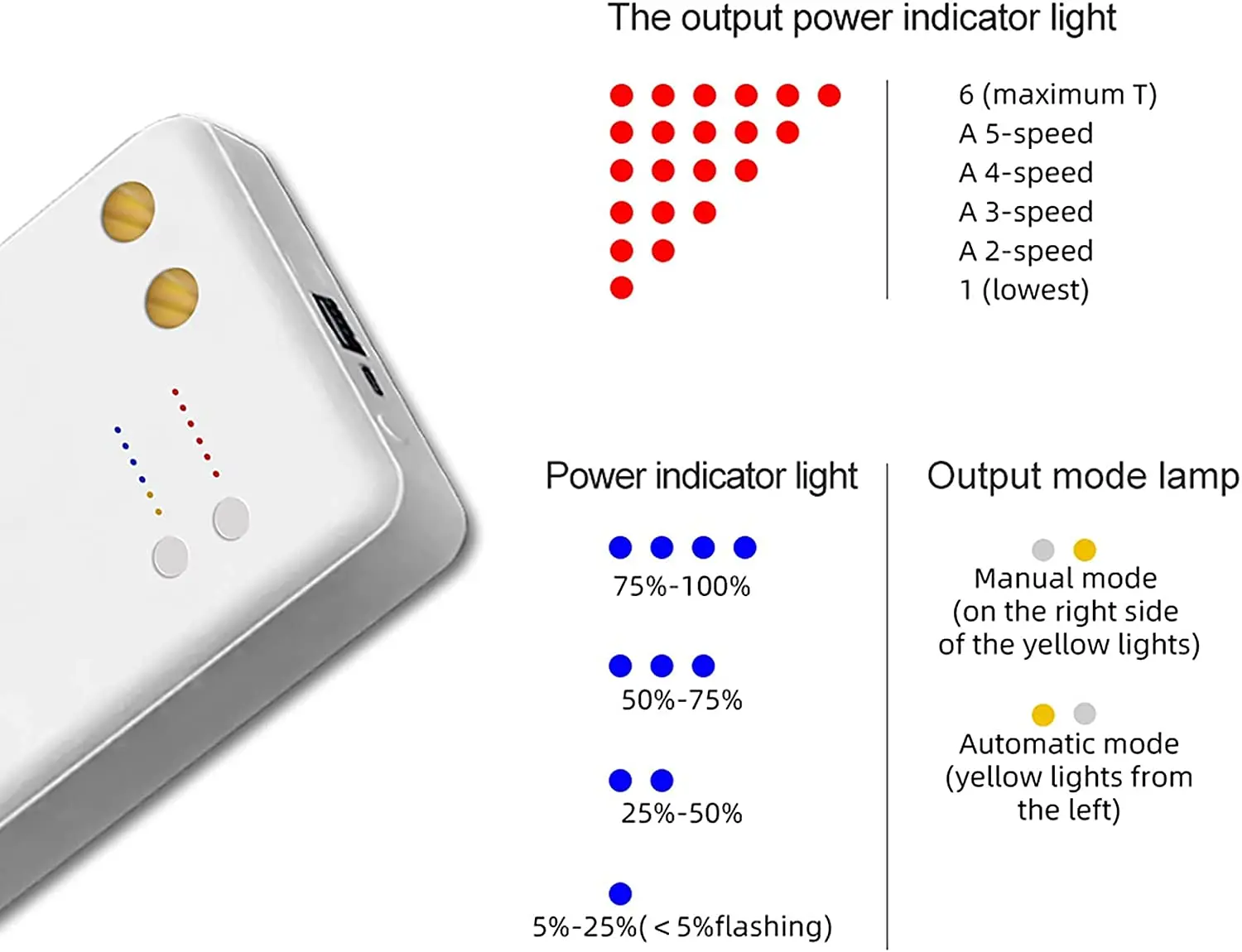

* Product detailed indicator light: This product has output power and battery indicator.
* Adjustable modes and gears: manual output mode and automatic output two output modes, you can set 6 levels of output power at
the same time.
* If you are interested in projects such as DIY batteries, our products will be your best choice!
can reach 650A.
* Product detailed indicator light: This product has output power and battery indicator.
* Adjustable modes and gears: manual output mode and automatic output two output modes, you can set 6 levels of output power at
the same time.
* If you are interested in projects such as DIY batteries, our products will be your best choice!
* NOTE:
* Warm tips: Do not overexert during spot welding, otherwise the welding effect will be affected.
* The pressure is too high and the resistance at the contact point is too small to absorb enough power.
* Low pressure, easy to spot through the nickel sheet or contact resistance is too large, will lead to the total current
reduction of the whole circuit, so that the current does not go from below.
* Therefore, we must practice repeatedly and control the strength. The closer we get to the equilibrium point, the better the
spot welding effect will be.
* Warm tips: Do not overexert during spot welding, otherwise the welding effect will be affected.
* The pressure is too high and the resistance at the contact point is too small to absorb enough power.
* Low pressure, easy to spot through the nickel sheet or contact resistance is too large, will lead to the total current
reduction of the whole circuit, so that the current does not go from below.
* Therefore, we must practice repeatedly and control the strength. The closer we get to the equilibrium point, the better the
spot welding effect will be.
