12 В регулируемое зарядное устройство lifepo4 14 6 в
- Категория: >>>
- Поставщик: Shenzhen,Everpower,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 14.8 $* | 14.79 $* |
| Jul-19-2025 | 11.8 $* | 11.88 $* |
| Jun-19-2025 | 14.68 $* | 14.39 $* |
| May-19-2025 | 14.82 $* | 14.14 $* |
| Apr-19-2025 | 11.80 $* | 11.52 $* |
| Mar-19-2025 | 13.21 $* | 13.21 $* |
| Feb-19-2025 | 13.0 $* | 13.69 $* |
| Jan-19-2025 | 13.62 $* | 13.92 $* |
Характеристики
Features
* Input: 100-240Vac; Output: 14.4V 4.0A
* 5.5*2.1mm/ 5.5*2.5mm , sonme other DC connectors for 4 cells 12.8V LiFePO4 battery pack.
* Energy efficient and stable,Suitable for use with electronic devices that require 14.4V DC and consume less than 60W of power.
* Short circuit protection/ over current protection/ over voltage protection.
* Charge 12.8V 4 cells LiFePO4 rechargeable battery only .it stop automatically when the battery is full.
* 5.5*2.1mm/ 5.5*2.5mm , sonme other DC connectors for 4 cells 12.8V LiFePO4 battery pack.
* Energy efficient and stable,Suitable for use with electronic devices that require 14.4V DC and consume less than 60W of power.
* Short circuit protection/ over current protection/ over voltage protection.
* Charge 12.8V 4 cells LiFePO4 rechargeable battery only .it stop automatically when the battery is full.
Products Description
Technical Specifications
What’s In The Box | EP6012F4 Battery Charger Clamps, Integrated Eyelets (M8) , 5.5*2.1mm/ 5.5*2.5mm and others User Guide & Warranty Information |
Operating Requirements | Line Voltage: 110V to 220V AC Frequency: 50Hz to 60Hz Operating Temperature: -4° to 122° F (-10° to 50° C) Storage Temperature: -22° to 122° F (-30° to 50° C) Relative Humidity: 0 to 95% Non-Condensing |
Charging | Current: 4.0 Amps DC Voltages: 14.6V Chemistry: 4 cells 12.8V LiFePO4 BATTERY |
Protection | IP Rating: IP64 |
Safety | Short-Circuit: Yes Open-Circuit: Yes Overheating: Yes Overcharge: Yes Spark-Proof: Yes Reverse Polarity: Yes |
BRIEF :

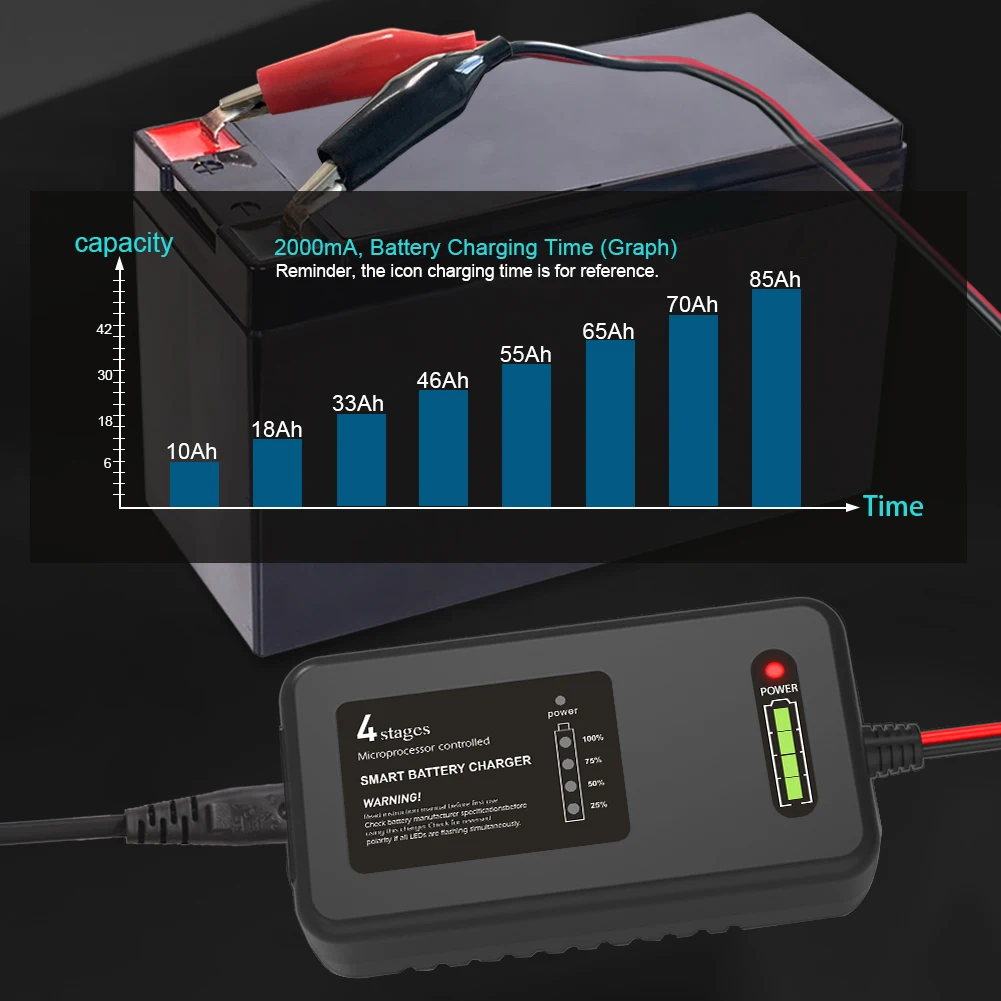

The device is 4 stages smart battery charger by Microprocessor controlled with solid 4LEDs charging indicator. It is ideal for
charging your LiFePO4 batteries,suitable for 4 cells LiFePO4 batteries pack.
The device is 4 stages smart battery charger by Microprocessor controlled with solid 4LEDs charging indicator. It is ideal for
charging your LiFePO4 batteries,suitable for 4 cells LiFePO4 batteries pack.
FEATURE :
* New charging technology for charging all 4 cells LiFePO4 batteries
* Fully auto 4 stages charging process by MCU controller,
* automatically charging ending with Cut-Off output
* Small current pr-charge and constant big charging current for faster charging, optimized for battery pack`s cycle life
* 4 LEDs fuel gauge indicate the battery capacity from 25%~100% timely.
* 100V-240V AC input for worldwide power support.
* New charging technology for charging all 4 cells LiFePO4 batteries
* Fully auto 4 stages charging process by MCU controller,
* automatically charging ending with Cut-Off output
* Small current pr-charge and constant big charging current for faster charging, optimized for battery pack`s cycle life
* 4 LEDs fuel gauge indicate the battery capacity from 25%~100% timely.
* 100V-240V AC input for worldwide power support.
4-STAGE CHARGING PROCESS
Stage1:Pre-charge
The battery through small current,Charger enters this stage if it detects battery deep discharger. it is helpful for battery cycle Life (LEDs:1 ON,2-4 OFF )
Stage 2: Bulk charge
Using charger highest rated current for the type of battery in use until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Constant voltage
The output voltage is limited to 3.6V/Cells while current declines as the battery charges to its full capacity without overheating (LEDs:1-3 ON,4 Blinking)
Stage 4:Cut-Off
At this stage,the battery is fully charged and the charger will cut-off output automatic,that means the charger can be connected to battery left indefinitely (LEDs:1-4 ON)
Stage1:Pre-charge
The battery through small current,Charger enters this stage if it detects battery deep discharger. it is helpful for battery cycle Life (LEDs:1 ON,2-4 OFF )
Stage 2: Bulk charge
Using charger highest rated current for the type of battery in use until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Constant voltage
The output voltage is limited to 3.6V/Cells while current declines as the battery charges to its full capacity without overheating (LEDs:1-3 ON,4 Blinking)
Stage 4:Cut-Off
At this stage,the battery is fully charged and the charger will cut-off output automatic,that means the charger can be connected to battery left indefinitely (LEDs:1-4 ON)
