Лидер продаж высокоскоростной смешивающий гранулятор GHL для добавочного
- Категория: Dehumidifier >>>
- Поставщик: Changzhou,Haomai,Drying,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 17850.23 $* | 18743.44 $* |
| Aug-17-2025 | 17700.90 $* | 18585.9 $* |
| Jul-17-2025 | 14850.19 $* | 15593.23 $* |
| Jun-17-2025 | 17400.56 $* | 18270.95 $* |
| May-17-2025 | 15150.65 $* | 15908.37 $* |
| Apr-17-2025 | 17100.77 $* | 17955.39 $* |
| Mar-17-2025 | 16950.33 $* | 17798.48 $* |
| Feb-17-2025 | 16800.59 $* | 17640.31 $* |
| Jan-17-2025 | 16650.7 $* | 17483.95 $* |
Характеристики
Product Description
Best Sale GHL High Speed Mixing Granulator for brenstone
Description

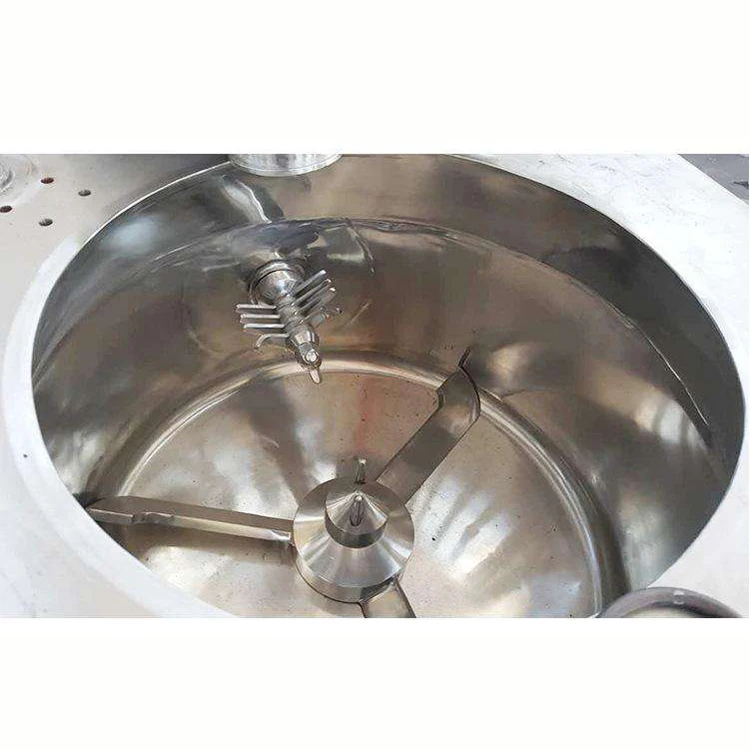

GHL series high-speed mixing granulator is composed of powder material and adhesive in a cylindrical container. The bottom mixing slurry is fully mixed into wet soft material, and then it is cut into uniform wet particles by the side high-speed grinding paddle.
Working principle
The powder material and adhesive are fully mixed into moist soft material by the bottom mixing slurry in the cylindrical container, and then cut into uniform wet particles by the side high-speed grinding paddle.
The powder material and adhesive are fully mixed into moist soft material by the bottom mixing slurry in the cylindrical container, and then cut into uniform wet particles by the side high-speed grinding paddle.
1. The machine adopts horizontal cylinder structure, and the structure is reasonable.
2. Inflatable seal drive shaft can be switched to water during cleaning.
3. Fluidization granulation, the granulation is nearly spherical, and the fluidity is good.
4. Compared with the traditional process, the adhesive is reduced by 25%, and the drying time is shortened.
5. Only 2 minutes of dry mixing and 1-4 minutes of granulation for each batch, the work efficiency is 4-5 times higher than that of the traditional process.
6. In the same closed container, dry mixing wet mixing granulation process is shortened.
7. The whole operation has strict safety protection measures.
8. It can be made into jacket type according to user's requirements.
2. Inflatable seal drive shaft can be switched to water during cleaning.
3. Fluidization granulation, the granulation is nearly spherical, and the fluidity is good.
4. Compared with the traditional process, the adhesive is reduced by 25%, and the drying time is shortened.
5. Only 2 minutes of dry mixing and 1-4 minutes of granulation for each batch, the work efficiency is 4-5 times higher than that of the traditional process.
6. In the same closed container, dry mixing wet mixing granulation process is shortened.
7. The whole operation has strict safety protection measures.
8. It can be made into jacket type according to user's requirements.
• Multi-function such as granulating, pelleting, coating in one machine.
• Powder material granulating.
• Powder material coating.
• Powder material pelleting.
• Chinese medicine spray drying, granulating and coating.
• Make 1 0-30 meshes big granule.
• Film coating of Powder, granules and pellets, entericrelease. slow and control release coating.
• Taste masking, odor, moisture-proof, anti-oxidation, prevent water.heat insulation,coloration and separation coating
• Powder, granule, agglomerate material drying.
• Powder material granulating.
• Powder material coating.
• Powder material pelleting.
• Chinese medicine spray drying, granulating and coating.
• Make 1 0-30 meshes big granule.
• Film coating of Powder, granules and pellets, entericrelease. slow and control release coating.
• Taste masking, odor, moisture-proof, anti-oxidation, prevent water.heat insulation,coloration and separation coating
• Powder, granule, agglomerate material drying.
Specification
Name | Model | ||||||||||||
50 | 150 | 200 | 250 | 300 | 400 | 600 | |||||||
Volume L | 50 | 150 | 200 | 250 | 300 | 400 | 600 | ||||||
Capacity kg / batch | 15 | 50 | 80 | 100 | 130 | 200 | 280 | ||||||
Mixing velocity r.p.m | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 | ||||||
Mixed power kw | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 | ||||||
Cutting speed r.p.m | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/300 | ||||||
Cutting power kw | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 | ||||||
Compressed air consumption m3 / min | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 | ||||||
Weight kg | 500 | 800 | 1000 | 1300 | 1800 | 2200 | 2600 | ||||||
Model | A | B | C×D | E | F |
50 | 320 | 950 | 1250×800 | 970 | 1650 |
150 | 420 | 1000 | 1350×800 | 1050 | 1750 |
200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
600 | 750 | 1500 | 2000×1230 | 1750 | 2610 |
Packing & Delivery
Company Profile
Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pharmaceuticals, chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country.
Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products.
Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.
Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products.
Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.
FAQ
Q: Where is your factory?
A: We are located in Changzhou City which about 150km away from Shanghai.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
A: We are located in Changzhou City which about 150km away from Shanghai.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
