Ручной пресс для фильтра пластины и

Категория: Filter Press Equipment >>>
Поставщик: Liaoyang,Shenzhou,Machinery,Equipment,Co.,Ltd.

Цена:5 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	6902.55 $*	7247.59 $*
Aug-15-2025	6844.28 $*	7186.94 $*
Jul-15-2025	5742.93 $*	6029.50 $*
Jun-15-2025	6728.10 $*	7064.45 $*
May-15-2025	5858.50 $*	6151.97 $*
Apr-15-2025	6612.28 $*	6943.81 $*
Mar-15-2025	6554.64 $*	6882.31 $*
Feb-15-2025	6496.81 $*	6821.76 $*
Jan-15-2025	6438.52 $*	6760.29 $*

Характеристики

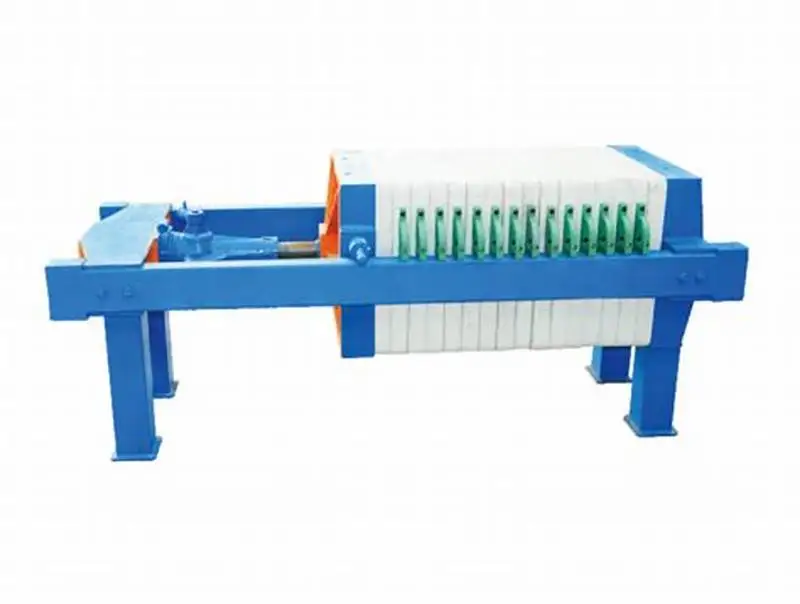

Product Description

The Manual plate and frame filter press is the most fundamental design and cost effective filter press. In addation,It can realize multiple filtering,by using different filter media with different precision and materials at same time. If you need use two kinds or more filter media at same time,only this kind of filter press can help you to do it.

Features

Compact design, small size and simple structure, easy to operate and maintain.1Manual operation, no need power consumption and zero running cost.
2It can realize multiple filtering,by using different filter media with different precision and materials at same time.
3Material of plate:PP,Ordinary cast iron, ductile iron, SS304 or SS316L.
4The filter plate is processed by professional milling machine, flat and smooth.
5Discharge mode: Undercurrent flow and open flow optional

Working Principle

The plate and frame design is to have a solid plate covered by a filter cloth and a hollow frame in between each plate, the slurry is pumped into one or more of the corner holes and it travels into each frame before filtering through the cloth. The filtrate travels across the drainage service of the solid plate and into one or more of the corner holes that are not being used for the slurry feed. Once these hollow frames are full of solids, no more slurry feed can come into the filter press and it is time to open the press and discharge the solids.

Specification

Model	Size of plate (mm)	Filtering area(m2)	Thickness of filter cake(mm)	Number of plate (pcs)	Number of box (pcs)	Filtering chamber volume(L)	Weight (kg)	Outline Dimension (LWH)(mm)
BMS320-U	320*320	1	30	4	5	13	300	1255600635
					2		9	10	25	330	1515600635
					3		15	15	38	350	1765600635
BMS450-U	450*450	4	30	9	10	51	650	1860860850
					6		14	15	76	690	2115860850
					8		19	20	102	740	2370860850
					12		29	30	152	840	2876860850
					16		39	40	203	930	3385860850
BMS630-U	630*630	20	30	24	25	247	2310	353012601160
					30		37	38	377	2660	421512601160
					40		49	50	496	3080	485012601160

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
