TMAX автоматический двухсторонний аппарат для точечной сварки с ЧПУ сварочное оборудование литиевого цилиндрического аккумулятора 18650
- Категория: Spot Welders >>>
- Поставщик: Xiamen,Tmax,Battery,Equipments,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.7 $* | 0.81 $* |
| Aug-19-2025 | 0.44 $* | 0.15 $* |
| Jul-19-2025 | 0.14 $* | 0.6 $* |
| Jun-19-2025 | 0.12 $* | 0.16 $* |
| May-19-2025 | 0.35 $* | 0.2 $* |
| Apr-19-2025 | 0.61 $* | 0.55 $* |
| Mar-19-2025 | 0.9 $* | 0.31 $* |
| Feb-19-2025 | 0.95 $* | 0.53 $* |
| Jan-19-2025 | 0.91 $* | 0.73 $* |
Характеристики
Product Description

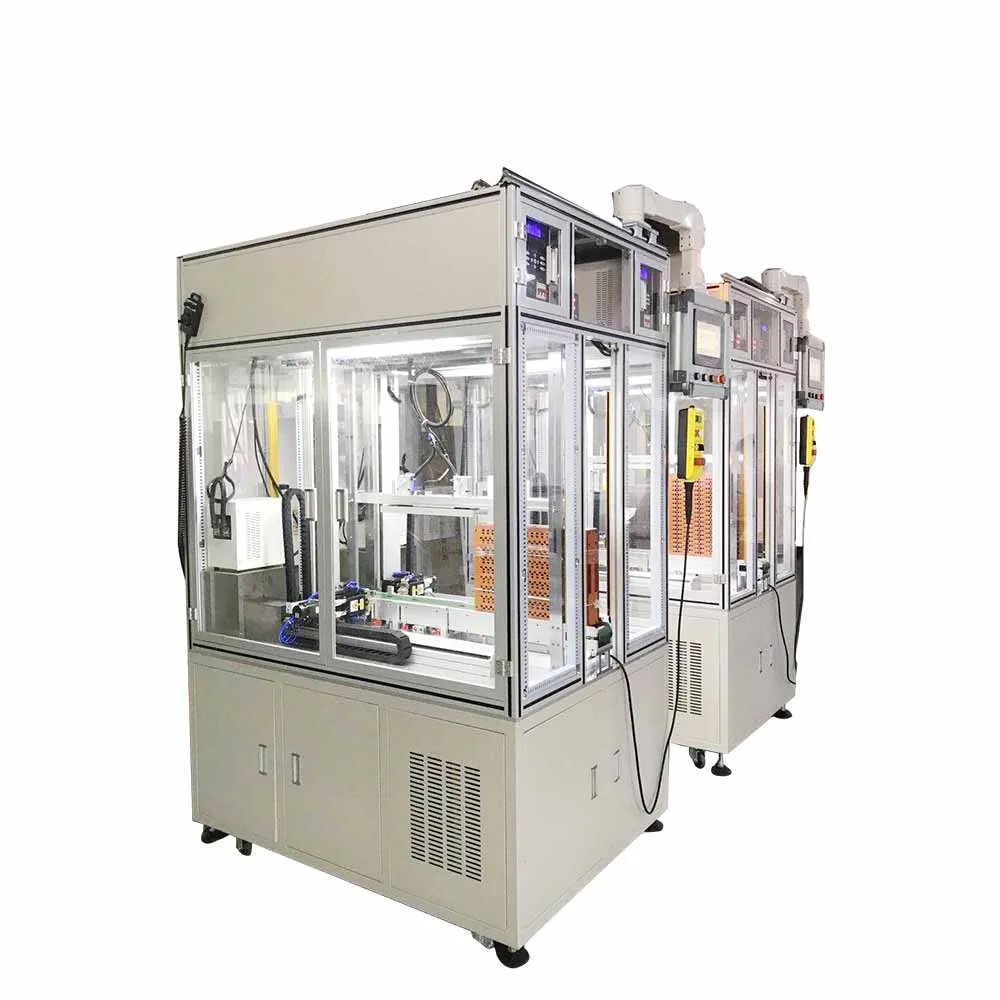

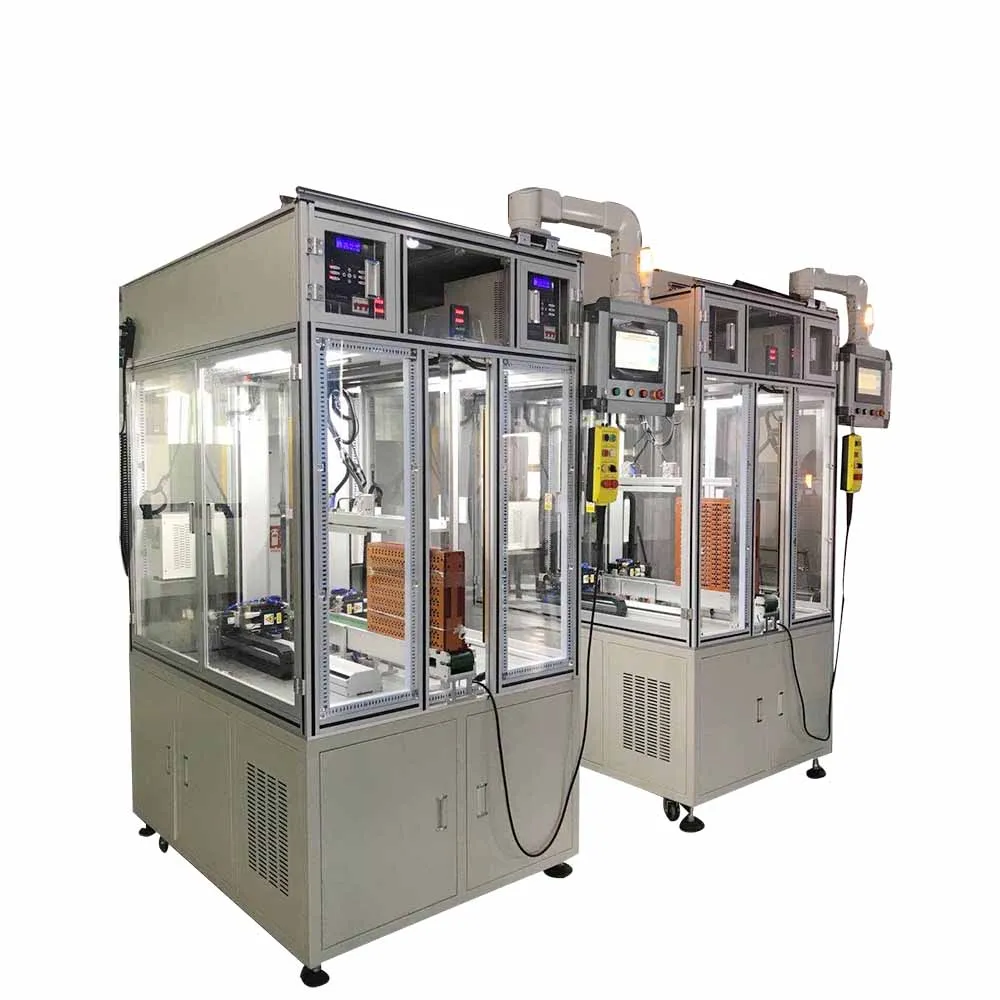

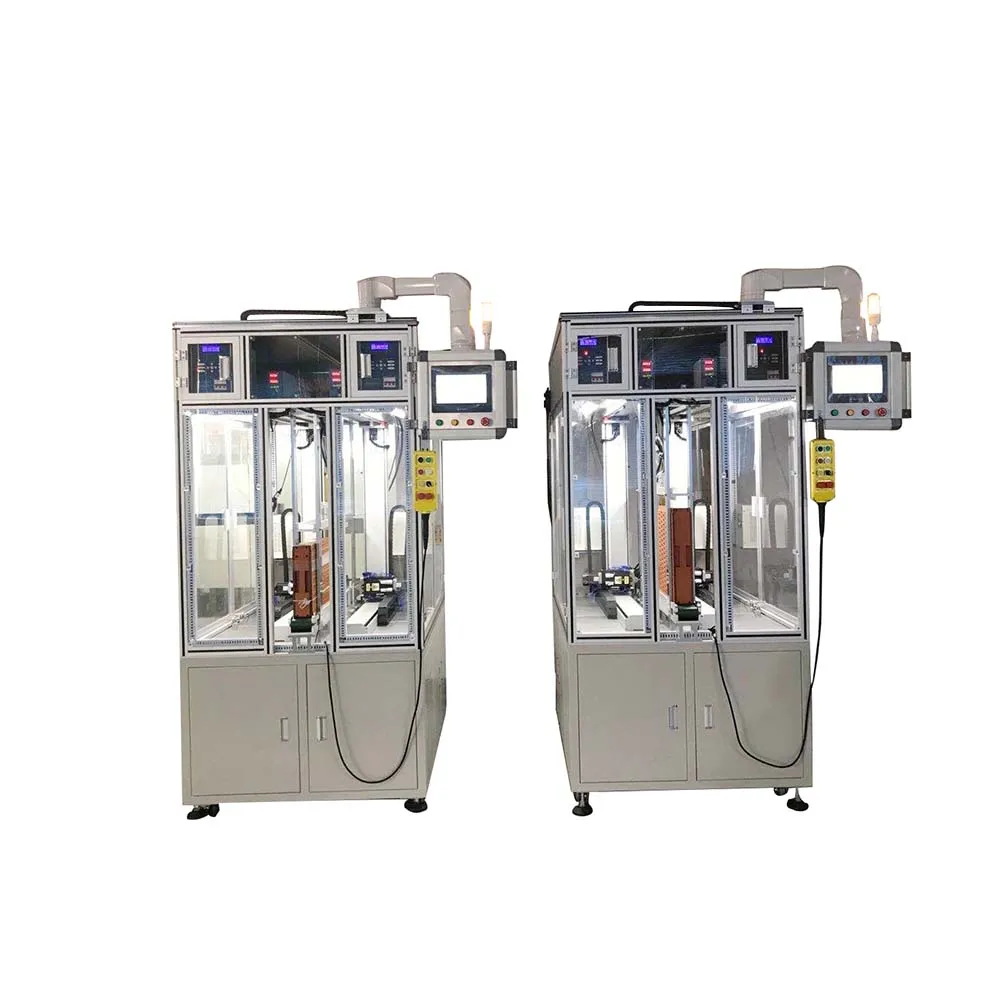

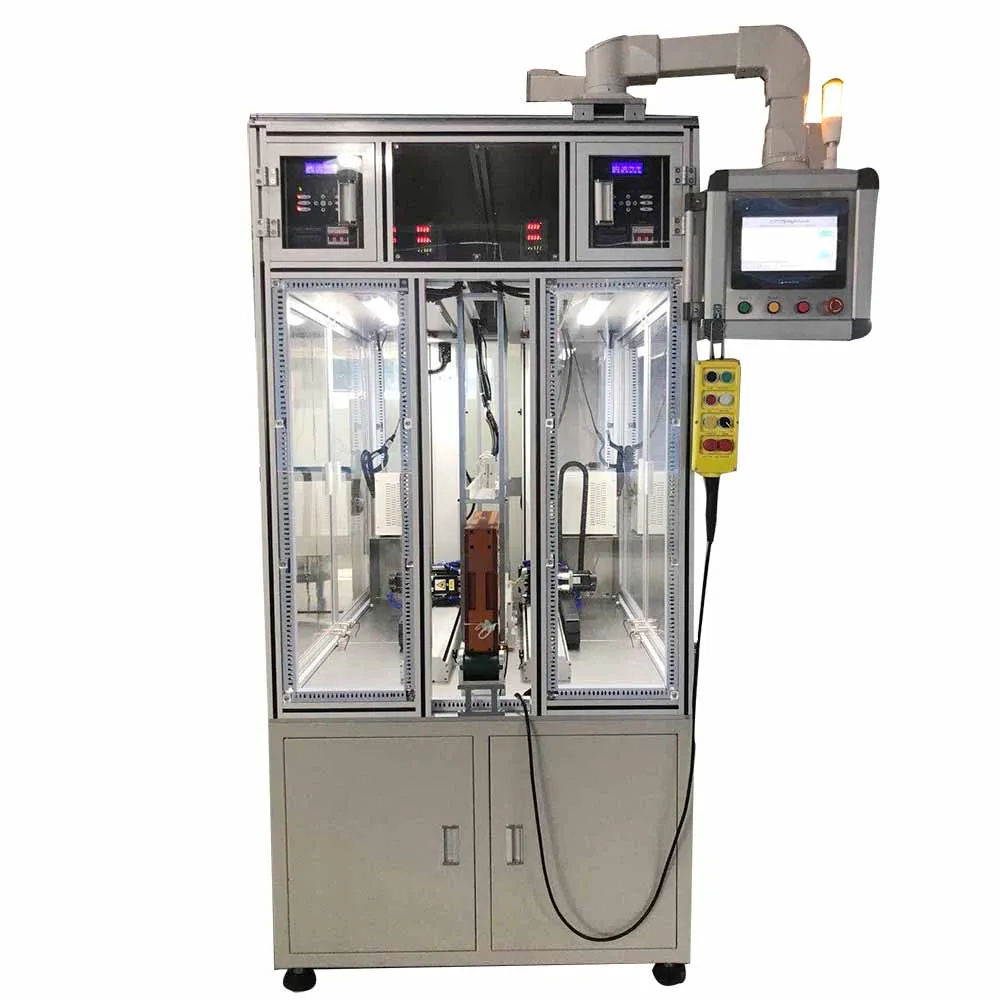

Auto Double Sides CNC Spot Welding Machine Tab Welder Equipment for 18650 21700 Lithium Cylindrical Battery Pack

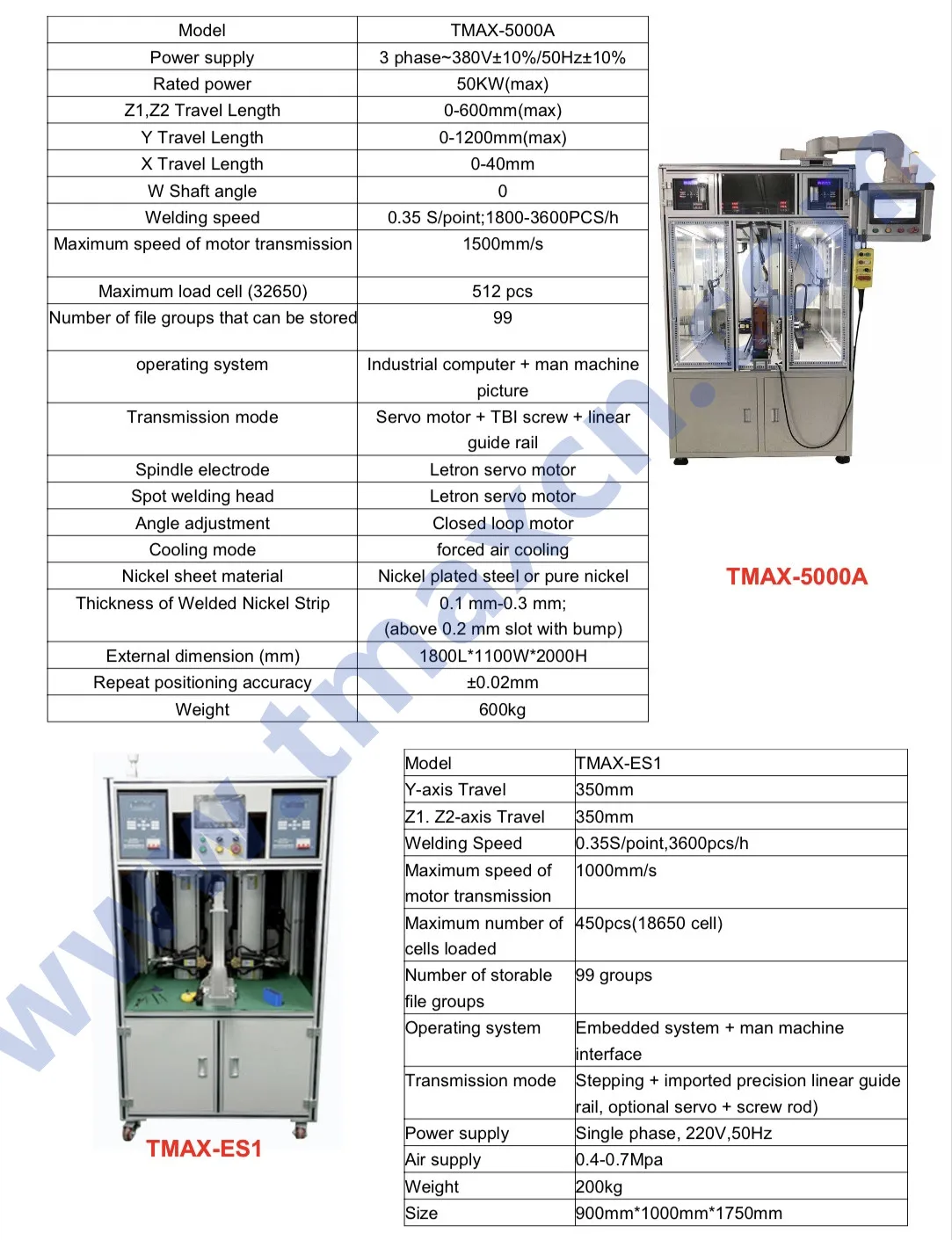

Specifications
Power supply | 3 phase~380V±10%/50Hz±10% |
Rated power | 50KW(max) |
Z1,Z2 Travel Length | 0-600mm(max) |
Y Travel Length | 0-1200mm(max) |
X Travel Length | 0-40mm |
W Shaft angle | 0 |
Welding speed | 0.35 S/point;1800-3600PCS/h |
Maximum speed of motor transmission | 1500mm/s |
Maximum load cell (32650) | 512 pcs |
Number of file groups that can be stored | 99 |
operating system | Industrial computer + man machine picture |
Transmission mode | Servo motor + TBI screw + linear guide rail |
Spindle electrode | Letron servo motor |
Spot welding head | Letron servo motor |
Angle adjustment | Closed loop motor |
Cooling mode | forced air cooling |
Nickel sheet material | Nickel plated steel or pure nickel |
Thickness of Welded Nickel Strip | 0.1 mm-0.3 mm; (above 0.2 mm slot with bump) |
External dimension (mm) | 1800L*1100W*2000H |
Repeat positioning accuracy | ±0.02mm |
Weight | 600kg |
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
