SiAECOSYS/QS Liquid Cooled 138 4000W 90H 7500W Max continuous 72V 110KPH Mid drive Motor conversion with Better temperature resistance fit EM200sp Controller



For138 90H motor powertrain kits, it could be used for electric motorcycle, which could be 72V 110KPH.

e.g. Dirt bike

E-motorcycle weight, approx 130kg+2*80kg

Speed: continuous 110km/h

Gear ratio: 1:2.3*3 (double steps transmission )

Climbing slope: 30°@208kg

Battery: 72V52h

Tire: 0.6138 130/70-17

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

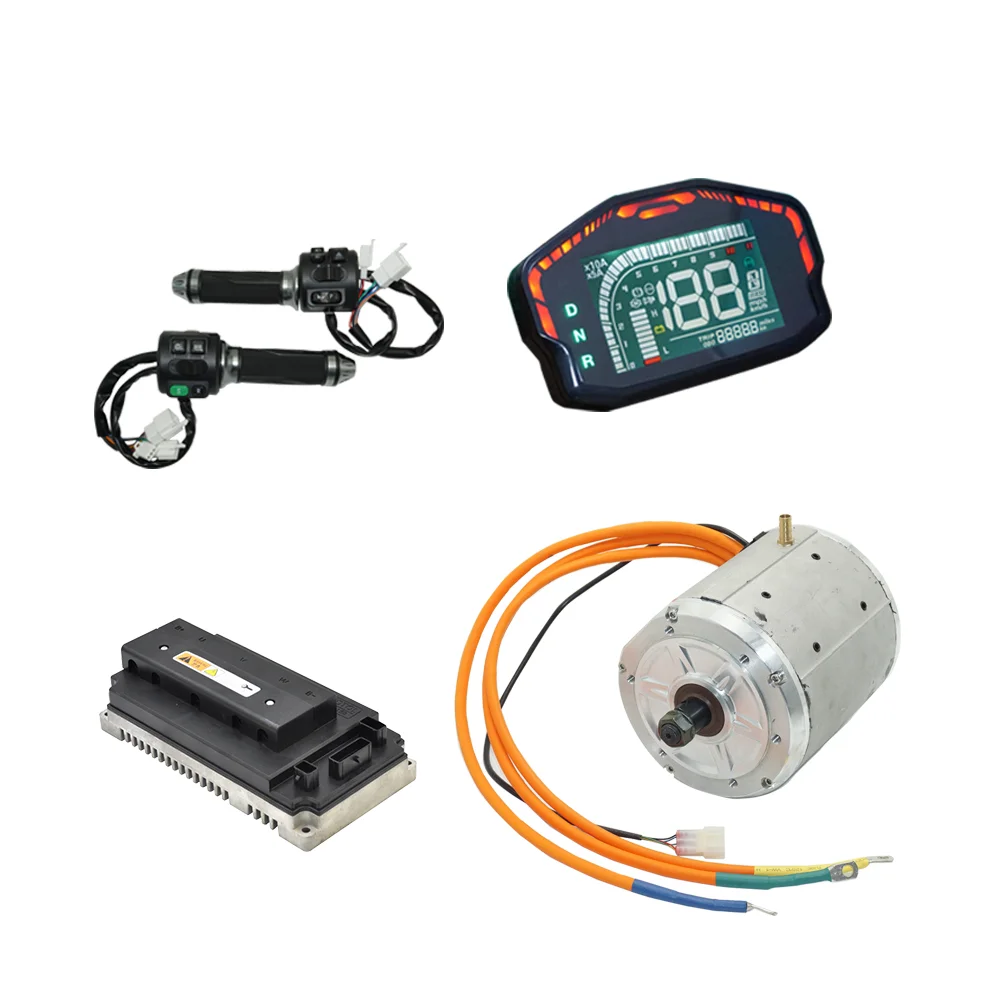

Combo1.

One set including below kits



1.1pcs X QS Liquid Cooled 138 4kW Mid drive motor with 14T 428 sprocket adapter

2.1pcs X EM200SP sine wave motor controller with standard CAN-BUS

3.1pcs X DKD LCD speedometer with CAN (disable CAN as default)

4.1pcs X Z6 throttle with combination switchh

Key Features



1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Product Description

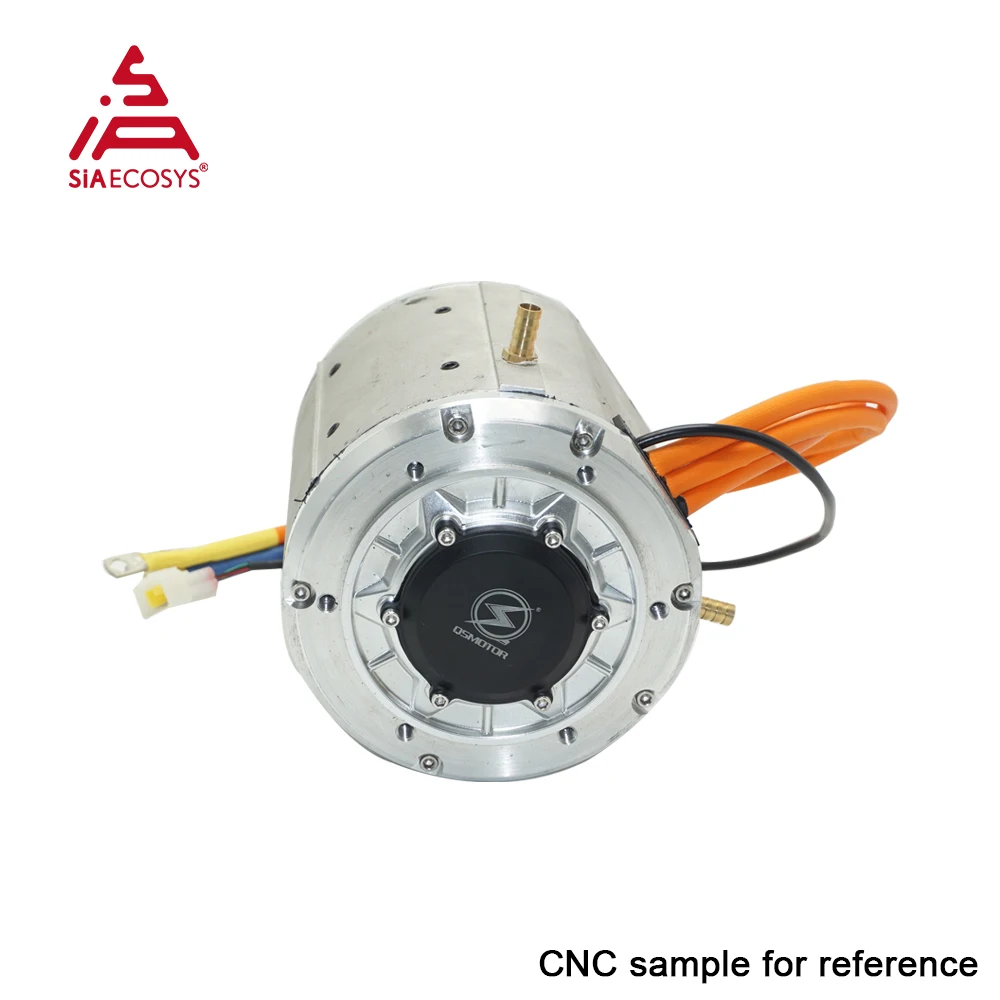

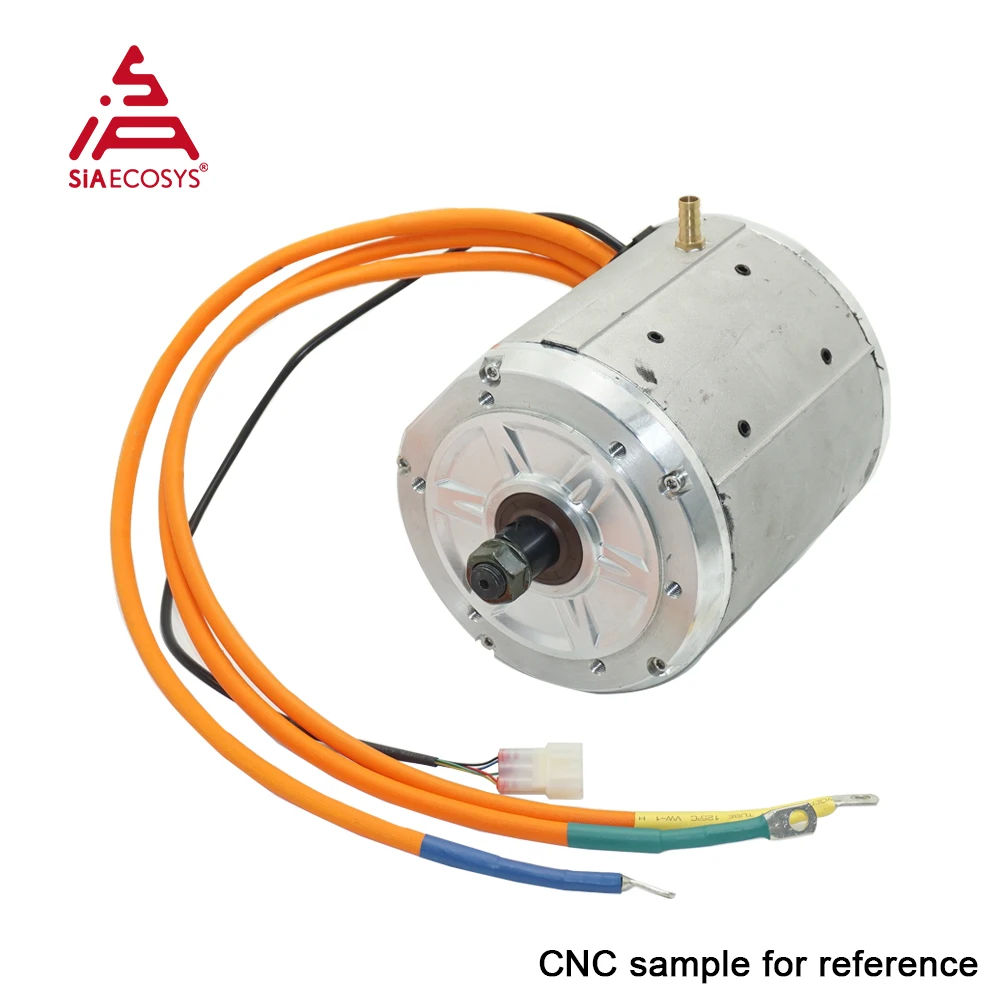

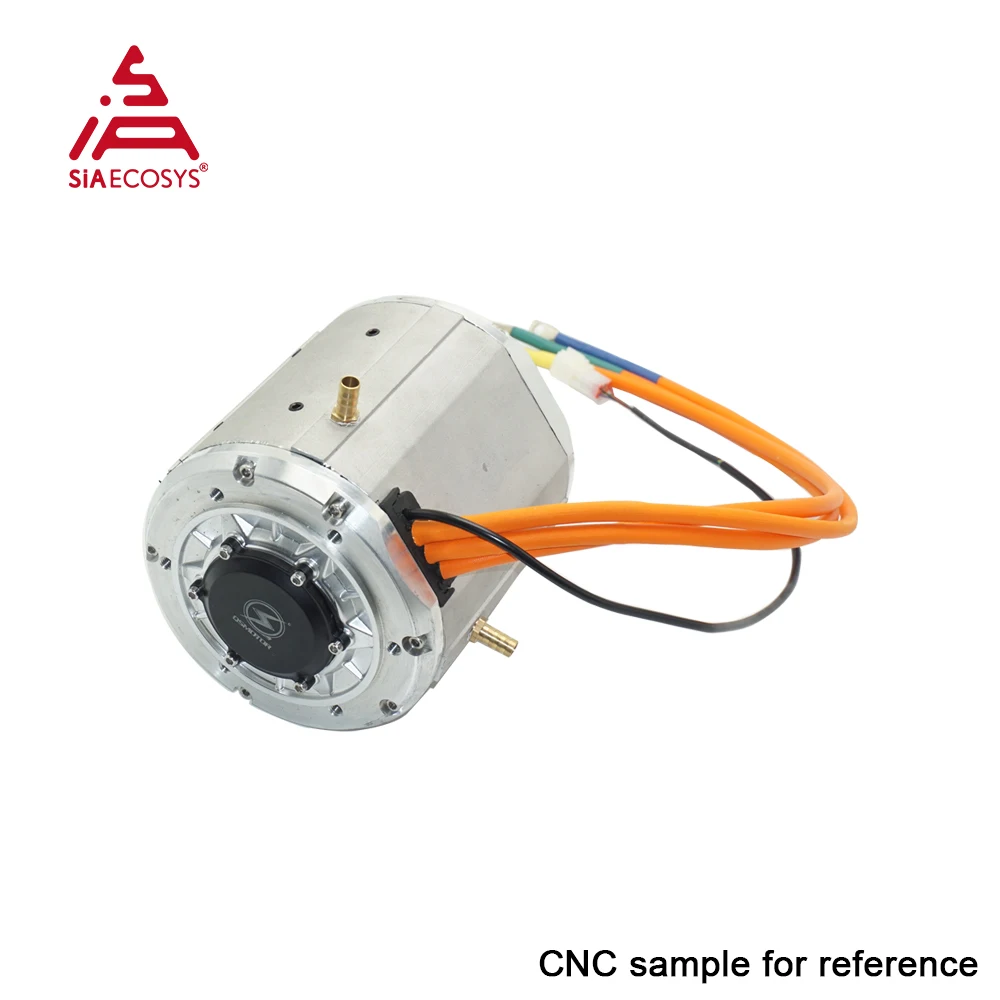

1.QSMOTOR Liquid Cooled138 4000W Mid drive motor with 14T 428 sprocket adapter











 Drawing





Test Report





 2.EM200SP sine wave motor controller with standard CAN-BUS

 There is latest new hardware controller, it support 1st 2nd 3rd speed gear, sport mode, reverse mode (no Parking mode), soft start as default.







 Drawing for EM200sp Controller







Controller Wiring Definition











 Controller Software Interface

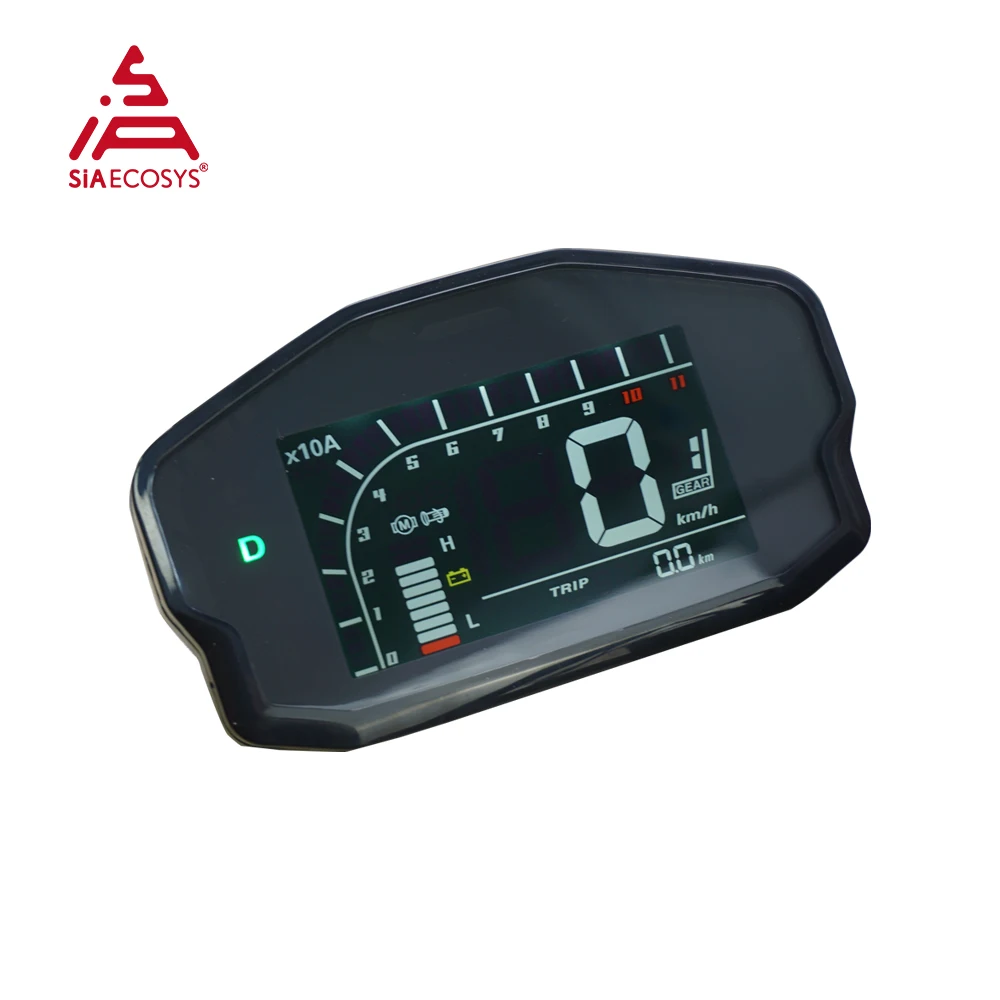

3.DKD LCD speedometer, can-bus(optional, LIN as default)



It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.





4.Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.





Application

A. Electric dirt bike





B. Electric motorcycle



C. Electric tricycle







Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.





How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project
