Chocolate making machine
Автоматическое и хорошее качество шоколад шлифовальный станок шоколадные

Автоматическое и хорошее качество шоколад шлифовальный станок шоколадные

Категория: Chocolate making machine >>>
Поставщик: Suzhou,Asia-Europe,Bridge,Food,Machinery,Co.,Ltd.

Цена:9 999,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	12699.48 $*	12953.18 $*
Jul-17-2025	10299.18 $*	10505.23 $*
Jun-17-2025	12499.72 $*	12749.91 $*
May-17-2025	12399.94 $*	12647.93 $*
Apr-17-2025	9899.15 $*	10097.34 $*
Mar-17-2025	12199.30 $*	12443.77 $*
Feb-17-2025	12099.46 $*	12341.49 $*
Jan-17-2025	11999.86 $*	12239.64 $*

Характеристики

Product Description

Product Application

What is the function of chocolate conche machine?

A fundamental element to complete the chocolate transformation process as it removes the negative “acidity” and any residual
humidity, hence maximising the quality of the transformed product.

The mixer, located at the centre of the heated tank, has the task of continually mixing the chocolate, oxygenating it in order to
obtain, within a working cycle of 8 to 12 hours, a homogeneous and flawless mixture.

The processing program can be personalised by the operator. The machine’s frontal touch screen has four distinct categories:
duration, temperature, emulsion intensity and oxygenation via a variable flow of air.

What is the advantage of our Chocolate refiner machine ?

1st: Double layers design

2nd: SEW or Siemens motor, long life and durable

3rd: Schneider or Omron electrical device, quality insurance

4th: Sticks and scrapers Material: 65#Mn steel Sticks and scrapers, more than 6 years life span

5th: Painted carbon steel or stainless steel body case

6th: With auto-feeding cooling water, two temperature sensor

SPECIFICATIONS FOR 1000L CHOCOLATE CONCHE MACHINE
Maximum capacity(L)	1000L
Grinding Fineness(micron)	20~25
Main Axle Rotating Speed(rpm)	35
Grinding Time(h):	16~22
Main Motor Power(kw):	22
Electrical Heating Power(kw):	2*2
Weight(kg):	3050
Outside Dimensions(mm):	262712801520

Main Features

1).The chocolate conche machine is one of the major chocolate machine in the chocolate production line which are used for the fine grinding of chocolate material.
2).The fine grinding time is about 16~20 hours, the average granularity can achieve 20-25μm.
3).This chocolate machine has many merits such as tight structure, easy operation, convenient maintenance, few one-off investment, and so on.
4).It is suitable especially for the technical request of medium chocolate and candy factory.

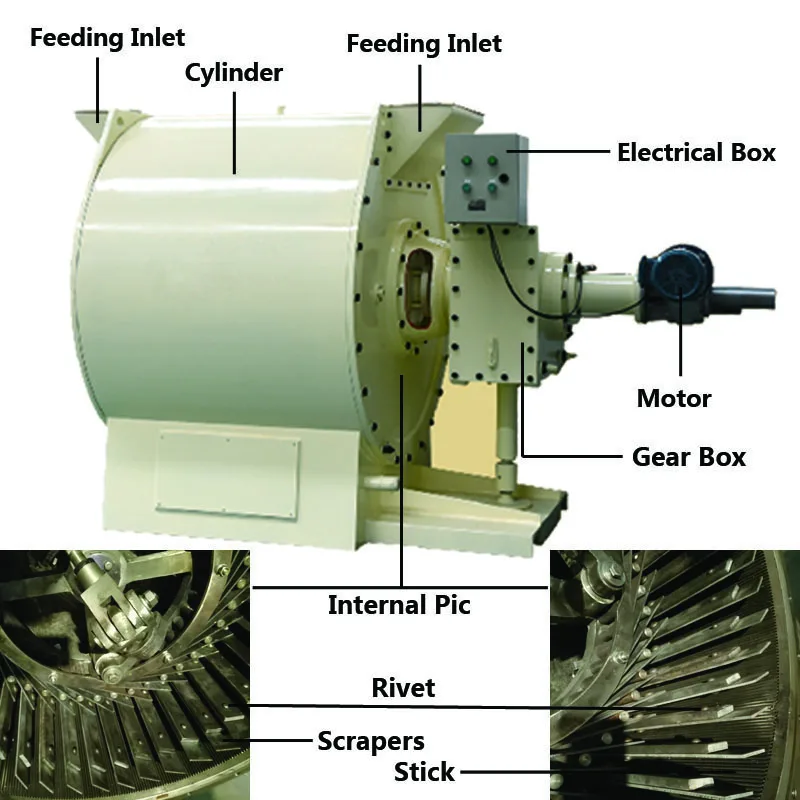

Detailed Images

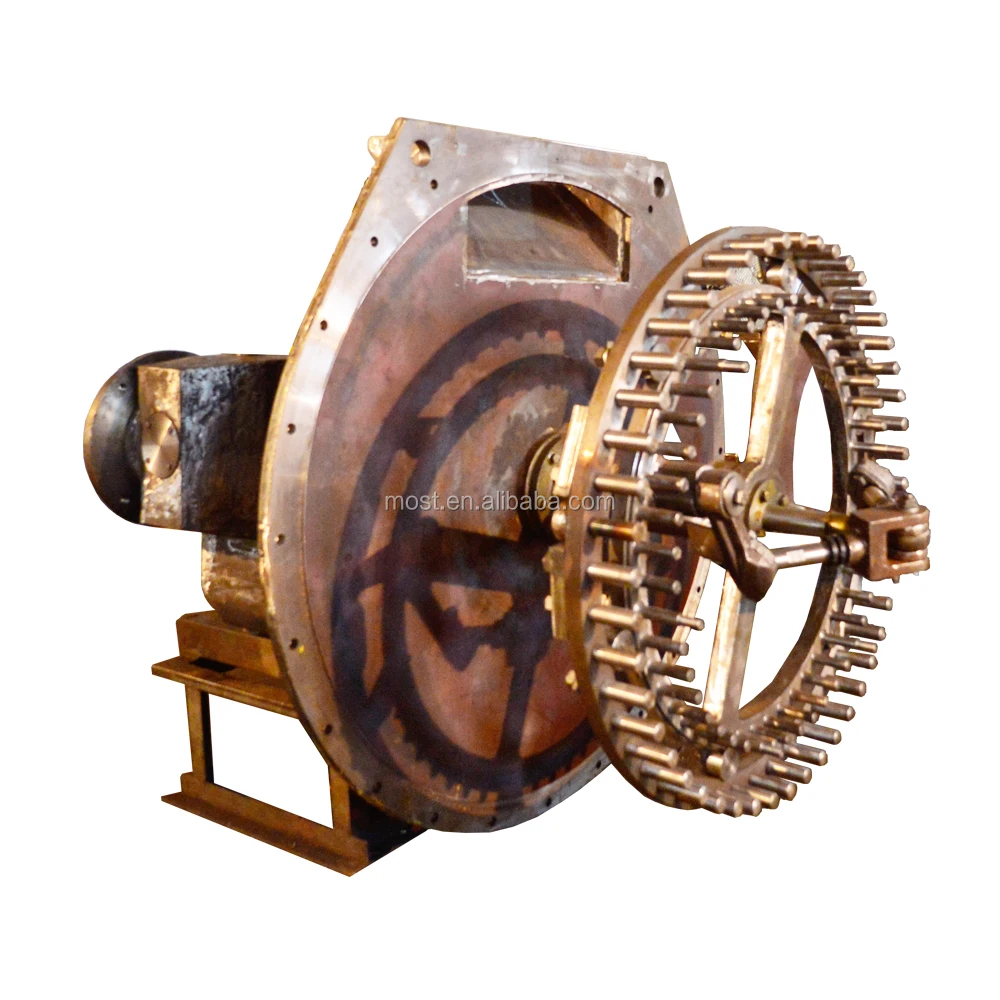

Machine Parts

Name: Motor

Brand: SIEMENS

Original: German

Based on more than 150 years of experience, SIMOTICS electric motors are unequalled in reliability, robustness, compactness and performance.

Main Features

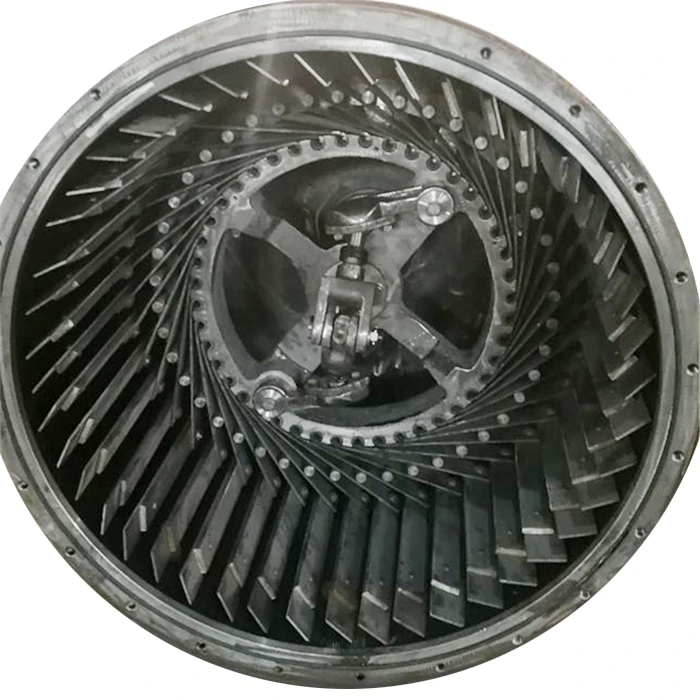

Name: Stick And Scrapers

Material: Manganese Steel(Mn64)

Brand: Ansteel

1) Hardness:31-33HRC.

2) Compact structure, simple operation, easy maintenance.

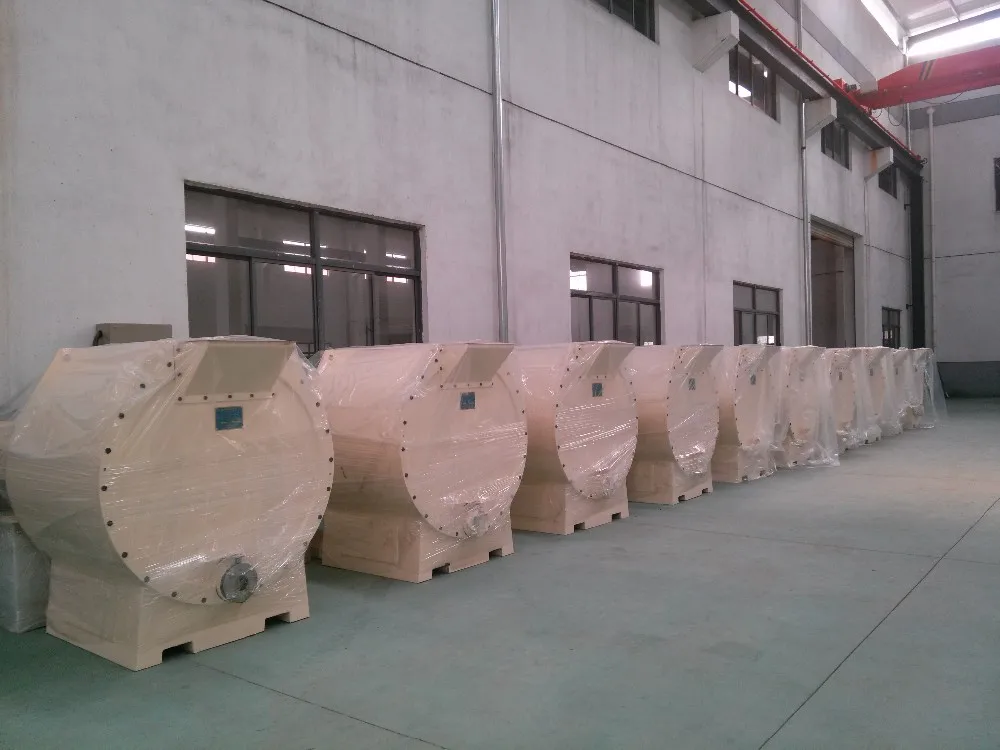

Packing & Delivery

Packaging
Size	3000 (L) * 1500 (W) * 2800 (D)
Weight	3500kg
Packaging Details	Our master will pack the equipment in the safest way, the package will meet the sea transport standard.

Our Service

Pre-Sales Service

Most of engineers in our factory have more than 10 years experience in making chocolate machines.

Every new machine will be tested for 24 hours before shippment.

We will ship the machine after recive your acceptance.

After-Sales Service

The China Chocolate (suzhou) R&D Center is establied in our factory.
We would provide you the best support on your chocolate business.
We will provide you not only the best equipment but also the installation and commissioning oversea.

Our Company

Our company is founded in Suzhou, we are the professonal supplier of chocolate production line. We continuously innovate according to customers' demands. Our products and solutions have been applied to more than 50 countries and areas now. It's our permanent goal to provide best service for our customers which is the only reason why YOQ was created. And to meet clients' requirements continually is our motive power. To provide efficient service for customers is our working guide and standard of value assessment. Making our clients succeed means making ourselves succeed. We hope to cooperate with new and old customers for a bright future.

Certifications

FAQ

1. How about your quality?
(1) We have been specialized in chocolatemachines for 20 years.(1994-2014)
(2) We have strict quality inspectiondepartment to inspect 12 hours’ working status of all the machines beforedelivery so as to make sure the quality.
(3) We have strict quality inspectiondepartment to inspect 12 hours’ working status of all the machines beforedelivery so as to make sure the quality.

2. How about your after-sale service and warranty period?
(1) We provide one-stop installation (all fees including visa , Transportation, accomdation will be afforded by buyer , an USD50/day installation fee should also be paid .
(2) Warrantyperiod: 12 months after delivery.
(3) We will provide the replacement parts for free due to quality problems under proper operation within warrant y period.
(4) After warranty period, we’ll charge the replacement parts at cost price.
(5) We provide lifetime technical support for all the machines.

3. Where are your main markets?
After 20 years’ development, our chocolatemachines have been sold to over 100 countries worldwide , such as Russia,Ukraine, Uzbekistan, America, India, Spain, Peru, Egypt, Poland, Indonesia,Thailand, Bangladesh, Estonia, Armenia, Belgium, etc.
