MICC high quality Type J thermocouple extension wire black color

Product show

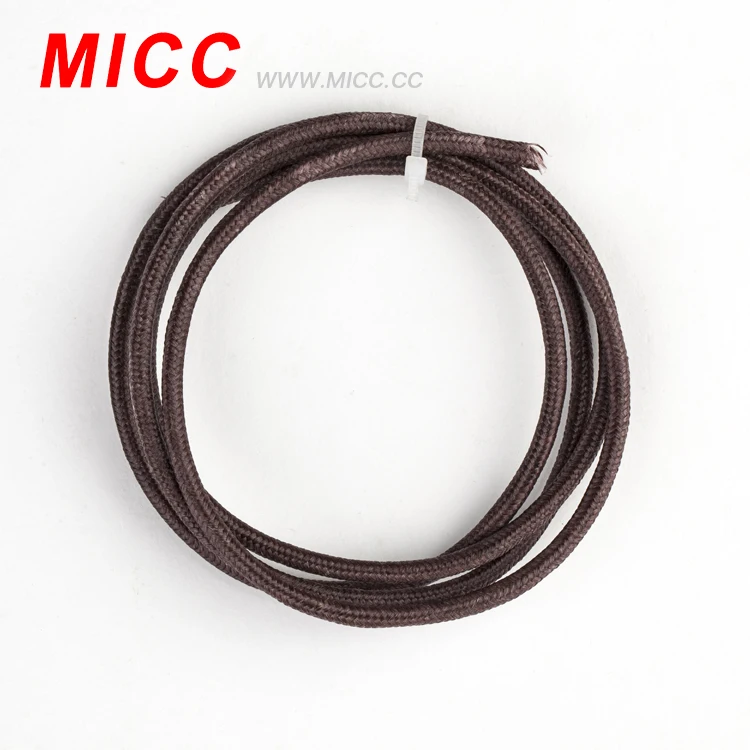

Thermocouple wire

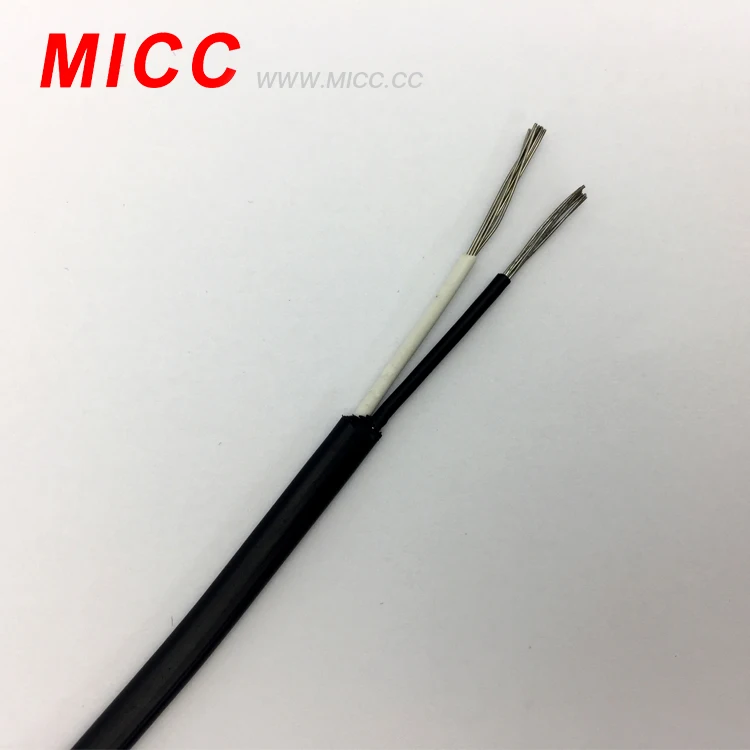

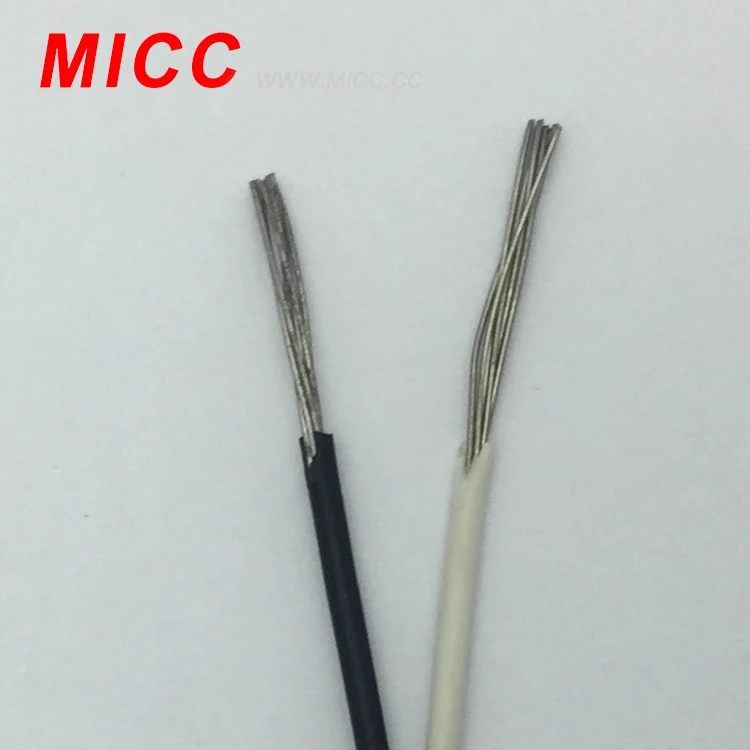

Thermocouple extension wire

1.Conductors:Positive Chrome

Negative Alumel

2.Insulation:Extruded PTFE

3.Overall Jacket:PTFE



Quick details

1, SUBJECT

This specification covers the requirements for PTFE insulated and PTFE sheathed thermocouple extension cable, type KX, 2x7/0.2mm,strand wire, standard tolerance and color code.



2, TECHNICAL FEATURES



A. Conductors:

Stranded thermocouple extension wire

Conductor Size (AWG)	No. of Strands & Gauge
24	7/0.2mm



B. Insulation:

Extruded PTFE ( 260ºC )

Nominal Insulation Thickness:0.31mm ± 0.2

Color code

Positive	Color
Chromel	Yellow



Negative	Color
Alumel	Red



C. Assembly:

Two conductors (positive and negative) parallel construction.



D. Overall Jacket:

Extruded PTFE ( 260ºC )

Nominal Sheath Thickness: 0.28mm ± 0.2

Color code:

Yellow



3, DIMENSIONS AND TOLERANCES

Dimensions / tolerances (mm)

1.43±0.25x2.38 ± 0.25



4, CALIBRATION TOLERANCE

Temperature range	Standard tolerance*	Special tolerance*
0º to 260ºC	±2,2°c or 0.75%	±1,1°c or 0,4%

*whichever is greater

Thermocouple type available: KX, JX, TX, EX, NX, RX,SX and other compensating cable like KCA, KCB and so on
