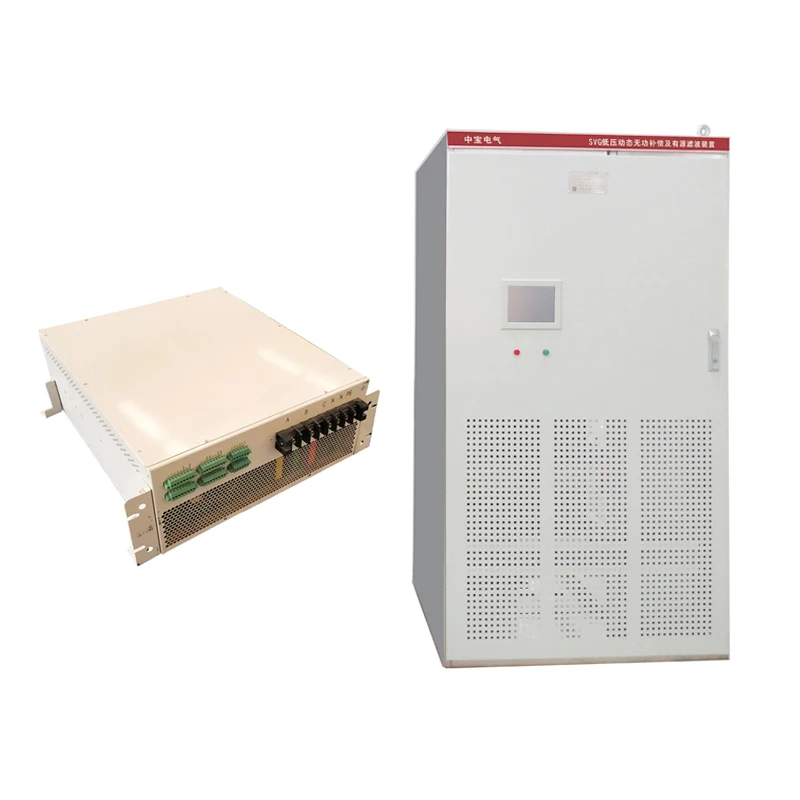

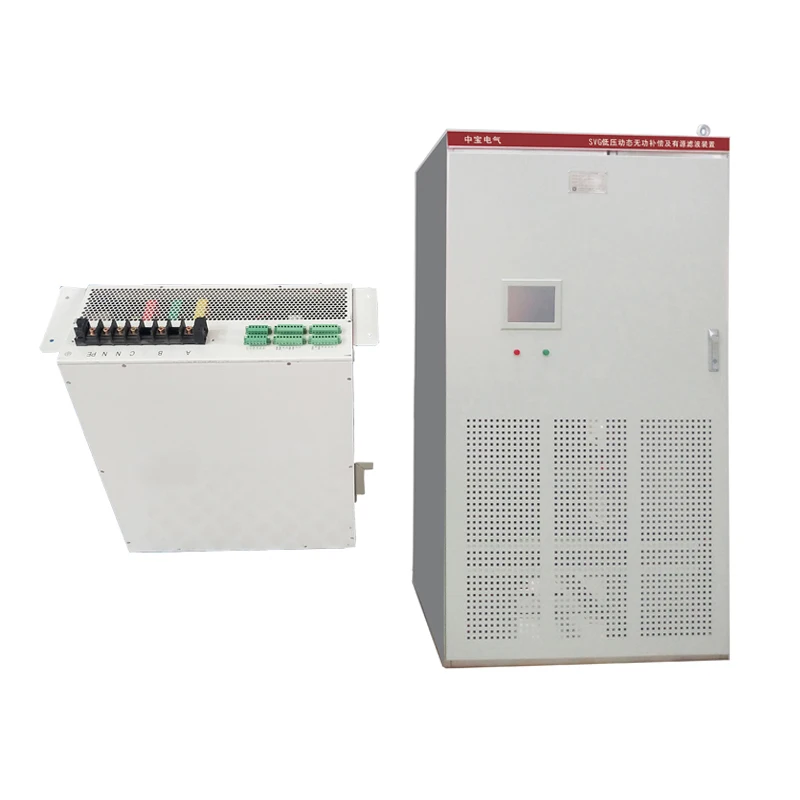

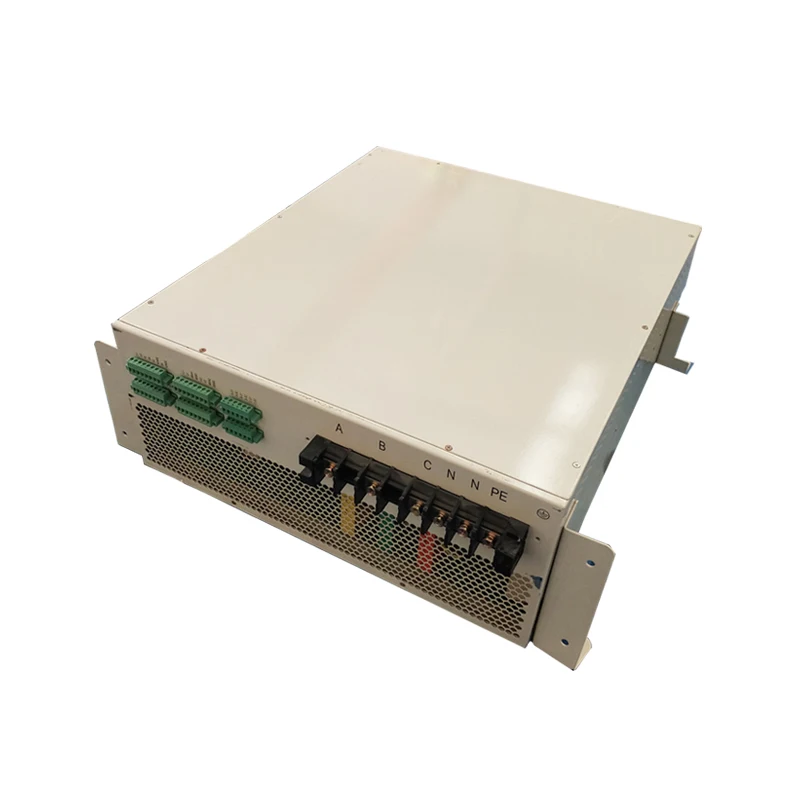

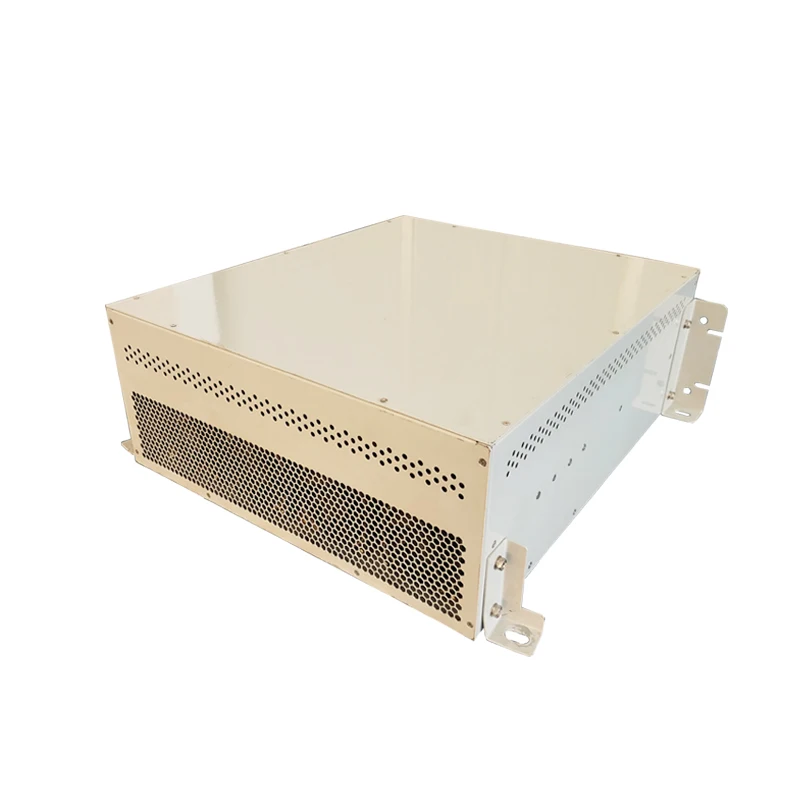

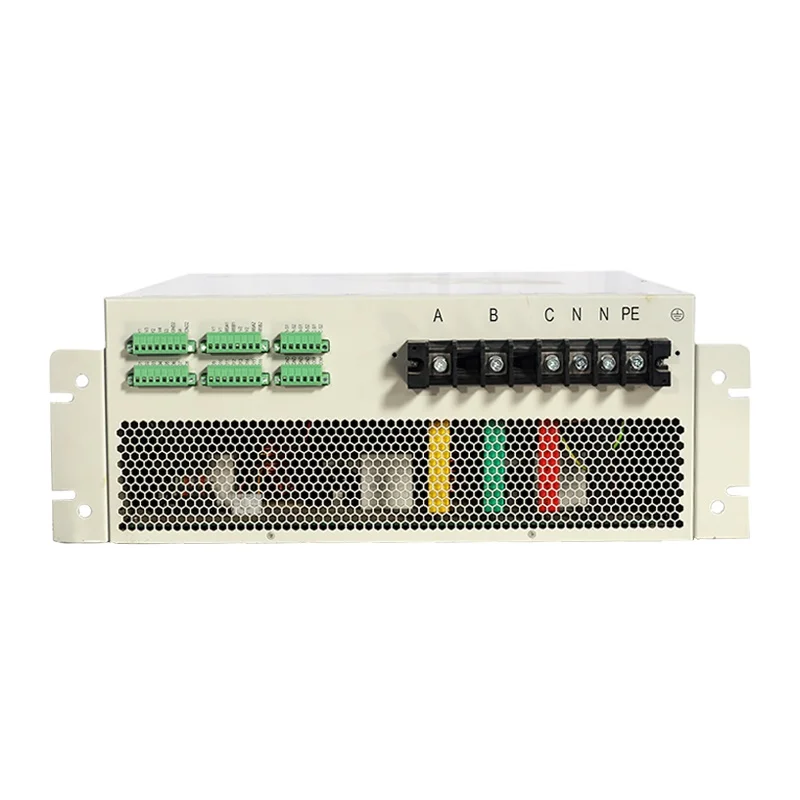

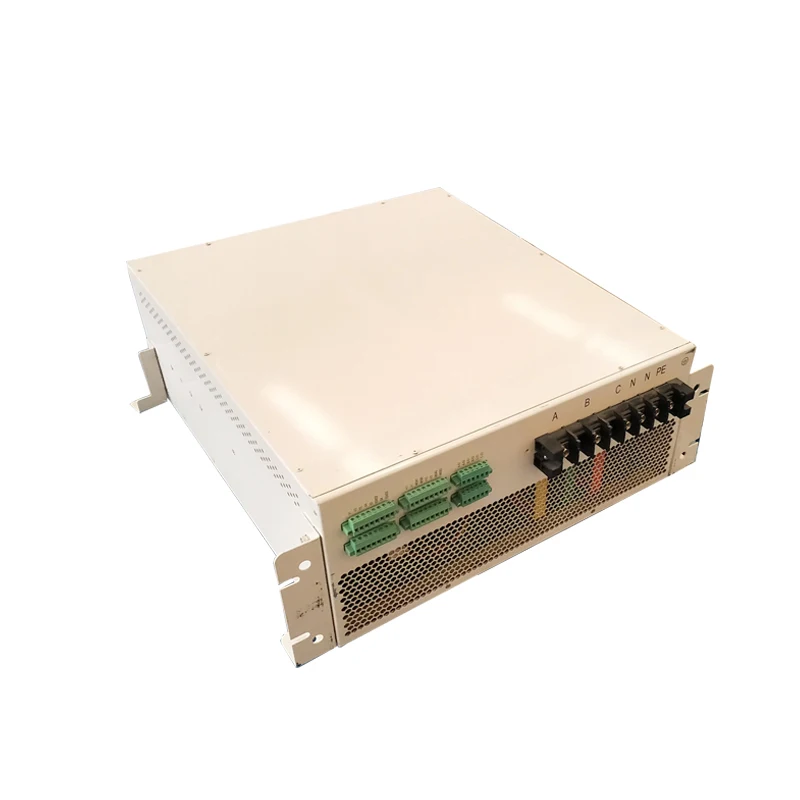

Performance static var generator svg with competitive price

Description

The  static var generator based on voltage type inverter principle,uses IGBT to control the value and phase of AC voltage of inverter, so as to serve the purpose of reactive and harmonic compensation. SVG can realize fast compensation for reactive load, and achieve very high compensation precision.

SVG is currently the best solution in reactive power control filed. SVG is faster (within 10ms), its compensation precision is high (power factor over 0.99), the compensation method is flexible (SVG can compensate both inductive reactive power and capacitive reactive power), and SVG also has the function of active filtration of harmonic current.

Application Site



Advantages

1. Compensate reactive power of system to improve the power factor.

2. Reduce line losses; improve the abolity of the transmission line.

3. With the dynamic compensation of harmonics, to improve power quality.

4. Inhibition of the fluctuation and flicker of voltage.

5. Maintain the receiving end voltage; strengthen the stability of system voltage.

6. Inhibition of the unbalance of three-phase.

7. Efficiency: up to 97.5%.

8. Regular input voltage: 380V±20% Special input voltage such as 480V, 690V and etc can be customized.

9. Up to 8 modules in parallel operation max.

Technical Parameters

Rated voltage	400V,660v,750v,1250v
Stand-alone device capacity	50A-500A
Instantaneous response speed	<0.1ms
Full response speed	<10ms
Voltage flicker suppression ratio	5:1
Current distortion rate after compensation	THDI<4%, can filter out the 30th harmonic
Voltage distortion rate after compensation	THDV<5%
Power factor	>0.99, users can set
Correct three-phase unbalance	Unbalance degree <3%
Design service life	>20 years
Efficiency	>99%
Installation and heat dissipation method	Indoor installation and air cooling
Overload capacity	2*Irms peak current overload capability
Protective function	It is the same as overvoltage, undervoltage, phase loss, short circuit protection, device overcurrent, overheat protection, IGBT protection, etc.
Electromagnetic Compatibility	Meet the requirements of EU standard EN50121-5:2000
Grid frequency	50/60 Hz
Noise level	<75dB
Ambient temperature	-10℃~40℃
Protection level	IP31 (please contact manufacturer for higher protection level)
Humidity	<90% (All circuit boards are coated with three anti-paints)
