Zencar duosida ev зарядный уровень 2 Портативный evse sae j1772 Штепсель
US $100.00-$120.00
Новая Энергия 30kw 100A подвижное автомобильное зарядное устройство постоянного тока быстрое для электрических
- Категория: Portable Charging Stations >>>
- Поставщик: Guangzhou,Max,Power,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4141.83 $* | 4348.81 $* |
| Aug-18-2025 | 4106.42 $* | 4311.0 $* |
| Jul-18-2025 | 3445.47 $* | 3617.56 $* |
| Jun-18-2025 | 4037.73 $* | 4239.18 $* |
| May-18-2025 | 3515.24 $* | 3691.86 $* |
| Apr-18-2025 | 3967.27 $* | 4165.82 $* |
| Mar-18-2025 | 3932.11 $* | 4129.13 $* |
| Feb-18-2025 | 3898.32 $* | 4093.9 $* |
| Jan-18-2025 | 3863.81 $* | 4056.66 $* |
Характеристики
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Product Description
30kw portable charger
◆ The 30KW portable charger produced by our company, with input voltage of 380V, voice navigation, easy to use, rated output power of 30KW, This product has the corresponding rainproof cover, which is specially customized for this type of charger. If necessary, you can contact with the customer service.
◆By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
◆High performance charging module, super wide charging range, high efficiency.
◆ 4.3 inch display screen, the display screen will prompt the operation steps, intuitive and simple, beautiful and generous.
◆ Can also be customized production according to vehicle BMS parameters.
◆High efficiency:≥95%
◆By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
◆High performance charging module, super wide charging range, high efficiency.
◆ 4.3 inch display screen, the display screen will prompt the operation steps, intuitive and simple, beautiful and generous.
◆ Can also be customized production according to vehicle BMS parameters.
◆High efficiency:≥95%
Production parameters
Model | 30KW | ||
AC Input | Input Rating | 380Vac±15% | |
AC Input Connection | 3P + N +PE, Wye connection | ||
Max. Input Current | 60A | ||
Frequency | 50 /60 Hz | ||
Power Factor | >0.99@full load | ||
Efficiency | 95% | ||
DC Out put | Output Voltage Range | 200-750Vdc | |
Max, Output Power | 30KW | ||
Max. Output Current | 100A | ||
User Interface | TFT-LCD Touch Panel | No | |
Push Buttons | No | ||
Interface | USB | ||
Packing | Dimension | 570×190×350mm | |
Weight | 44KG | ||
Environmental | Operating Temperature | -40~85℃，25℃（TYPE） | |
Humidity | 5%-90% RH, non-condens,ng | ||
Altitude | 2000m | ||
IP Level | IP43 | ||
Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable | |
Regulation | EN61851-1 | ||
Regulation | Certification | CE , ROHS | |
Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | ||

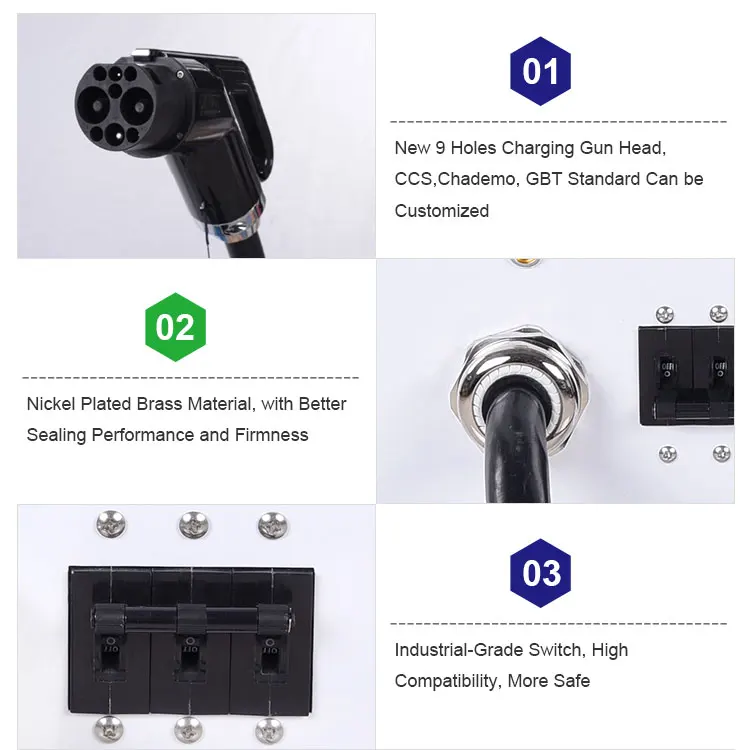

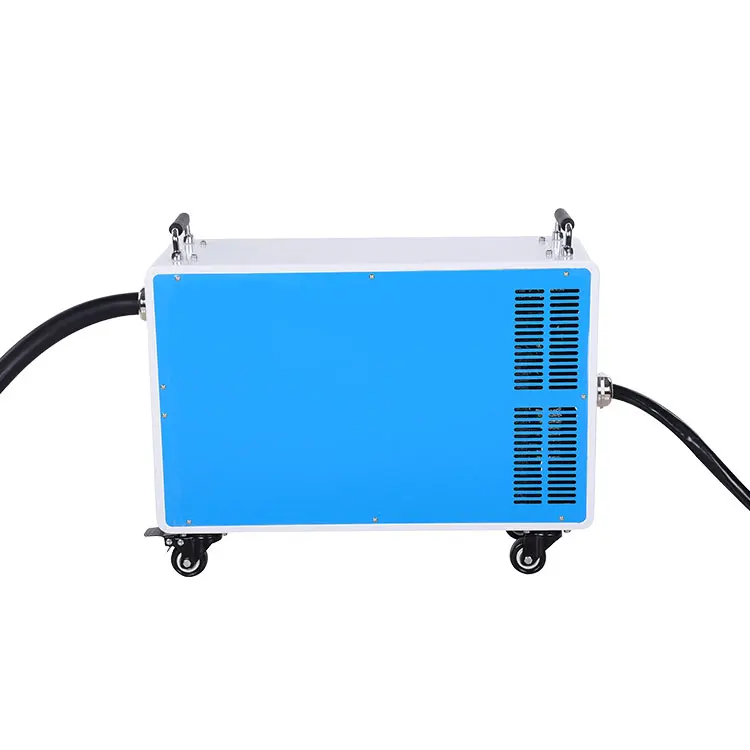

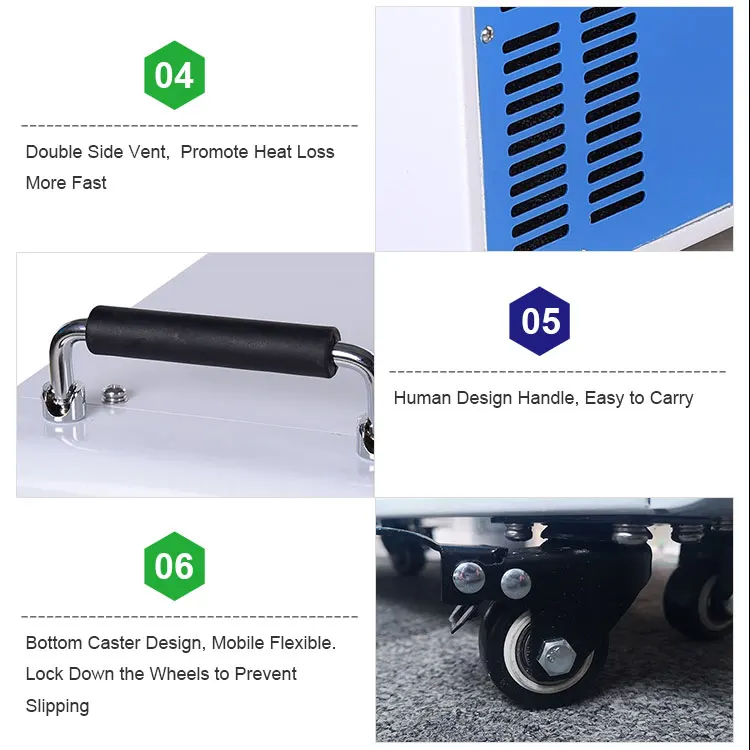

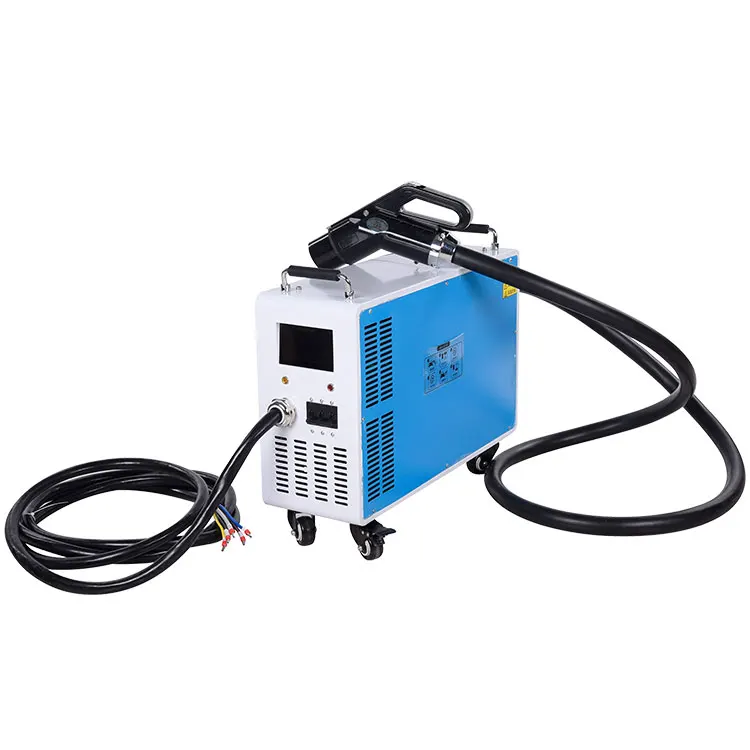

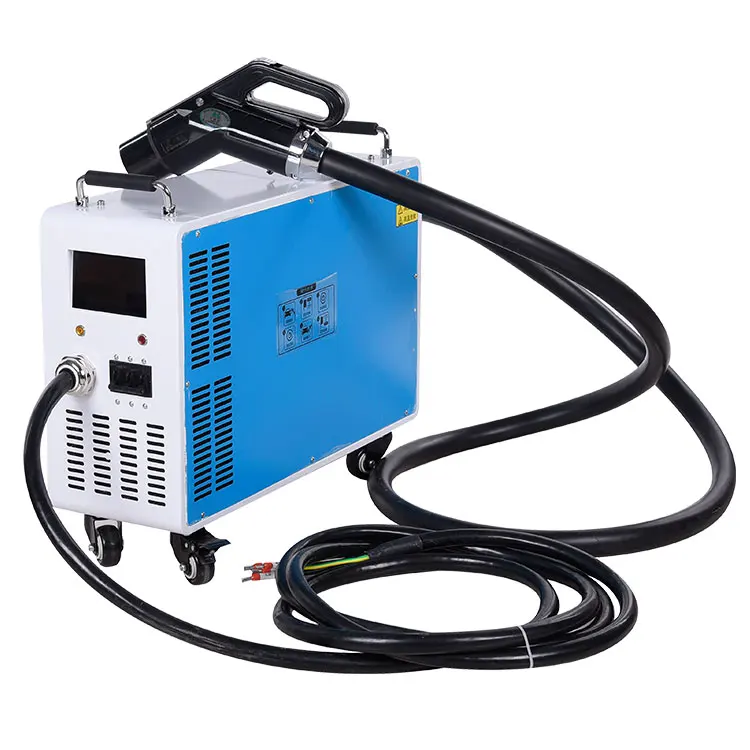

Real Product Photo Show
Our Advantages
Company Profie
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
