3d 5d Effect UV Wall/Floor/Ground Art Glass/Wood/Ceramic/Paper/Metal Direct Inkjet Printers Spraying Printing Painting
- Категория: Printing Shop Machines >>>
- Поставщик: Perfect,Laser,(Wuhan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.46 $* | 0.32 $* |
| Aug-18-2025 | 0.4 $* | 0.72 $* |
| Jul-18-2025 | 0.88 $* | 0.93 $* |
| Jun-18-2025 | 0.97 $* | 0.0 $* |
| May-18-2025 | 0.79 $* | 0.71 $* |
| Apr-18-2025 | 0.33 $* | 0.52 $* |
| Mar-18-2025 | 0.92 $* | 0.7 $* |
| Feb-18-2025 | 0.40 $* | 0.74 $* |
| Jan-18-2025 | 0.42 $* | 0.87 $* |
Характеристики

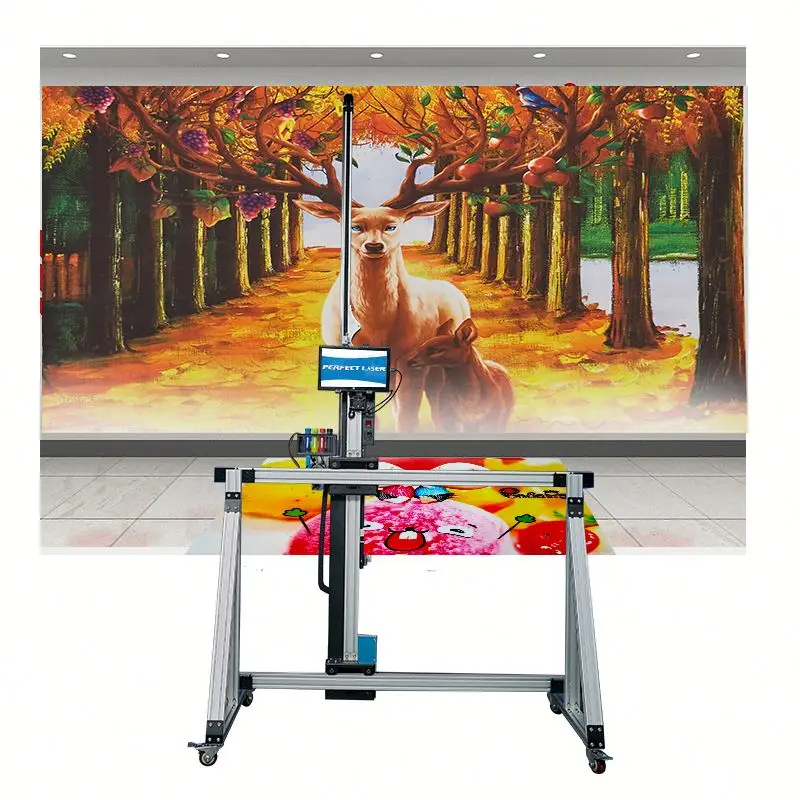

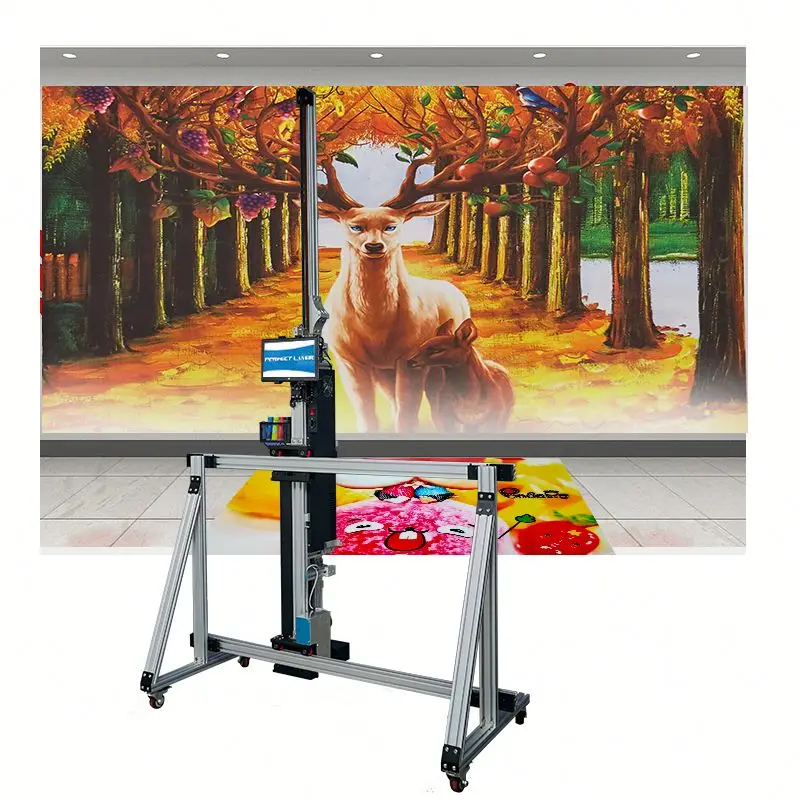

3d 5d Effect UV Wall/Floor/Ground Art Glass/Wood/Ceramic/Paper/Metal Direct Inkjet Printers Spraying Printing Painting Machines
(Modle:PE-S10 / UV10 / UV20)
Contact: Sara Wechat/Whatsapp: +8613971657490 Email :sara(@)perfectlaser.net
Product Description
Professional Service For Wall Printer Price For Wholesales PE-S10 is a new product strongly launched by Perfect Laser. It adopts imported Japan imported high-definition print heads. The maximum spray speed can reach 64㎡/h. It’s fast, one-time imaging, with bright color, and will not get fade. is suitable for all kinds of white walls, such as: putty walls, ceramic tile walls, latex paint walls, cement walls, etc.
Specification
Ink | Colorful water-based ink |
Printing Heads | Signal head |
The fastest painting speed | 32㎡/h |
Motherboard configuration | 6-core CPU, 2GB DDR memory |
Total body weight | 35 kgs |
Power-off endurance time | 10 hours |
Data transmission method | USB 2.0 / 3.0 / Bluetooth / Wireless control (optional) |
Ultrasonic sensor | Double sensor |
Host size | 2820 x 535 x 390mm |
Highest painting accuracy | 9600 dpi |
Ink consumption per square | 6-10 ML |
print head model | Japan imported print head (industrial grade) |
X axis folding | Optional |
Print head guard | Yes |
Head ink tank | Can be split and transported separately |
Painting direction | Horizontal |
X axis guide | 2820mm |
Y axis guide | Wheeled |
Z axis guide | 170mm |
Display screen | 11.6-inch touch panel |
X axis effective stroke | 2500mm |
Print head cleaning | One-key automatic |
Ink tank capacity | 400ML |
Certification | Green environmental protection certification, national standard testing qualified (GB18582-2001, GBT9756-2001), CE certification |
power supply | AC110V (90-132V) / AC220V (AC180-264V) , 47-63HZ |
Power consumption | No load 20W, generally 75W, up to 250W |
Noise | Standby <20dBA, drawing <50dBA |
Construction temperature | -10°C-60°C (14°F-140°F) 10%-80% relative humidity, non-condensing |
Storage temperature | -30℃-60℃(-22°F-140°F) 10%-80% relative humidity, non-condensing |
Language switch | Chinese and English (customized) |
System platform | Windows XP / Win7 / Win8 / Win10 |
Flash spray test | Touch |
Inkjet test | Touch |
Automatic nozzle avoidance | √ |
Turn left and right | √ |
Print white | Optional |
Painted mode | Two-way |
Gallery type | Beautifully printed gallery book + mobile hard disk |
Picture processing | AI intelligent image processing |
Automatically block large images | Unlimited height / width size of painted pictures |
Interrupt automatic marking | √ |
Auto-complement | √ |
Quiet zone calibration | √ |
Step calibration | √ |
Nozzle buffer | √ |
Spray distance | 0.5-2.0cm |
Ink supply method | Negative pressure automatic ink supply |
Color processing | Automatic color matching |
Painted medium | All floor |
Integrated voltage regulator | Has |
Laser positioning | Has |
Magnetic limit | Has |
Automatic white jump | Has |
Power outage life | Has |
Picture on demand | Has |
PE-S10 Water-based colorful ink type(single head): | Process treatment: 1. The floor base must be treated as white. (The premise is that the floor must be able to adhere to the ink) 2. The machine will be equipped with a special white primer before leaving the factory. After the floor is treated with white primer, wait for the white paint to dry before printing. 3. After printing, the entire painting needs to be painted. It takes about 1 hour for the surface of the finish paint to dry, and it takes more than 4 hours for the finish to dry before this work is considered complete. |

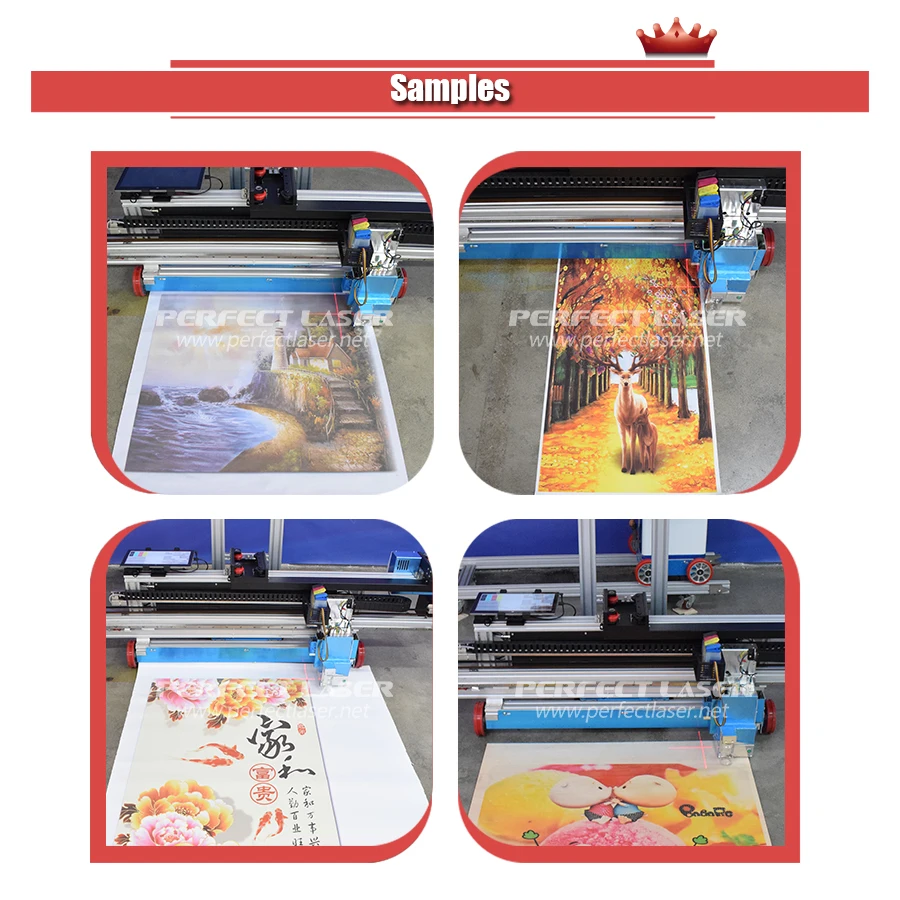

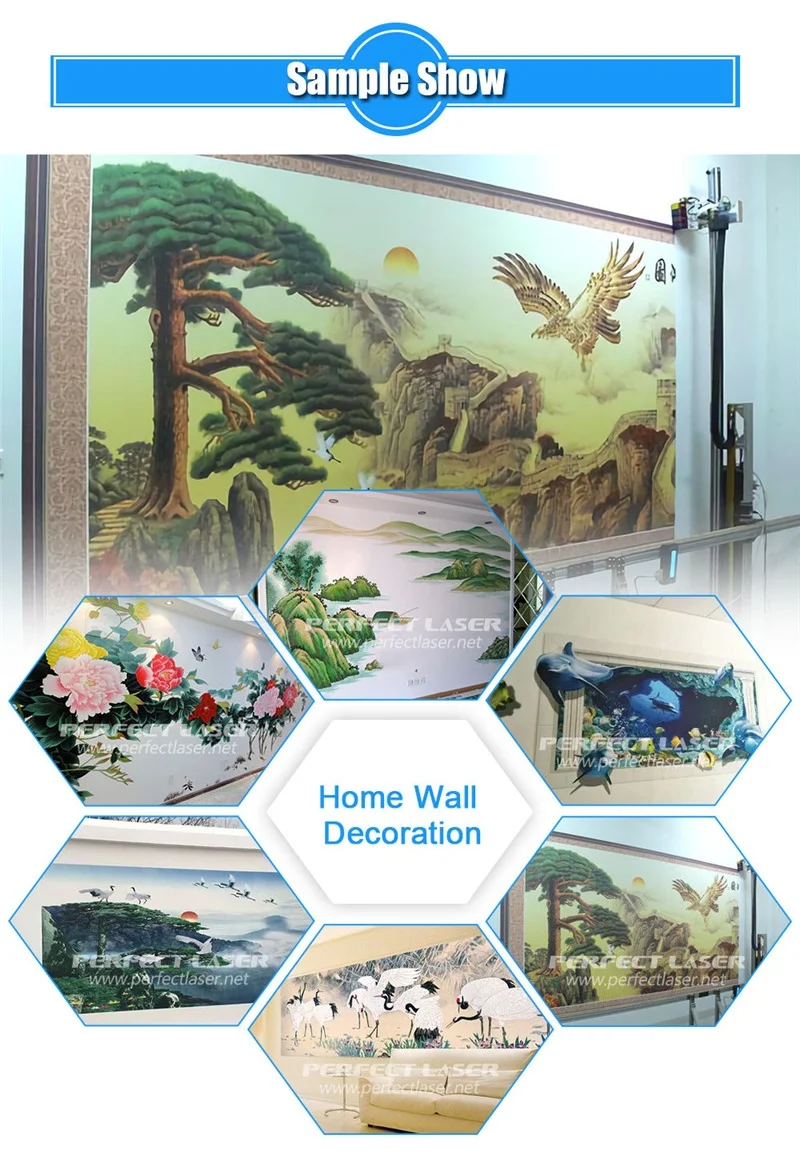

Sample & Application
1. 1.Applicable Materials:
The floor ground inkjet printing machine is suitable for all kinds of white walls, such as: putty walls, ceramic tile walls, latex
paint walls, cement walls, etc.
2. Applicable industries:
The floor ground inkjet printing machine is suitable for decoration industry, advertising industry, culture and education
industry, government and community publicity, etc.
The floor ground inkjet printing machine is suitable for all kinds of white walls, such as: putty walls, ceramic tile walls, latex
paint walls, cement walls, etc.
2. Applicable industries:
The floor ground inkjet printing machine is suitable for decoration industry, advertising industry, culture and education
industry, government and community publicity, etc.
Company Profile
We, Perfect Laser, as a 21 years history industrial UV flatbed printing machine manufacture, 14 year Golden Supplier in Alibaba, with CE certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
