Оригинальная Подлинная горелка Riello G5LC G10LC G20LC G5 G10 G20
US $486.00-$745.00
Электрический
- Категория: Boiler Parts >>>
- Поставщик: Nanjing,Binghuo,Creative,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11900.0 $* | 12495.46 $* |
| Aug-19-2025 | 11800.68 $* | 12390.0 $* |
| Jul-19-2025 | 9900.37 $* | 10395.27 $* |
| Jun-19-2025 | 11600.50 $* | 12180.44 $* |
| May-19-2025 | 10100.84 $* | 10605.64 $* |
| Apr-19-2025 | 11400.97 $* | 11970.45 $* |
| Mar-19-2025 | 11300.43 $* | 11865.10 $* |
| Feb-19-2025 | 11200.7 $* | 11760.17 $* |
| Jan-19-2025 | 11100.89 $* | 11655.80 $* |
Характеристики
Product advantages

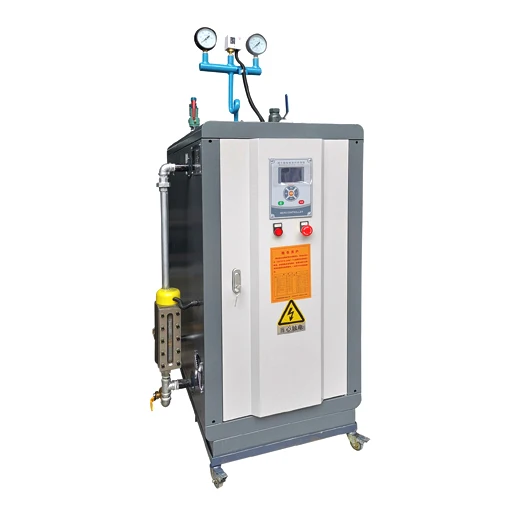

This product is our company after 2 years of research and development, automatic control, copper make-up pump as one, its gas production speed is fast, cold water gas production is not more than 10 minutes; The pressure is up to 0.4-0.7mpa; The temperature of the generated steam reaches above 150 ℃, and the generated steam is dried at a high temperature.
Full automatic control, no need for professional guards. Multiple security measures.
Good service: from transportation, installation, commissioning, operation, we provide all-round service to the end.
The characteristics of ontology are as follows
1. Advanced electric heater is adopted, with low surface load and long service life.
2. Using step-by-step time-sharing input method to control the electric heating elements can reduce the impact of the boiler on the power grid, so that the boiler can operate more reliably.
3. According to the change of temperature difference and load, the heating element can automatically adjust the number of groups of heating tubes, and automatically change the order of putting them into operation, which can not only save energy consumption, but also make the operation time of each group of heating tubes balanced, so as to even the service life of heating tubes.
4. The heating element can also be put into or stopped manually, which is convenient for users to adjust the calorific value of the boiler flexibly.
5. Using advanced centrifugal glass fiber multi-layer insulation, low heat loss, low energy consumption, high thermal efficiency.
6. It is packed with imported color board, with beautiful appearance.
Protector:
1. Boiler limit water level Protector: when the water level is lower than the set minimum limit water level, automatically cut off the power supply and give an alarm. After normal, press the reset key to restart.
2. Abnormal protection function of boiler temperature sensor: after each startup, the control system first detects the condition of the sensor. If it is abnormal, it will automatically cut off the boiler and give an alarm.
3. Over high temperature protection function of boiler shell: when the temperature of boiler shell exceeds 105 ℃, the power supply will be automatically cut off and the alarm will be given. After normal operation, start the boiler automatically.
4. Leakage protection function of boiler: electrical components of Siemens, Schneider, abb, Honeywell, Chint and other well-known brands are adopted. When the control system detects leakage of electric heating components, it will stop immediately and reset and restart after the fault is eliminated.
Full automatic control, no need for professional guards. Multiple security measures.
Good service: from transportation, installation, commissioning, operation, we provide all-round service to the end.
The characteristics of ontology are as follows
1. Advanced electric heater is adopted, with low surface load and long service life.
2. Using step-by-step time-sharing input method to control the electric heating elements can reduce the impact of the boiler on the power grid, so that the boiler can operate more reliably.
3. According to the change of temperature difference and load, the heating element can automatically adjust the number of groups of heating tubes, and automatically change the order of putting them into operation, which can not only save energy consumption, but also make the operation time of each group of heating tubes balanced, so as to even the service life of heating tubes.
4. The heating element can also be put into or stopped manually, which is convenient for users to adjust the calorific value of the boiler flexibly.
5. Using advanced centrifugal glass fiber multi-layer insulation, low heat loss, low energy consumption, high thermal efficiency.
6. It is packed with imported color board, with beautiful appearance.
Protector:
1. Boiler limit water level Protector: when the water level is lower than the set minimum limit water level, automatically cut off the power supply and give an alarm. After normal, press the reset key to restart.
2. Abnormal protection function of boiler temperature sensor: after each startup, the control system first detects the condition of the sensor. If it is abnormal, it will automatically cut off the boiler and give an alarm.
3. Over high temperature protection function of boiler shell: when the temperature of boiler shell exceeds 105 ℃, the power supply will be automatically cut off and the alarm will be given. After normal operation, start the boiler automatically.
4. Leakage protection function of boiler: electrical components of Siemens, Schneider, abb, Honeywell, Chint and other well-known brands are adopted. When the control system detects leakage of electric heating components, it will stop immediately and reset and restart after the fault is eliminated.
Electrical | All are Chint, Siemens, Schneider famous brand electric | Small brand, even using integrated circuit, easy to burn |
Heating tube | 100% stainless steel large heating pipe | Small carbon steel heating pipe, low power, easy to break |
Arranging wires | Professional electrician wiring according to national standards | Disorderly, disorderly connection, easy leakage |
Water pump | High power copper pump is adopted, and the water pump is externally installed on the external base of the furnace | Small power make-up water pump, when the internal pressure of the boiler is large, can not feed water, often low water level |
Pressure gauge | Famous brand Shanghai red flag pressure gauge is adopted | Small pressure gauge |
Controller | Using color LCD, automatic, more intuitive | press-button control |
Pressure switch | Imported Danfoss, safe and reliable | Small business production, no safety guarantee |
Steam dryness | More than 99% dryness | 80%, with serious water |
LDR0.1 | LDR0.2 | LDR0.3 | LDR0.5 | ||||||
-0.7-D | |||||||||
Rated evaporation capacity | kg/h | 100 | 200 | 300 | 500 | ||||
Working pressure | Mpa | 0.7 | |||||||
Thermal efficiency | % | 98 | |||||||
Full water capacity | L | 29 | 29*2groups | 29.8*2groups | 29.8*4groups | ||||
Steam outlet | mm | 20 | 25 | 25 | 32 | ||||
Intake | mm | 15 | 15 | 15 | 15 | ||||
Blowdown valve | mm | 20 | 20 | 20 | 25 | ||||
Safety valve | mm | 20 | 15 | 20 | 25 | ||||
Power consumption | KW | 72 | 144 | 216 | 360 | ||||
Dimensions | length | 570 | 1600 | 1600 | 1650 | ||||
width | 560 | 1280 | 1280 | 1300 | |||||
height | 960 | 1200 | 1200 | 2500 | |||||
Transport weight | kg | 90 | 180 | 320 | 410 | ||||
