for sale hot hydraulic cable fitting hose crimping machine quick die set change and machine stand with best price



(1). MS-51KH is suitable for hydraulic hose from 1/4'' to 2'' crimping (with standard die sets).

(2). It is design based on demand of extending of the market.

(3). It can press max 2'' rubber hose.

(4). With foot pedal, makes the crimping easier to control.

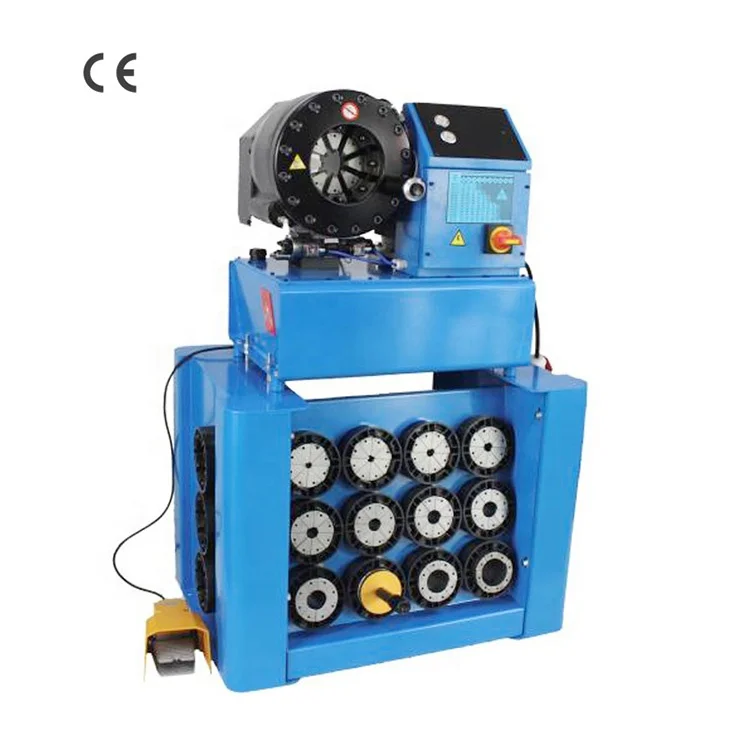

Model:	MS-51KH hydraulic hose crimping machine
Crimping Force:	520T
Hose Size:	2'' (DN51)
Free die sets:	10
System Pressure:	31.5Mpa
Max. Opening:	+31mm
Closing Speed:	10sec
Opening Speed:	4sec
Operating Mode:	Button, Foot Pedal, Automatic
Pump Displacement:	5L/min
Control Method:	MS
Output:	200-600pcs/hour
Manual Die Change:	Included
Foot Pedal:	Included
Front Limit Ruler:	Included
Back Limit Sensor:	Included
Voltage:	220V 1PHASE
Motor Power:	3kw
Weight:	320kg
Dimension:	800*640*1300mm
Hydraulic Oil:	#46
Oil Tank:	50L







Limit Switch

Used to set the closing diameter of the die sets, when reaching to the set diameter, the die sets will stop move automatically.





Button Control Panel

The buttons are on the left side, convenient to control the whole crimping work and see the whole crimping progress.



10-13 sets complete dies for the hydraulic hose from 1/4'' to 2''

Die sets use high hardness special mould steel, under normal use, the die sets can be used for more than 10 years without problem. The die sets are changed by the special fork along with the crimping machine.















Professional with Long History
MENSION is enterprise specializing in manufacturing, marketing and R&D of hydraulic hose crimping machine, electric hose cutting, skiving, cleaning and testing machine. We supply a whole line for hydraulic hose assembly crimping work. For the convenience of our customer, we offer hydraulic hose and hose fittings with competitive price. MENSION supply machines to a wide variety of manufacturing and repairing sectors including construction machinery repair, agricultural machinery repair, hydraulic machines repair (mainly crimp hydraulic oil hose on demand), and automobile brake hose, air conditioner hose crimping,, a green house built and construction scaffold built, etc.



High quality CNC lathe and engineer team

We have professional engineer and high quality CNC lathe machines for the machine processing. The hydraulic hose crimping machine are designed and assembled with strict test, to ensure a quality machine to serve our customers.





Most models in stock.

We have 38 series, 130 series, 51series, 68 series in stock, the machines can be sending as soon as you need it be. For the customized models, it will take no more than 30 days.



Customers all over the world

Mension is a mechanical technology companies integrating in design, development, production and sales . After years of dedicated management, the products have covered nearly 30 provinces, municipalities and autonomous regions in China and export to over 100 countries and regions in the world, like USA, Canada, Colombia, Guyana, Ecuador, Peru, Bolivia, Chile, Australia and New Zealand, Algeria, Kenya, Zambia, South Africa, Italy..., etc.



Q1. What is the guarantee for the hydraulic hose crimping machine?	A1: We offer 12 months guarantee for the whole machine after commissioning.
Q2: What certificate you have?	A2: We have CE, CO, Rohs, ISO9001:2015.
Q3:How about your service?	A3: Before Sales Service: 1. We will help our customer confirm the right model according to the offered pipe information. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation should be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
Q4: What is the delivery method?	A4: Usually by sea, by air or by road transport.
Q5: Do you have retailer in my country?	A5: MENSION have machines at many countries, if there is our machine in your country, we can contact the customer to arrange a visit for you.
