Sinbosen 2 входа 6 выходов система управления динамиками для кинотеатра PA2 pro цифровой
- Категория: DJ Controller\/Audio Console Mixer >>>
- Поставщик: GUANGZHOU,XINBAOSHENG,AUDIO,EQUIPMENT,COMPANY,LIMITED
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.79 $* |
| Aug-16-2025 | 0.75 $* | 0.92 $* |
| Jul-16-2025 | 0.68 $* | 0.41 $* |
| Jun-16-2025 | 0.6 $* | 0.36 $* |
| May-16-2025 | 0.40 $* | 0.81 $* |
| Apr-16-2025 | 0.5 $* | 0.0 $* |
| Mar-16-2025 | 0.35 $* | 0.89 $* |
| Feb-16-2025 | 0.87 $* | 0.62 $* |
| Jan-16-2025 | 0.53 $* | 0.71 $* |
Характеристики
Sinbosen 2 input 6 output PA2 pro theater speaker management system digital audio processor
Feedback
Product Description
ANALOG INPUTS | ||
Number of Inputs | 2 line inputs, 1 RTA mic input | |
Connectors | 2 female XLR line inputs, 1 female XLR RTA mic input | |
Type | Electronically balanced/RF filtered | |
Impedance | > 50 kΩ | |
Max Input Level (line inputs) | > +20 dBu | |
CMRR | > 45 dB | |
RTA Mic Preamp Phantom Power | +15 VDC | |
ANALOG OUTPUTS | ||
Number of Outputs | 6 line outputs | |
Connectors | Male XLR | |
Type | Electronically balanced, RF filtered | |
Impedance | 120 Ω | |
Max Output Level | +20 dBu | |
Alignment Delay | Up to 10ms per output channel pair | |
A/D PERFORMANCE | ||
A/D Converter | 24-bit with dbx Type IV™ Conversion System | |
A/D Dynamic Range | 112 dB A-weighted, 110 dB unweighted | |
Type IV Dynamic Range | 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW | |
D/A PERFORMANCE | ||
D/A Converter | 24-bit | |
D/A Dynamic Range | 112 dB A-weighted, 110 dB unweighted | |
SYSTEM PERFORMANCE | ||
Internal Processing Wordlength | 32-bit floating point | |
Sample Rate | 48 kHz | |
Dynamic Range | 110 dB A-weighted 107 dB unweighted | |
THD+Noise | 0.003% typical at +4 dBu, 1 kHz, 0 dB input gain | |
Frequency Response | 20 Hz - 20 kHz, +0 /- 0.5 dB | |
Interchannel Crosstalk | < -110 dB, -120 dB typical (input-to-output: < -100 dB) | |
Latency | Input to output: 1.847 ms | |
POWER SUPPLY | ||
Operating Voltage | 100-120 VAC 50/60 Hz or 220-240 VAC 50/60 Hz | |
Power Consumption | 22 Watts | |
Processor Features:
Stereo feedback suppressor 2×12 group fast tracking notch filter.
Dual 28-segment graphic equalizer.
120A subharmonizer.
2×3, 2×4, 2×5, 2×6 crossover combination selection.
Stereo multi-parameter equalizer.
Stereo output limiter.
Speaker fine-tuning delay.
Pink noise generator.

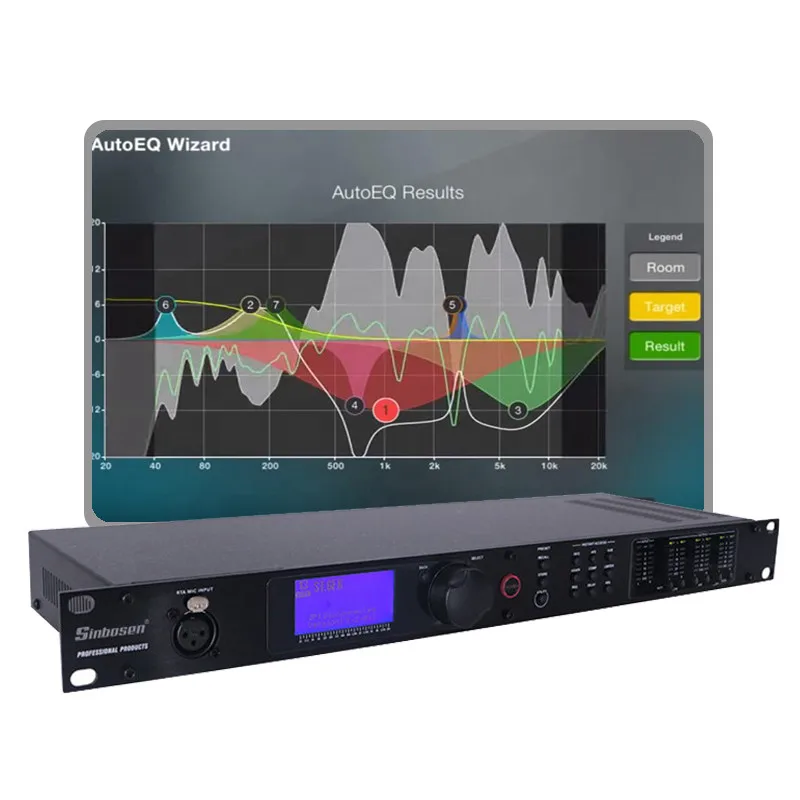

Auto-EQ automatic room equalization compensation.
25 factory presets / 25 user settings program memory.
2 sets of inputs, 6 sets of outputs.
RTA-M real-time spectrum analysis microphone input is set on the panel with phantom power.
24-Bit A/D converter provides dynamic range greater than 110dB.
Graphic LCD display.
Front Panel Input and Output Meters.
AFS™ Wizard Helps Eliminate Feedback.
Stereo Feedback Elimination with 12 feedback notch filters
Dual 28-segment graphic equalizer.
120A subharmonizer.
2×3, 2×4, 2×5, 2×6 crossover combination selection.
Stereo multi-parameter equalizer.
Stereo output limiter.
Speaker fine-tuning delay.
Pink noise generator.
Auto-EQ automatic room equalization compensation.
25 factory presets / 25 user settings program memory.
2 sets of inputs, 6 sets of outputs.
RTA-M real-time spectrum analysis microphone input is set on the panel with phantom power.
24-Bit A/D converter provides dynamic range greater than 110dB.
Graphic LCD display.
Front Panel Input and Output Meters.
AFS™ Wizard Helps Eliminate Feedback.
Stereo Feedback Elimination with 12 feedback notch filters
