Сепаратор для переработки медного провода на продажу
US $5000-$35000
Горячая Распродажа погружной волоконный лом медная проволока кабель из сшитого полиэтилена машина для производства гранул с гелевой
- Категория: Other Scrap Metal Recycling Equipment >>>
- Поставщик: Henan,Mingchuang,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 13090.67 $* | 13745.16 $* |
| Aug-19-2025 | 12980.53 $* | 13629.65 $* |
| Jul-19-2025 | 10890.95 $* | 11435.75 $* |
| Jun-19-2025 | 12760.2 $* | 13398.45 $* |
| May-19-2025 | 11110.80 $* | 11666.84 $* |
| Apr-19-2025 | 12540.33 $* | 13167.51 $* |
| Mar-19-2025 | 12430.33 $* | 13052.79 $* |
| Feb-19-2025 | 12320.85 $* | 12936.43 $* |
| Jan-19-2025 | 12210.86 $* | 12821.56 $* |
Характеристики
Product Description
Product presentation

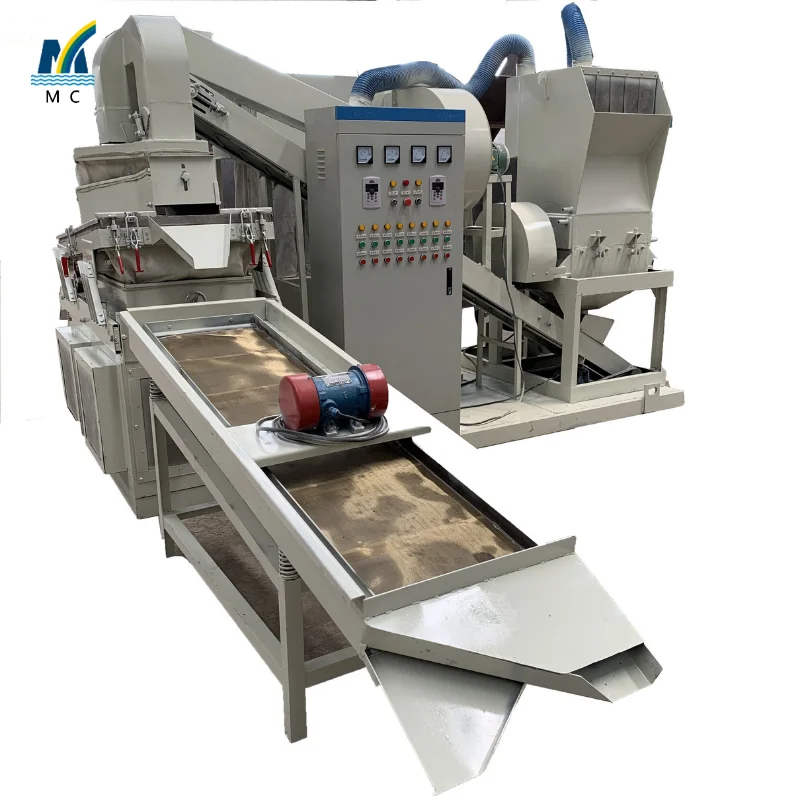

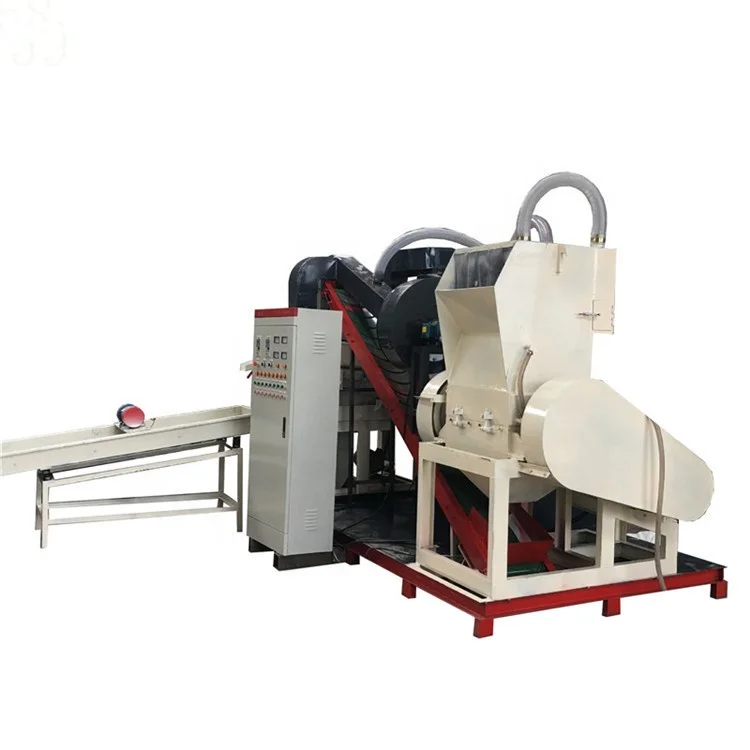

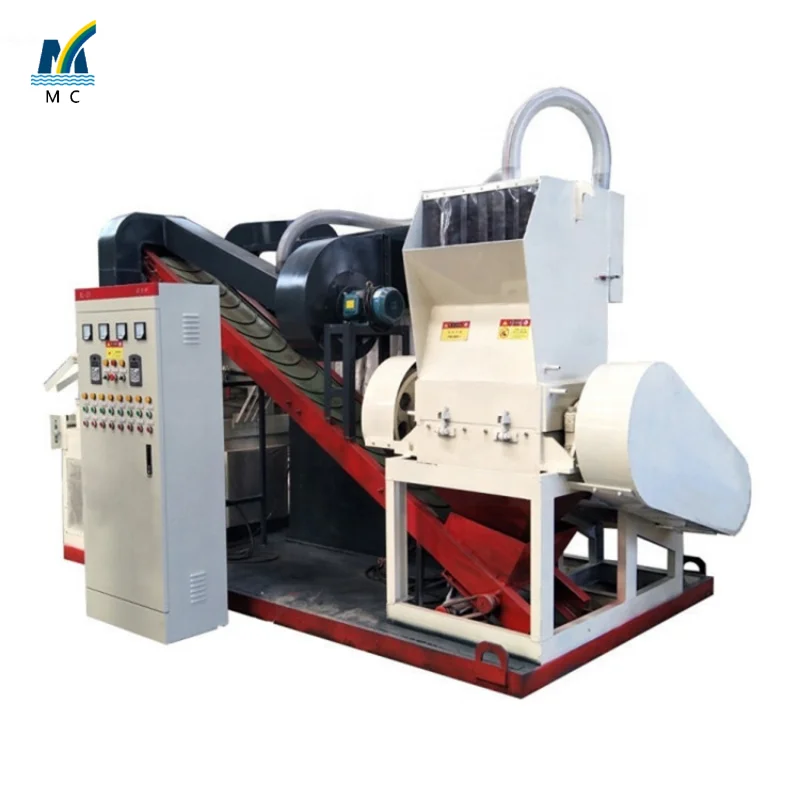

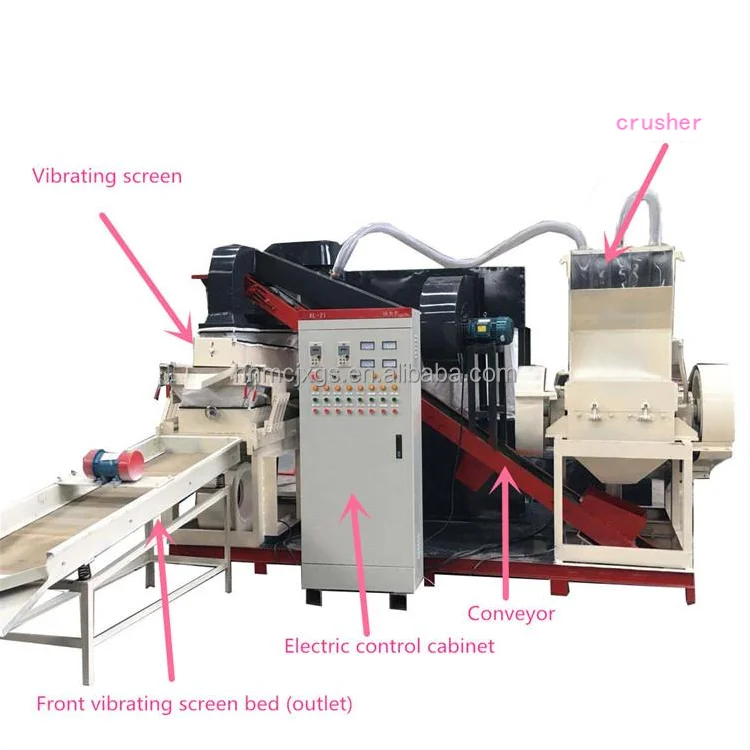

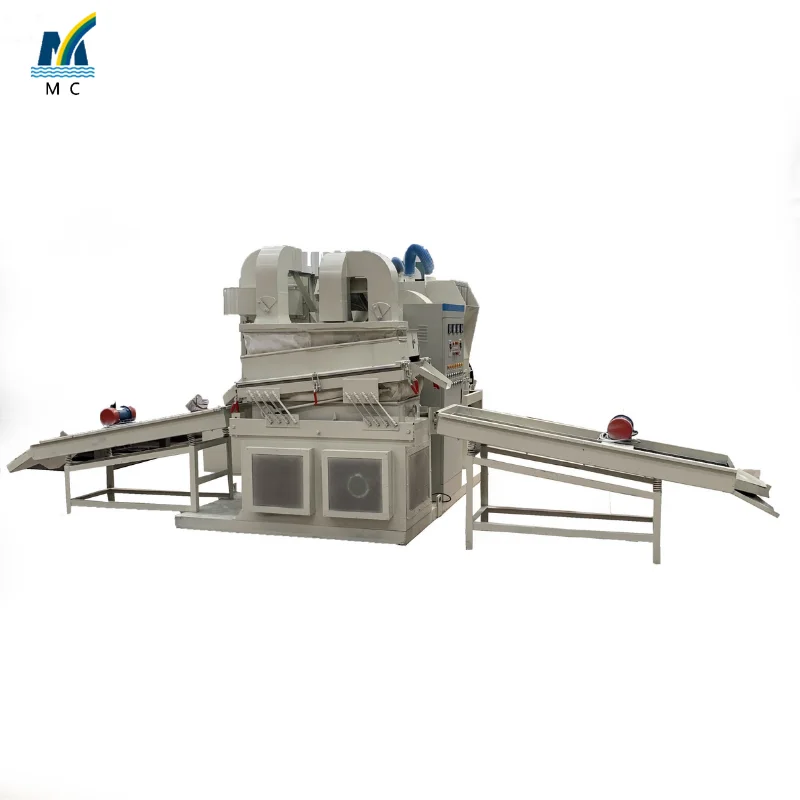

Copper wire granulator adopts advanced design, reasonable structure and reliable operation.This production line can not only deal with the coarse thread that ordinary crusher can deal with, but also has a good separation effect to the very fine thread.it is dry type structure,which includes crushing system, conveying system, dust removal system, gravity separation system, tailings screening system and control system. The whole process is controlled by PLC. Through shredding, crushing, vibration screening, (the incompletely separated metal and nonmetal will reentry into the crushing machine and be crushed again) gravity separating, electrostatic separating and pulse dust collecting, the separation rate of the copper and plastic will reach about 99% , and the copper (aluminum) and plastic housing are finally completely separated.Product structure
Specification
Model | MC-400 | MC-600 | MC-800 | MC-1000 | ||||||
Output | 100-150kg/h | 200-300kg/h | 500-600kg/h | 800-1000kg/h | ||||||
Total Power | 27kw | 42.25kw | 57kw | 87kw | ||||||
Feed diameter | 1-20mm | 1-20mm | 1-20mm | 1-20mm | ||||||
Output size | ＜3mm | ＜3mm | ＜3mm | ＜3mm | ||||||
physical dimension | 3.*1.8*2 m | 3.5*2*2.4 m | 4*2*2.4 m | 4.8*2.5*2.4 m | ||||||
Weight | 2000kg | 3000kg | 4000kg | 5000kg | ||||||
Applications:
Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-20mm,such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables and other miscellaneous cables which cannot be processed by wire stripping machine.
Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-20mm,such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables and other miscellaneous cables which cannot be processed by wire stripping machine.
Copper wire car electric wire Aluminum wire cable
Final product
Copper wire Aluminum wire
copper plastic Aluminum plastic

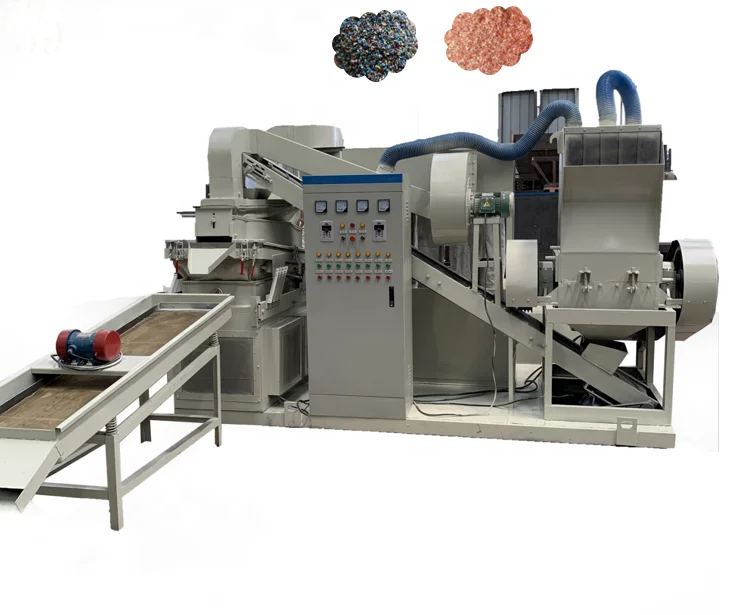

This equipment processes waste wires and cables into copper (aluminum) and plastic pellets. Copper (aluminum) is separated from plastic, and the separation efficiency can reach 99%. Copper pellets (aluminum) can be sold directly or further refined. Through our electrostatic separation equipment, copper can be refined into cathode copper with a purity of over 99.99%. Plastic particles are generally PVC or rubber materials, and they can also be sold directly.
Note: this device can only separate wires containing one kind of metal, not copper and aluminum wires at the same time.
How to deal with waste cables with a diameter greater than 20mm?
Through shredding, crushing, vibration screening, (the incompletely separated metal and nonmetal will reentry into the crushing machine and be crushed again) gravity separating, electrostatic separating and pulse dust collecting, the separation rate of the copper and plastic will reach about 99% , eventually get metal and non-metallic collective.
* Disposal of various waste wires and copper and aluminum recycling Case Show
* Recycling waste zipper * Recycling waste air conditioning radiator
* Recycling of Waste Circuit Board * Recovery and separation of
waste iron copper wire
Packing & Delivery
Hot sale 1.0mm to 20mm waste electrical wire stripping crushing used cable pvc recycling machine is the large model must be directly loaded into the container.
Company Profile
Henan Ming chuang machinery manufacturing co., LTD. is a suppler with specialized in providing the crushing, sorting, drying equipment, and environmental protection machine. With long-term committing to produce multi-functional shredding machine, crusher,copper granulator recycling equipment, plastics recycling pelleting machine, oil press machine, etc
We always adhere to provide highly customized solutions, according to the needs of customers with advanced technology andexcellent product quality . we have won the recognition of industry users. For a long time,we always insist on the path of globalization, at the same time of constantly expanding the domestic market share, we have exported to more than 130 countries and regions,which includes Europe, Africa, central Asia, southeast Asia, South America, North America and so on. Whats more we always
keep close strategic cooperation with our customers, and provide high quality products and timely professional services.
keep close strategic cooperation with our customers, and provide high quality products and timely professional services.
