Б/у машина для изготовления винтов из стали
US $1000-$2000
Конструкция ребер параллельного потока прокатки машины Инструмент Оборудование для производства прессованного угля
- Категория: Thread Rolling Machines >>>
- Поставщик: Changzhou,1987,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 3451.45 $* | 3624.30 $* |
| Aug-20-2025 | 3422.79 $* | 3593.29 $* |
| Jul-20-2025 | 2871.66 $* | 3015.88 $* |
| Jun-20-2025 | 3364.29 $* | 3532.66 $* |
| May-20-2025 | 2929.58 $* | 3075.67 $* |
| Apr-20-2025 | 3306.95 $* | 3471.11 $* |
| Mar-20-2025 | 3277.48 $* | 3441.24 $* |
| Feb-20-2025 | 3248.62 $* | 3410.79 $* |
| Jan-20-2025 | 3219.38 $* | 3380.69 $* |
Характеристики
Product Description
Specification
Product Name | Rebar screw making rib peeling rolling threading machine |
Material | carbon steel |
Color | Green, blue, etc. |
Voltage/Power | 3.0KW/380V/3Phase/50Hz, it can also be customized according your order |
Net.weight | 557kg |
Standard | JHB400, THE VOLTAGE IS ALSO CUSTOMIZED; |
Connect Grade | The UK standard , American standard (UBC1997) , ISO9001, , ACI 318, BS4449, British Standard ( BSB110), French Standard (NF25-20-1), German Standard ( DIN1045), etc. |
Thread | Rib peeling rolling parallel threading |
Used | construction/building industry machinery |
Advantages:
As one kind of parallel thread connection technology,rib peeling roll stamping posseses following advantages:
1,Tensile strength of connection point is equal to connected bar;
2,It can process rebar whose diameter is between 16mm and 40mm.
3,Rib peeling completed by one-time steel bar nipping, roll screw thread with fast speed;
4,Highly automatic and easy to operate;
5,Roll stamping after steel bar rib peeling, with good shape of thread, high precision and conformed diameter size;
6,Rolling wheel has long service period, low additive cost of connector;
7,Few roll head specifications, wider scope of steel bar machining, Only one set machine can process 16mm-40mm screw thread steel bar;
8,Easy to adjust, when rolling steel bars of different specifications, adjustments can be made without taking apart rolling head, provided that the screw pitch are the same.
1,Tensile strength of connection point is equal to connected bar;
2,It can process rebar whose diameter is between 16mm and 40mm.
3,Rib peeling completed by one-time steel bar nipping, roll screw thread with fast speed;
4,Highly automatic and easy to operate;
5,Roll stamping after steel bar rib peeling, with good shape of thread, high precision and conformed diameter size;
6,Rolling wheel has long service period, low additive cost of connector;
7,Few roll head specifications, wider scope of steel bar machining, Only one set machine can process 16mm-40mm screw thread steel bar;
8,Easy to adjust, when rolling steel bars of different specifications, adjustments can be made without taking apart rolling head, provided that the screw pitch are the same.

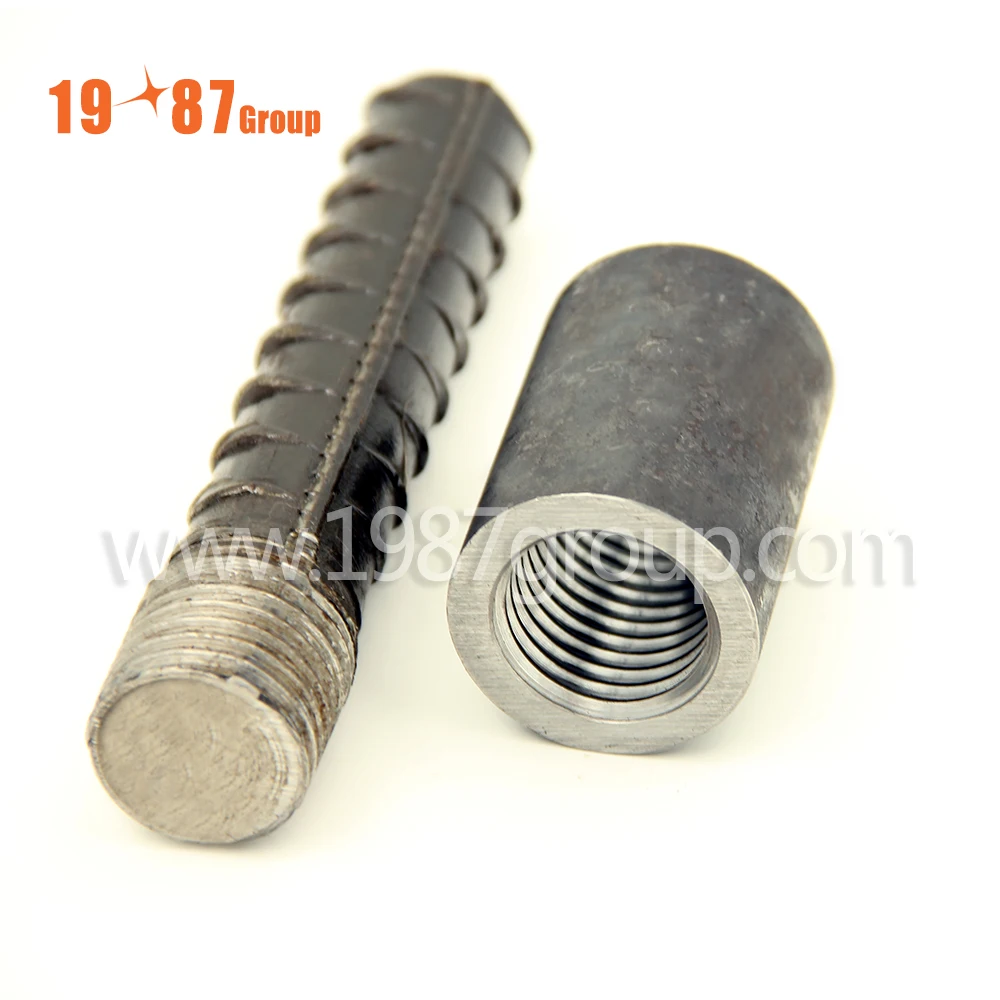

TECHNICAL DATA | ||||||
Steel bar diameter(MM) | Outer diameter of coupler (MM) | Length of coupler (MM) | Size of thread (MM) | |||
16 | 25 | 45 | M16.3*2.5 | |||
18 | 28 | 50 | M18.3*2.5 | |||
20 | 30 | 55 | M20.5*2.5 | |||
22 | 32 | 60 | M22.5*2.5 | |||
25 | 38 | 65 | M25.5*3.0 | |||
28 | 42 | 70 | M28.5*3.0 | |||
32 | 48 | 80 | M32.5*3.0 | |||
36 | 54 | 90 | M36.5*3.0 | |||
40 | 59 | 95 | M40.5*3.0 | |||
Applications
Packing & Delivery
Packing Details : Rib peeling roll threading machines are packed into wooden cases, or according your requirements; rebar couplers are packed in carton box with antirust bag;
Delivery Details : within 7-25 days after receiving the payment.
Delivery Details : within 7-25 days after receiving the payment.
Company Profile
Our company is located in the Yangtze River Golden Triangle region,which has a concentrated factory manufacturing production chain, rich product types, complete supporting facilities, the latest computer numerical control production lines, and cooperation with brand companies with extensive influence and good reputation. We have export experience in 48 countries. The certification and testing of many international standards, such as American Standard, American Standard, French Standard, German Standard, etc., have an advantage over peers in quality.
FAQ
1. Where is your company?
Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!
2.How long is your delivery time?
Generally it is within 5-10 days if the raw materials are in stock, or it is within 15-20 days if the raw materials are not in
stock, it is according to quantity.
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge.
4.What is your terms of payment ?
A: Payment 100% in advance. Can communicate.
B: All the payment go through Aliababa Onetouch or Alibaba assurance payment.
5.What's your tensile strength and yield strength?
Our standard rebar couplers can reach tensile strength over 620MPA; and yield strength over 420MPA.
We also can manufacture super strength rebar couplers, just please tell us your requirements.
Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!
2.How long is your delivery time?
Generally it is within 5-10 days if the raw materials are in stock, or it is within 15-20 days if the raw materials are not in
stock, it is according to quantity.
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge.
4.What is your terms of payment ?
A: Payment 100% in advance. Can communicate.
B: All the payment go through Aliababa Onetouch or Alibaba assurance payment.
5.What's your tensile strength and yield strength?
Our standard rebar couplers can reach tensile strength over 620MPA; and yield strength over 420MPA.
We also can manufacture super strength rebar couplers, just please tell us your requirements.
