DZ41 500C SW102 Bafang BBS01 BBS02 M500 M600 дисплей
US $25.00-$45.00
YL-75E фара для электровелосипеда в метр ЕМС/СЕ/по ограничению на использование опасных материалов производстве 36V/48V другие детали светодиодный дисплей электрических велосипедов
- Категория: >>>
- Поставщик: Tianjin,Yolin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 6.35 $* | 6.86 $* |
| Jul-20-2025 | 5.59 $* | 5.53 $* |
| Jun-20-2025 | 6.8 $* | 6.32 $* |
| May-20-2025 | 6.30 $* | 6.34 $* |
| Apr-20-2025 | 5.42 $* | 5.74 $* |
| Mar-20-2025 | 6.82 $* | 6.81 $* |
| Feb-20-2025 | 6.88 $* | 6.86 $* |
| Jan-20-2025 | 6.73 $* | 6.53 $* |
Характеристики
Product Description
Item | Value |
Place of Origin | China |
Brand Name | Yolin |
Model Number | YL-75E |
Screen Type | LED Display |
Color | Black |
Voltage | 36/48V |
Communication | UART |
PAS Level | 0-3/1-3/0-5/1-5 |
Install Handlebar Size | φ22.2mm |
Button | 3 |
Wire Length | Customized |
Wire Connector | Waterproof wire(recommended)/ conventional wire |
Certification | CE / EN15194 / ROHS |
Waterproof | IP65 |

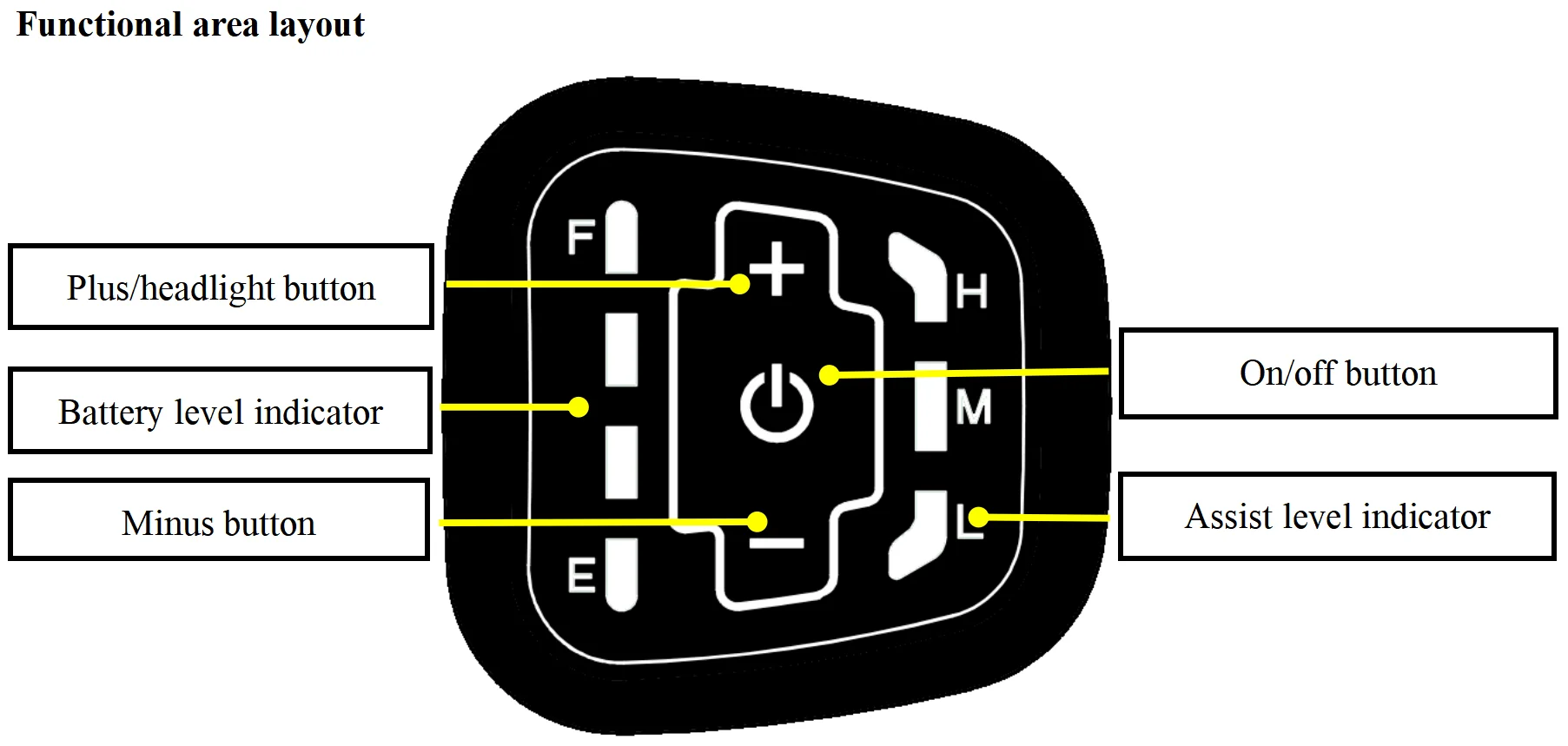

1. Product Function
● Power on/off
● Battery level indicator
● Assist level indicator
● Fault indicator\t
● Assist level indicator
● Fault indicator\t
● Headlight on/off
● Electric control system inspection
● Push assistance control and indication
2. Product Specification
● 36V/48V power supply
● Rated working current 30mA
● Rated working current 30mA
● Maximum working current 40mA
● Leakage current at power-off <1uA
● Working current at the supply controller end 50mA
● Working temperature -20～60℃
● Storage temperature -30～70℃
3. Wiring Sequence definition
We have regular connection harness and waterproof connector. According to customer requirements, we can provide different connector.
Wiring Sequence | Standard Wire Color | Function |
1 | Red (VCC) | Power wire of display |
2 | Blue (KP) | Power control line of controller |
3 | Black (GND) | Ground wire of display |
4 | Green (RX) | Data receiving line of display |
5 | Yellow (TX) | Data transmission line of display |
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-45 days after confirming the order, a detail delivery date should be decided according to
production season and order quantity.
Standard export carton packing.
DELIVERY TIME:
3-45 days after confirming the order, a detail delivery date should be decided according to
production season and order quantity.
Production Process
Company Profile
Our company is dedicated to the development of electronic products and solutions for national high-tech enterprises. We are dedicated to multiple products of development, manufacturing, sales, and service. We complete sets of the processing systems, the German imported pipe molding equipment, Taiwan automatic large cutting equipment, and welding production lines, and Automatic Dust-free spray paint production lines imported from Germany, also, We have semi-automatic assembly lines, its own R&D team, the overseas business team, and after-sales team, with a complete and scientific quality management system.
Our strength and product quality are recognized by the industry. Welcome our foreign guests and friends to visit our factory, guidance, and business negotiations! We are delighted to design and develop new products together with you.
Certifications & Exhibition
▶ Certifications
people.
▶ Exhibition
We have participated in many electric bicycle exhibitions, including Tianjin Exhibition, Shanghai Exhibition and this year's European Bicycle Exhibition. Customers in many countries have learned about our strength and innovation, and Yolin's products have been widely recognized by customers and facilitated a lot of cooperation.
Selling well in all cities and countries around the world, currently, our products are exported to clients in such countries and regions as the US, UK, EU, and other regions of South-east Asia. We also welcome OEM and ODM orders.
Why Choose Us
▶ Advantages
Professional technical team
with 16-year rich experience
with 16-year rich experience
1 year warranty & Free spare parts
Intergrated supply chain
Strong R & D capability
OEM & ODM service
Low MOQ & Fastly time
▶ Partners & Customers
FAQ
Q1: How can I get a sample for testing?
A: Yes we can provide samples for evaluation. Please contact us to confirm.
Q2. Do you accept OEM/ ODM oder? What's your MOQ?
A: Yes, we can customize logo, packaging. Our MOQ for OEM/ODM is 50pcs.
Q3: How can I order?
A: You can order directly from Alibaba or contact us for more details.
Q4: How long is your delivery time?
A: For Ordinary sample, 3-7 work days.
For OEM/ODM sample, 5-10 work days.
For stock items, we can ship within 20-45 work days.
For OEM/ODM items, the production takes about 30-50 days.
Q5: Whats your payment terms?
A: For payment, we can accept T/T, Western Union, Paypal, Alipay, Cash.
Q6: How Is the packing?
A: We pack our products in cartons.Carton Size: Depends on the products size.
Q7: Where Is your factory?
A: We are located in Tianjin, China.
Q8: What are the FOB shipping ports?
A: Tianjin, Shenzhen, etc.
Q9: What's your warranty?
A: We provide a one-year warranty.
A: We provide a one-year warranty.
