10 Tons Pulling Force Crawler Belt Type Pultrusion

10 Tons Pulling Force Crawler Belt Type Pultrusion

Категория: Other Plastic & Rubber Machinery >>>
Поставщик: Guangdong,Renda,Intelligent,Equipment,Co.,Ltd.,[Guangdong,China]Guangdong

Цена:1 523 705,55 ₽ - 3 642 027,90 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	1935105.2 $*	1973807.62 $*
Jul-16-2025	1569416.91 $*	1600804.48 $*
Jun-16-2025	1904631.28 $*	1942724.97 $*
May-16-2025	1889394.95 $*	1927182.53 $*
Apr-16-2025	1508468.39 $*	1538637.52 $*
Mar-16-2025	1858920.16 $*	1896098.7 $*
Feb-16-2025	1843683.29 $*	1880557.65 $*
Jan-16-2025	1828446.80 $*	1865015.92 $*

Характеристики

.jpg

01. Advantage of Renda Pultrusion Machine

Advanced programmable controller system is used in the Pultrusion Machine, also, the electrical system and hydraulic system is assembly by world famous brand components(such as standard electrical components, hydraulic oil pump, electromagnetic valve, electro-hydraulic valve, pressure valve and others)

Choose excellent materials, and processing mechanical parts with CNC and others advanced manufacture technology, ensure machine’s straightness and running precision, also, ensure machine running steadily

The machine’s body frame is designed&manufacture by thicken steel , ensure when pulling with large-tonnage force, machine’s rigidity of the equipment does not yield

Whole machine line’s circuit cables is connected according to Europe CE standard, and marked clearly, it make inspection and maintenance easily

Whole machine production line’s deign satisfy with FRP pultrusion process requirement well, ensure users feel smooth when using Renda company’s pultrusion machine

Low failure rate of equipment application and long service life.

02. Pultrusion Machine Model List Sheet

- Caterpillar type Pultrusion Machine Model List Sheet-

No.	Model	Puling force.Max (KN)	Clamping force.Max (KN)	Pulling speed (mm/min)	Size of crawler belt (WxHxL)
1	RDLJ-L5T	60	60	0.1~1.0m/min	300x1000x100
2	RDLJ-L7T	70	70	0.1~2.0m/min	350x2500x100
3	RDLJ-L10T	100	100	0.1~1.0m/min	350x1500x100
4	RDLJ-L10TC	100	120	0.1~1.1m/min	350x2000x100
5	RDLJ-L15T	150	150	0.1~1.0m/min	400x2000x150
6	RDLJ-L20T	200	200	0.1~1.0m/min	400x2000x150
7	RDLJ-L30T	300	300	0.1~1.0m/min	400x2000x200

	Attention: 1. This is just the general models, if your resin system is epoxy or PU, there maybe some different from the general models, or your other size requirement, please tell me your detail requirement, we will confirm with you for the machine model. 2. If you have other larger pulling&clamping force requirement, please inquiry to us, we have also made 80T and 100T force, or even larger pultrusion machine.

03. Pultrusion Production Line Process Flow Introduction

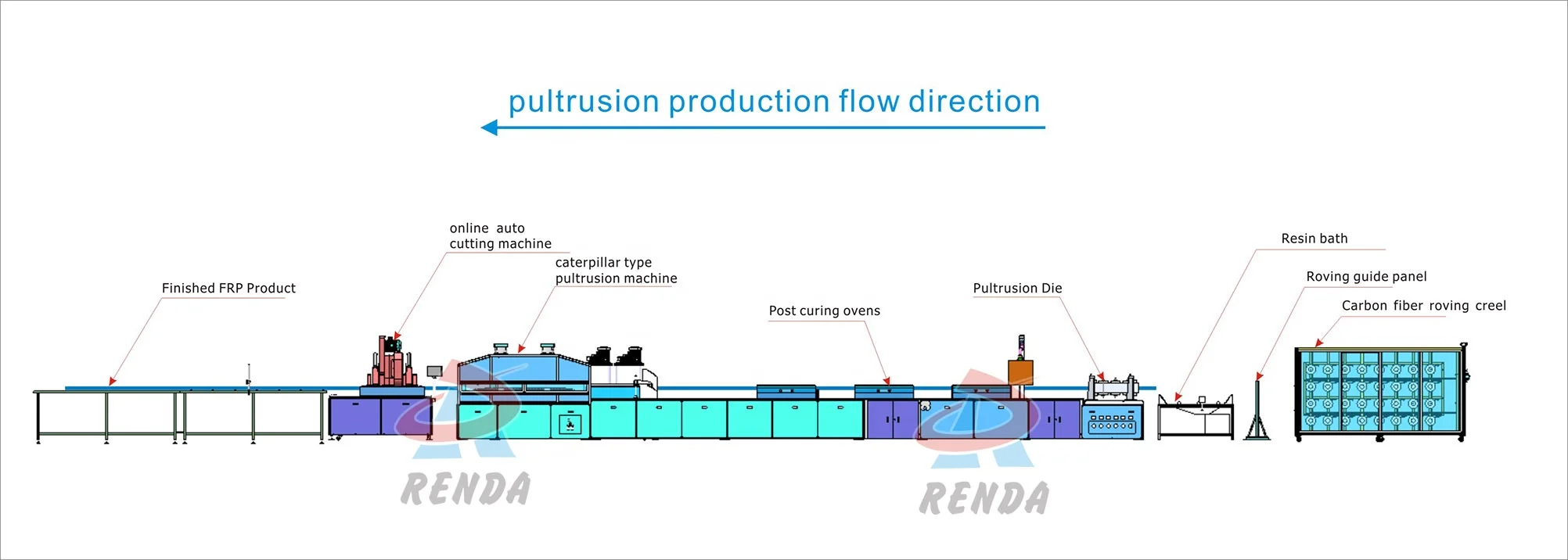

- Pultrusion Production Line Process Flow Layout -

Attention-1 :

Actually, as “Pultrusion Production Line Process Flow Layout show”, the whole Pultrusion Machine Production Line is made up of:

1). Roving creel,

2). Roving guide panel,

3). Resin bath(or injection machine, if the Die you use is injecting Die),

4). Pultrusion Die&Preform,

5). Pultrusion Pulling machine,

6). Online auto cutting machine,

7). Finished FRP Product rack.

04. Pultrusion Die

Attention-2 :

Except Pultrusion Machine Line, Our Renda is also professional in designing&manufacturing Kinds of Pultrusion Die, partial molds type, and FRP profile, as the pictures showed above, we supply the whole set Pultrusion Die production service: including Die, preform, Thermal heating transfer tooling. We believe we can supply you one set perfect pultrusion die for you to production the best FRP products.

05. Photos to learn more about Our Renda Company
