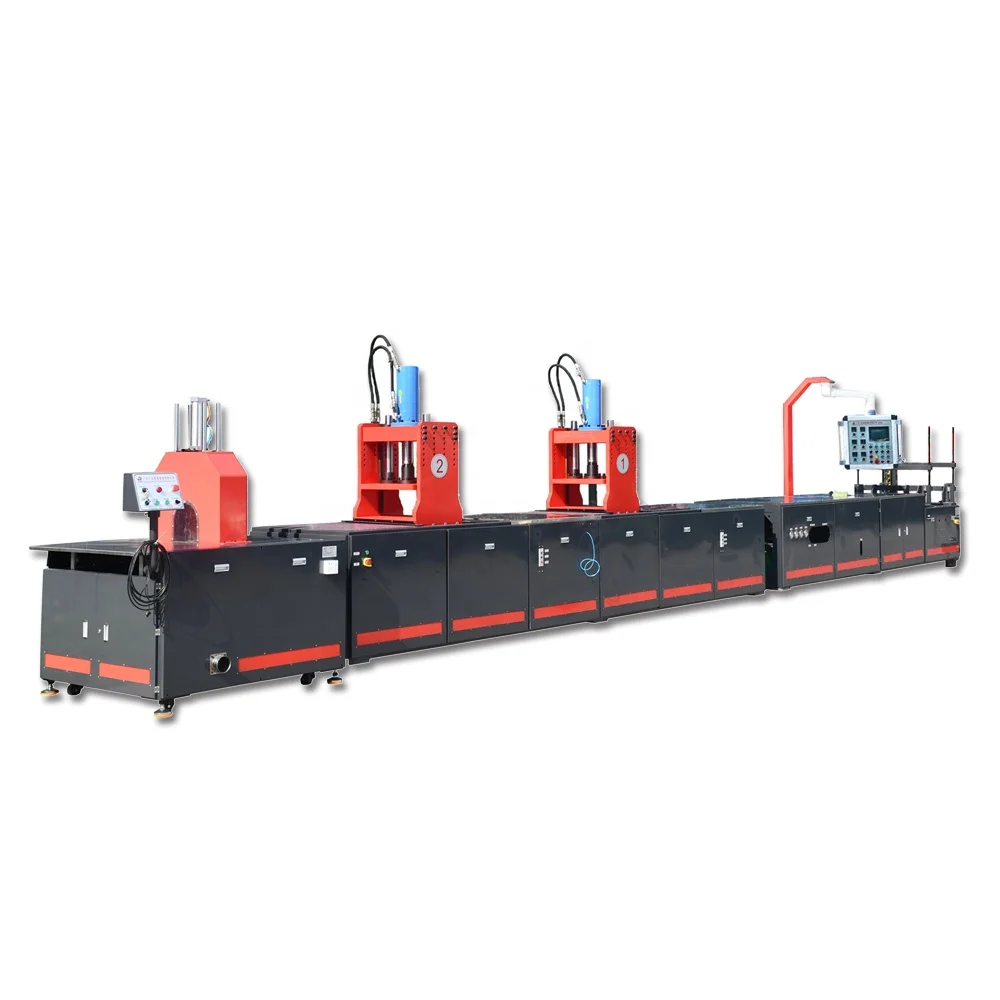

FRP Profile Pultrusion Machine Servo Type High Quality Running

Описание и отзывы

Трекер стоимости

Характеристики

01. Advantage of Renda Pultrusion Machine

1. Advanced programmable controller system is used in the Pultrusion Machine, also, the electrical system and hydraulic system is assembly by world famous brand components(such as standard electrical components, hydraulic oil pump, electromagnetic valve, electro-hydraulic valve, pressure valve and others)
2. Choose excellent materials, and processing mechanical parts with CNC and others advanced manufacture technology, ensure machine’s straightness and running precision, also, ensure machine running steadily
3. The machine’s body frame is designed&manufacture by thicken steel , ensure when pulling with large-tonnage force, machine’s rigidity of the equipment does not yield
4. Whole machine line’s circuit cables is connected according to Europe CE standard, and marked clearly, it make inspection and maintenance easily
5. Whole machine production line’s deign satisfy with FRP pultrusion process requirement well, ensure users feel smooth when using Renda company’s pultrusion machine
6. Low failure rate of equipment application and long service life.

 02. Pultrusion Machine Model List Sheet

- Hydraulic type reciprocating Pultrusion Machine Model List Sheet-

No.	Model	Puling force.Max (KN)	Clamping force.Max (KN)	Pulling speed (mm/min)	Reciprocating journey (MM)	Clamp window size (WxHxL)	Clamp cylinder stroke (MM)
1	RDLJ-Y6T	60	60	0.1~1.2m/min	600	600x200x400	200
2	RDLJ-Y10T	100	100	0.1~1.2m/min	600	600x300x400	250
3	RDLJ-Y15T	150	150	0.1~1.2m/min	600	800x350x500	250
4	RDLJ-Y20T	200	200	0.1~1.2m/min	600	900x400x500	250
5	RDLJ-Y30T	300	300	0.1~1.2m/min	600	1000x500x600	250
6	RDLJ-Y40T	400	400	0.1~1.2m/min	600	1200x600x800	250
7	RDLJ-Y50T	500	500	0.1~1.2m/min	600	1500x600x1000	250
8	RDLJ-Y60T	600	600	0.1~1.2m/min	600	1500x600x1000	250
	Attention:  1. This is just the general models, if your resin system is epoxy or PU, there maybe some different from the general models, or your other size requirement, please tell me your detail requirement, we will confirm with you for the machine model. 2. If you have other larger pulling&clamping force requirement, please inquiry to us, we have also made 80T and 100T force, or even larger pultrusion machine.

03. Pultrusion Production Line Process Flow Introduction

 - Pultrusion Production Line Process Flow Layout -



       Attention-1 :

      Actually, as “Pultrusion Production Line Process Flow Layout show”, the whole Pultrusion Machine Production Line is made up of:

1). Roving creel,

2). Roving guide panel,

3). Resin bath(or injection machine, if the Die you use is injecting Die),

4). Pultrusion Die&Preform,

5). Pultrusion Pulling machine,

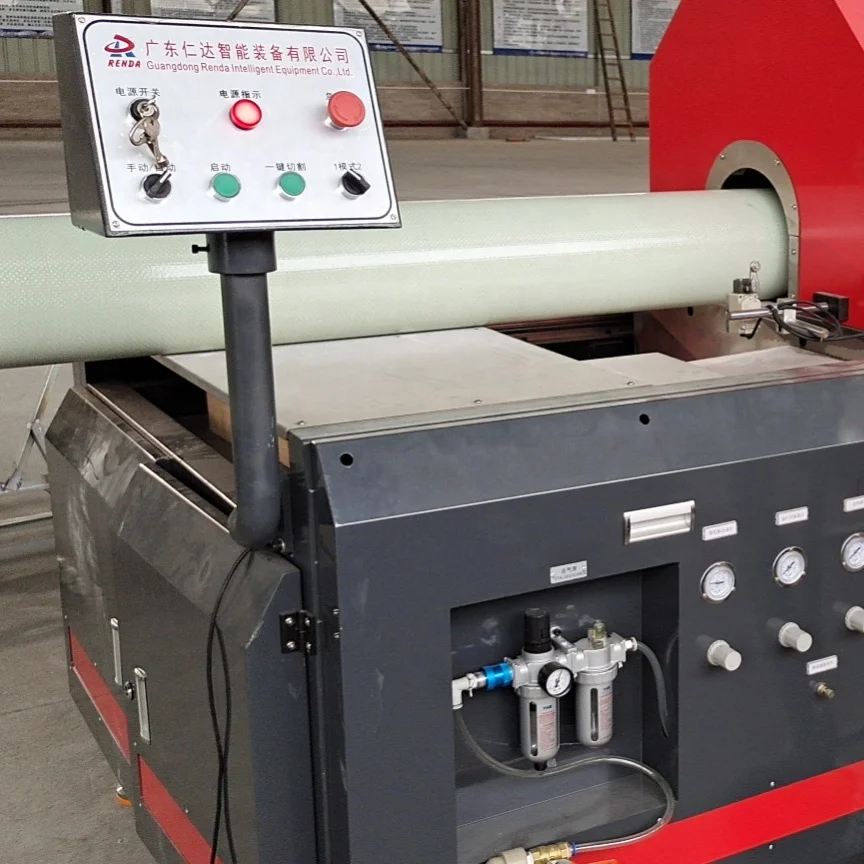

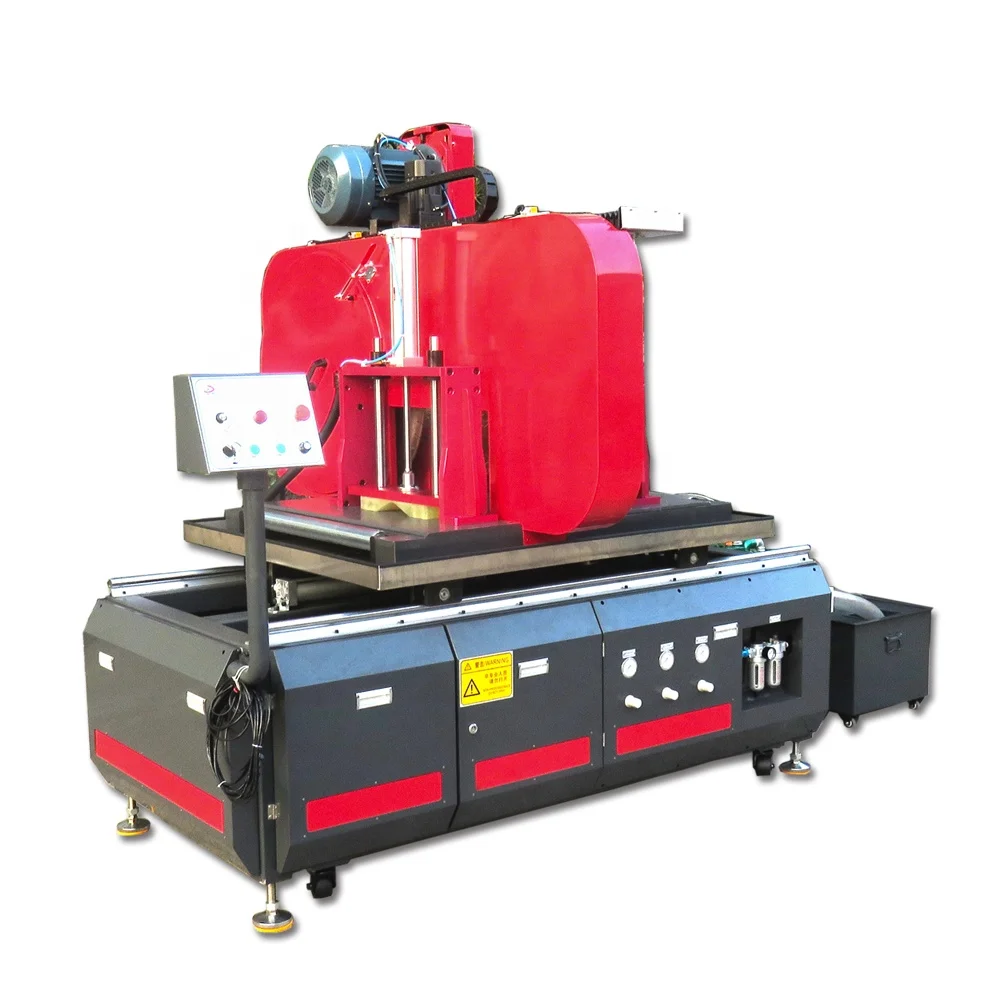

6). Online auto cutting machine,

7). Finished FRP Product rack.

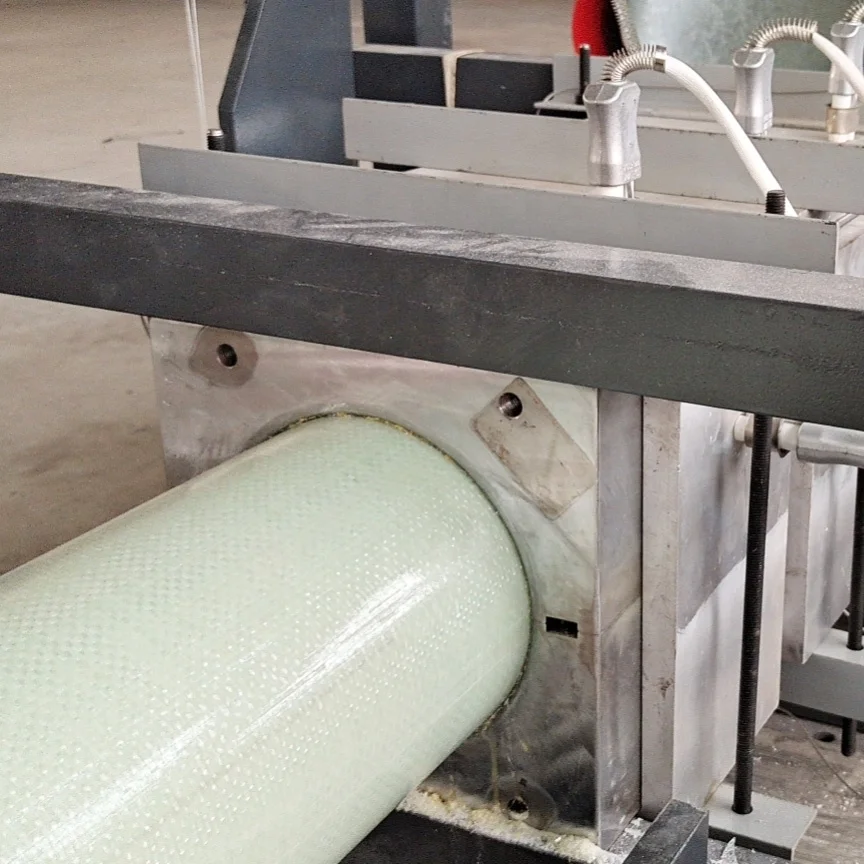

04. Pultrusion Die

       Attention-2 :



         Except Pultrusion Machine Line, Our Renda is also professional in designing&manufacturing Kinds of Pultrusion Die, partial molds type, and FRP profile, as the pictures showed above, we supply the whole set Pultrusion Die production service: including Die, preform, Thermal heating transfer tooling. We believe we can supply you one set perfect pultrusion die for you to production the best FRP products.
