Product Description

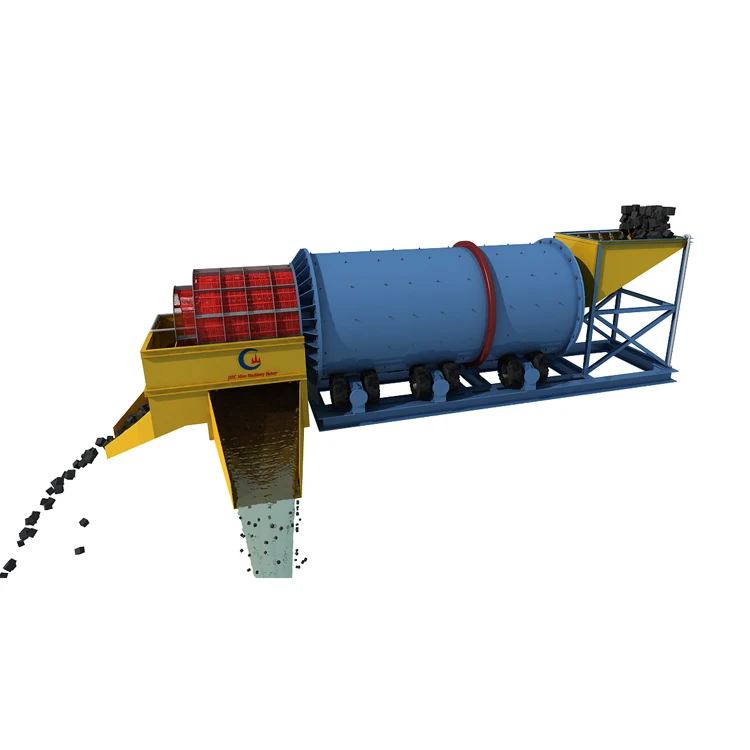

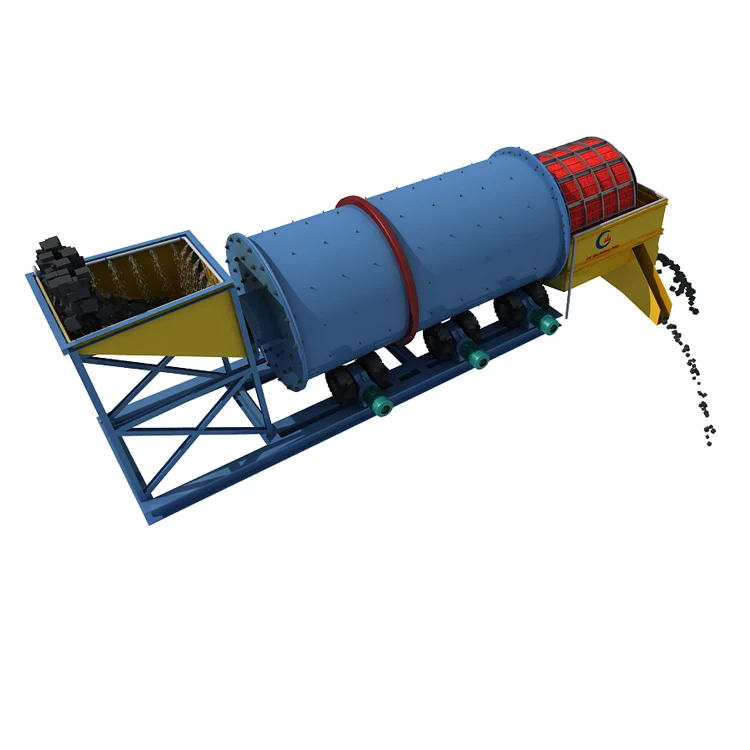

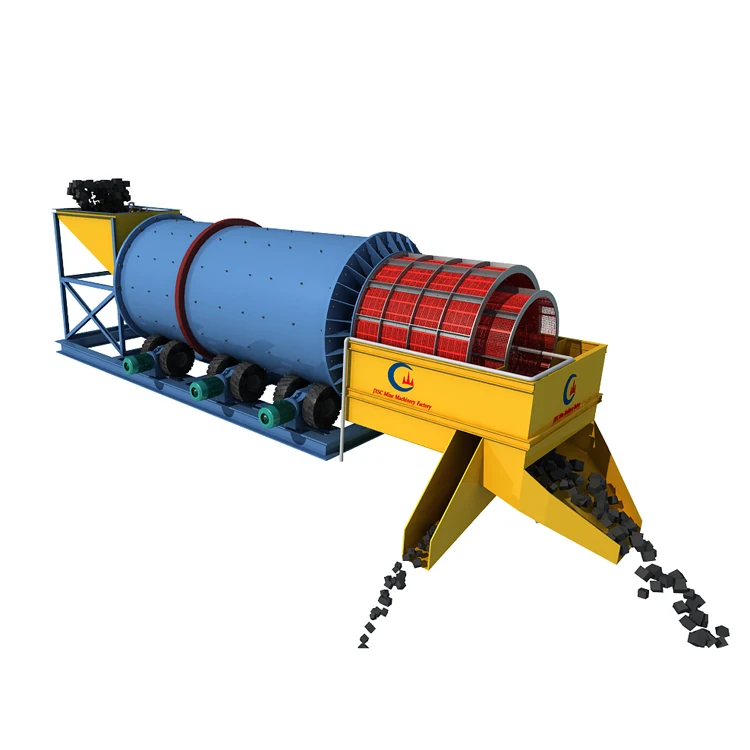

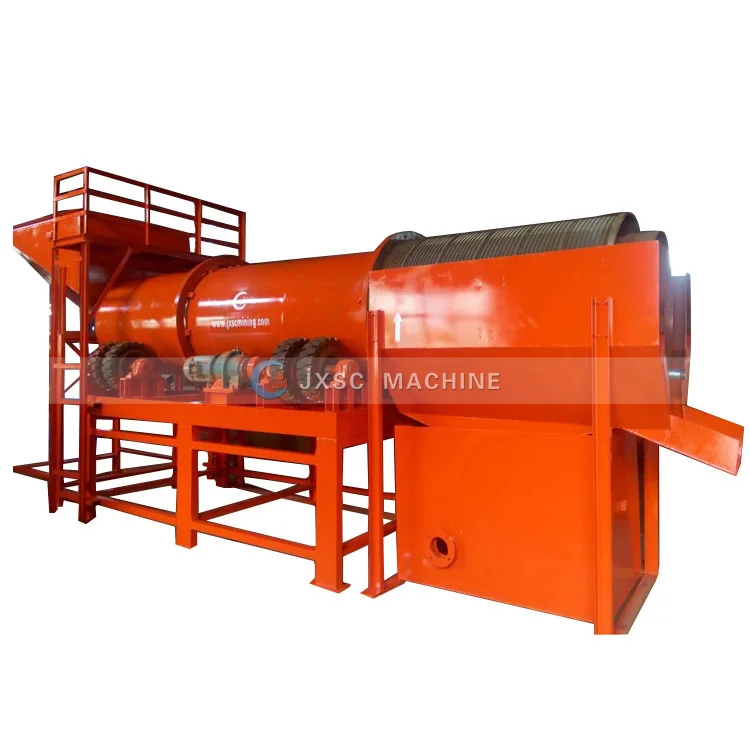

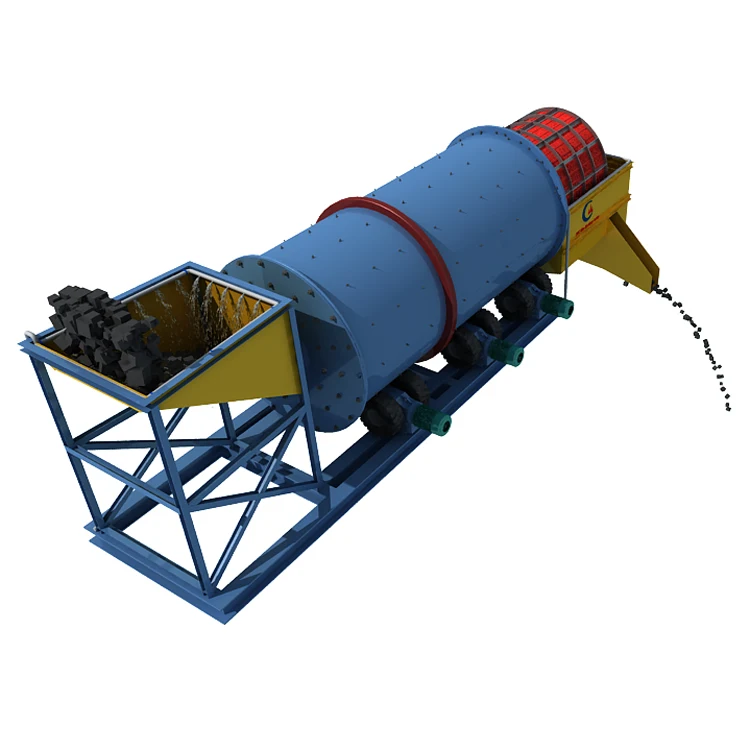

Description of diamond washing machine trommel scrubber washer
1.Consists of two parts:one is for washing the clay, another is for sieving different sizes ores.
2.working principle:There are 4 carrier rollers to support the drum. The machine is working rotary through the gear in the middle of the outside drum. In the washing part, it's a closed space ,there are some plate in this part.




Features
1.Customized capacity and strong power scrubbing, large capacity can reach 200-250tons per hour.
2.Long washing drum of the scrubber retains material for longer, more vigorous washing for complete separation.
3.One high output electrical motor driving a rubber wheel system providing efficient torque.
4.Rotation speed can be adjusted by advanced reducer. 5.The water with highpressure flushed the inwall of drum. 6.Can accept material up to 230mm.




About spare parts
1.Feeding hopper / grizzely hopper is available.
2.The washing drum, screening section diameter and length can be customized.
3.Drum inner lining material is both rubber liners & spiral steel plates available.
4.The screen sieve material can be high hardness manganese steel, stainless steel, or PU screen.
5.The screen layers can be 1, 2, or 3 layers.
6.Driving system equip with durable rubber wheels.

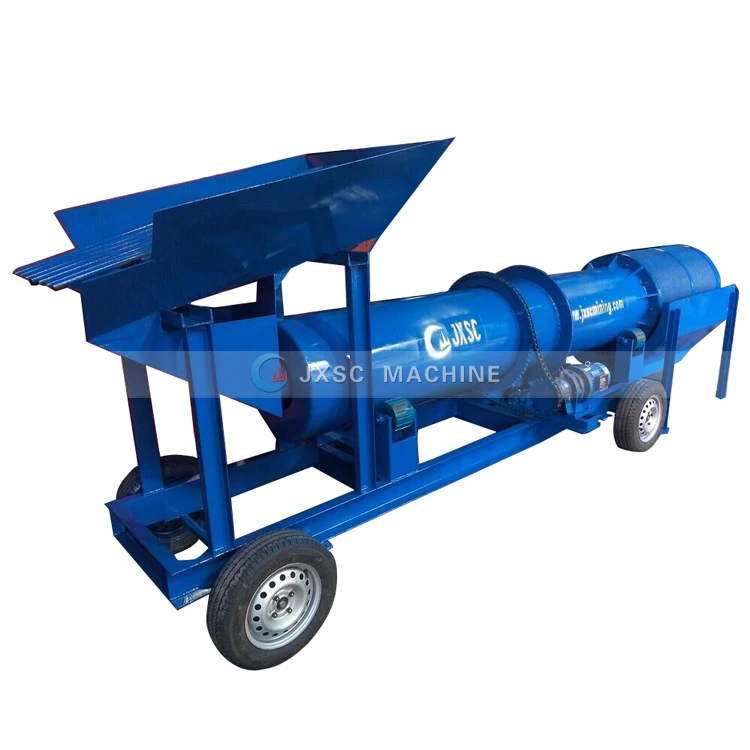

7.The trommel can be fixed type, mobile type with rubber wheels, or skid mounted mobile type.
8.Water pump, water spray pipe, water distributor, diesel engine or generator available.
Note: All the parts material are high end quality materials, the steel board is from Baosteel Group,the electric motor with IP56 water proof standard, the speed reducer from world famoud brand K series.




Trommel Scrubber Data


Model
Screen Size (mm )
Rotation Speed (r/min)
Feeding Size (mm)
Angle of inclination (°）
Capacity (T/H)
Power KW
JXSC-400
≤20
27.9
≤80
≤10
10
3
JXSC-600
≤25
27.6
≤80
≤10
20
5
JXSC-750
≤25
27.6
≤100
≤10
30
7.5
JXSC-900
≤25
27.6
≤100
≤10
40
11
JXSC-1200
≤25
17
≤160
≤10
50
15
JXSC-1500
≤50
16
≤230
≤10
70-100
30
JXSC-1800
≤50
16
≤230
≤10
120-150
37
JXSC-2100
≤50
16
≤230
≤10
150-180
45
JXSC-2400
≤50
16
≤230
≤10
180-250
66


Successful cases


200tph diamond washing plant in Angola
This customer found u via aliaba,earlier he didnt trust us,aferward our engineer designed flowchart for him,he started to believe in us,untill we invited him to visit our factor and he agreed it.After these,he totally believe in us.so he immediately placed a big order for a whole line equipment of 200tph diamond wash plant.
the services we provided for this customer are as below:
1. Invited him to visit our factory.
2. Designed flowchart for his project.
3.Provided full sets of equipment for the whole line,including:trommel scrubber,vibration screen,belt conveyor.
4. Provided engineer overseas service for installation,commissioning,starting up and training.
5. Provided project solution.
(below show you site photos)




Gold washing machine trommel scrubber washer 250tph gold trommel in Australia
capacity:250tph
site;Australia
scrubber screen size:more than 50mm
machines:trommel scrubber,feeder,hopper,pumps and etc




We have provided the trommel scrubber for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda,Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.




Packing & Delivery




Company Profile




Jiangxi Shicheng Mine Machinery Factory
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.

Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
