Гидравлическая сэндвич-машина FRP XPS комплекты конструкционных композитных сэндвич-панелей для домов на колесах дорожных грузовиков боковых

FRP-PLAST SANDWICH Panels is an insulation and freezing box set with high consisting prefabricated elements made by high-quality Fiber Glass materials from German LAMILUX and Best Glue from German KOMMERLING, And the PU foam adopt from the Germany brand PUREN, Assembled with high-strength fiber glass Profile for fast and easy box installation.

Max. Length of the Panel Kits

14750mm

Max Wideth of the panel Kits

3200mm

Thickness of the Panel Kits

30,45,50,60,82,105,mm135mm

K Value of the FRP-Pie Truck Body

Tensile strength

>180MPa

Flexural strength

>220MPa

Barcol hardness

24.6MPa

NON-FERRO FRP- PLAST self Supporting Structure , without any Metal .Side Edge Open Structure, Embedded FRP Square Tube as the strengthen bone, and every layer can be choose for different usage of the walls.

Without metal carrier elements = without direct heat conductivity
FRP Embeded Tube = Same Material
Different FRP skin for specail Demands of Truck bodies like Medicines etc.
Opened Edge can easy change the design of the box for doors and holes,especial for Caravan box and Truck Camper.

Length 0-14750mm
Width 0-2600mm
Thickness 27-135mm"

Length 0-14750mm
Width 0-2600mm
Thickness 27-135mm
Forklift work Avaliable

Application

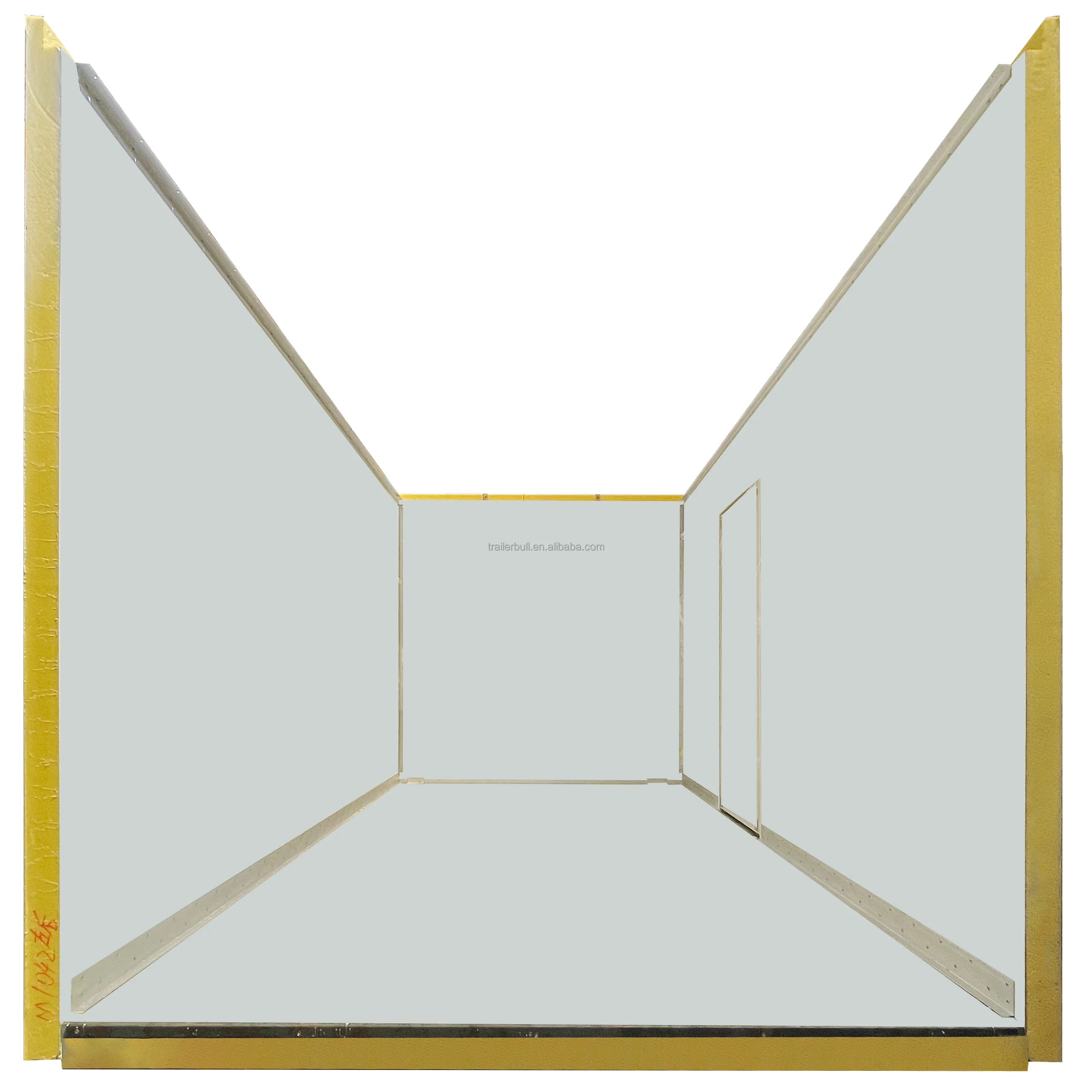

1. Insulated & refrigerated truck body side and roof wall.

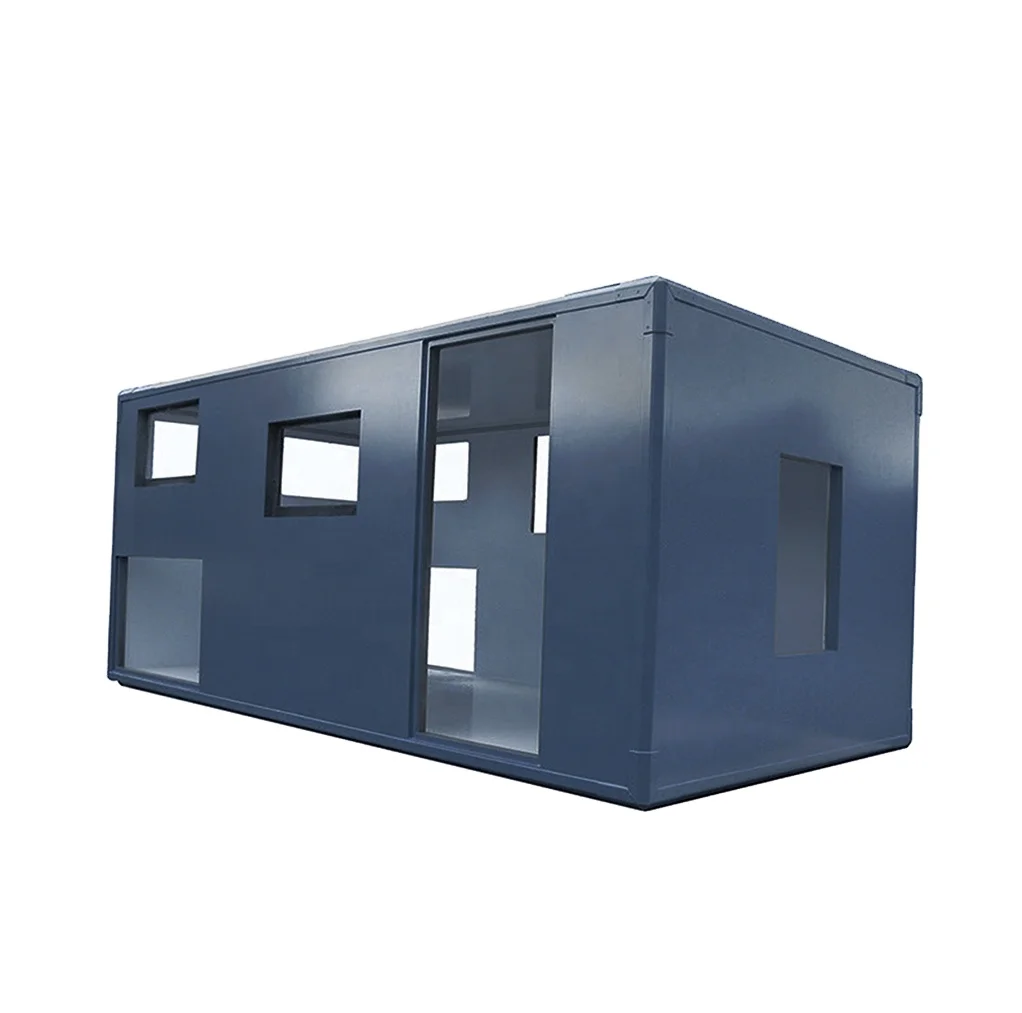

2. RV and Expedition side and Roof Wall.
3. Mobile Cold Room Side Walls

Application
1. Insulated & refrigerated truck body Floor.
2. RV and truck Camper Floor Wall.
3. Mobile Cold Room Floor Wall

FRP can let the body get a good insulation function and light dead weight, we also Using an adhesive joining process with LAMILUX to employ the fiberglass sheets to construct boxes with completely vapour diffusion-tight surfaces to get better insulation and balance temperature inside.

Core Thermal Polyrethane Foam
All panels, Floor & Roof of the box will be insulated with POLYURETHANE foam (PU) of density 40KG~45/M3, which can carry the Thermal Conductivity value 0.3kcal/M3.

KOMMERLING Two component reaction adhesive

Model
                                 Values

LAMILUX
High Impact

LAMILUX
Woven Fabric Gelcoat

LAMILUX
High Gloss 4000

Thickness

1.4 mm

2.0 mm

1.7mm

Weight

2250 g/㎡

2650 g/m2

2340 g/㎡

Glass content

48-52 %

27-29 %

20-24%

Flexural strength

305 N/m㎡

170N/mm

100 N/m㎡

Flexural emodulus

8550 N/m㎡

11700 N/mm2

4000N/m㎡

Tensile strength

240 N/m㎡

80 N/mm

55 N/m㎡

Tensile emodulus

14700 N/m㎡

8100 /mm2

6000 N/m㎡

Impact strength

82 KJ/㎡

1. Computer manufacturing process VS hand layup

High impact resistance

2. Fiber reinforce plastic VS metal panel

Better heat insulation

3. Constant gloss level

Good surface aspect

4. Very consistent gelcoat-thicknesses

No cracks

5. FRP-sheets lie flat

No curl

6. Less translucency for sunlight and also UV-light

No color variation

7. Anti slip-PES floor

Abrasion resistance

8. TUV &ATP certificate

High quality and Food safety

1. Completely vapor diffusion-tight surfaces of FRP to get better insulation and balance temperature inside.
2. Non-Pollution and Special Function Box. German Original FRP of Lamilux can satisfied not only the best Mirror surface, but also can meet all the special requirements with their TUV certified AntiBac Panel, Anti-UV Panel, HACCP certified Panel. High Impact panel, Flex Gewebe Panel etc.
3. Best Materials to keep good insulation function and light for more capacity. The best Structure Material of FRP and Glue can let us cut the other embedded wood beams to reduce more than 20% of weight than the normal Sandwich panels.
4. Quick installation with Special Designed Fiber Glass Profile. With our patented FRP Profiles, we can assembly one box in one hours with 3 workers to save 80% of Labor cost.
5. Rapid order processing for all Size and shaped box (standard solutions can be delivered at short notice). With the Biggest Carve Machine in China, we can supply all different size and shapes Panels to fit for all the chassis of the world.
6. It is suitable for all vehicle brands and models.
7. Easy Repair with our 7*24 hours Service support.

Fault:
1) Open Edge let the Foam Oxidized a little quick than our FRP-Pie Panels
2) Side Edge Layer have the risk of Tearing.
3) Open Edge structure need super Composite Glues and Materials cause cost high

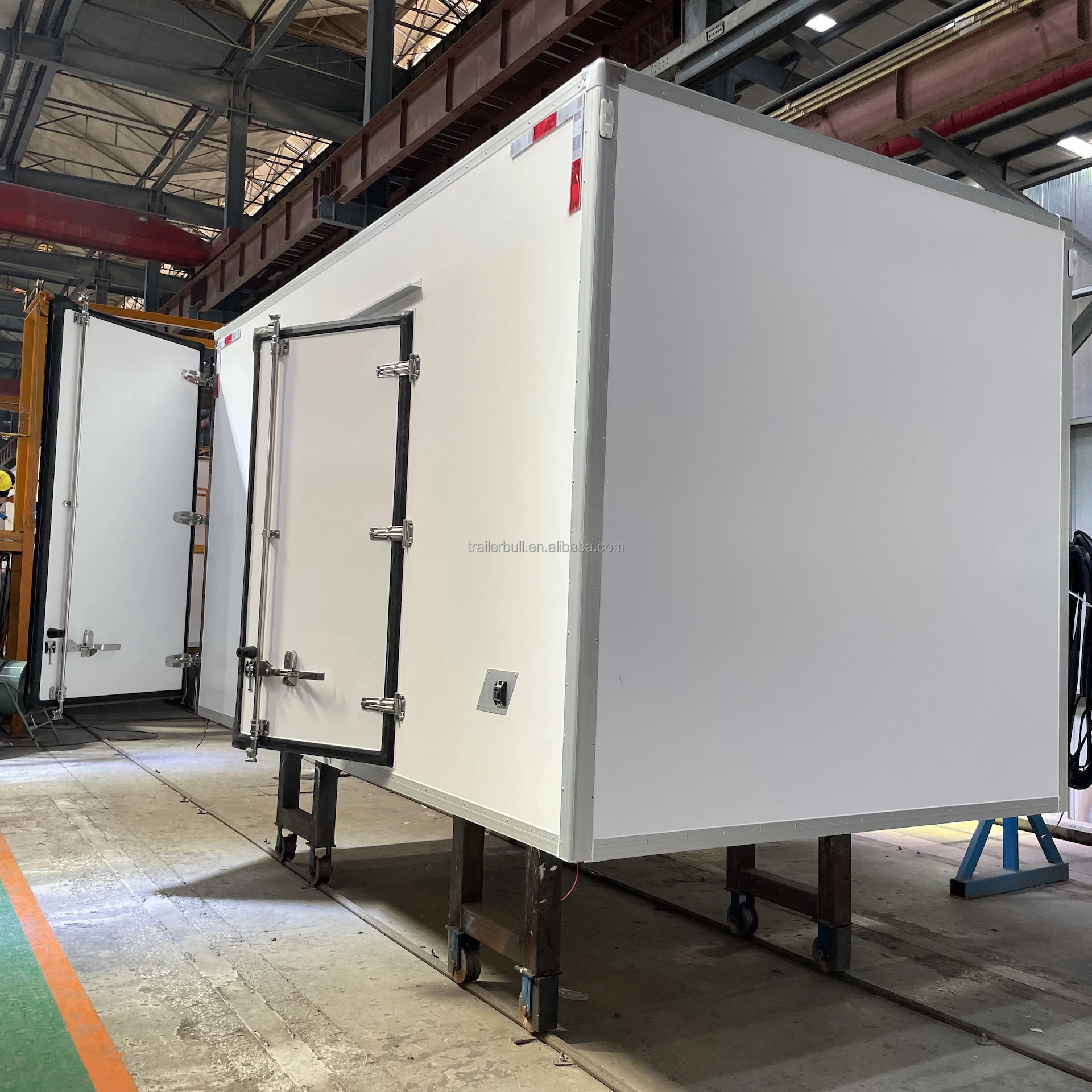

Sandwich panel box is a pre-installed trailer box body which can be mounted directly onto the chassis of the vehicle using its lower fixed frame. It is important that all specifications and guidelines from the chassis manufacturer be observed during assembly.
