ASME PED Standard Industrial Composite Autoclave From China for High Speedy


Поделиться:


Цена:3 716 355,00 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 4719771.20 $* 4814166.86 $*
Jul-16-2025 3827846.56 $* 3904403.23 $*
Jun-16-2025 4645444.68 $* 4738353.97 $*
May-16-2025 4608280.98 $* 4700446.92 $*
Apr-16-2025 3679191.80 $* 3752775.22 $*
Mar-16-2025 4533953.34 $* 4624632.10 $*
Feb-16-2025 4496790.23 $* 4586726.91 $*
Jan-16-2025 4459626.12 $* 4548819.38 $*

Характеристики

 Products description:

ASME standard high quality autoclave reactor from china(also called industrial autoclave for carbon fiber, composite autoclave) is the pressure vessel specially designed and manufactured to fabricate composite material, carbon fiber autoclave is one of the our hot sale industrial autoclave products. Carbon fiber autoclave (also called a composition material or composite) is made from two or more constituent materials with significantly different physical or chemical properties that produce a material with characteristics different from the individual components when combined. Carbon fiber autoclave is one of the effective and most applicable techniques for composite production. In the composite manufacturing process, the assembly of a two-sided mold set that forms both surface of the panel is placed into the industrial autoclave which provides both required elevated pressure and elevated temperature.we are autoclave high pressure in china for near 20 years.


Features of Composite Autoclave
1.Turn key solution for large, high productive units to lab autoclaves.
2.Integrated system design with over 20 years of industrial experiences.
3.Professional modular manufacturing.
4.Computer control system specifically for composite autoclave use.
5.Automatic control of over pressure or temperature protection, door safety interlock.
6.High quality, energy saving.
7.Customized installation to satisfy your demands.

Specifications of Composite Autoclave
Effective Diameter (mm)
600-6,000
Effective Length (mm)
800-300,000
Maximum Working Pressure (Mpa)
0.2-10
Maximum Working Temperature (℃)
100-500
Temperature Control Accuracy (℃)
±0.5-±3.0
Tank Temperature Uniformity (℃)
1.0-3.0
Pressure Control Accuracy (Mpa)
±0.01
Vacuum Limit (Kpa)
≤2

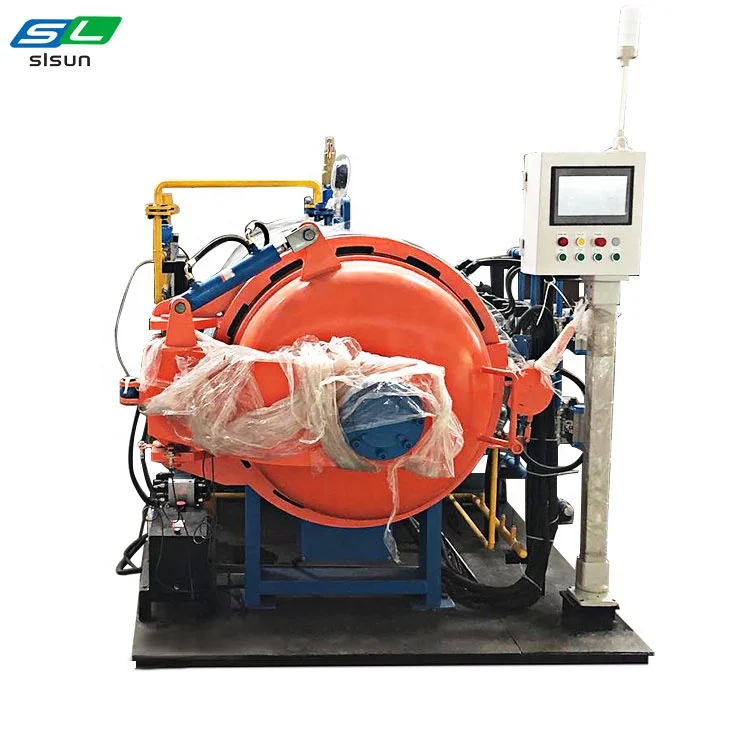

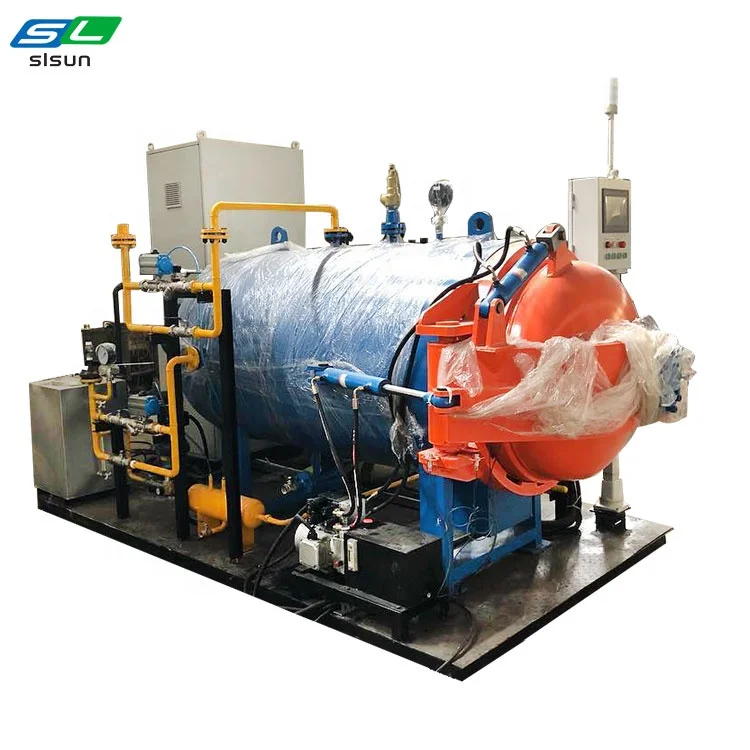

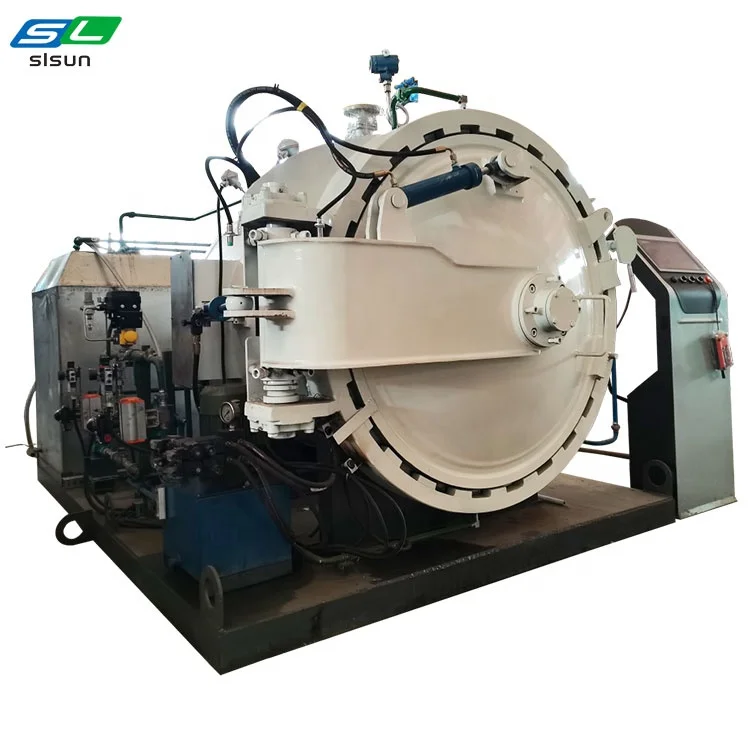

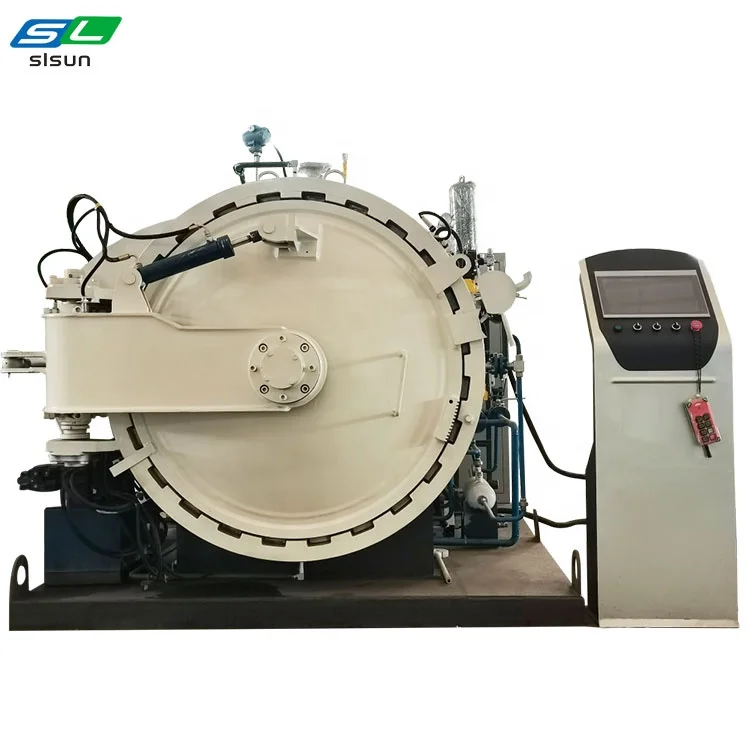

Some pictures of our autoclave products:

_07

Details of products:

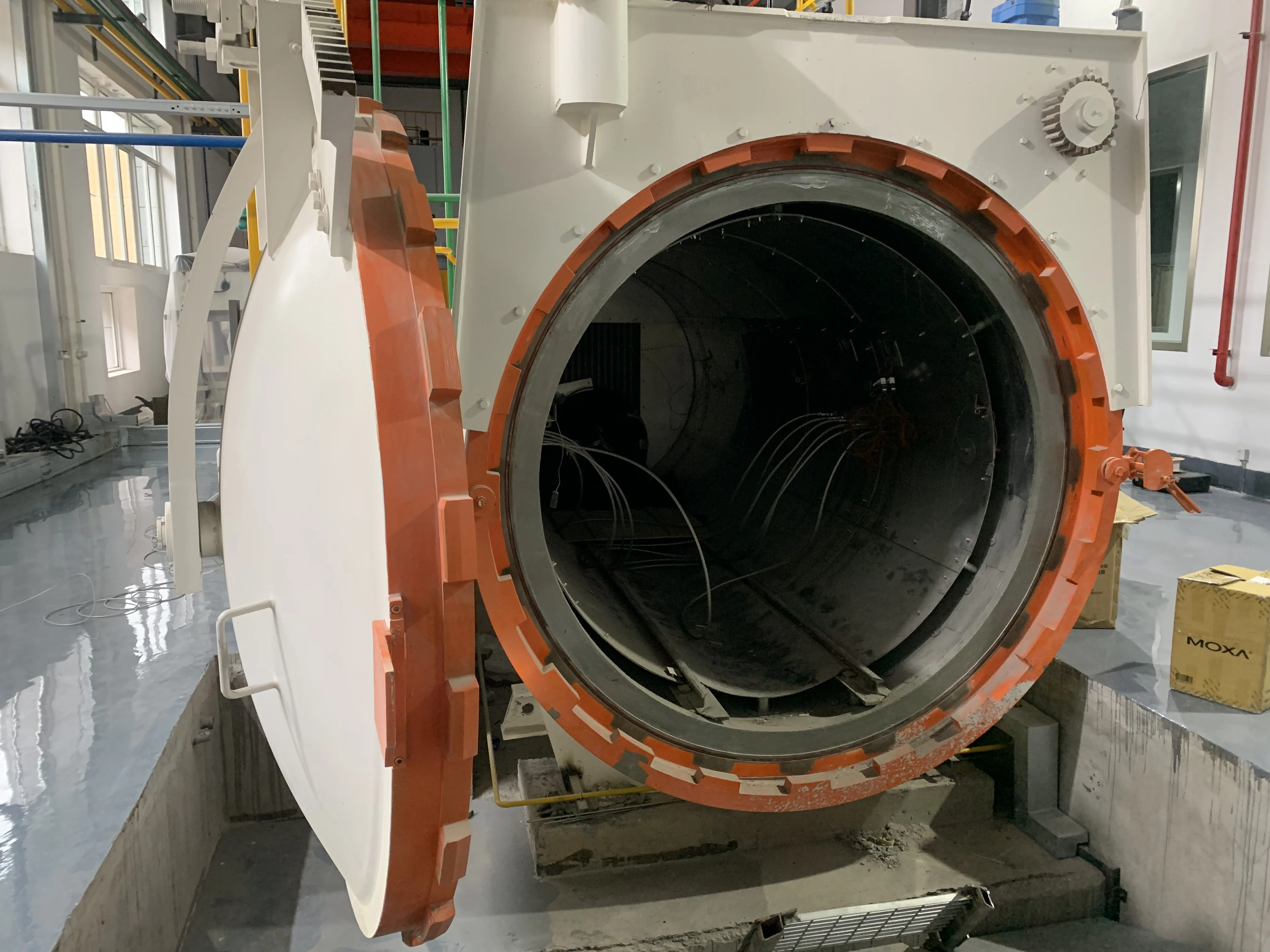

Inside tank                                               Hydraulic open door

IMG_8552     QQ20200822150015

 Control screen                                         Safety lock

IMG_2674     QQ20200822150339

 -4

 -5

Original autoclave pictures:

2.6

 IMG_9516


Customer visit:

_06

Certificate:

U Stamp_     U2 Stamp_
