Spiral FeCrAl / nichrome alloy electric stove flexible heating coil
- Категория: Industrial Heater >>>
- Поставщик: Changzhou,DLX,Alloy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 9.7 $* | 9.87 $* |
| Jul-18-2025 | 7.25 $* | 7.3 $* |
| Jun-18-2025 | 9.8 $* | 9.98 $* |
| May-18-2025 | 9.89 $* | 9.68 $* |
| Apr-18-2025 | 7.0 $* | 7.64 $* |
| Mar-18-2025 | 9.93 $* | 9.21 $* |
| Feb-18-2025 | 8.72 $* | 8.61 $* |
| Jan-18-2025 | 8.3 $* | 8.51 $* |
Характеристики
Products Description

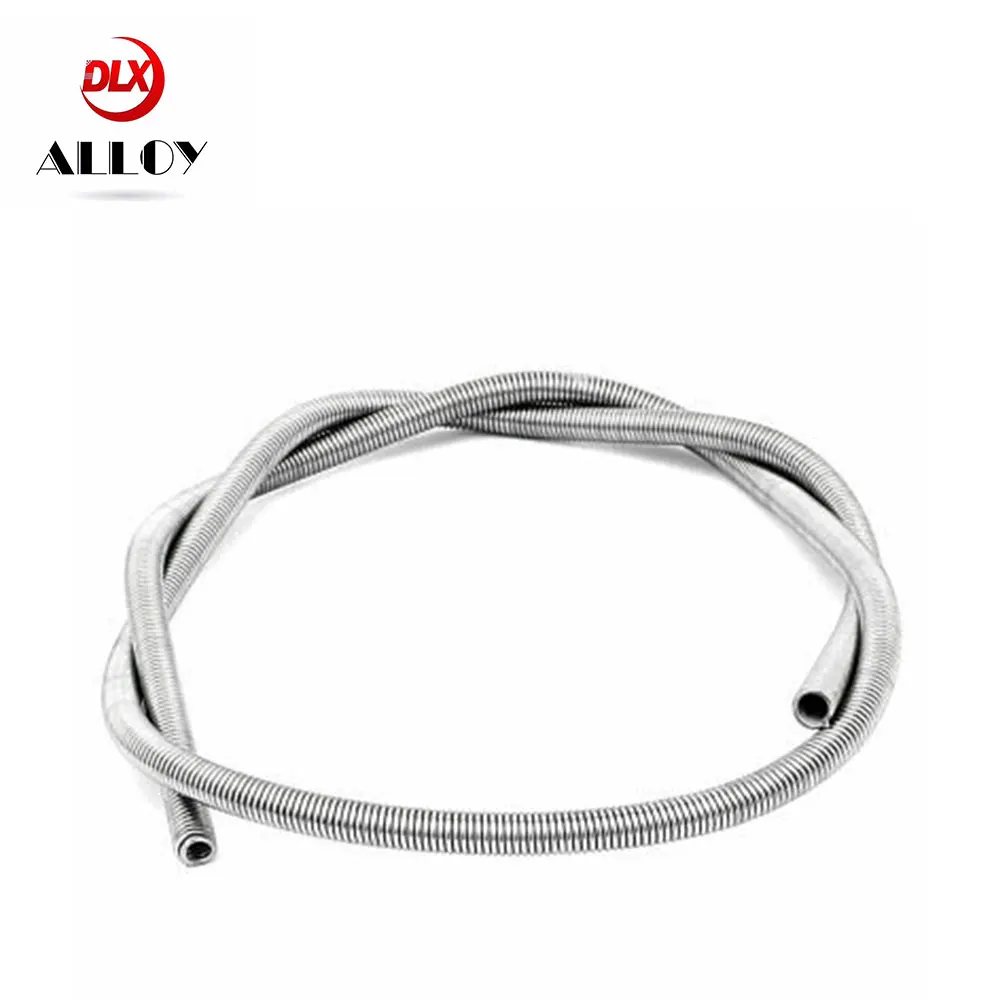

Spiral FeCrAl / nichrome alloy electric stove flexible heating coil heating element
0Cr21Al6Nb is an iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1350°C (2550°F). The alloy with the characteristics of high resistivity, low temperature coefficient of electric resistance, high operating temperature, good oxidation resistance under high temperature.
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.
Such as panel heaters, infrared heaters, warming plates, in cartridge heaters, storage heaters, ceramic heaters for cooking
plates, kilns elements, radiators, in quartz tube heaters for space heating, toasters, toaster ovens, industrial infrared dryers,
coils on molded ceramic fibre for cooking plates with ceramic hobs and so on.
2 Surfaces: bright, acid white, oxidation
3 Mill test certificate (MTC) will be provided after production
4 Good packing methods to keep goods no damage during delivery
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.
Such as panel heaters, infrared heaters, warming plates, in cartridge heaters, storage heaters, ceramic heaters for cooking
plates, kilns elements, radiators, in quartz tube heaters for space heating, toasters, toaster ovens, industrial infrared dryers,
coils on molded ceramic fibre for cooking plates with ceramic hobs and so on.
Our Services:
1 Shape: inform of round wire, ribbon(flat wire), strip, or bar2 Surfaces: bright, acid white, oxidation
3 Mill test certificate (MTC) will be provided after production
4 Good packing methods to keep goods no damage during delivery
5 Customized lable, packing, OEM service.
Specification
Alloy Nomenclature Performance | 1Cr13AL4 | 0Cr25Al5 | 0Cr21AL6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | ||
Main Chemical composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 | |
Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | ||
Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | ||
Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | ||
Nb0.5 | Mo1.8-2.2 | ||||||||
Max. continuous service temp. of element(°C) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | ||
Resistivity at 20ºC(μΩ·m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | ||
Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | ||
Thermal conductivity(KJ/m·h·ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | -- | ||
Coefficient of lines expansion(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | ||
Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | ||
Tensile strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | ||
Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | ||
Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | ||
Repeat Bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | ||
Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | ||
continuous service time(Hours/ ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | ≥50/1350 | ||
Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | ||
Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | ||
