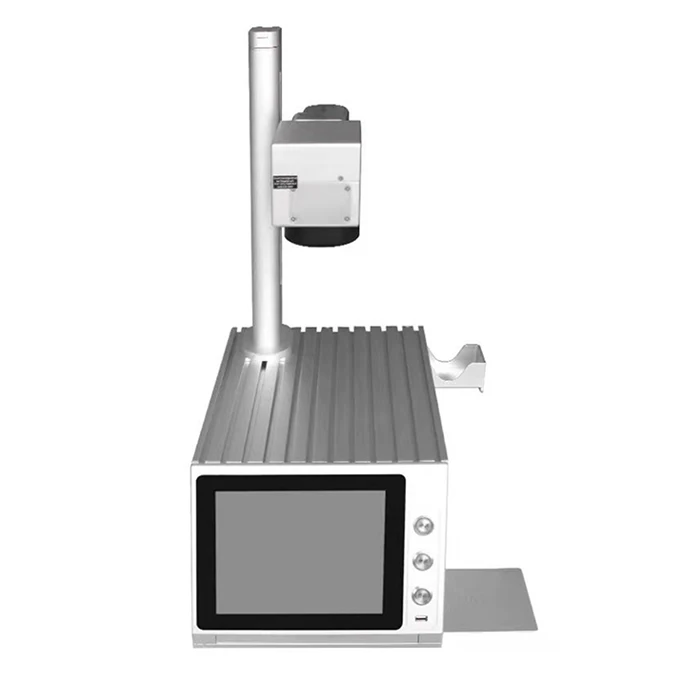

Производство волоконно-лазерной маркировочной машины волоконно-лазерный гравировальный станок
- Категория: Laser Engraving Machines >>>
- Поставщик: Chengdu,Lihe,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.79 $* | 0.63 $* |
| Aug-20-2025 | 0.43 $* | 0.80 $* |
| Jul-20-2025 | 0.92 $* | 0.27 $* |
| Jun-20-2025 | 0.91 $* | 0.67 $* |
| May-20-2025 | 0.48 $* | 0.28 $* |
| Apr-20-2025 | 0.27 $* | 0.5 $* |
| Mar-20-2025 | 0.50 $* | 0.23 $* |
| Feb-20-2025 | 0.36 $* | 0.9 $* |
| Jan-20-2025 | 0.20 $* | 0.11 $* |
Характеристики
Video Description
Products Description
FiberApplication | Fiber laser |
Laser wavelength | 1064nm |
Laser repetition rate | 20-80KHZ |
Engraving range | 110*110mm |
Engraving depth | ≤0.5mm |
Engraving line speed | ≤7000mm/s |
Minimum line width | 0.05mm |
Minimum character | 0.2mm |
Repeat accuracy | ±0.05mm |
Power consumption of the whole machine | 800W |
Engraving results
Fiber laser features
The fiber laser adopts the coupling technology of multi-mode pump light and double-clad fiber with single-mode core to obtain a fully reinforced side-side parallel pump fiber laser. Its main features are:
①Good beam quality, TEM00 single-mode output, collimated beam diameter 10mm, M2<1.3, beam divergence angle 0.24mrad;
②After focusing, the spot diameter is small, and the peak power density of the working point is very high (109W/cm2 is very suitable for
Fine marking, punching and other applications).
③High pulse repetition frequency; very suitable for high-speed marking.
④Using maintenance-free main oscillation power amplification technology and seed light source pulse generation technology; high reliability, mean no failure
The fiber laser adopts the coupling technology of multi-mode pump light and double-clad fiber with single-mode core to obtain a fully reinforced side-side parallel pump fiber laser. Its main features are:
①Good beam quality, TEM00 single-mode output, collimated beam diameter 10mm, M2<1.3, beam divergence angle 0.24mrad;
②After focusing, the spot diameter is small, and the peak power density of the working point is very high (109W/cm2 is very suitable for
Fine marking, punching and other applications).
③High pulse repetition frequency; very suitable for high-speed marking.
④Using maintenance-free main oscillation power amplification technology and seed light source pulse generation technology; high reliability, mean no failure
Company Profile
LH LASER——Excellent Brand of intelligent laser equipment in Chinese,The longest established and largest laser equipment manufacturing enterprise in Southwest China。
ABOUT US
1. The company is located in the beautiful Phoenix Lake of Qingbaijiang District, 3 kilometers away from Rongou National Free Trade Zone, and the export of goods is very convenient, which can reach Eurasia directly.
2. The company focuses on R & D, production, sales and service of high-power laser equipment, including laser cutting machine, laser pipe cutting machine, laser welding machine, hand-held welding machine, robotic laser automatic welding system and other industrial automation equipment.
3. The company's production base has more than 10000 square meters of modern factory buildings, more than 10 offices in the world, to provide users with comprehensive laser solutions and after-sales service.
LH laser, Try to make the best of things,Live in harmony and keep your own personality and opinions. In the management, research and development of continuous progress, innovation, as far as possible to strive for perfection; In the selection of talents, we should give full play to our advantages, retain our individuality and try our best to achieve harmony.
Live in harmony and keep your own personality and opinions. Company adhering to the continuous innovation and the courage to open up the development of ideas, to create value for users, to seek the welfare of employees, for the company to win praise, the core values of product development, innovation-oriented, to provide users with the best laser products, cost reduction, efficiency, create greater value!
Live in harmony and keep your own personality and opinions. Company adhering to the continuous innovation and the courage to open up the development of ideas, to create value for users, to seek the welfare of employees, for the company to win praise, the core values of product development, innovation-oriented, to provide users with the best laser products, cost reduction, efficiency, create greater value!
Certifications
Our Advantages
1.Quality Assurance
Our company has passed the ISO9001 quality system certification, and has its own intellectual property system, and has obtained more than one hundred invention patents. Since its establishment, the company has focused on the integration of resources in technology, products, applications, markets and capital.
2.Good Service
We provide free technical after-sales support, if you encounter some technical problems, you can contact us at any time, we have professional customer service staff to solve your doubts online at any time.
3.Price Advantage
The company insists on taking the route of high-end quality and reasonable pricing.
4.Factory Wholesale
We are an integrated industrial and trade company, with a professional team, excellent technical research and development personnel, production personnel and so on. Our company focuses on the research, development, production, sales and service of high power laser equipment, with "high speed, high precision, high efficiency, environmental protection, low consumption" as the direction of product development and manufacturing, for customers to improve production efficiency, reduce production costs, create greater economic benefits and value.
Packing & Delivery
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
FAQ
Q1. How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q2. How can I get the sample to check you quality ?
If you want marking samples to check the quality, we can help you do this.
Just tell us your needs, when finished the testing, we can send testing video to you, if you need, we also can send welding samples to you.
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q2. How can I get the sample to check you quality ?
If you want marking samples to check the quality, we can help you do this.
Just tell us your needs, when finished the testing, we can send testing video to you, if you need, we also can send welding samples to you.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
