China Factory Promotion 30L FOV 120 Angle 6 Axis rc Video agriculture Drone with

Technical Parameters

Wheelbase

2000 mm

Product Size

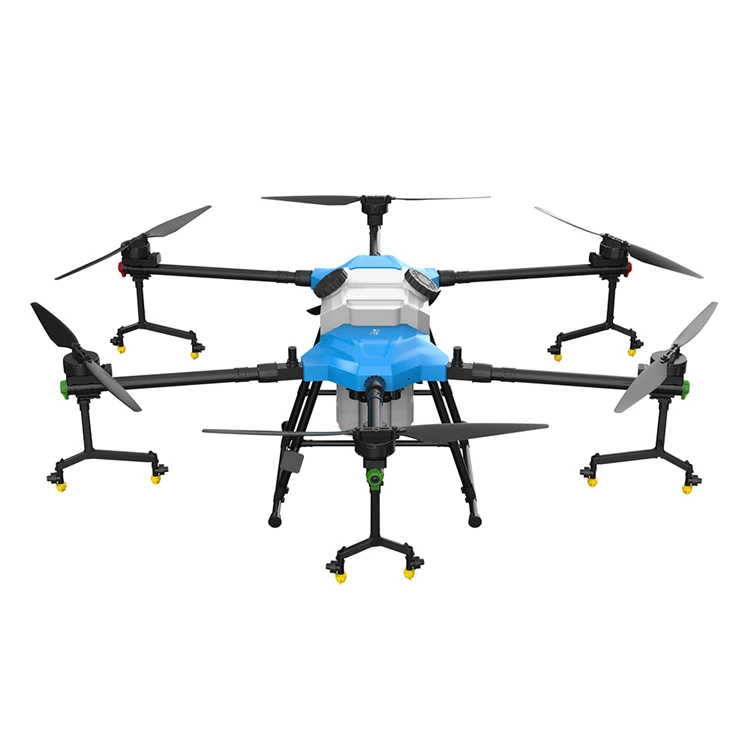

2900×2900×780mm (arms unfolded, propellers unfolded)

2050×1610×780mm

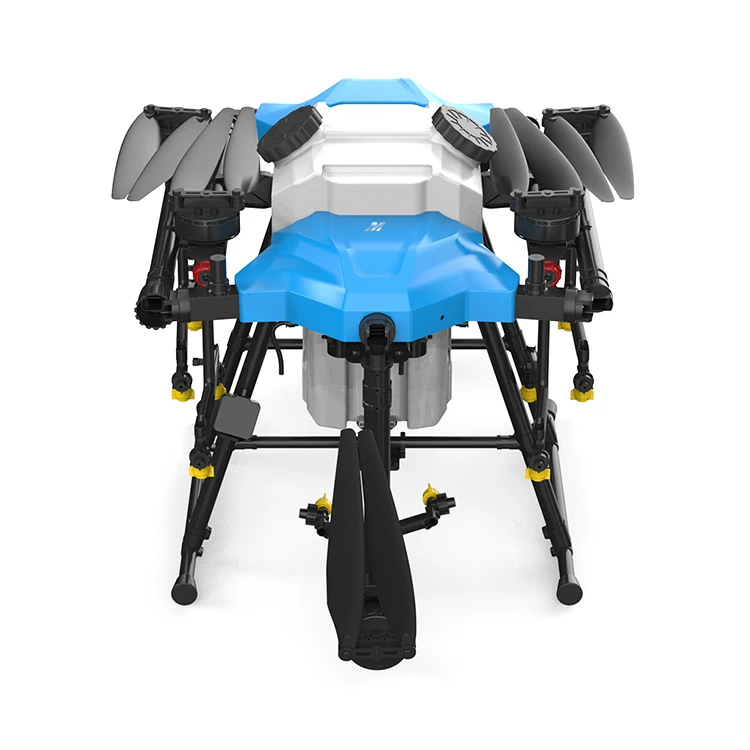

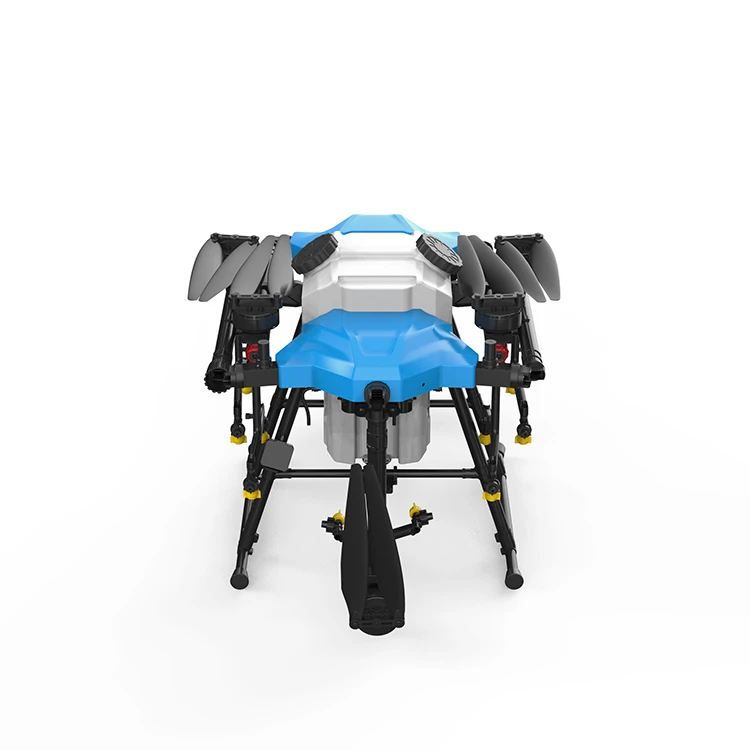

(the arms are unfolded, the blades are folded)

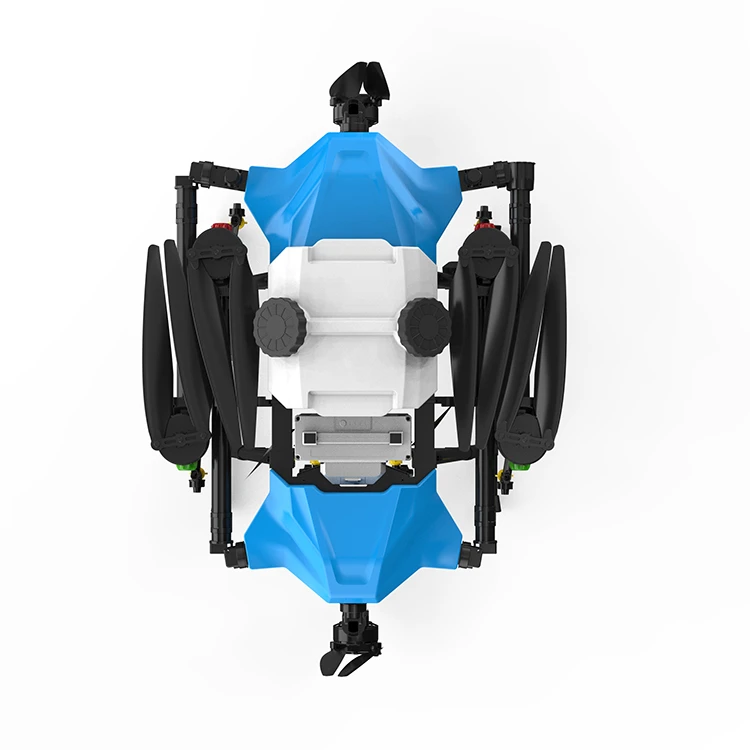

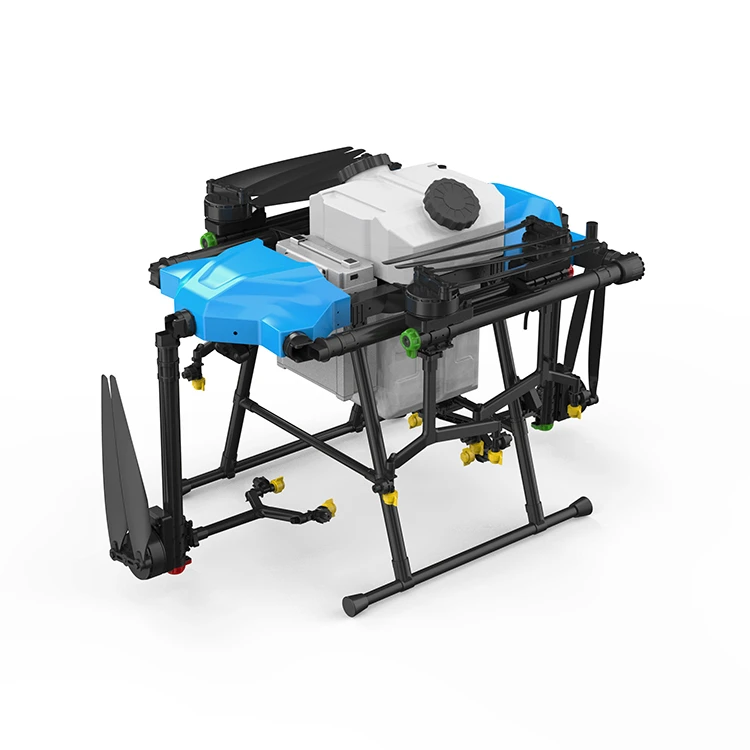

1050×620×780mm (the arm is folded)

Spray system-Tank

Quantity

1 piece

Volume

Rated 30 liters, full load: 32 liters

SprayingSystem-brushless water pump

Quantity

2

Work flow

5L/min*1

Operating Voltage

51.8-60.0V

SprayingSystem-pressure nozzle

Quantity

12

Maximum spray flow

8L/min

Atomized particle size

SX110015VS: 170-265 μm

Maximum effective spray width

4M-9M (1.5-3.5M height from the crop)

Flight parameters

Total weight of the whole machine (without battery)

27.5kg

Standard take-off weight

37.8 kg

Maximum effective take-off weight

67.5 kg (horizontal)

Hover accuracy

Enable J-RTK: Horizontal: ±10 cm, Vertical: ±10 cm

(Good GNSS signal)

J-RTK is not enabled: horizontal ±0.6m, vertical ±0.3m (radar module enabled: ±0.1m)

RTK / GNSS use frequency band

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5

Battery capacity

14S (28000mAh 51.8V)

Flight duration

12000 W

Maximum pitch angle

15°

Maximum operating flight speed

7 m/s

Maximum flight speed

10m/s

Maximum tolerable wind speed

8 m/s

Maximum flight altitude

2000 m

Recommended working environment temperature

0°C - 40°C

Front and rear dual cameras

Angle of View (FOV)

FOV120°

Resolution

1280×960 30fps

Front and rear double searchlight

Searchlight power

<8W

Luminous flux

1W/120-140 lm

Irradiation angle

120°

waterproof level

IP67

Intelligent flight battery

Type

25A

Volume

25000mAh-51.8V

Weight

10.5KG

Discharge rate

3C

Protection level

IP56

Power System-Motor

Size

96×26mm

KV value

100 rpm/V

Maximum thrust

15.5kg/rotor

Maximum power

2400 w/rotor

Maximum power

835 g

Power System-Propeller

Pitch

36×12in

Material

Carbon plastic

weight

324 g

Power System-ESC(Electrical Speed Control)

Normal working current (continuous)

60A

Maximum working voltage

58.8 V(14S LiPo)

Normal working current (continuous)

Remote control

120A

Model

RW15

Maximum remote control distance

15KM

Plant protection operation distance

3.5KM (flying height 3>m)

Signal output

16-channel S.BUS

Image transmission display resolution

5-channel PWM

Display screen

5.5 inch high-definition high-brightness touch LCD display

System Configuration

2G running memory, 16GB storage space

Weight

850g

Battery capacity

10400mAh 7.4V Li-ion battery

Flight duration

13>hours

Intelligent Charger

Model

U6Q

Input voltage

110V-220V

Output Power

2400W

Charging current range

15A-50A

Rechargeable battery type

lithium battery

Flight control system

Type

K++PRO

Weight:321g

FC:87g

PMU:41g

PMU2(UPS):44g

FC:72.6mm×48.0mm×22.8mm

PMU:53.4mm×34.4mmx14.5mm

PMU2(UPS):53.4mm×34.4mmx14.5mm

GPS:φ62*14.3mm

LED:24*24*8mm
