Hydraulic Stone Splitting Machine, Granite/Marble Cutting Machine/Hydraulic Stone Splitter Machine for Pavers





Our Hydraulic stone splitting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops.

It has floating teeth up and down,we also called it individual chisels which can maHydraulic stone splitting machine tch the natural surface of the stones perfectly.

Every splitting machine can be integrated in a production line, especially designed according to your needs.



The main characters of our machines are:

1. The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and

through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.

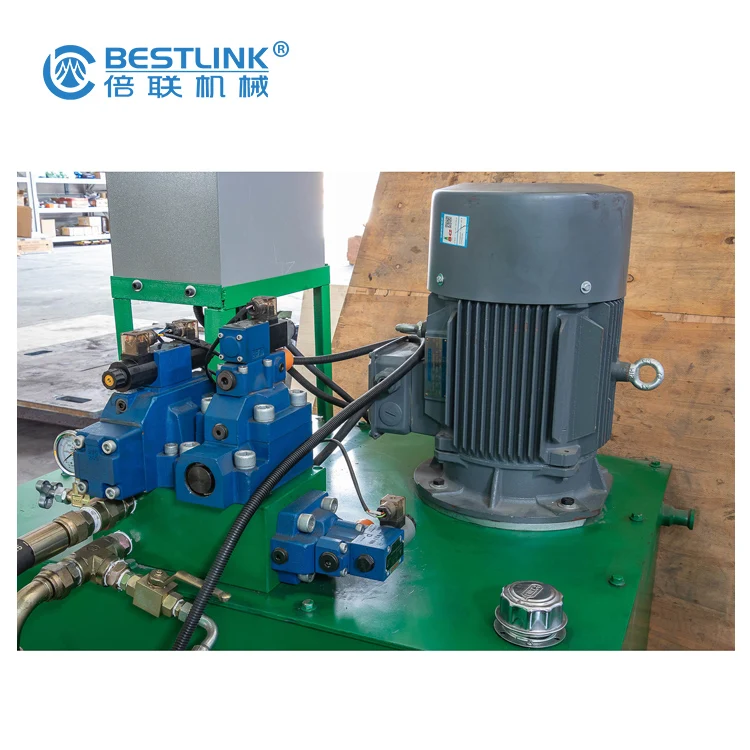

2.The hydraulic system adopts from German Bosch Rexroth, providing sustainable,stable and sufficient

power to the machine.

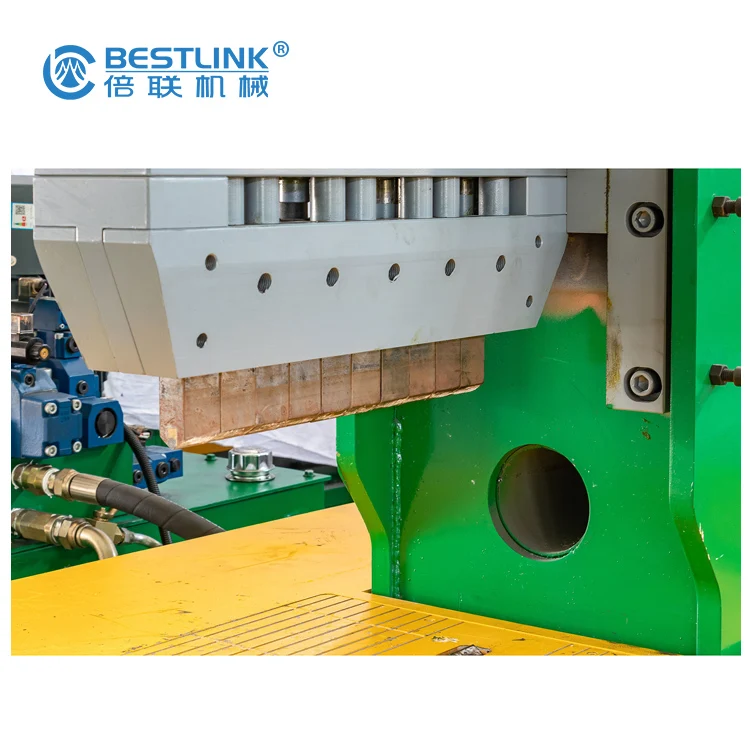

3.With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface.

4. We can design a good quality stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers



1.The standard model we have:

Model No.	BRT320-1200*800-M	BRT160T-500*550	BRT70T-400*350	BRT40T-240*320	BRT20T-160*180
splitting pressure	320T	160T	70T	40T	20T
max.splitting width	1200mm	500mm	400mm	240mm	160mm
max.splitting height	800mm	550mm	350mm	320mm	180mm
adaption of upper/lower blade	36*20mm	30*15mm	20*10mm	15*10	10*7mm
rated power	22KW	15KW	11KW	11KW	7.5KW
rated voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
electric current	42.5A	30A	22.6A	22.6A	15A
main oil cylinder data	Φ400/Φ280-850	Φ280/Φ200-600	Φ200/Φ140-360	Φ160/Φ110-340	Φ110/Φ80-200
oli advanced speed	40mm/s	76.6mm/s	108mm/s	167mm/s	96mm/s
overall size(L*W*H)	2370*1500*3840mm	1970*1200*3300mm	1500*1200*2520	1260*1000*2300	1145*1000*2030
weight	8000KG	5300KG	3200KG	2900KG

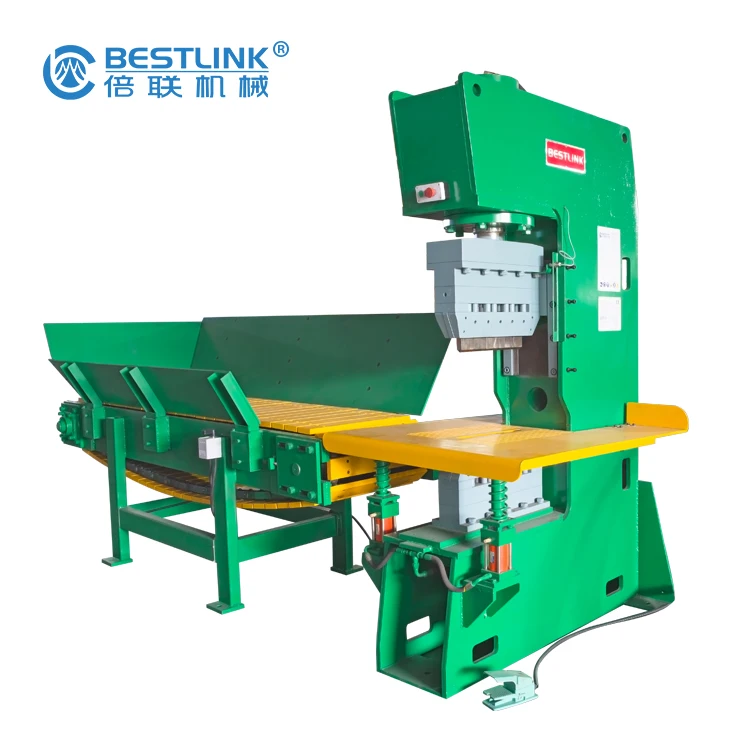

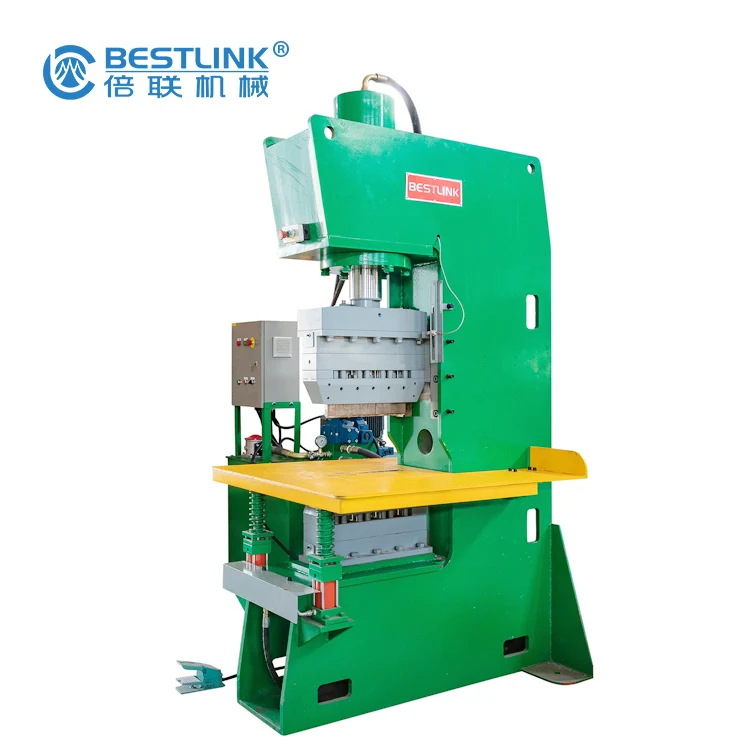

C front type:





Bridge type:









2.Our new design and what we customize for our customers:





3.The finished products you can make:





4.Project Cases



5.Parts and components:









6.Production:









7.Packing:









8.Production line:
