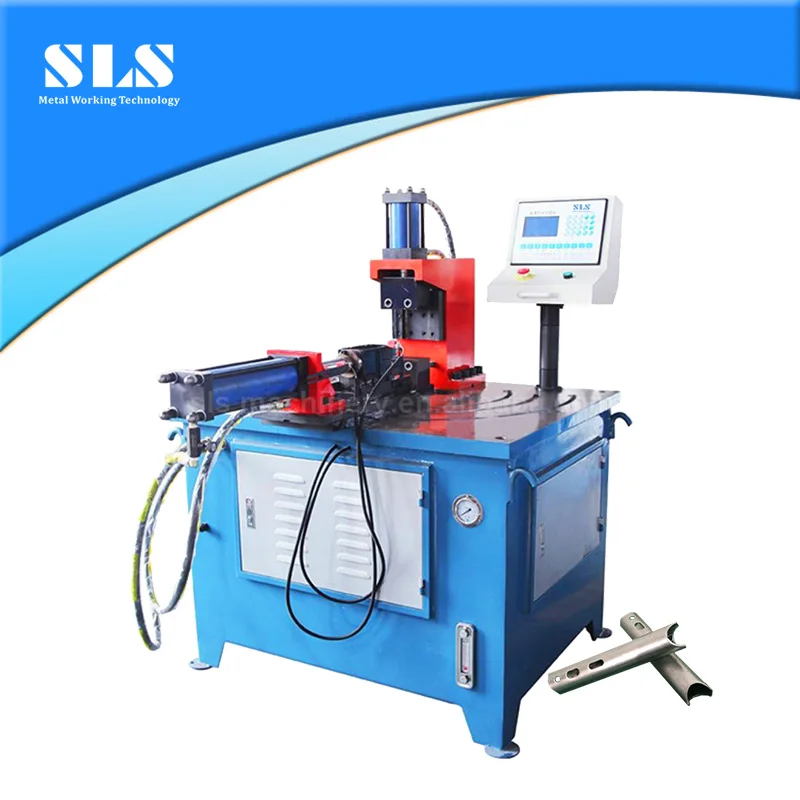

Round Square Stainless Steel Metal Tube Angle Notcher / Hydraulic Automatic Pipe End Arc Notching Machine Tool
Product Introduction
Brief Introduction on Pipe Notching Machine
SZ-SLSPipe Notching Machine which scallops tubes that need to be welded together rapidly and accurately. Notching round or square tubes at 90°or at an angle can be achieved on steel, stainless steel and various other metals. Pipe clamping and notching work automatically driven by hydraulic.Automatic and manual working mode which are convenient for adjusting the machine,mold and notching knife. It combines easy-to-use operation with high accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.
Features on Pipe Notching Machine
Human interface operation panel offers easy operation of machine.
Machine featured as manual pipe loading,automatic clamping,automatic notching and manual unloading.
All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.
Available pipe material: steel, stainless, aluminum, titanium and brass...
The design of the tooling help customer easy to change.
Water cooling system ensures the equipment long-time work stably under the high temperature.
CE&ISO 9001:2000.
Main Technical Parameters Sheet
Model
NM-50Y
NM-80Y
NM-100Y
Max. Notching Capacity
¢50×2mm
¢80×3mm
¢100×3.5mm
Notching Angle
15°-180°
15°-180°
15°-180°
Notching Time
3-4s/100mm
6-8s/100mm
10-12s/100mm
Motor Power
5.5Kw
7.5Kw
11Kw
Oil Pressure
14Mpa
14Mpa
14Mpa

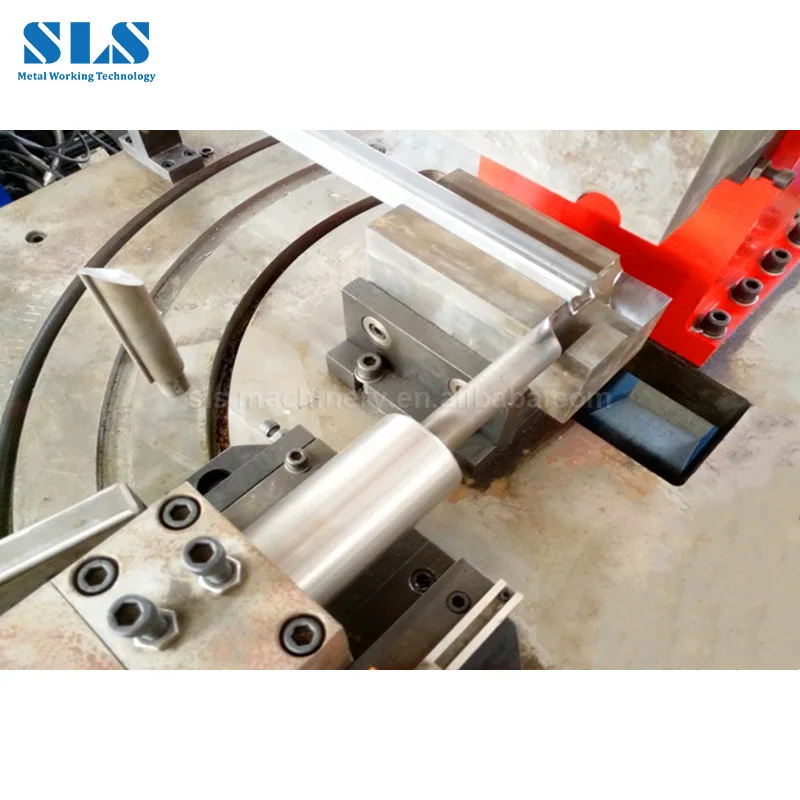

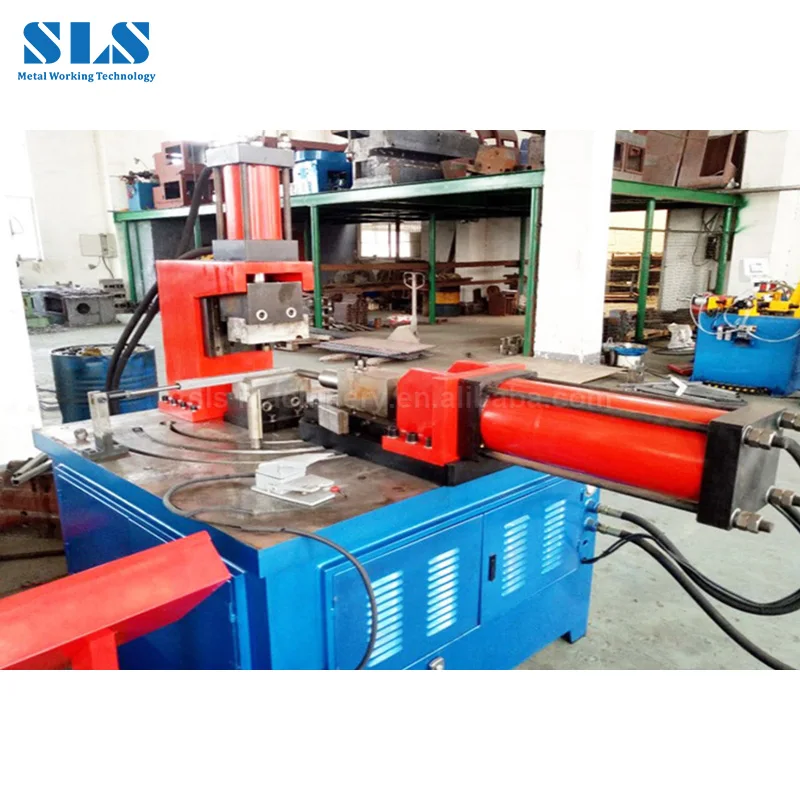

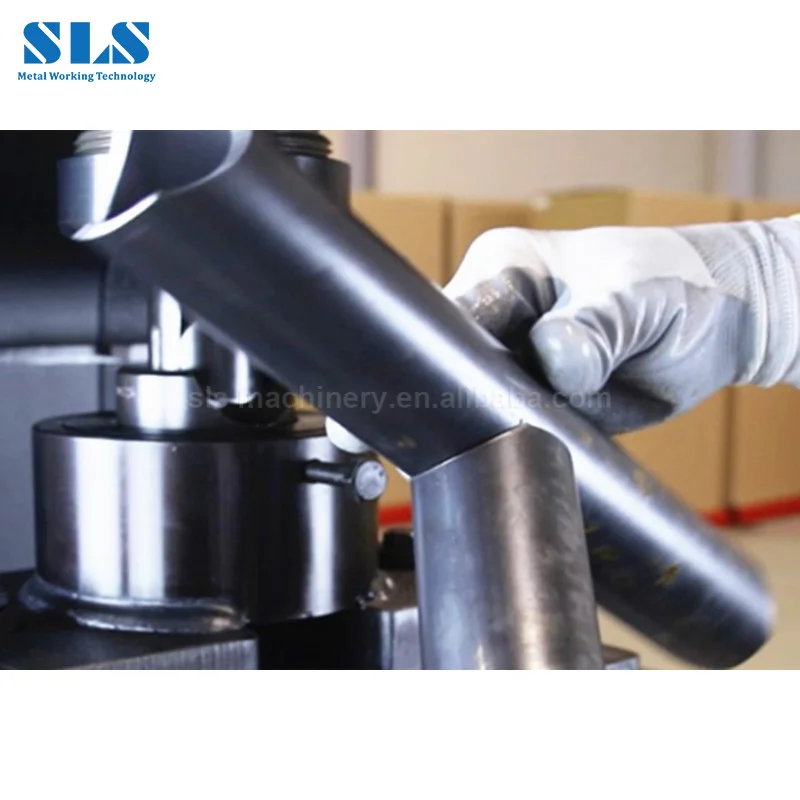

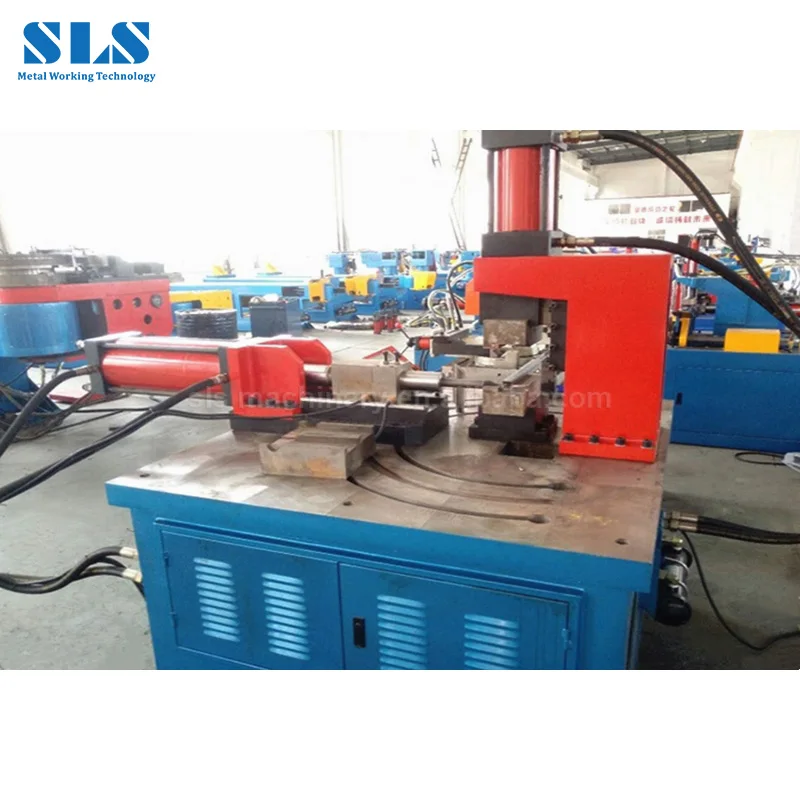

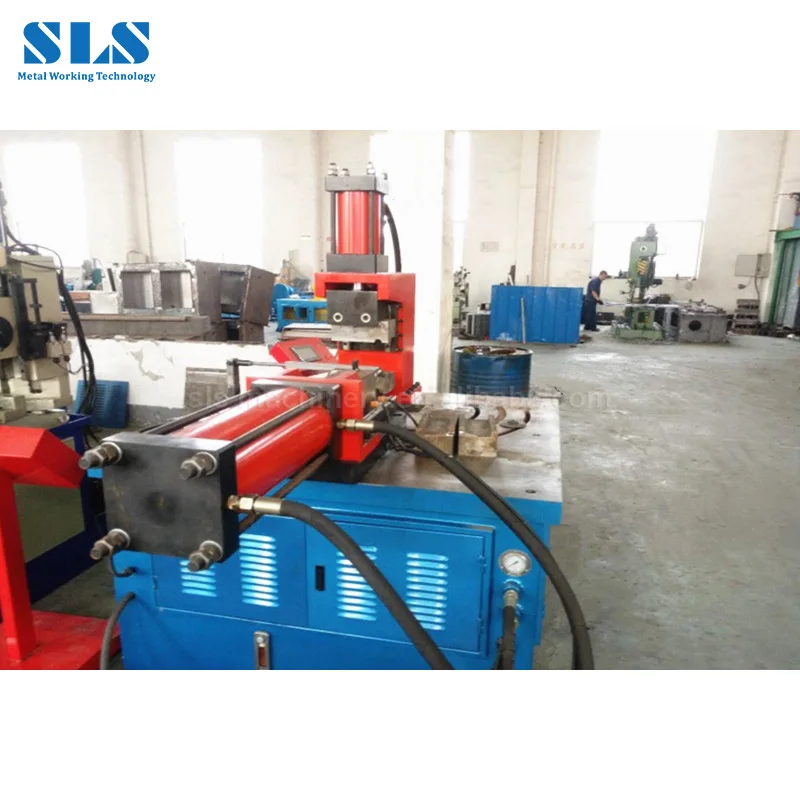

Product Details
Main Application
Company Information
Product Certificate
Packaging & Shipping
FAQ
1.Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube
processingmachines production.
2.Q:Where is the nearest airport to your company?
A: Wuxi Airport or Shanghai Airport.
3.Q: How to choose the pipe/tube notching machines?
A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Notching Angle - Connection Size - Other requirements
4. Q: Do you have CE certificate?
A: We have CE certificate.
5. Q:How about your service?
A:
Before Sales Serive:
1. We will help our customer confirm the right model according
to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine.
2. We provide free installation,commissioning and training at
our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportationshoule be
at your account.
3. Any problems on machine,we will reply you by email/tel or
other online contact within 24 hours.
