4-х тонный башенный кран новый маленький длина стрелы Спецификация

4-х тонный башенный кран новый маленький длина стрелы Спецификация

Категория: Tower Cranes >>>
Поставщик: Evangel,Industrial,(Shanghai),Co.,Ltd.

Цена:65 000,00 $ - 85 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	77350.57 $*	81218.70 $*
Aug-19-2025	76700.69 $*	80535.0 $*
Jul-19-2025	64350.59 $*	67568.22 $*
Jun-19-2025	75400.16 $*	79170.62 $*
May-19-2025	65650.60 $*	68933.68 $*
Apr-19-2025	74100.1 $*	77805.42 $*
Mar-19-2025	73450.12 $*	77123.28 $*
Feb-19-2025	72800.93 $*	76440.24 $*
Jan-19-2025	72150.7 $*	75758.65 $*

Характеристики

6 ton ZOOMLION TOWER CRANE

(6t, 8t, 10t, 12t, 16, 20t, 25, 32t more available)

Product Description

6 ton ZOOMLION TOWER CRANE

Max. jib length: 56m;

Max. lifting capacity 6t;

Max. hoisting capacity at jib tip: 1t;

Max. free-standing height: 40m,

Air conditioner.

(Not include Counterweight)

Optional:

Outrigger basement legs

Wall anchor 1 set

Heavy duty steel chassis base

Remote control wireless system

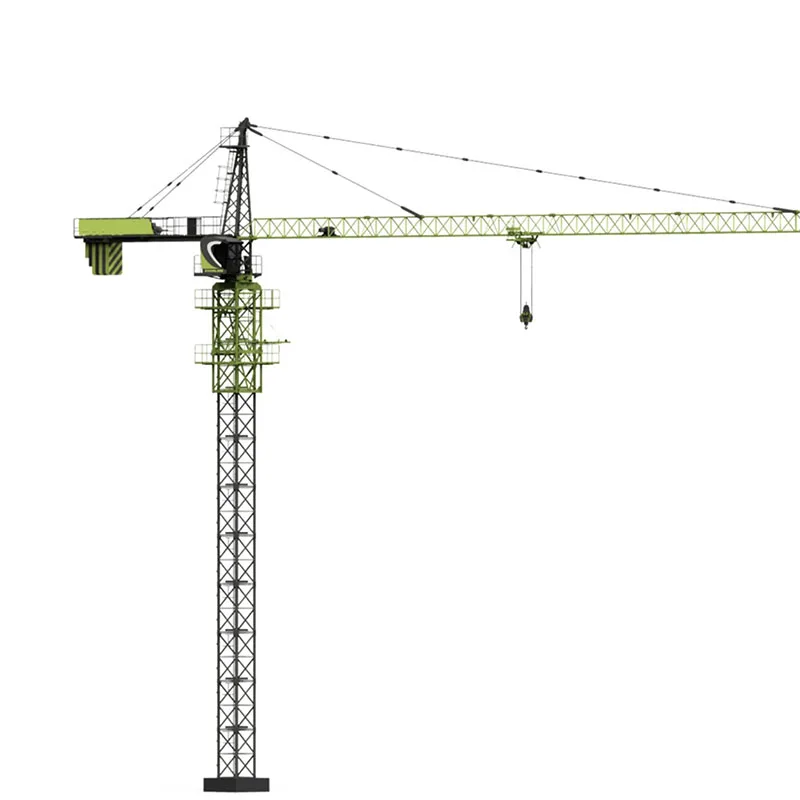

Hammerhead Tower Crane TC5610A-6

1. Performance parameters of TC5610A-6: performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 56m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 31meters.
• Max. lifting capacity 6t;
• Hoisting capacity at jib tip: 1t;
• Max. lifting moment: 80t.m
• Hoisting mechanism: H25SP15-380P; power: 25 kW; rope capacity: 380m;
• Slewing mechanism:S75C6R-130C12/16A; power: 7.5 kW
• Trolleying mechanism: T30FC60; power: 3kW
• Types of tower crane: stationary crane with embedded outriggers, stationary crane with embedded bolts, stationary crane with under-frame and mobile tower crane.

2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
• The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.
