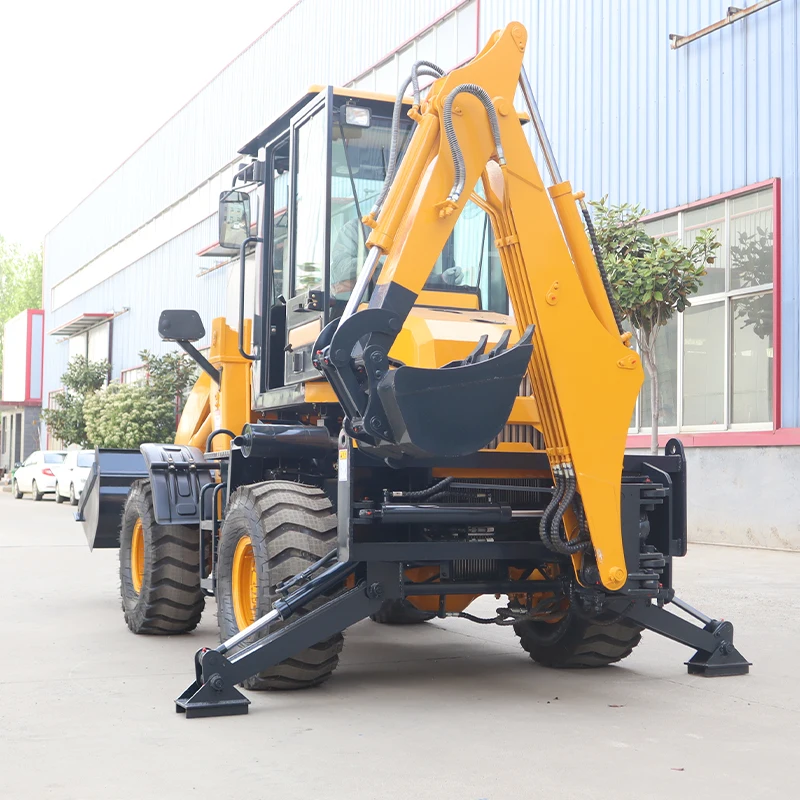

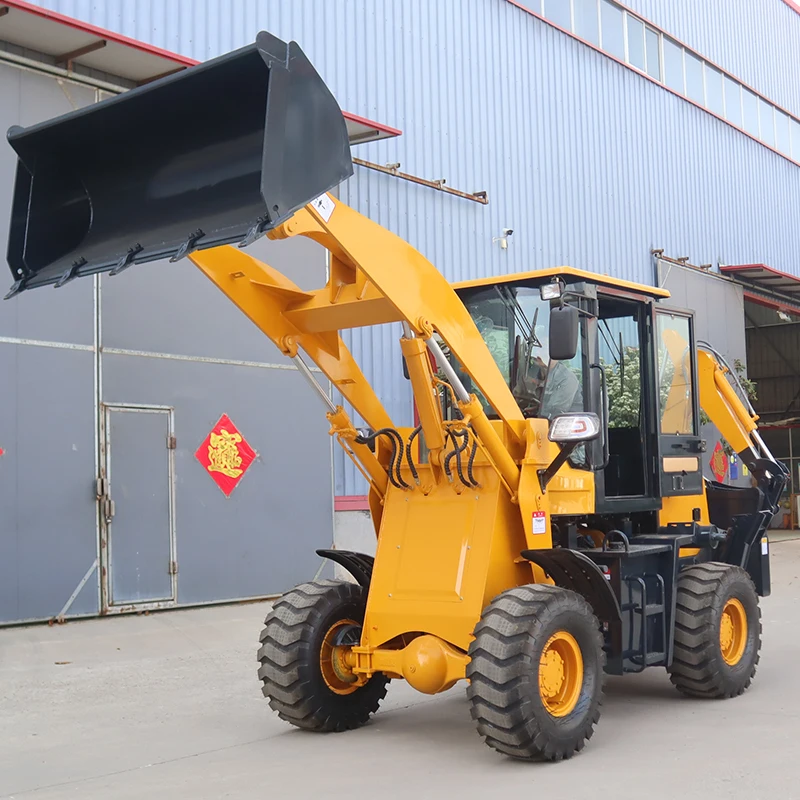

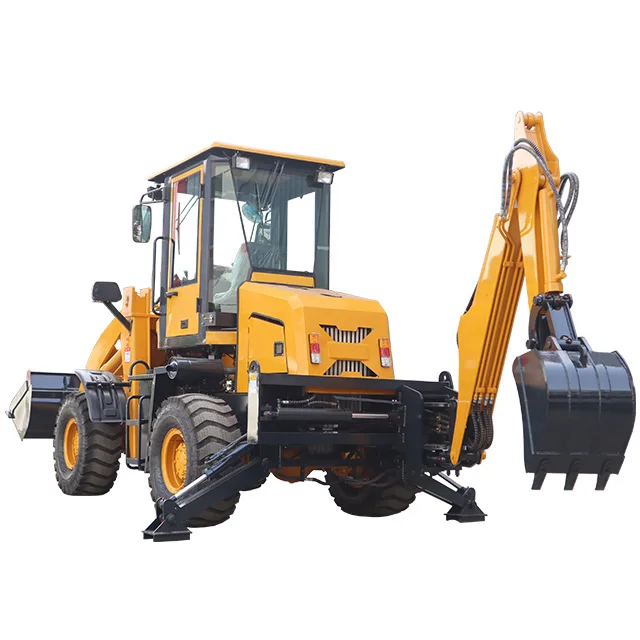

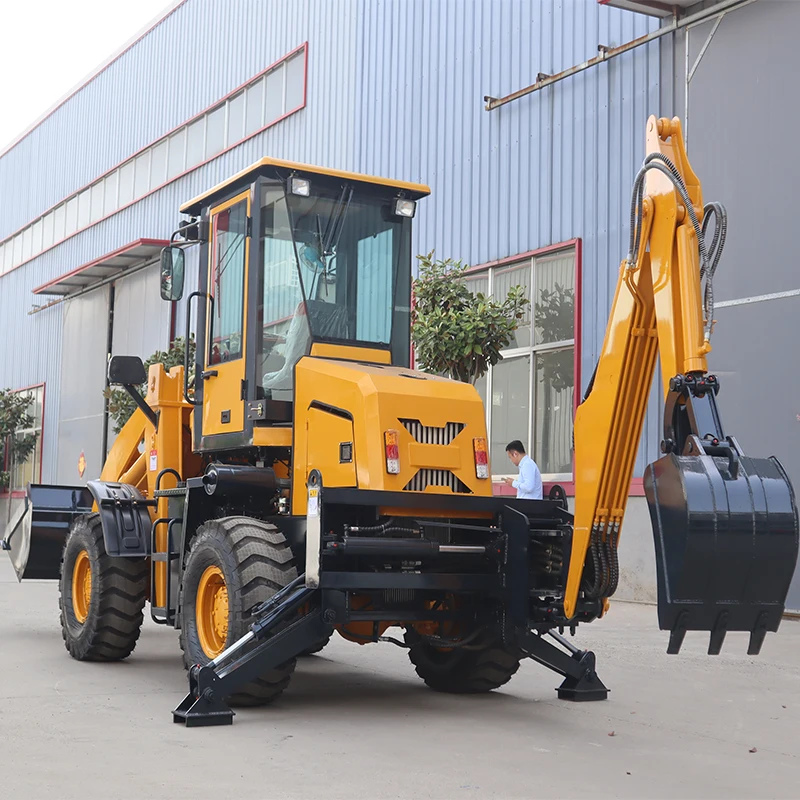

Колесный мини-экскаватор-погрузчик 4x4 по самой конкурентоспособной
- Категория: Loaders >>>
- Поставщик: Shandong,Eachan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 11305.79 $* | 11870.23 $* |
| Aug-18-2025 | 11210.21 $* | 11771.90 $* |
| Jul-18-2025 | 9405.71 $* | 9875.35 $* |
| Jun-18-2025 | 11020.52 $* | 11571.4 $* |
| May-18-2025 | 9595.32 $* | 10075.0 $* |
| Apr-18-2025 | 10830.20 $* | 11372.44 $* |
| Mar-18-2025 | 10735.94 $* | 11272.55 $* |
| Feb-18-2025 | 10640.10 $* | 11172.67 $* |
| Jan-18-2025 | 10545.46 $* | 11072.69 $* |
Характеристики
To Customers
Our advantages:
①More than 10years production experience in this industry.
②All products are in stock,within 5 days delivery time.
③1 year warranty.Full videos about operating teaching including the after sale services steps;
④Every product have a manual in English.
⑤Accept OEM and Customization is supported on one set.
⑥Extra filters and toolbox free for u.
⑦Provide delivery video, security is guaranteed.
⑧Support TT/Ali Trade Assurance Order online etc.,payment secure.
Products Description
Reliable engine and wet axles. Frame designed for high resistance and efficient load distribution ensuring longer life.
Tandem gear pump enables fine grading and has flow control via dashboard switch. Power assisted service brakes reduces fatigue.
Spacious Cab offers wide range of view. More ergonomically designed handrail and steps for safe and easy entry/exit.
Spacious Cab offers wide range of view. More ergonomically designed handrail and steps for safe and easy entry/exit.
Product Paramenters
Model | YCZ10-20 | YCZ15-26 | YCZ15-28 | YCZ25-30 | |||
Overall dimensions | 550*172*265cm | 580*185*275cm | 620*196*285cm | 680*204*285cm | |||
Operating Weight | 3400 kg | 4800 kg | 5400 kg | 6000 kg | |||
Rated Load | 1500 kg | 2000kg | 2500 kg | 3000 kg | |||
Rated Power | 40 kw (55 hp) | 55 kw (75 hp) | 76 kw (104 hp) | 92 kw (125 hp) | |||
Engine Type | Diesel, 4-Cylinder, 4-Stroke, In-line, Water Cooling | ||||||
Backhoe Capacity | 0.1 m³ | 0.15 m³ | 0.2 m³ | 0.3 m³ | |||
Loader Capacity | 0.75 m³ | 1.0 m³ | 1.25 m³ | 1.5 m³ | |||
Backhoe Max. Digging Depth | 2000 mm | 2700 mm | 2600 mm | 2600 mm | |||
Backhoe Max. Digging Height | 3300 mm | 4200 mm | 4300 mm | 4400 mm | |||
Backhoe Max. Digging Radius | 2900 mm | 4600 mm | 4600 mm | 4600 mm | |||
Backhoe Max. Dumping Height | 1850 mm | 2200 mm | 2300 mm | ||||
Loader Max. Dumping Height | 2800 mm | 3300 mm | 3500 mm | ||||
Loader Max. Dumping Distance | 800 mm | 900 mm | |||||
Backhoe Max. Breakout Force | 25 kn (2550 kg) | 28 kn (2856 kg) | |||||
Loader Max. Breakout Force | 36 kn (3672 kg) | 42 kn (4284 kg) | |||||
Travel Speed | 0 - 26 km/h | 0 - 26 km/h | 0 - 30km/h | 0 - 30km/h | |||
Gradeability | 30° | 30° | 30° | 30° | |||
Working Pressure | 16 MPa | 16 MPa | 16 MPa | 16 MPa | |||
Min. Turning Radius | 3500 mm | 4000 mm | 4500 mm | 4500 mm | |||
Wheel Tread | 1630 mm | 1550 mm | 1630 mm | 1630 mm | |||
Wheel Base | 2670 mm | 2150 mm | 2670 mm | 2670 mm | |||
Tire Model | 20.5 - 16 | 23.5 - 16 | 16/70 - 20 | 16/70 - 20 | |||
Wide view cabin, clear vision, hard wear-resisting
Adopt integral frame made by Q345-C high-strength steel, make the whole machine more stable, and suitable for excavating.
Deluxe interior,adjustable suapension seat.
Split instrument design, more convenient mainteanance.Comfortable joystick, simple and flexible.
You can install more and more accessories to discover more functions of the backloader.
Company Profile
Certifications
