Humidity and Temperature Sensor for dehumidifier AHT21B
- Категория: Sensors >>>
- Поставщик: Guangzhou,Aosong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.98 $* | 0.24 $* |
| Aug-19-2025 | 0.6 $* | 0.19 $* |
| Jul-19-2025 | 0.18 $* | 0.12 $* |
| Jun-19-2025 | 0.43 $* | 0.29 $* |
| May-19-2025 | 0.68 $* | 0.8 $* |
| Apr-19-2025 | 0.59 $* | 0.92 $* |
| Mar-19-2025 | 0.73 $* | 0.88 $* |
| Feb-19-2025 | 0.52 $* | 0.51 $* |
| Jan-19-2025 | 0.88 $* | 0.55 $* |
Характеристики
Product Summary

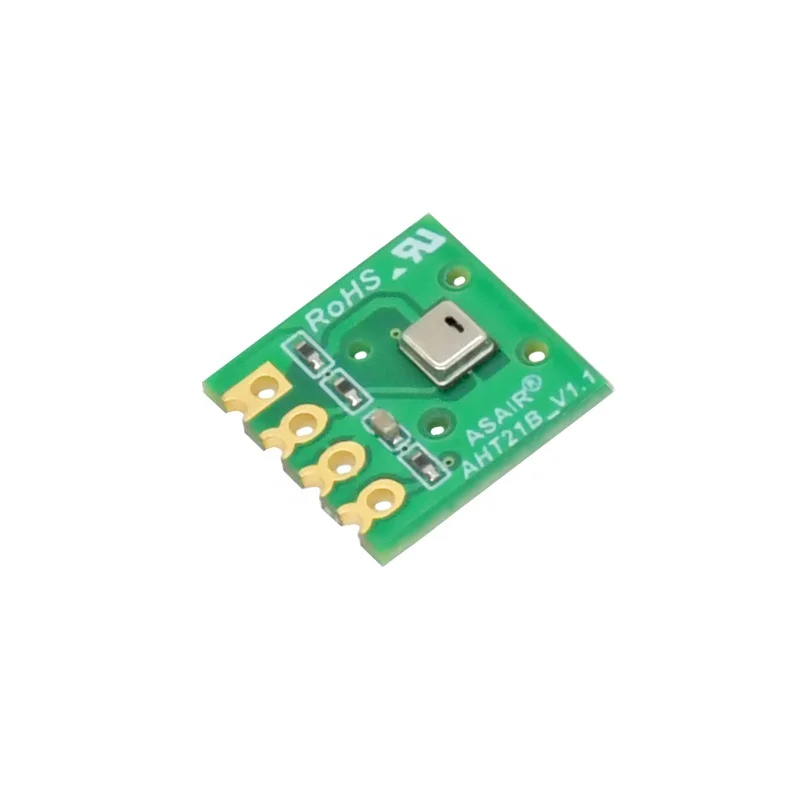

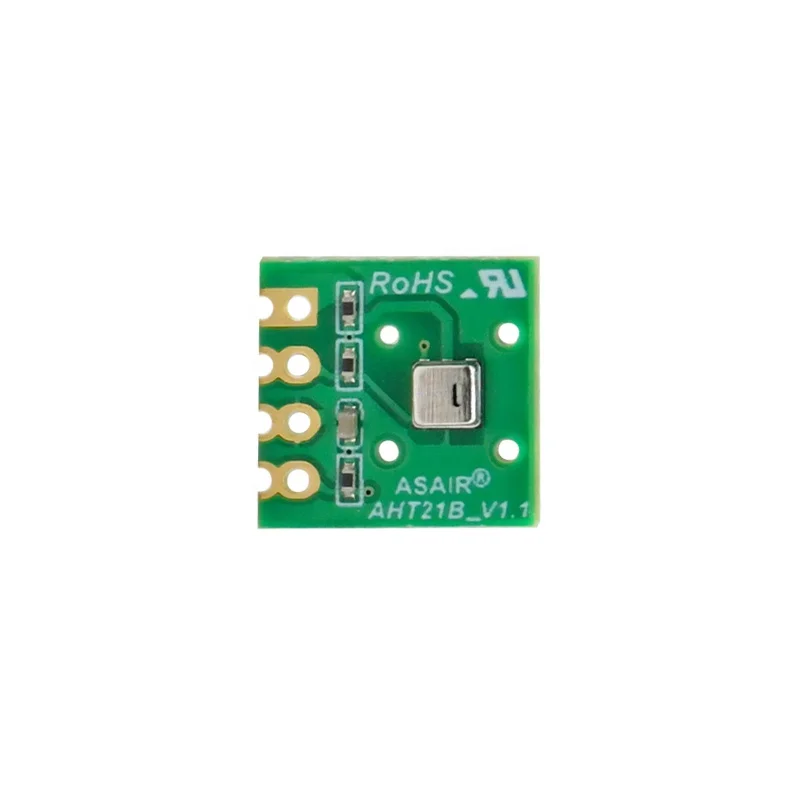

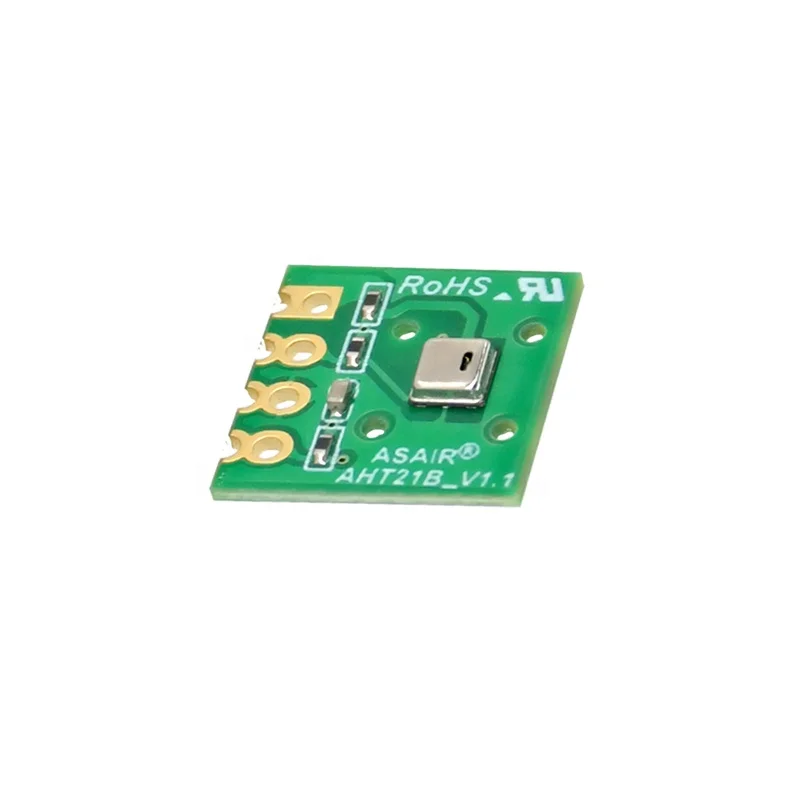

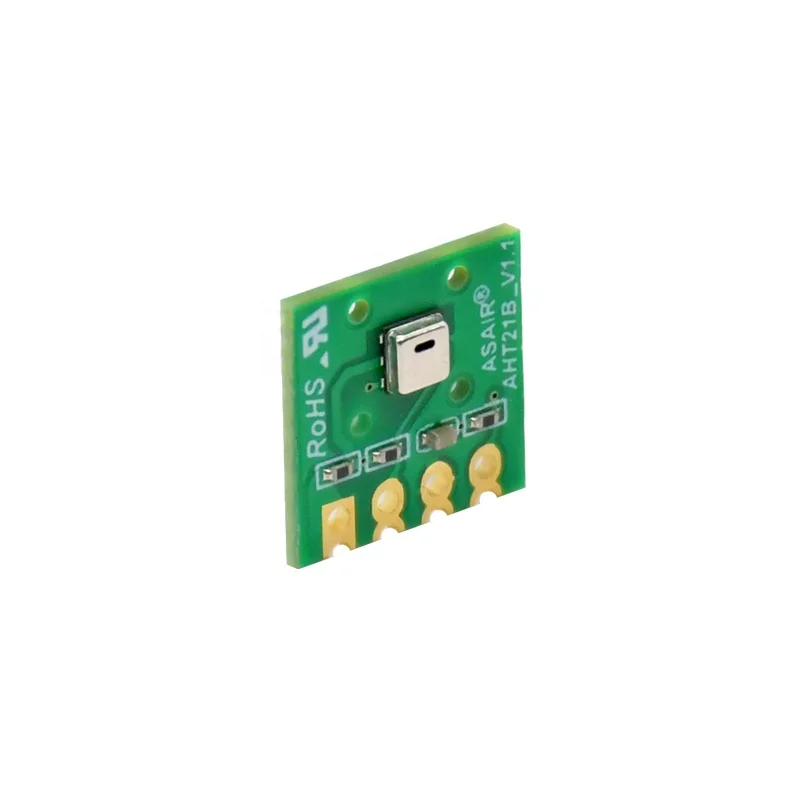

AHT21B is an integrated temperature and humidity sensor module developed based on AHT21. The product is equipped with a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor element and a standard on-chip temperature sensor element. The PCB board uses Immersion gold technology prolongs the service life of the product; output calibrated digital signal, standard I2C format, with the characteristics of calibration-free, fast response, strong anti-interference ability, high precision, high quality, high stability, etc.
Parameter | Condition | MIN | TYP | MAX | Unit |
Interface | Standard I²C | - | I²C | - | - |
Supply Voltage | - | 2.2 | 3.3 | 5.5 | V |
Temperature Range | - | -40 | - | +80 | ℃ |
Humidity Range | - | 0 | - | 100 | %RH |
Temperature Accuracy | - | - | ±0.3 | - | ℃ |
Humidity Accuracy | - | - | ±2 | - | %RH |
Response time | τ 63% | - | 8 | - | s |
Prolonged Drift (Temp) | - | - | <0.1 | - | ℃/yr |
Prolonged Drift (Hum) | - | - | <1 | - | %RH/yr |
Characteristic Table
Note
1. The power supply voltage of the host MCU must be consistent with the sensor when the product is used in the circuit.
2. If you need to further improve the reliability of the system, you can control the sensor power supply.
3. When the sensor is just powered on, give priority to the sensor VDD power supply, SCL and SDA high level can be set after 5ms.
