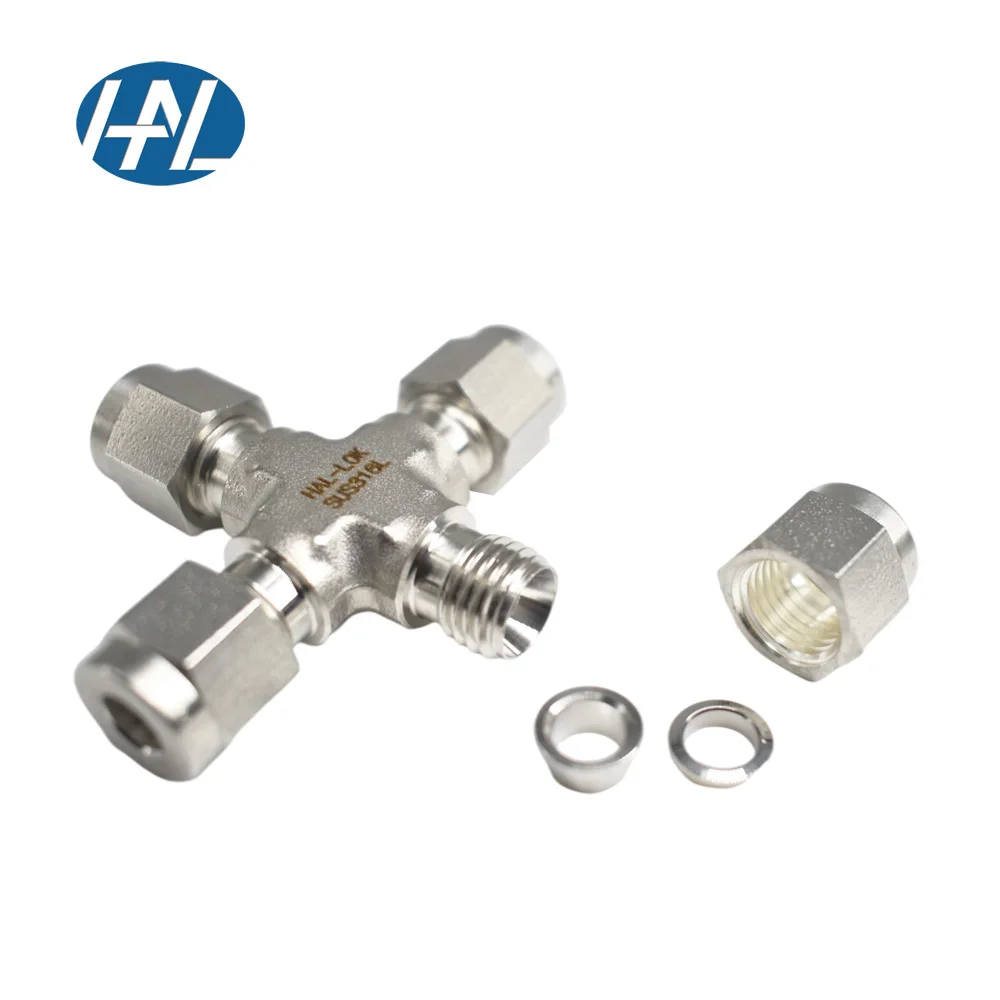

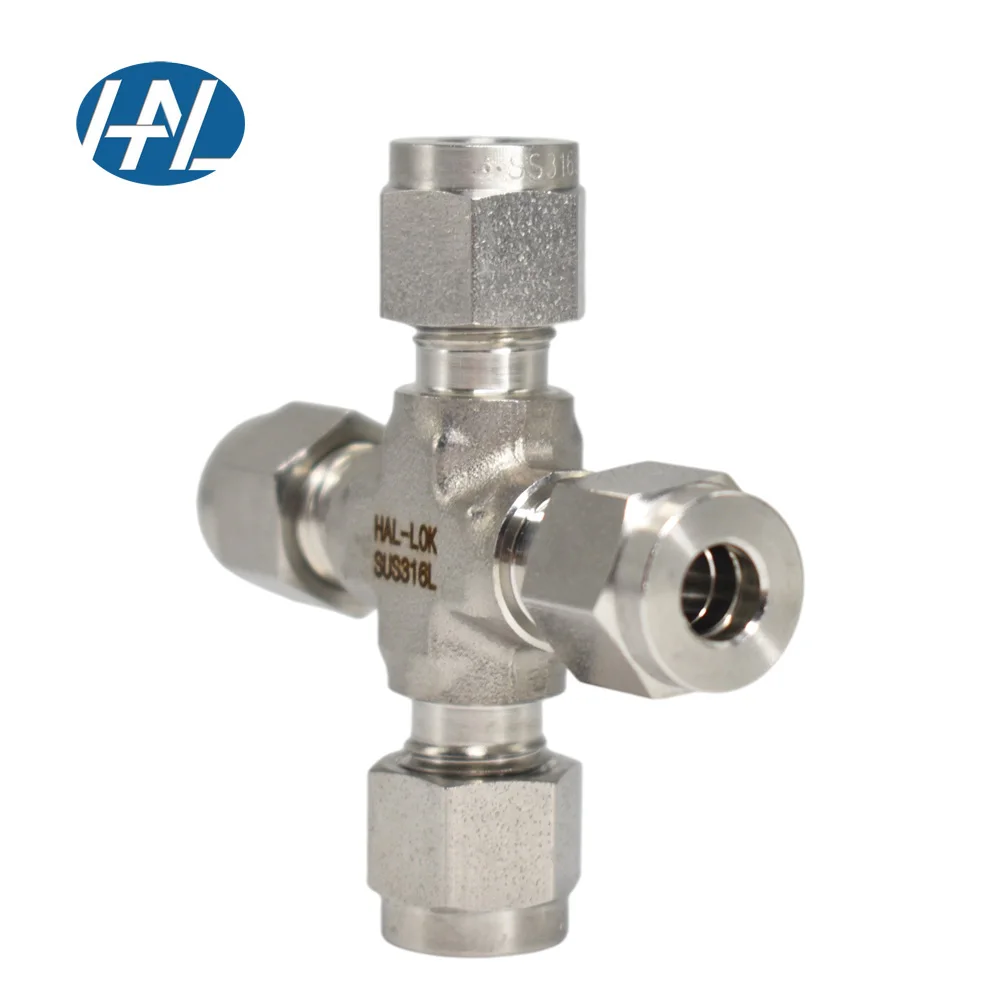

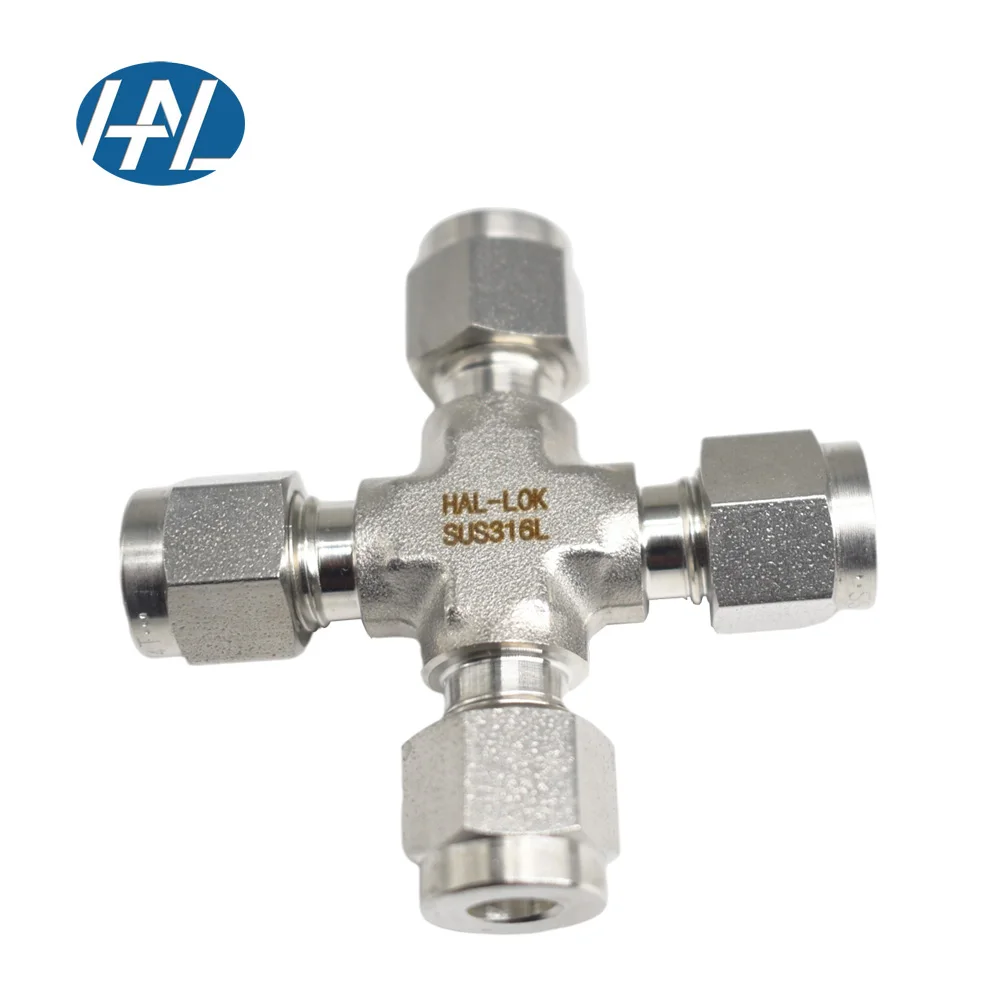

Гигиенические фитинги высокого давления Haoliu SS316L из нержавеющей стали 10 мм четырехсторонний двойной соединительный
- Категория: Pipe Fittings >>>
- Поставщик: Shanghai,Haoliu,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.6 $* | 0.54 $* |
| Aug-19-2025 | 0.21 $* | 0.62 $* |
| Jul-19-2025 | 0.42 $* | 0.39 $* |
| Jun-19-2025 | 0.11 $* | 0.99 $* |
| May-19-2025 | 0.91 $* | 0.16 $* |
| Apr-19-2025 | 0.15 $* | 0.31 $* |
| Mar-19-2025 | 0.11 $* | 0.62 $* |
| Feb-19-2025 | 0.38 $* | 0.41 $* |
| Jan-19-2025 | 0.0 $* | 0.57 $* |
Характеристики
PRODUCT SPECIFICATIONS
brand | Haoliu |
texture of material | 316L |
Specifications | 1/16~1in. 3~25mm |
working temperature | 0~200℃ |
Withstand voltage | 0~25MPa |

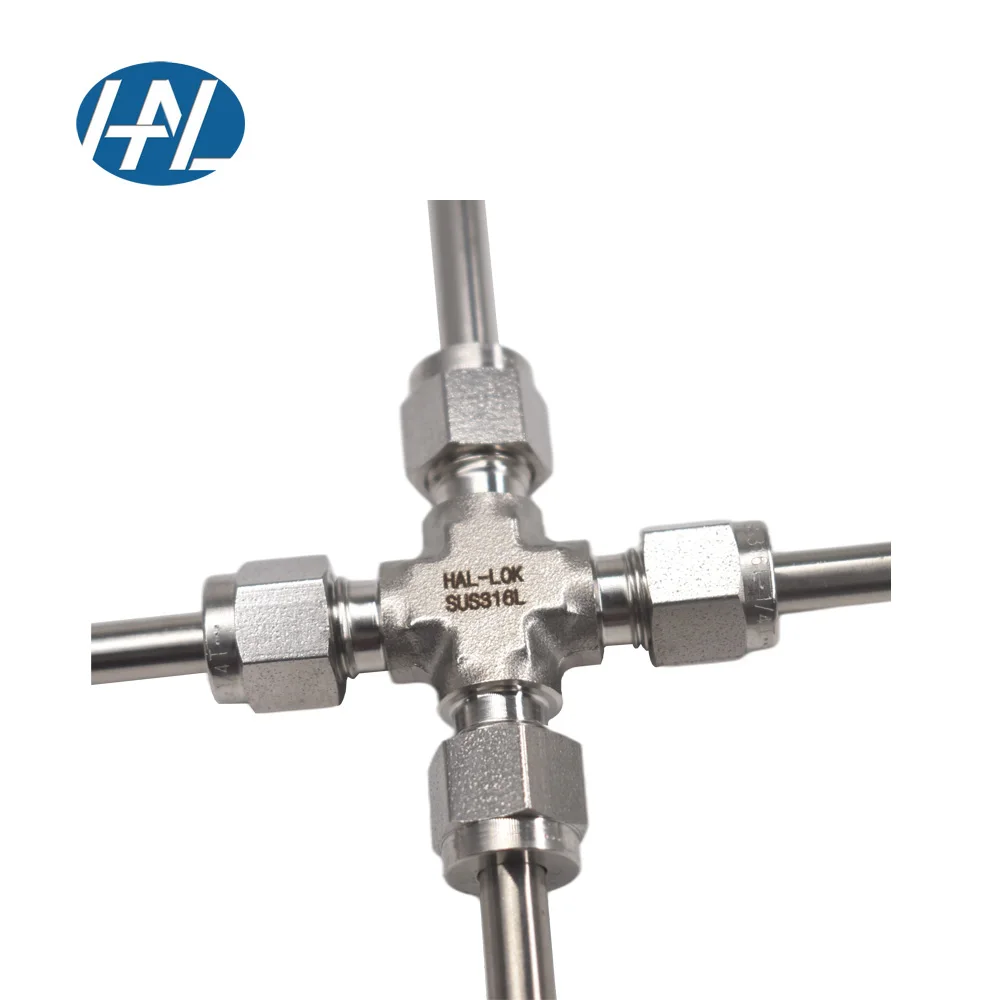

Details Images
Installation Instructions
Installation steps of ferrule:
Operating instructions for sealing connection: applicable to 1 / 4 to 1 in. Or 6 to 25 mm pipe diameter (as shown in Figure 1).
The sealing connection can be easily achieved by following three steps:
1. Put the connector nut in a loose state and insert it into the connecting pipe. Make sure that the connecting pipe is inserted into the bottom of the connector.
2. Pre tighten the nut manually.
3. Fix the connector body with corresponding tools, and tighten the nut with an appropriate wrench for 1 turn. After one full turn, continue to turn 1 / 4 turn.
Operating instructions for sealing connection: applicable to 1 / 8 in. Or 4mm pipe diameter. Follow the above steps. Tighten the nut for 3 / 4 turns from the pre tightening state (as shown in Figure 2),
be careful:
Please use high quality polishing tube. Check that the surface of the connecting part of the steel pipe shall not be scratched, and the pipe orifice shall be smooth and free of burr. Make sure that the steel pipe is inserted into the joint vertically. If bending pipe is needed, make sure that the straight part inserted into the interface is not less than 30mm.
Operating instructions for sealing connection: applicable to 1 / 4 to 1 in. Or 6 to 25 mm pipe diameter (as shown in Figure 1).
The sealing connection can be easily achieved by following three steps:
1. Put the connector nut in a loose state and insert it into the connecting pipe. Make sure that the connecting pipe is inserted into the bottom of the connector.
2. Pre tighten the nut manually.
3. Fix the connector body with corresponding tools, and tighten the nut with an appropriate wrench for 1 turn. After one full turn, continue to turn 1 / 4 turn.
Operating instructions for sealing connection: applicable to 1 / 8 in. Or 4mm pipe diameter. Follow the above steps. Tighten the nut for 3 / 4 turns from the pre tightening state (as shown in Figure 2),
be careful:
Please use high quality polishing tube. Check that the surface of the connecting part of the steel pipe shall not be scratched, and the pipe orifice shall be smooth and free of burr. Make sure that the steel pipe is inserted into the joint vertically. If bending pipe is needed, make sure that the straight part inserted into the interface is not less than 30mm.
Repeat the installation steps
1. Insert the tube with pre installed ferrule into the connector and tighten the nut with fingers
2.Tighten the nut to the last tightening position with a wrench
3. After reaching the position, use a wrench to tighten it slightly(normally, it depends on experience operation, if there is no experience, it can be rotated by 1 / 12 turn each time);
Recommended length of bend
When installing the connector near the bend of tube, enough length of straight tube must be ensured to make thetube contact the locating step of tube connector.
Product packaging
Company Profile
Shanghai haoliu mechanical equipment Co., Ltd.: mainly R & D and production of ferrule joint, ball valve, needle valve, one-way valve, safety valve, stainless steel pressure reducer, seamless steel pipe, gas pipeline engineering installation, etc. The company has a group of high-quality engineering quality technical personnel and management personnel, constantly introduces advanced technical experience, production equipment and testing instruments, and is committed to becoming a leading enterprise in China's machinery industry.
Certifications
Application industry
The products are widely used in petroleum, chemical, shipping, energy, metallurgy, laboratory and other industries.
Petroleum Industry
Chemical industry
Shipbuilding Industry
Energy industry
Metallurgical Industry
laboratory
FAQ
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
5. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
