Заводская цена цветной сортировщик ccd Китай 320 каналов пластиковые хлопья anytype сортировочная машина с высоким зрением
- Категория: Other Plastic Recycling Machines >>>
- Поставщик: Hefei,Longbow,Optoelectronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2120471.43 $* | 2226495.50 $* |
| Aug-17-2025 | 2102651.77 $* | 2207784.52 $* |
| Jul-17-2025 | 1764089.24 $* | 1852293.87 $* |
| Jun-17-2025 | 2067013.26 $* | 2170364.80 $* |
| May-17-2025 | 1799727.20 $* | 1889713.80 $* |
| Apr-17-2025 | 2031375.92 $* | 2132944.86 $* |
| Mar-17-2025 | 2013556.40 $* | 2114234.83 $* |
| Feb-17-2025 | 1995737.80 $* | 2095524.11 $* |
| Jan-17-2025 | 1977918.32 $* | 2076814.45 $* |
Характеристики

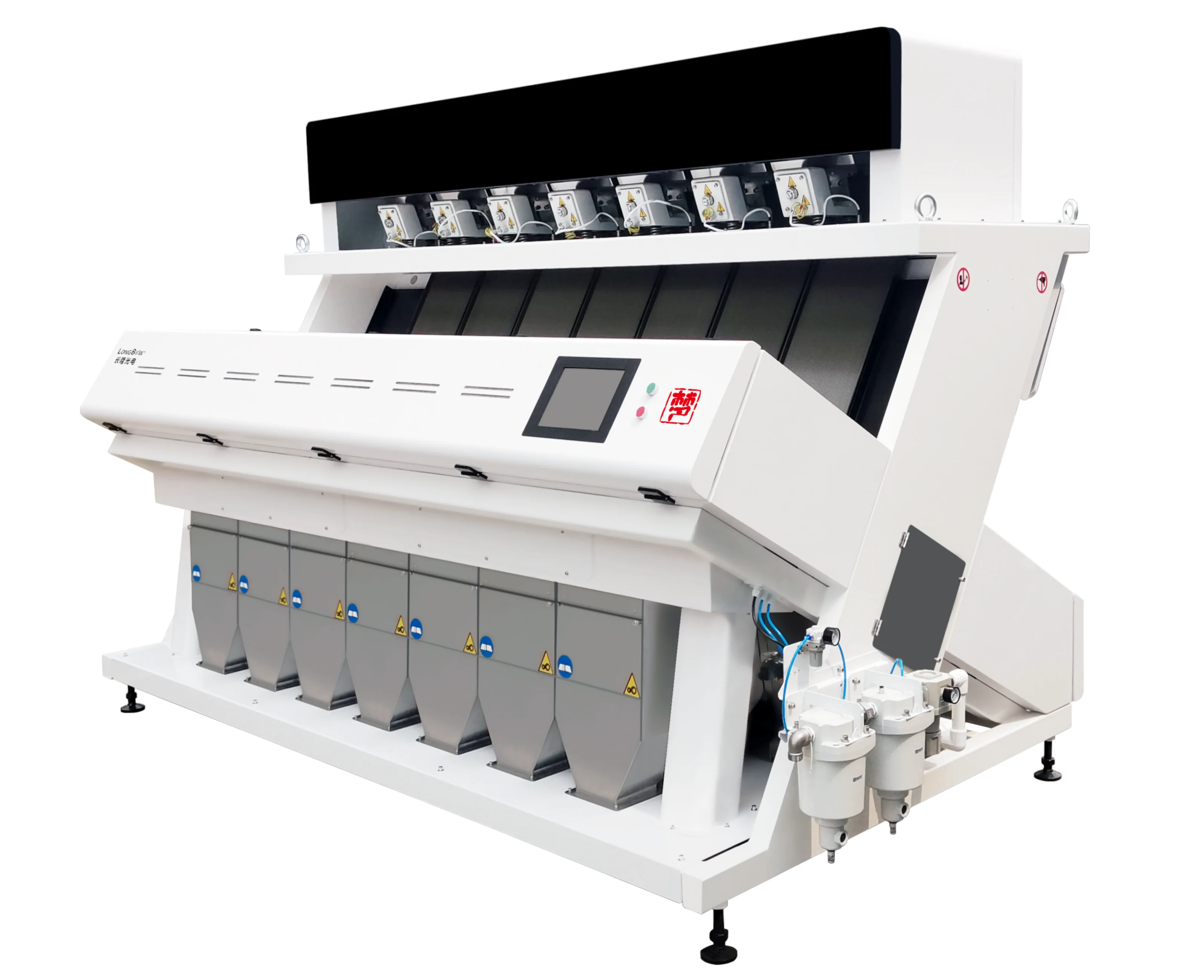

Intelligent AI Color Sorter with CCD for Plastic Color Sorting Machine from Factory 320 channels
ABS plastic:good and bad after sorting
PET plastic:good and bad after sorting
Model name | M64 | M96 | M128 | M192 | M256 | M320 | M448 | M512 | M640 | ||||||||
Output(tph) | 0.1-0.3 | 0.2-0.4 | 0.3-0.5 | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | 0.8-1.0 | 1.0-1.3 | 1.2-1.5 | ||||||||
Power(kw) | 0.9 | 1.0 | 1.2 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 5.0 | ||||||||
Volatge(V/Hz) | 110-380v/50-60Hz | ||||||||||||||||
Air Pressure(Mpa) | >=0.6 | ||||||||||||||||
Channels | 64 | 96 | 128 | 192 | 256 | 320 | 448 | 512 | 640 | ||||||||
Sorting Accuracy | 99.99% | ||||||||||||||||
Net weight(kg) | 270 | 450 | 700 | 1000 | 1050 | 1150 | 1250 | 1350 | 1450 | ||||||||
Oversize(m) | 1*1.5*1.6 | 1.2*1.5*1.6 | 1.5*1.6*2 | 1.8*1.6*2 | 2*1.6*2 | 2.5*1.6*2 | 3*1.6*2 | 3.5*1.6*2 | 4*1.6*2 | ||||||||
Note: | Above parameters based on pet flakes with 3% impurity rate, the real capacity will be effected by the specific material and their impurity rate in fact. | ||||||||||||||||
Machine Parts
Name: CCD camera
Brand: Phoenix
Original: Japan
5340 linear industrial CCD camera with high precision allows high definition identification and high speed sorting.
Main Features
Name: MAC mechanical ejector
Brand: Longbow
Original: Germany
A new type of high frequency valve allows for low consumption of electricity , long life reaction speed, high durability, easy maintenance, and improved color accuracy.
Machine Parts
Name: Control Board with CCD sensor
Brand: Toshiba
Original: Japan
Most advanced ccd technology can sort materials accurately.
Toshiba CCD sensor;
American process chip
Main Features
Name: LED Light source
Brand: Mingwell
Original: Taiwan,China
Ten million kinds of color sorting with a fully adjustable colourspectrum.
Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change the light source.
How to get quotation and the most suitable model recommendation?
Please contact us according to the following questions if you need color sorter prices:
1.What kinds of the material are you planning to sort processing?
Food materials:Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Plastic materials:Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
2.How about the capacity(output) to sort processing for the raw materials per hour, 200KGS, 500KGS, 1000KGS, 2000KGS or others?
3.Show us the raw material size range and impurity rate to estimate the appr. capacity. 3 pictures of raw material;Acceptable material and Rejected material picture.
All components went through strict quality certification. All world-renowned brands as our cooperation partners, including but notlimited to the above showing.
A lifetime free software upgrade for your equipment and the free design of accessories such as brackets for different
applications.
Packaging | ||
Size | 1050(L) * 1656 (W) * 1789 (D)mm | |
Weight | 350Kgs | |
Packaging Details | The normal package is wooden box(Size: L*W*H) no need fumigate. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing for free support.
* View our Factory.
After-Sales Service
* Video indication about machine installment and operation;
*Training how to instal the machine, training how to use the machine for free.
* Engineers available to service machinery overseas.
*7*24 online service hot-line.
*Life-long service for net cost spare parts.
About Us:
Hefei Longbow Optoelectronic Technology Co., Ltd is a high & new technology enterprise which is professionally engaged in research and manufacture of intelligent color (identifying) sorting equipment for many years.
Our history:
2002-Devoted ourselves into the R&D also production of the 1st generation color sorter in China.
2005-Developed color sorter machine control system based on DSP chip,and applied the Fuzzy Control Theory to color sorting industrial,then first-generation CMOS color sorter with DSP chip.
2011-Work with the most advanced color sorter supplier in the world. Participated ourselves into R&D,producing,selling and management.Mastered core technology of the most advanced color sorter in the world.
2014-Set up Hefei Longbow Optoelectronic Technology Co.,Ltd in Hefei, China, and registered the "LONGBOW" trademark.
2015- Launched Longbow US series rice color sorter.
2016- Launched Longbow CS series multi-functional color sorter.
2017-Launched Longbow CCS series multi-functional color sorter with 5000+ pixel CCD camera and higher frequency ejectors.
2018-Launched Longbow CR series rice color sorter.
We manufacture vertical sorting machine also belt-type sorters for different size agricultural and industrial products, such as rice,bean,seeds,corn,wheat,paddy, plastic and glass etc.
With many years experience in CCD color sorting technology,more than 5000 sq.m workshop,our 120 works are here aiming at supplying the more competitive identificating machine and much more better after-sale service.
Summer- International sales
Company name:Hefei Longbow Optoelectronic Technology Co.,Ltd
Add:Cross of Fenglin Rd and Jinrong Rd., Shuangfeng Development Zone,231131, Hefei, Anhui,China
T/F: +86-63807035 / 66509985
Cell phone &Whatsapp & wechat: +8615205651655/18655954627
Email: summer at forsort.com ;
www.forsort.com
