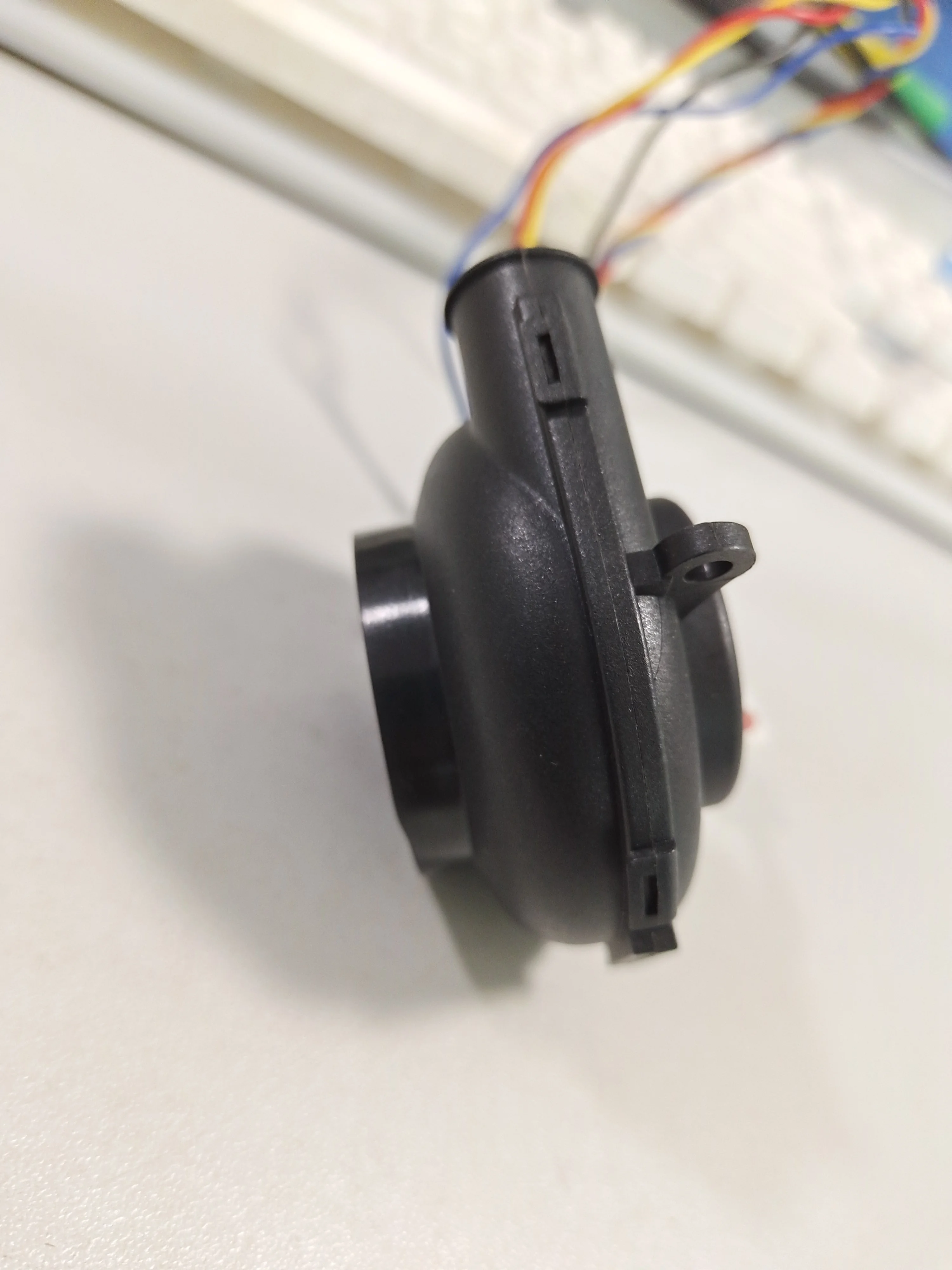

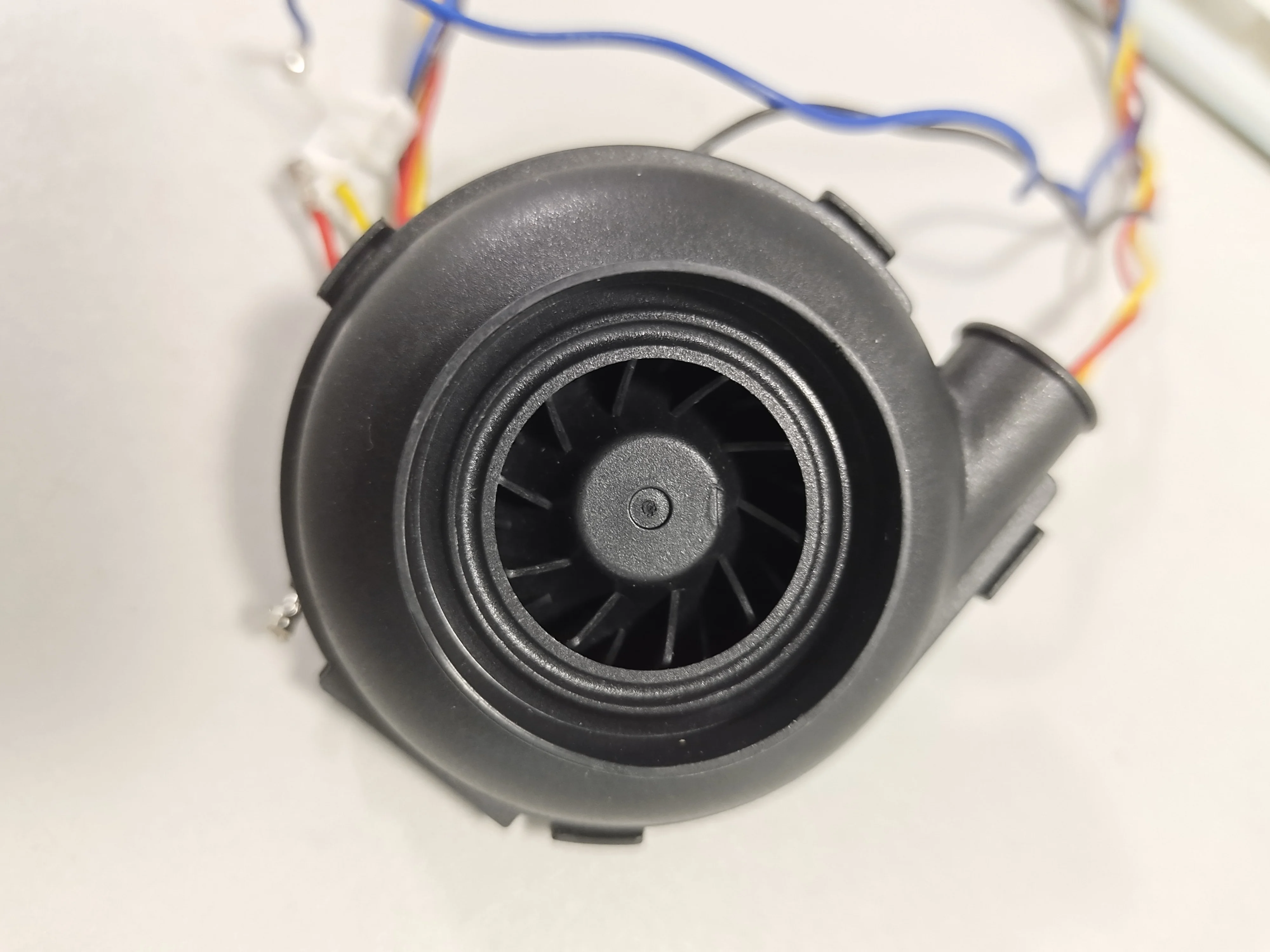

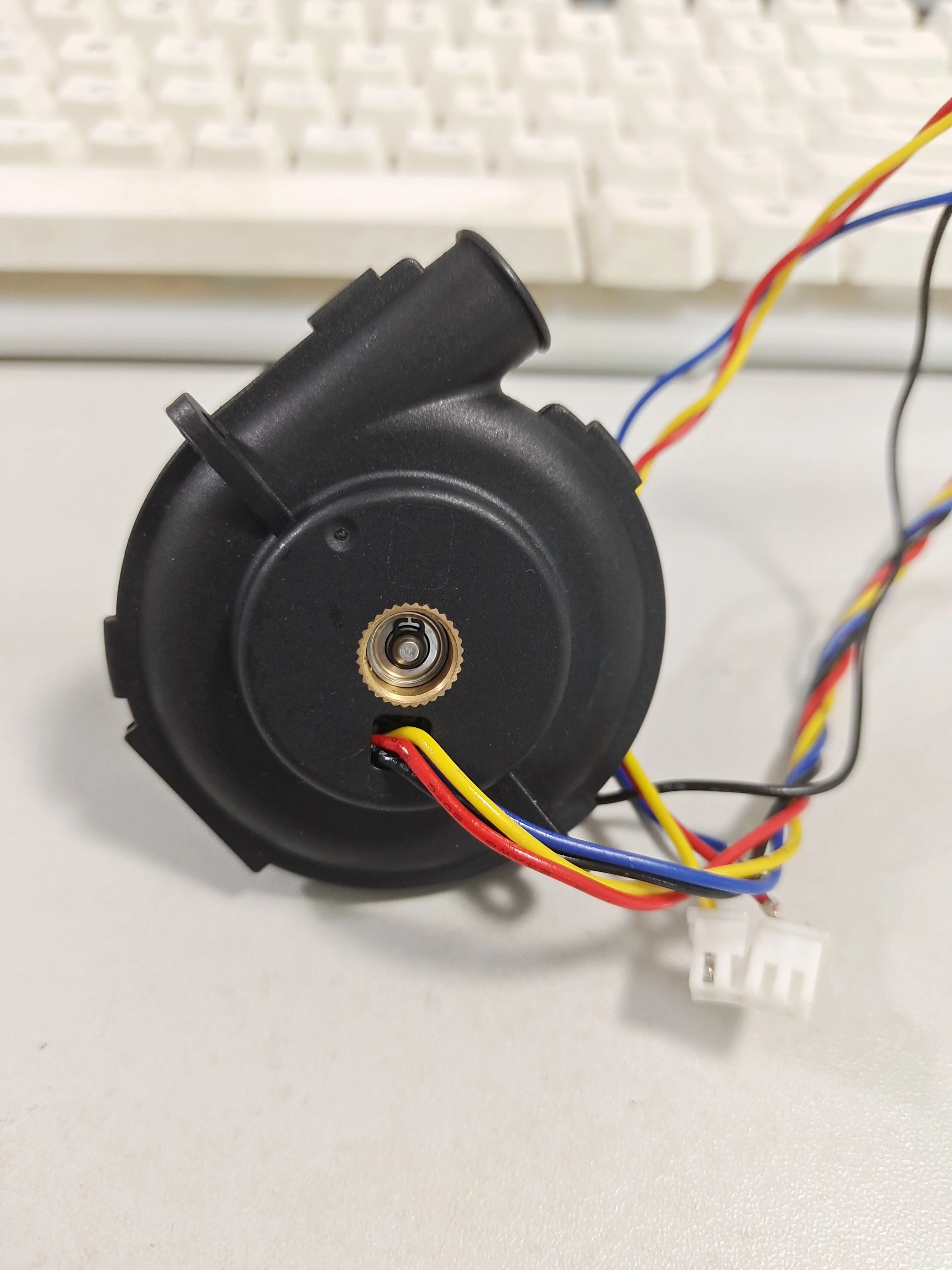

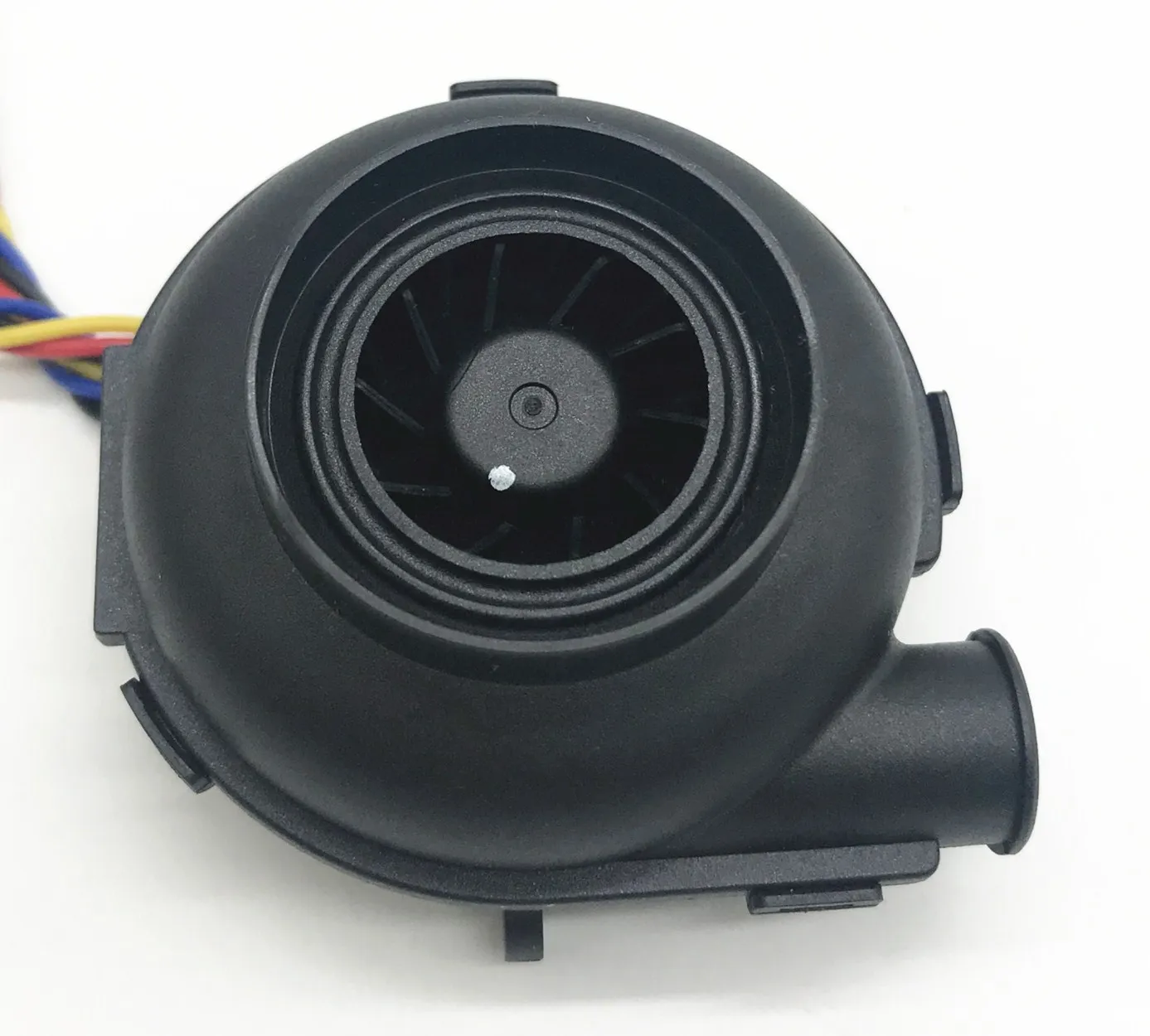

65x34mm центробежный вентилятор 12V/24V 28000rpm высокого
- Категория: Blower >>>
- Поставщик: Shenzhen,Topfan,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 11.21 $* | 11.42 $* |
| Jul-17-2025 | 9.39 $* | 9.89 $* |
| Jun-17-2025 | 11.18 $* | 11.2 $* |
| May-17-2025 | 11.1 $* | 11.61 $* |
| Apr-17-2025 | 9.24 $* | 9.22 $* |
| Mar-17-2025 | 11.54 $* | 11.95 $* |
| Feb-17-2025 | 11.9 $* | 11.54 $* |
| Jan-17-2025 | 11.41 $* | 11.56 $* |
Характеристики
65x34mm Centrifugal Blowe Fan 12V/24V 28000rpm High Pressure Blower Fans
PRODUCT SPECIFICATION
ITEM | Specification Condition | |||
01 | Part No. | MX6534GBU1 | ||
02 | Dimension | 65×34mm | ||
03 | Rated Voltage | 12VDC | ||
04 | Start-up Voltage | 9VDC | ||
05 | Operating Voltage | 9.0~14.0VDC | a. Rated Voltage | |
06 | Rated Speed | 28000rpm | ±10% | b. 25℃ |
07 | Rated Current | 2.15A | ±10% | c. 65% RH |
08 | Rated Power | 25.8W | d. Measured after 5 Mins | |
| Max Airflow | 13.8 | CFM | a. PQ Measurement Apparatus : (LW9266-SR) b. Standard : AMCA c. Rated Voltage d. Rated Current
| |
0.391 | m3/min | |||
10 | Max Static Pressure | 4600±10% | ||
11 | Life Expectancy | 15000hrs at 30℃ | a.L10 at Conf. Level 90% b.Rated Voltage | |
12 | Noise Level | 66.5dB | a.Rated Voltage b.Non-Echo Chamber c.Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e.Distance: 1.0M | |
13 | No. of Pole | 4Poles | ||
14 | Rotating Direction | Counte From Label side) | ||
15 |
|
| ||
Electrical Specification
ITEM | Specification. Condition | ||
01
|
Locked Rotor Protection |
| Safety Condition |
| Auto power off after locked at rated voltage for 1sec After auto power off ,circuit attempt restart in 2 to 6sec | ||
02 |
Polarity Protection |
|
Open circuit when Vcc&GND are exchanged |
| Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged | ||
03 |
Insulation Resistance |
10MΩ Between unshielded wire and frame at 500VDC/min | |
04 |
Dielectric Strength |
5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min | |
05 |
Special Function |
| |
Note:
1. We will not guarantee the products if your application exceeds the limitations outlined in this specification.
2. Please do not touch and push fan blade with fingers or others. Fan blade and ball bearings may be damaged. And it caused noise defect.
3. Please avoid operating TOPFAN's products in poisonous material(organic, cyanogens, formalin, phenol, etc.)or corrosive gas environment(H2S, SO2, NO2,etc.)
4. We do not warrant performance safety against accidents caused by dust, water, droplets dew, bugs, etc.
5. Always ensure that fans are stored according to the storage temperatures specified. Do not store in a high humidity environment. If the fans are stored for more than 6 months, we recommend functional testing before using.
6. Please do not damage this product this product including coil and lead wires while installing or wiring. There may be smoking or fire.
7. Avoid the damage, check the correct voltage and proper polarity before connecting with power.
8. Improper mounting may cause harsh resonance, vibration, and noise. Please mount securely.
9. It is very important to notify that avoid to drop from 60cm height when in any movement or operation, it will impact the balance of blade. Especially ball bearing structure is avoided to drop down.
10. Safety is a top priority. Please furnish guard accessories to prevent injury to personnel
