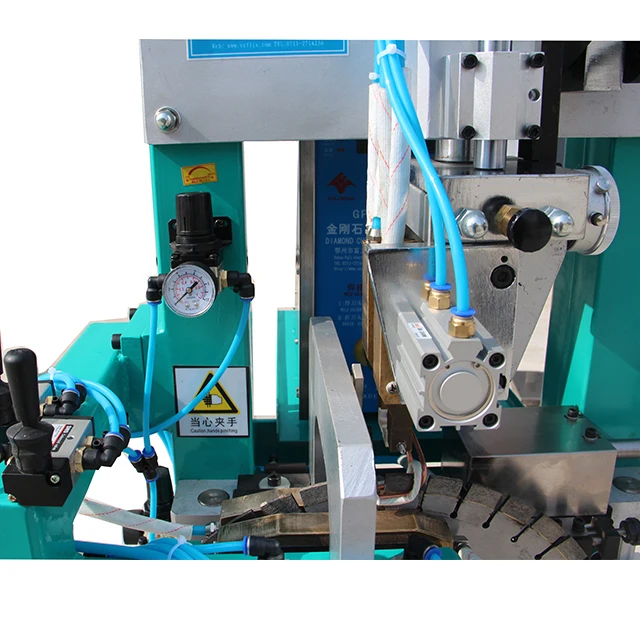

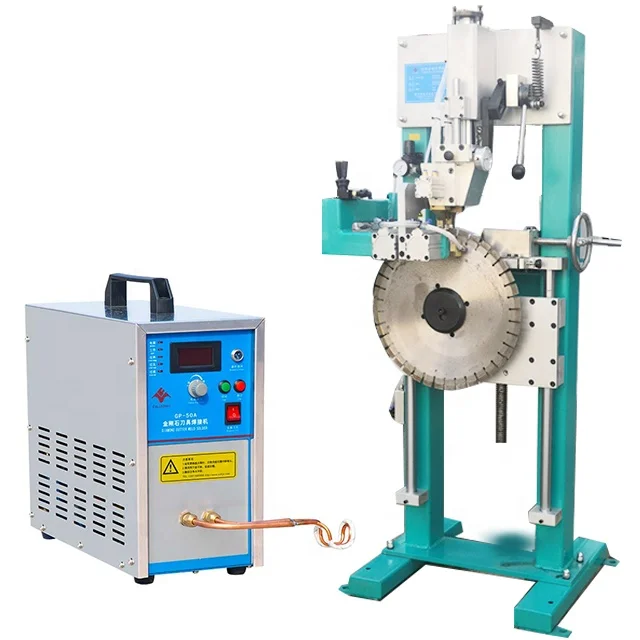

Semi Automatic copper Induction Brazing Machine for Saw Blade Diamond Segment Welding Machine

Features:

1.    Segment and saw disc automatic centering

2.    Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running

3.    Adjustable for R/F segments, L/T segments, brazing time, cooling time, brazing tooth number, skip brazing according to actual demand.

4.    Manual feeding solder, brushing flux, automatic centering,at the last segment, it will feed solder two times to ensure the end teeth brazing strength

5.    Easy to operate and maintaince

      6 .  Applicate for brazing segments for stone cutting saw blade

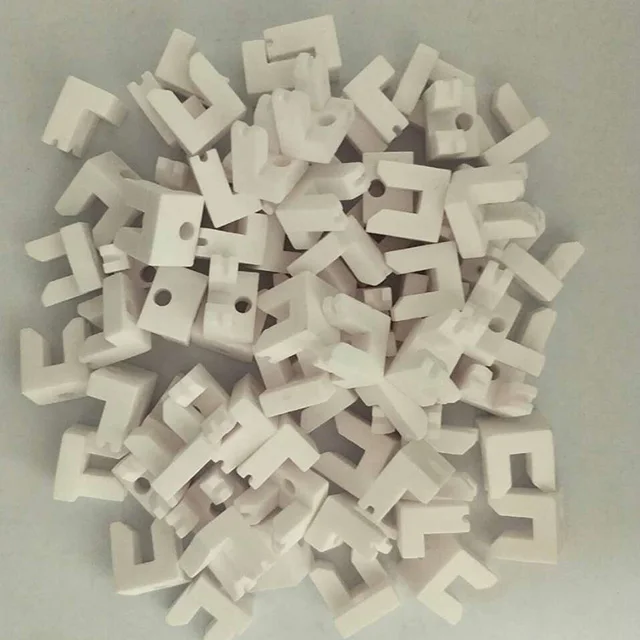

Comsumption Parts Ceramic Holders

Induction Brazing Welding Machine   functions:
1)Digital plc auto-control, it has the function of manual, semi-auto,full-auto, heating-keeping-cooling device period to control.
2) perfect function of protect itself. such as, over-voltage, over-current,lack of water, phase fail,etc.
3)auto frequency tracking, the power can be adjusted to maximum.
4)Special cycle cooling system, make sure the machine work continuously.
5)machine small volume, light weight, easy to remove,it has no high voltage, make operation more safety.

After-sale service:

·    12 months warranty period

·    Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.

·    If any big quality problems occurs during the guarantee period, we will send maintenance

·    technician to provide visiting service after checking with the customer and charge for a favorable price.

.   We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.

. The above mentioned are only basic aftersale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

Parameters:

Model	FL-HJ-1200mm		Welding Rate	3-9s/pcs
Welding Range	Φ300mm-φ1200mm		Air Pressure	0.3-0.6Mpa
Verticality	less than ±0.3mm		Water Pressure	≥0.2mpa  flow 2-5L/min
Parallelism	less than ±0.3mm		Voltage	220v ,50Hz
Size	L1500*W850*H750MM		Net Weight	165kg

Other size of brazing application range upon to customers to be customized .
