12 дюймов 10000 ватт 260 70H V4 бесщеточный DC Электрический скутер мотор эпицентра
- Категория: Electric Bicycle Part >>>
- Поставщик: Taizhou,Tongshuo,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 895.75 $* | 940.85 $* |
| Aug-18-2025 | 887.5 $* | 931.84 $* |
| Jul-18-2025 | 744.73 $* | 781.46 $* |
| Jun-18-2025 | 872.67 $* | 916.87 $* |
| May-18-2025 | 760.45 $* | 798.92 $* |
| Apr-18-2025 | 857.76 $* | 900.54 $* |
| Mar-18-2025 | 850.66 $* | 893.24 $* |
| Feb-18-2025 | 842.4 $* | 884.59 $* |
| Jan-18-2025 | 835.29 $* | 877.69 $* |
Характеристики
Products Description
12inch 10000 Watt 260 70H V4 Brushless DC Electric Scooter Motorcycle Hub Motor |
QS Motor Specification
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle with 12inch moped rim (integrated)
Rim size: 12x3.5inch
P.S: For width tire 12*5.0inch, it will costs additional $15.0/PCS.
Magnet Height: 70mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 10000W
Speed: 30KPH-150KPH, it's customized, genearlly we will design as 72V120KPH.
Work voltage range: 48V-96V, will be 72V as default.
Max Torque approx 350N.m
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle with 12inch moped rim (integrated)
Rim size: 12x3.5inch
P.S: For width tire 12*5.0inch, it will costs additional $15.0/PCS.
Magnet Height: 70mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 10000W
Speed: 30KPH-150KPH, it's customized, genearlly we will design as 72V120KPH.
Work voltage range: 48V-96V, will be 72V as default.
Max Torque approx 350N.m
KV: Depends on customer's top speed requirement(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 230mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
25mm² Phase Wire
Waterproof Grade: IP54
Color: Black (as default), Yellow or White/Luminous
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.

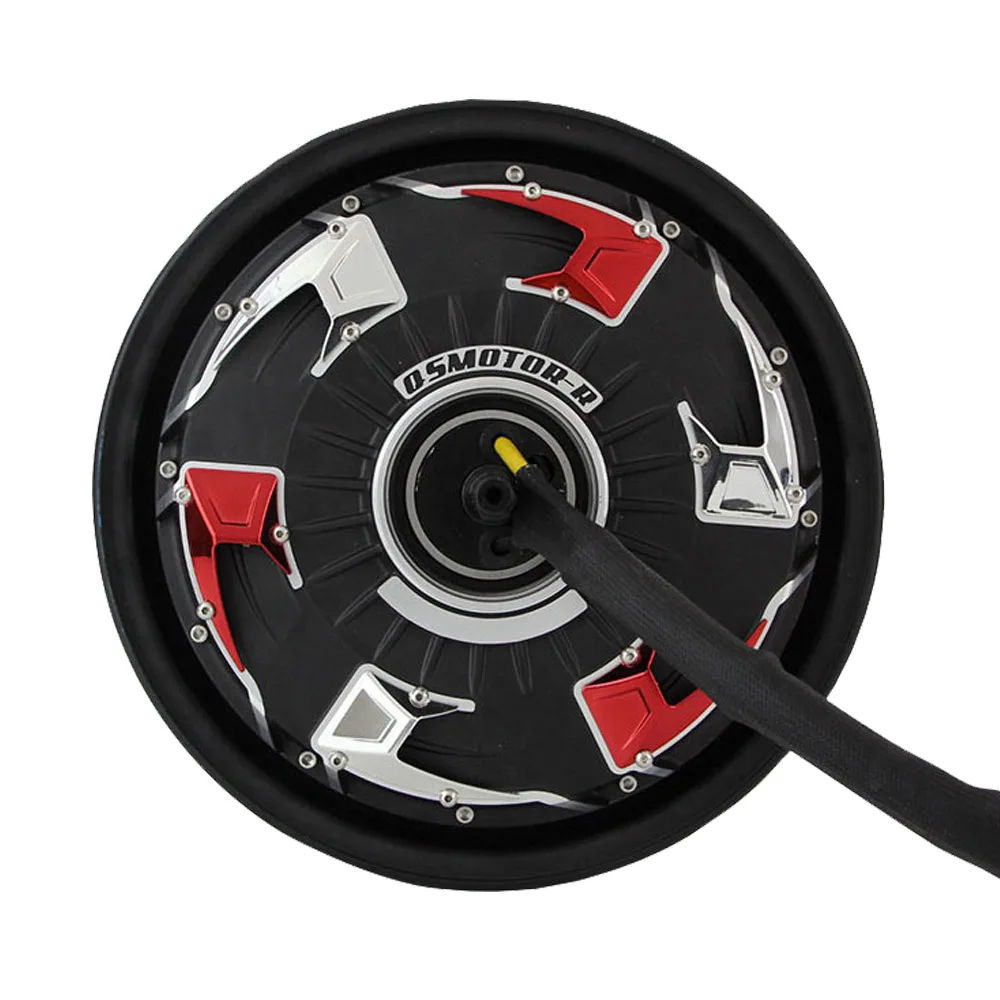

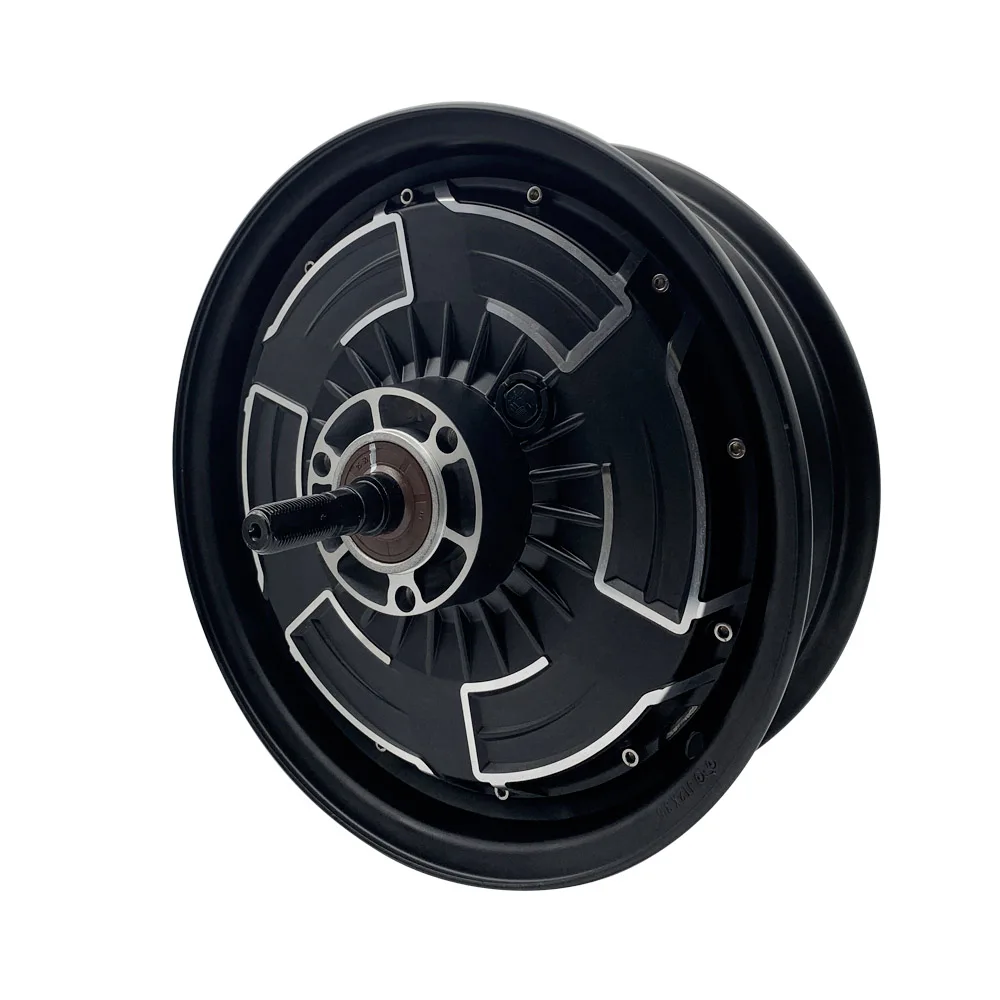

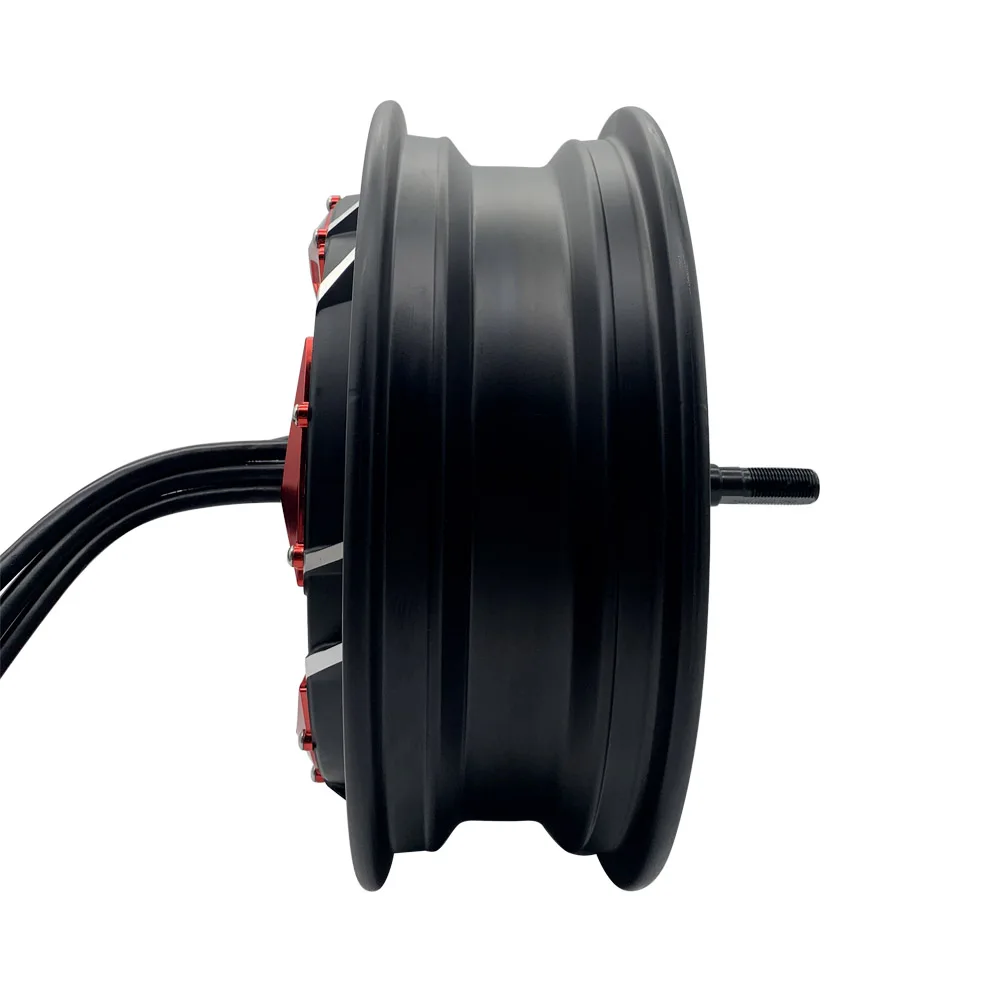

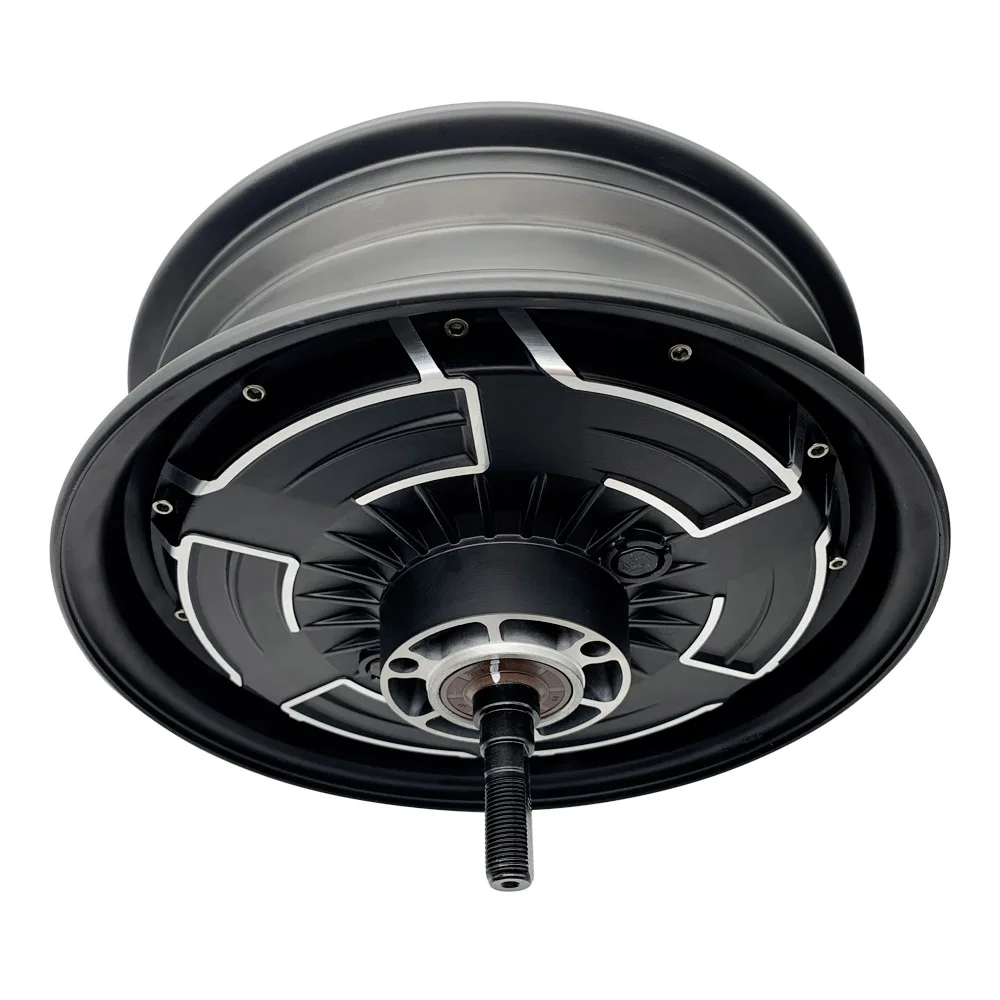

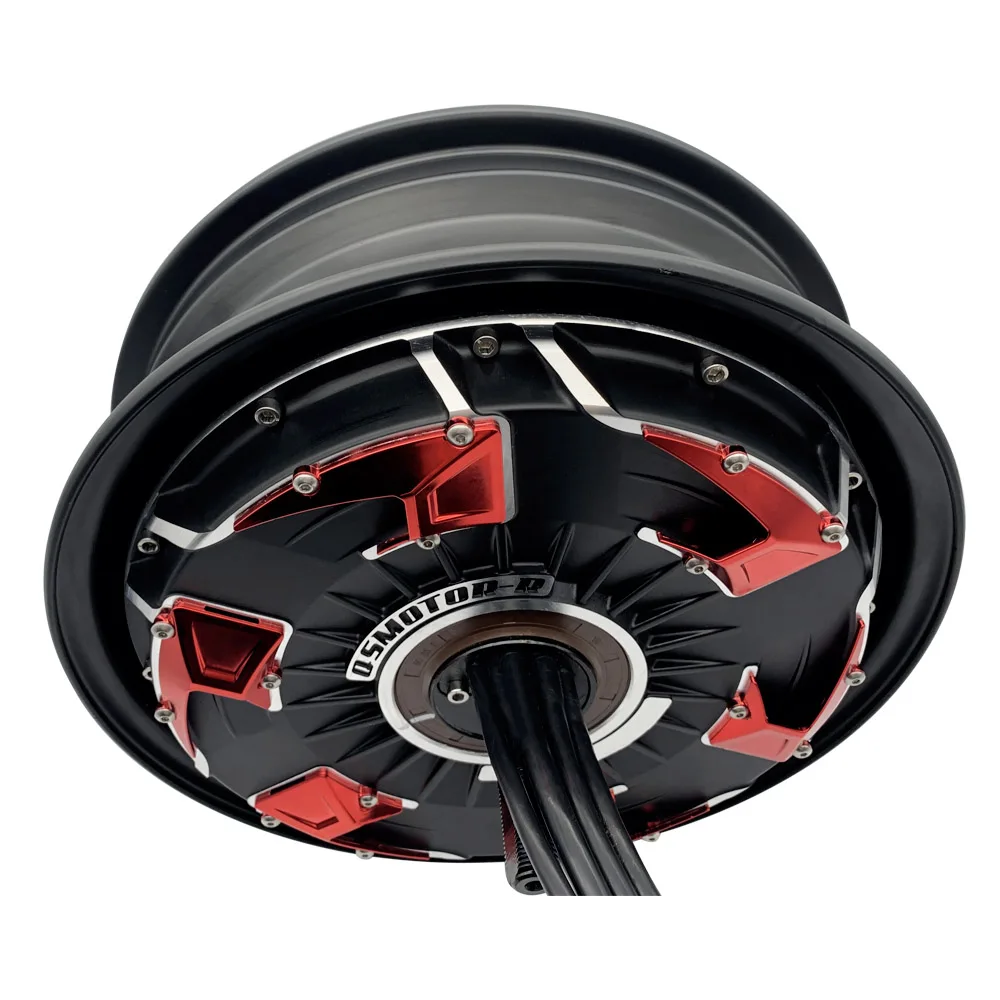

1.Pictures Show
Size 12*3.5inch
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 230mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
25mm² Phase Wire
Waterproof Grade: IP54
Color: Black (as default), Yellow or White/Luminous
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
1.Pictures Show
Size 12*3.5inch
2.Drawing
3.QS Motor 12inch 260 E-Scooter Hub Motor Price List
Note for 12X5.0inch 260 detachable wheel Motor(Electroplating design): Normal 12inch 260 Motor+ USD: 15.0/PCS.
Only electroplating wheel rim (not side cover).
Only electroplating wheel rim (not side cover).
4. How to find suitable hub motor
Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
5.Conversion kits for 12inch in-wheel hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Difference V3 and V4
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Difference V3 and V4
