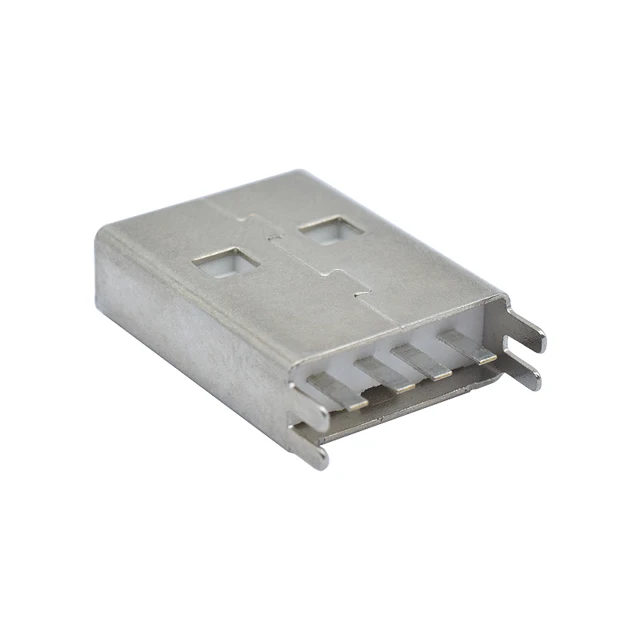

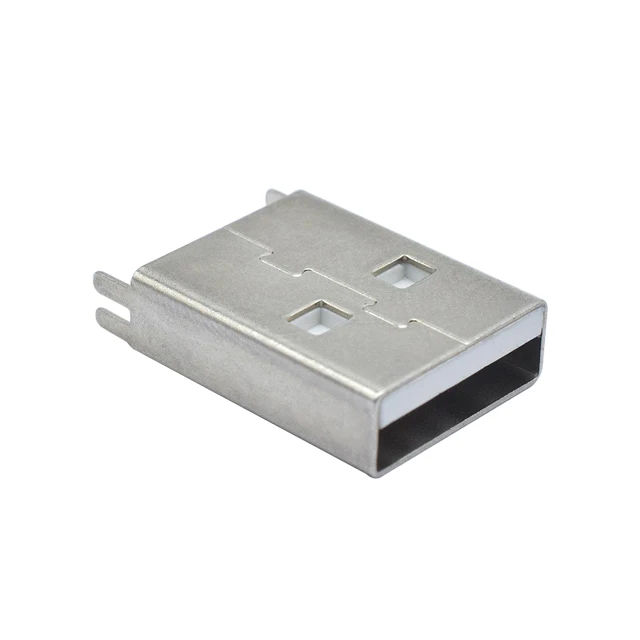

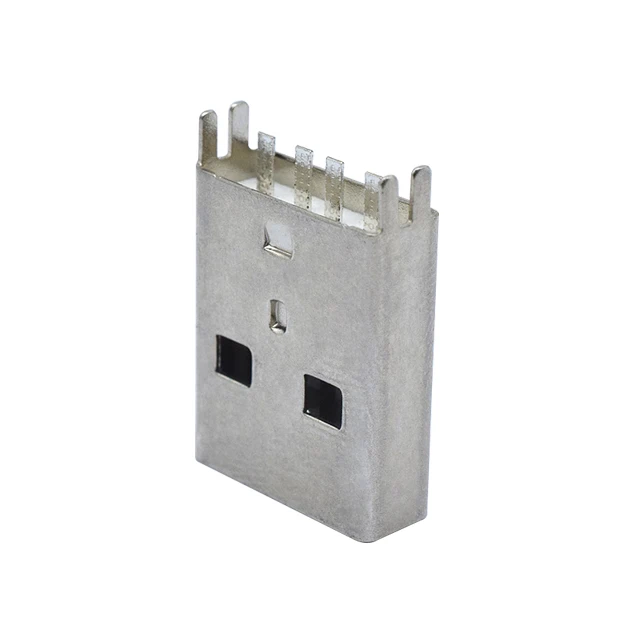

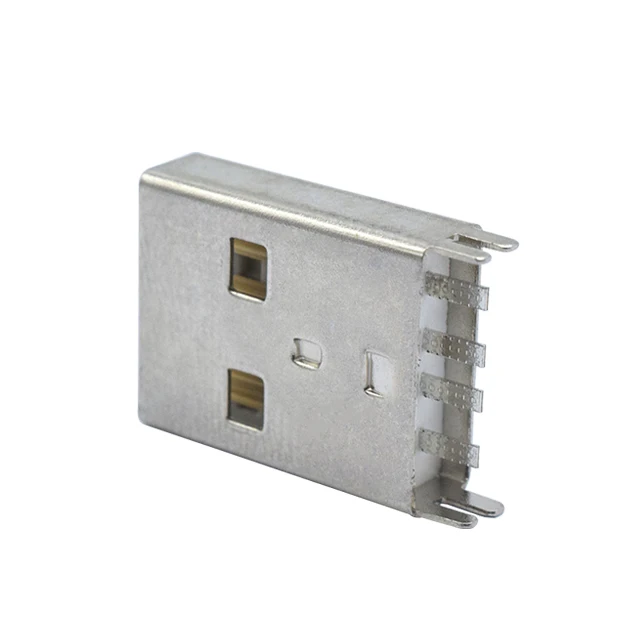

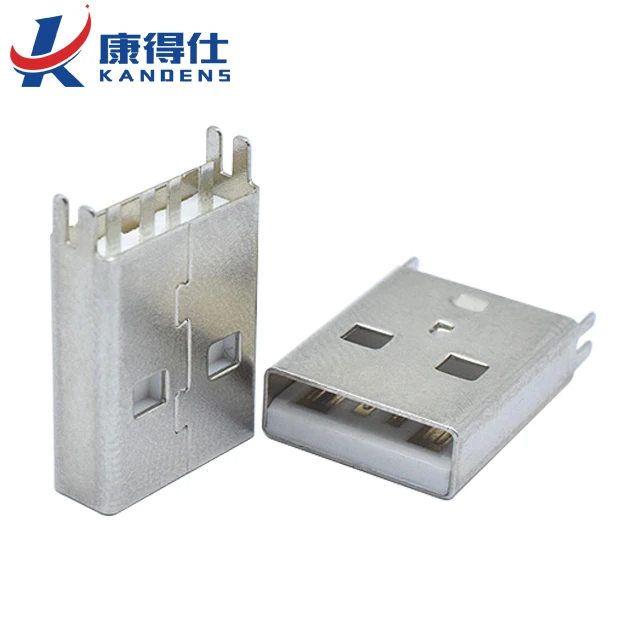

USB 2.0 AM Socket Short Circuit Between 4pin Short Body 15.0mm Solder Wire And Iron Case Usb 2.0 A Male Splint Connector



Also known as USB standard A connector, the USB A connector is primarily be used on host controllers in computers and hubs. USB-A socket is designed to provide a "downstream" connection intended for host controllers and hubs, rarely implemented as an "upstream" connector on a peripheral device. This is because USB host will supply a 5V DC power on the VBUS pin. As such, it is important to remember while purchasing USB cables it is safest to make sure at least one of the plugs is a USB A.



• Small footprint Stainless steel shell


• Lead-in feature on receptacle housing


• Simple edge-contact beam geometry of connector shell


• Overmold process used for receptacles


• Passive latching window with angular tabs on receptacle shell (meets USB 2.0 specification requirements)


• Rear shield of stainless steel shell in standard mount parts


• Pick and place area on connector shell



Connector Type	usb a male connector	Operating temperature	-20°c to + 85°c
Type	Solder Type	Contact	Copper with golden plated
Gender of Connector	4Pin solder Male	Shielding	iron shell
Contact Resistance	30mΩ Max	Voltage Rating	30V DC
Insulation Resistance	1000MΩ MIN	Insertion Force	3.57Kgf MAX.
Rated current	2-2.5A	Durability	5000-10000 cycles

Q: Where Can we get the datasheets of the usb male connectors?
A: Each usb connectors has the specification, Please contact with our sales if you need.

Q: Can we get the usb connectors samples before placing the order?
A: Yes. we can send you some free samples for your test before your order.

Q: How long is the lead time?
A: Normally we keep stock for most usb connectors, the lead time is 5~7 days as soon as the payment is released.
For customized products, it takes longer.

Q: How about the after-sale service?
A:We offer 12 months for every products we sold.

If you meet any problems after sales, Pls contact us freely,we'll help solving the problems within 24 hours.

Q:  What's the payment terms?
A: Normally we accept TT and Paypal. L/C is also accepted if the order quantity is large.

Q: How about your quality control?
A: All the usb connectors will be 100% checked before the shipment.

Q: Does your company accept small order of usb connector?
A: Yes, we accept small trial order.

Q: Do you support customization?
A: We support the OEM&ODM service.
