Песок делая стиральные машины кварцевый песок завод по переработке глины морская установка промывки
- Категория: Sand Washer >>>
- Поставщик: Ganzhou,Gelin,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 8092.11 $* | 8497.70 $* |
| Aug-19-2025 | 8024.64 $* | 8425.77 $* |
| Jul-19-2025 | 6732.57 $* | 7069.27 $* |
| Jun-19-2025 | 7888.37 $* | 8282.25 $* |
| May-19-2025 | 6868.11 $* | 7211.15 $* |
| Apr-19-2025 | 7752.12 $* | 8140.25 $* |
| Mar-19-2025 | 7684.43 $* | 8068.29 $* |
| Feb-19-2025 | 7616.13 $* | 7997.82 $* |
| Jan-19-2025 | 7548.54 $* | 7925.47 $* |
Характеристики
Sand Making Washing Machinery Quartz Sand Processing Plant Clay Sea Sand Washing Machinery
1.How to washing and sorting alluvial silica sand ?
2.How to extract and produce sand from rock ?
Gelin help you out with below fantastic sand production and washing machines /plant. this is also workable for other sands washing and classification.
Sand Washing Plant
Process steps:
1. The processed material first enters the hopper and goes to drum sand screen machine, and get various materials with different particle sizes after screening in the drum device;
2. The qualified materials in the drum are output directly through the conveyor belt, and the materials under the screen enter bucket sand washer for washing and esliming.
3. Finally get clean fine sands afer using Dewatering screen.
3. Finally get clean fine sands afer using Dewatering screen.
Main Machines Involved:
1.drum sand screen machine are used to removing comparatively larger sand particles and other unnecessary
impurities present in the sand which is excavated from the river banks and then conveying the fine sand. it is made of below mian parts:
* Hopper is used as an inlet for raw materials.
* Screen machine for screening the sand with aggregates, having size according to the requirement
* Conveyor is to transport the find sand to sand bin.
* Screen machine for screening the sand with aggregates, having size according to the requirement
* Conveyor is to transport the find sand to sand bin.
It also can be trommel screen machine or rotary scrubber machine (check related products)
Features
1. Strong screening ability and high sand rate: high moisture sand can be screened normally and fast screen speed with 30-120m³/h,the sand rate is up to 100%;
2. Easy to use and effortless: equipped with Electric box remote control makes easy to operation, it's flexible movement and convenient operation, and is suitable for various construction sites;
3. High quality and wide range of application:It is suitable for large and small construction sites, coal yards, grain, artillery factories, casting, flower nurseries, medicinal construction mortars, etc.
Specification | ||||||
Model | GelinSC-20 | GelinSC-30 | GelinSC-50 | |||
Feeding Hopper Length&Width (mm) | 2200*1100 | 3200*1450 | 3800*1650 | |||
Drum Length&Width (mm) | 1500*600 | 3000*800 | 3500*1000 | |||
Screen Mesh Size (mm) | 1mm or as required | 1mm or as required | 1mm or as required | |||
Belt Conveyor Size(mm) | 4000*500 | 8000*800 | 9000*1000 | |||
Height Between Sand Outlet And Ground (mm) | 2300 | 2800 | 3500 | |||
Motor (kw) | 4+2.2+0.75 | 7.5+4+0.75 | 11+4+0.75 | |||
Dimension Width and Length(mm) | 4200*1100*2300 | 8000*1650*2800 | 9100*1950*3500 | |||
Handling capacity(m³/h) | 30-40 | 60-80 | 100-120 | |||
2.Bucket sand washing machine is also called a sand washer. It is a washing equipment for sandstone (artificial sand, natural sand), which is mainly used for removing impurities covering the surface of the sand and destroy the water vapor layer of the coated sandto facilitate dehydration and play a role in efficient sand washing.
1.The structure of the machine is simple, and the impeller drive bearing device is separated from the water and the
water-receiving material to greatly avoid the phenomenon that the bearing is damaged by water immersion, sand and pollutants.
water-receiving material to greatly avoid the phenomenon that the bearing is damaged by water immersion, sand and pollutants.
2.The sand washing machine has obvious advantages compared with the traditional spiral sand washing machine when used for sand washing in the gravel field as follows:
2.1.The loss of medium fine sand and stone powder is very small, and the sand grading and fineness modulus of the washed building reaches the national standard of "building sand" and "pebble for construction".
2.2.The machine has almost no wearing parts except the screen.
3.Long service life and no need for maintenance in the long run.
Specification | ||||||||||||||
Model | XSD1500-2 | XSD2000-2 | XSD2200-2 | XSD2600-2 | XSD2800-2 | XSD3000-2 | XSD3200-2 | |||||||
Dia of wheel bucket(mm) | 1500 | 2000 | 2200 | 2600 | 2800 | 3000 | 3200 | |||||||
Rotation speed(r/min) | 2-5 | 2-4 | 2-4 | 2-3 | 2-3 | 2-3 | 2-2.5 | |||||||
Handling capacity(t/h) | 5-10 | 10-20 | 15-30 | 20-40 | 40-70 | 40-90 | 80-120 | |||||||
Motor(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | |||||||
Dimension (mm*mm*mm) | 2500×1500X1780 | 2900×1800×2080 | 3150×1910×2280 | 3520×2390×2690 | 3820×2640×3200 | 4000×2700×3600 | 4300×2800×3700 | |||||||
Weight(T) | 1900 | 2900 | 3300 | 3500 | 3600 | 4300 | 4800 | |||||||

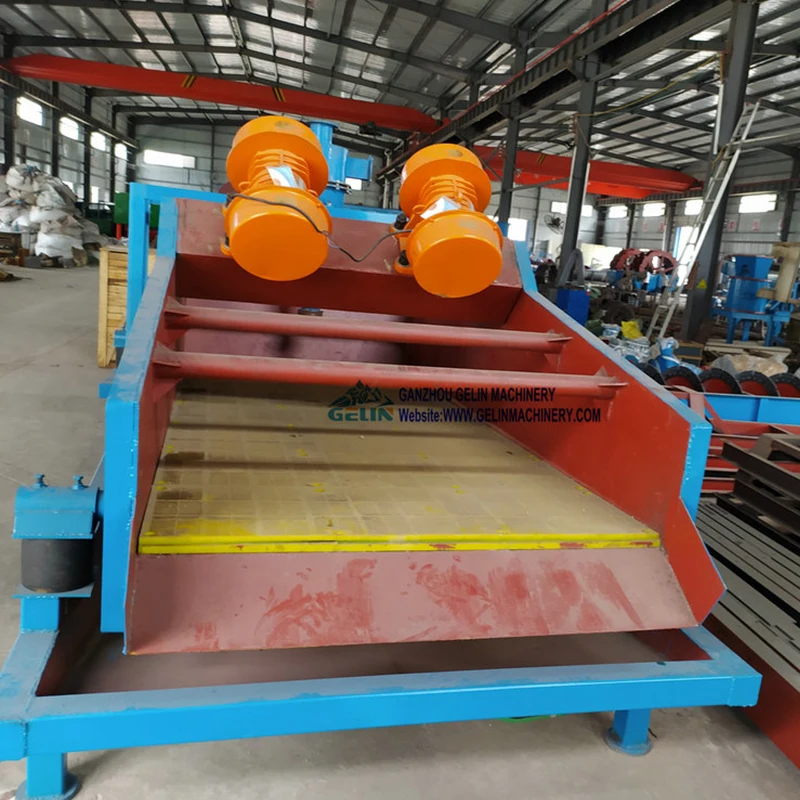

3.Dewatering Screen is a slime separation dewatering screen used for fine coal,sand dehydration in coal preparation plants of the coal industry. it can be used in coal preparation, mineral processing, power generation, sugar, salt and other industrial departments for dry-wet screening, dewatering, desliming and desliming of medium and fine-grained materials..
1.The utility model has the advantages of low noise and convenient maintenance.
2.Reasonable structure, sturdy and durable.
3.The dehydration effect is good.
4.The screening capacity is large and the screening efficiency is high.
Working Principle
The dewatering screen adopts double electric self-synchronization technology and a general-purpose fast eccentric and adjustable amplitude vibrator. Through the belt coupling shaft, two unrelated vibrators are driven to run synchronously and inversely, and the centrifugal forces produced by the two groups of eccentric masses are superimposed along the vibration direction and counteracted by reverse centrifugation, thus forming a single excited vibration along the vibration direction. make the screen box move in a reciprocating straight line.
Specification | ||||||||||||||||
Sieve surface | Double amplitude(mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimension(cm) | |||||||||||
Area(m2) | Dip angle(°) | Structure | ||||||||||||||
1231 | 3.6 | -5 | Linear | 0.5-3 | 6-15 | 2.2×2 | 3.8 | 366×192×245 | ||||||||
1236 | 4.3 | 8-22 | 3.7×2 | 4.3 | 416×192×245 | |||||||||||
1530 | 4.6 | 10-25 | 3.7×2 | 5.2 | 337×228×258 | |||||||||||
1545 | 5.7 | 12-30 | 5.5×2 | 5.8 | 487×228×258 | |||||||||||
One more Machine/plant related (Above Picture):
Our sand screening and washing machines are known to remove dirt, dust, and slit from the sand & aggregates.This plant are following main parts:
* Hopper is used as an inlet for impure sand.
* Screen machine for screening the sand, having size according to the requirement
* Spiral sand washer for washing dirt dust mud sand
* Screen machine for screening the sand, having size according to the requirement
* Spiral sand washer for washing dirt dust mud sand
Working Principle
1. The processed material first enters the hopper and goes to drum sand screen machine, and after screening in the drum device, various materials with different particle sizes are formed;
2. The qualified materials in the cylinder are output directly through the conveyor belt, and the materials under the screen enter the spiral sand washing tank. After being cleaned by the spiral blades, the qualified materials enter the back-end dehydration device for dehydration treatment.
2. The qualified materials in the cylinder are output directly through the conveyor belt, and the materials under the screen enter the spiral sand washing tank. After being cleaned by the spiral blades, the qualified materials enter the back-end dehydration device for dehydration treatment.
Specification | ||||||
Model | GelinSW-50 | GelinSW-75 | GelinSW-100 | |||
Drum Width and Length (mm) | 800*1900 | 900*2800 | 1000*3600 | |||
Spiral washer Width and Length(mm) | 500*450 | 750*5500 | 1000*6500 | |||
Feeding Hopper Width and Length(mm) | 2400*1200 | 2600*1400 | 3400*1400 | |||
Reduction box | 200 | 250 | 350 | |||
Dimension Width and Length(mm) | 5500*1200*2600 | 6500*1200*2500 | 8000*1400*2600 | |||
Motor for drum(kw) | 2.2KW with 18-19 r/m | 3KW with 18-19 r/m | with 18-19 r/m3KW | |||
Motor for Spiral washer(kw) | 3KW with 11r/m | 4KW with 18-19 r/m | 4KW with 18-19 r/m | |||
Thread Pitch(mm) | 350 | 400 | 450 | |||
Handling capacity(t/h) | 20 | 40 | 50 | |||
Weight (kg) | 2800 | 3900 | 4200 | |||
Rock Sand Making Plant
1. Broken: The bulk silicon mine is initially crushed by a jaw crusher, and then the produced coarse material is transported by a belt conveyor to compound sand maker for secondary crushing and sand making;
2. Screening and sand washing: The finely crushed silica sand enters the vibrating screen and goes to bucket sand washer for washing and desliming, with hydrocyclone for separation and removal of heavy coarse particles of sewage sludge sand;
3. The finished material needs to be dried by the dryer / dewatering screen or naturally dried and then clean fine sand is transported by belt conveyor.
Notice:Unqualified silica sand continues to be broken by the system until the finished product is produced.
Main Mining Machines Involved Above:
1.Compound sand maker is a new product optimized and designed by our company combining fine crushing technology. It is used to crush various medium-hard ores and can be widely used in mining, metallurgy, refractories, cement, coal, Glass, ceramics, electric power and other industries.
Features
1.Large crushing ratio, discharging particle size can be adjusted arbitrarily.
2.It's not easy to block to crush rock with high moisture content and high mud content when working.
3. Widely application in the field of fine crushing of various ore, cement, refractory materials, bauxite clinker, emery, glass raw materials and other high-hard and extra-hard materials.
Specification | ||||||||||
Model | 800 | 1000 | 1250 | 1500 | 1750 | |||||
Rotor Diameter (mm) | 650 | 800 | 100 | 1250 | 1560 | |||||
Drum Length (mm) | 800 | 850 | 850 | 100 | 1410 | |||||
Mainshaft Speed (r/min) | 1350 | 970 | 740 | 650 | 600 | |||||
Feeding Size (mm) | 50 | 70 | 100 | 100 | 100 | |||||
Output Size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | |||||
Capacity (t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 | |||||
Motor Power (kw) | 30 | 55 | 75 | 110 | 132 | |||||
Motor Speed (r/min) | 1440 | 1440 | 750 | 750 | 750 | |||||
Dimension (L*W*H)(mm) | 2200×860×1980 | 2700*1160*2000 | 2800×1400×2730 | 3100×1900×2300 | 3350×2100×2800 | |||||
Weight(t) | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 | |||||
2. Other main mining machines related can be viewed at sand washing plant part and related products part.
Application&Successful Case
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome customers to visit our factory.
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.\t
A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.\t
Q: What is your payment terms?
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
Q: How long is the guarantee period of your products?
A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.
Q: Is it possible to produce customized products ?
A: Yes, most of our products are produced as required.
A: Yes, most of our products are produced as required.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
For more details, please refer to our website: www.gelinmachinery.com
