Ручной токарный станок горизонтальный с ЧПУ C6240/1000/2000 мм токарно-револьверный


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.76 $* 0.16 $*
Aug-18-2025 0.87 $* 0.40 $*
Jul-18-2025 0.87 $* 0.76 $*
Jun-18-2025 0.37 $* 0.86 $*
May-18-2025 0.95 $* 0.9 $*
Apr-18-2025 0.93 $* 0.57 $*
Mar-18-2025 0.65 $* 0.7 $*
Feb-18-2025 0.12 $* 0.74 $*
Jan-18-2025 0.2 $* 0.50 $*

Характеристики

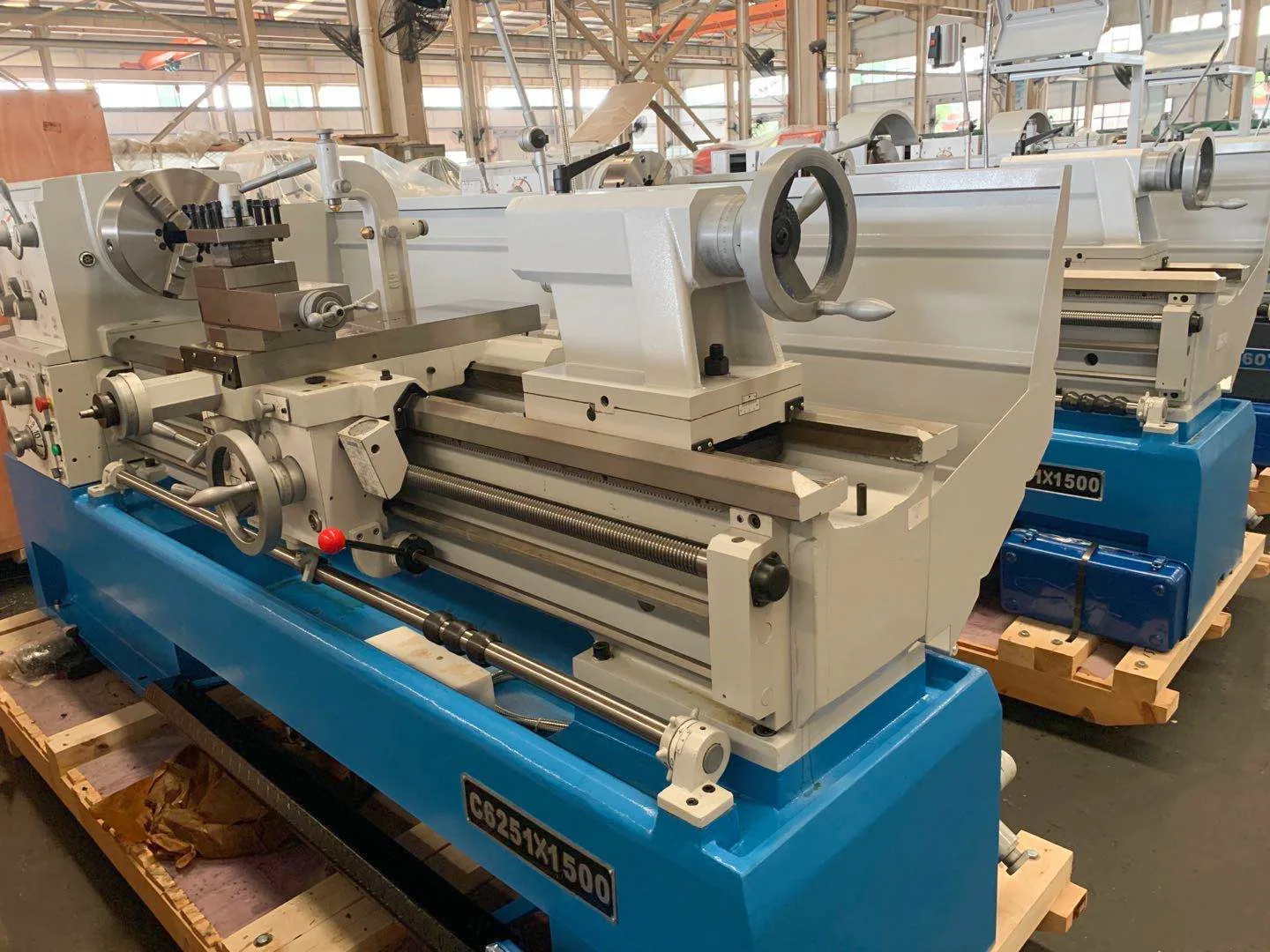

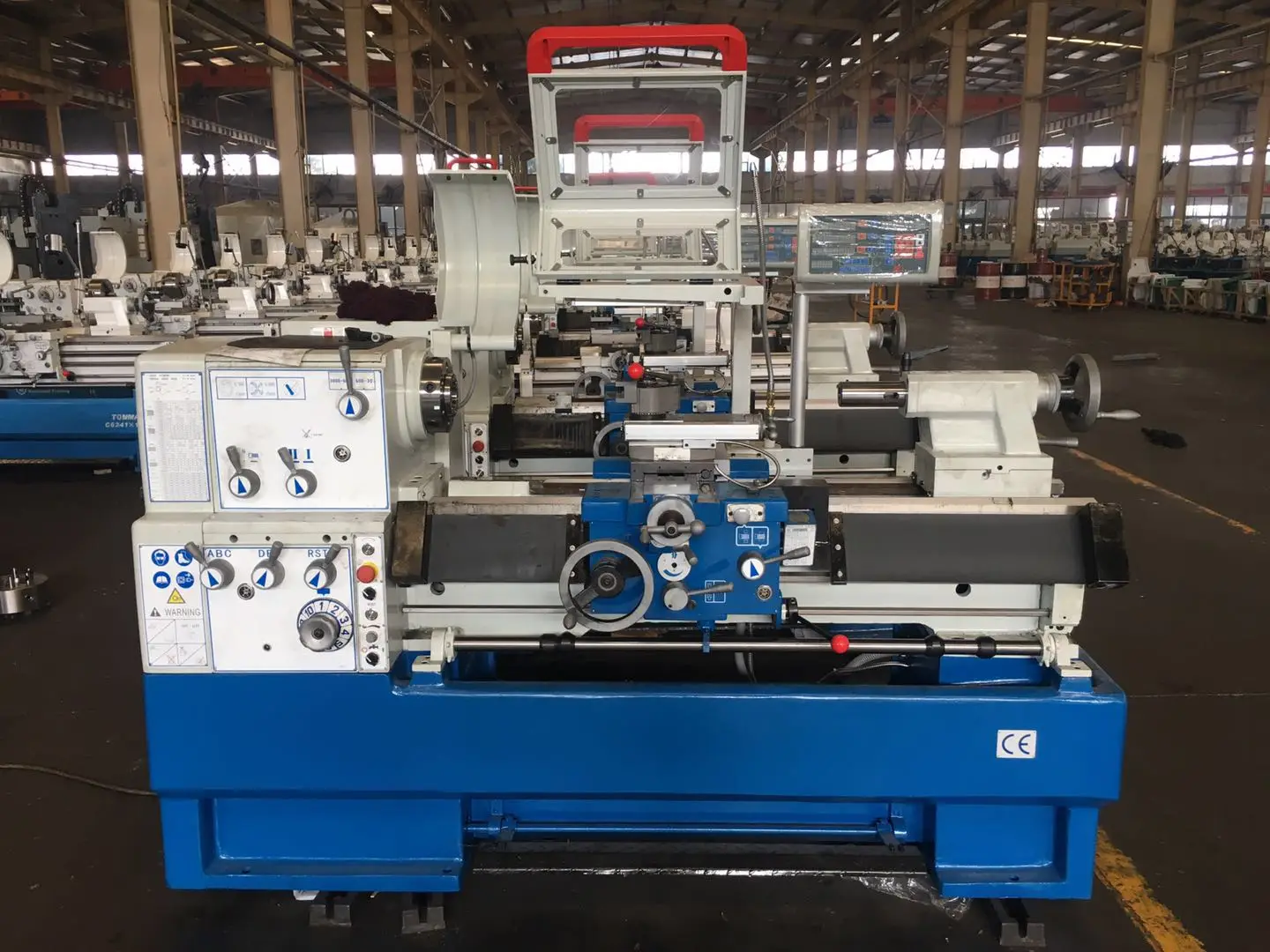

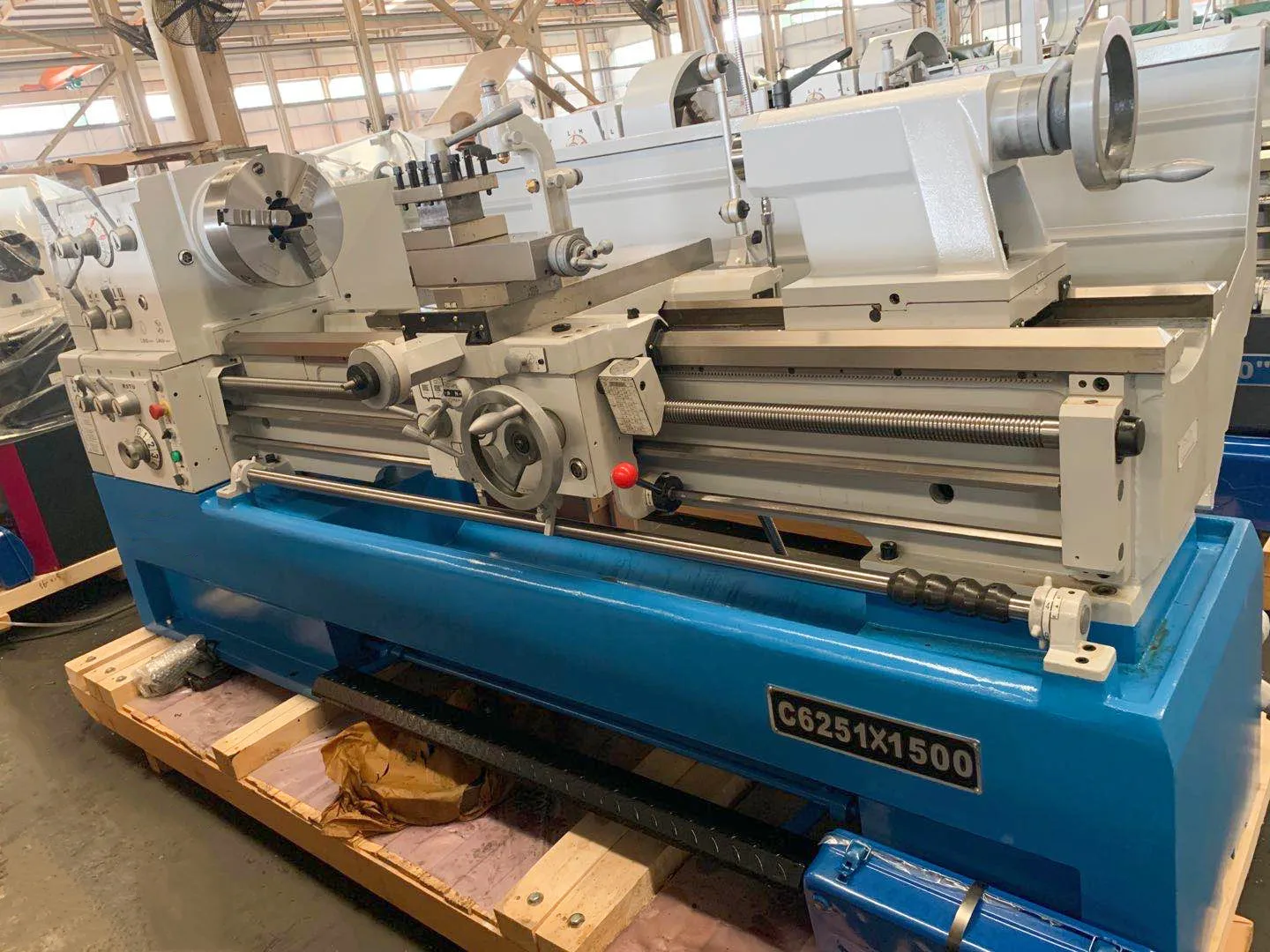

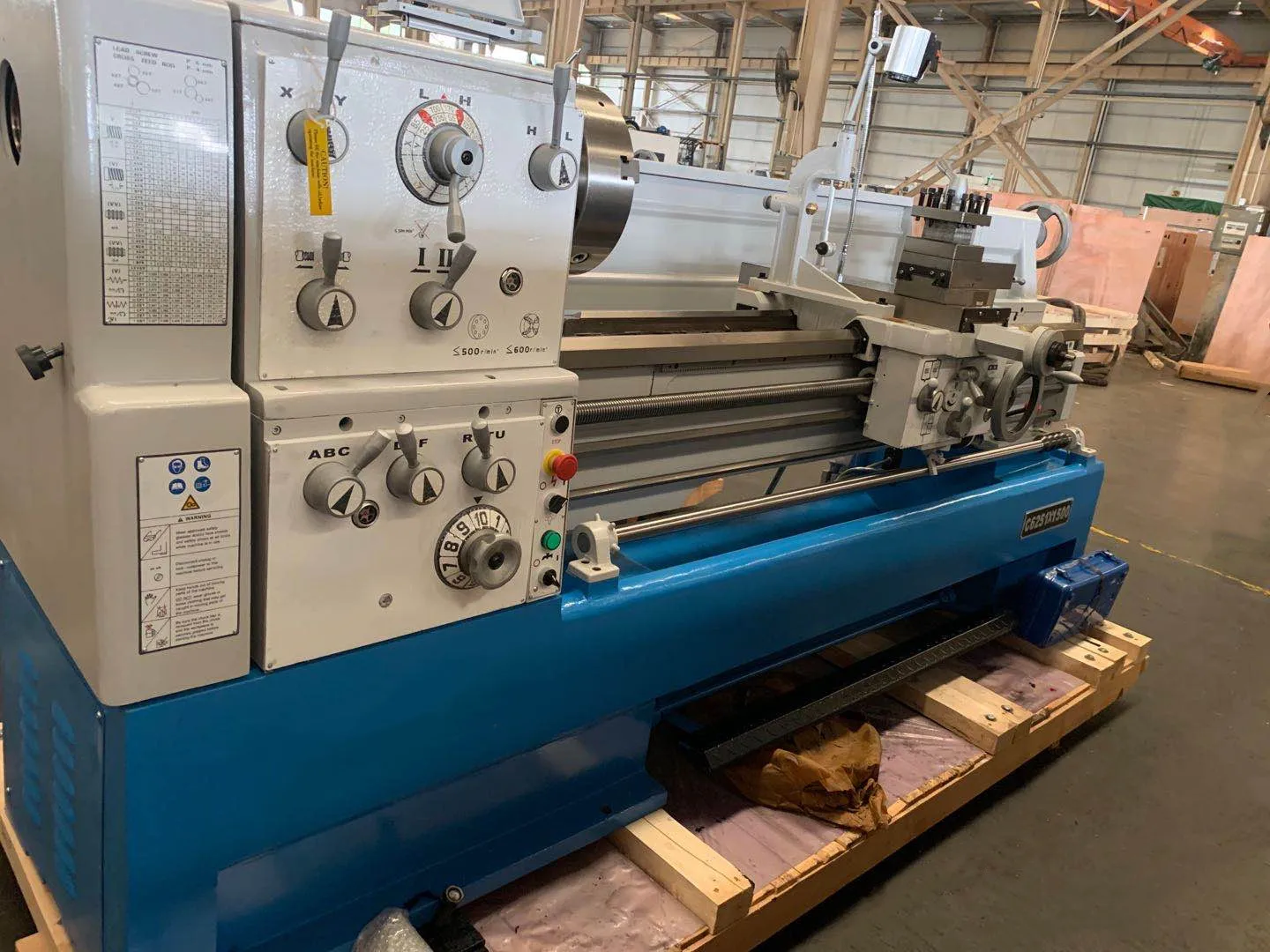

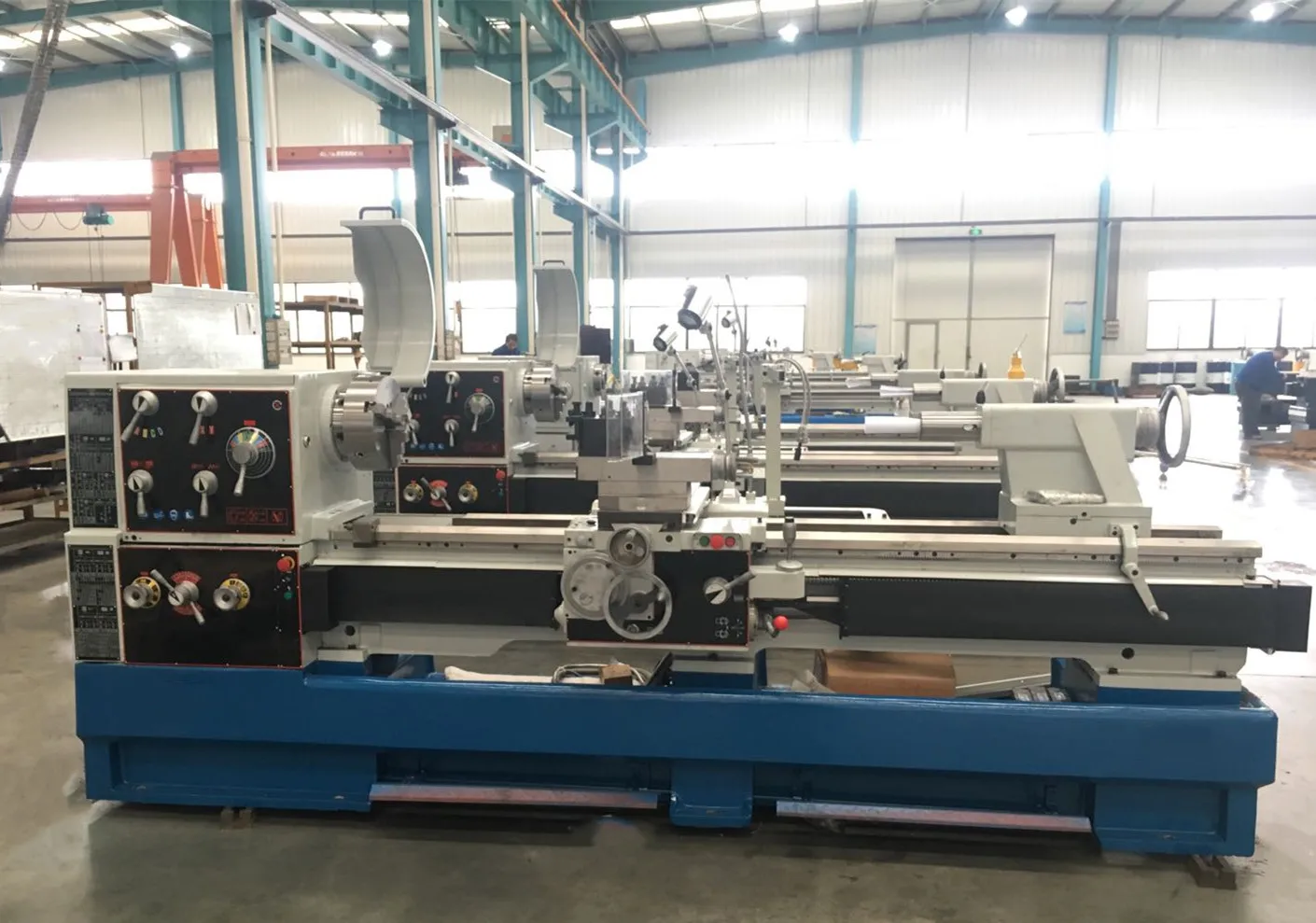

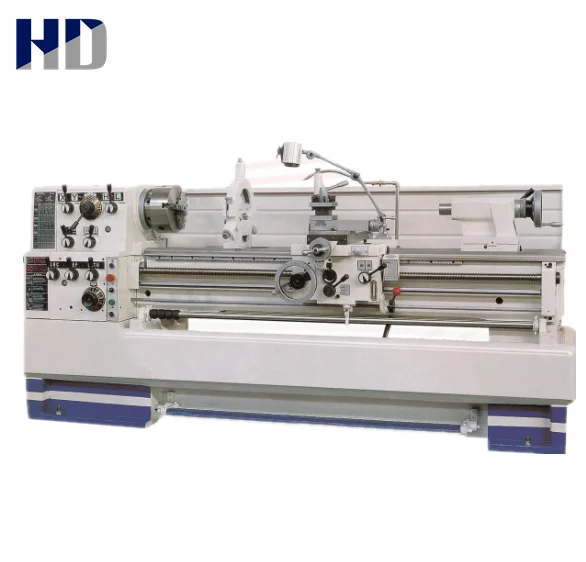

Manual Lathe Horizontal Lathe C6241/1000/2000mm Turning Lathe Machine



FEATURES AT A GLANCE










PRODUCT SPECIFICATIONS


Specification
Unit
C6241
C6246
C6251
Swing over bed
mm
410
460
510
Swing over cross slide
mm
220
270
305
Swing in gap diameter
mm
640
690
735
Distance between centers
mm
1000,1500,2000
1000,1500,2000
1000,1500,2000,3000
Valid length of gap
mm
165
165
170
Width of bed
mm
300
300
350
Spindle nose

D1-6
D1-6
D1-8
Spindle bore
mm
58
58
80
Taper of spindle bore

No.6 Morse
No.6 Morse
No.7 Morse
Range of spindle speed
r/min
12 changes, 25-2000
12 changes, 25-2000
12 changes, 25-2000
Compound rest travel
mm
128
128
130
Cross slide travel
mm
285
285
316
Max. section of of tool
mm
25*25
25*25
25*25
Lead screw thread
/
6mm or 4T.P.I
6mm or 4T.P.I
6mm or 4T.P.I
Longitudinal feed range
mm/rev
42kinds, 0.031-1.7
42kinds, 0.031-1.7
35kinds, 0.059-1.646
Cross feed range
mm/rev
42kinds, 0.0149-0.784
42kinds, 0.0149-0.784
42kinds, 0.020-0.573
Thread metric pitches
/
41kinds, 0.1-14mm
41kinds, 0.1-14mm
47kinds, 0.2-14mm
Threads imperial pitches
/
60 kinds, 2-112T.P.I
60 kinds, 2-112T.P.I
60 kinds, 2-112T.P.I
Threads diametral pitches
/
50 kinds, 4-112DP
50 kinds, 4-112DP
50 kinds, 4-112DP
Thread module pitches
/
34 kinds, 0.1-7MP
34 kinds, 0.1-7MP
34 kinds, 0.1-7MP
Quill diameter
mm
60
60
75
Quill travel
mm
130
130
180
Quill taper
/
No.4 Morse
No.4 Morse
No.5 Morse
Main motor power
/
5.5kw(7.5P) 3PH
5.5kw(7.5P) 3PH
7.5kw(10HP) 3PH
Coolant pump power
/
0.1KW(1/8HP)3PH
0.1KW(1/8HP)3PH
0.1KW(1/8HP)3PH
Overall dimension (L*W*H)
cm
220*108*134
275*108*134
325*108*134
220*108*137
275*108*137
325*108*137
239*115*143
284*115*143
334*115*143
434*115*143
Packing size (L*W*H)
cm
225*112*162
280*112*162
330*112*162

225*112*162
280*112*162
330*112*162
245*119*174
290*119*174
340*119*174
440*119*174
Net weight
kg
1580,1745,1900
1645,1810,1965
2070,2160,2435,2805
Gross weight
kg
1844,2049,2229
1910,2115,2295
2460,2550,2840,3270


COMPANY PROFILE


Dalian Haidi Machinery Co.,Ltd
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column and double-column vertical lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.

Haidi Machinery, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.

Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company’s product research and production and made great contribution to providing products to customers in the shortest duration.

Haidi Machinery follows the principle of “independent innovation, govern enterprise by good virtue and prosper enterprise by good faith”. We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future. "




PRODUCTS DELIVERY




SIMILAR PRODUCTS




FAQ


1. What is your minimum order quantity?
Minimum order quantity is 1 set.

2. How is the payment term of your company?
The payment term is general T/T or L/C.

3. Could you please tell me about the warranty?
Warranty is 1 year.

4. Do you have CE or any other certificate?
CE and ISO9001.

6.When is the delivery time?
We will delivery it within 90 days after received your payment.
