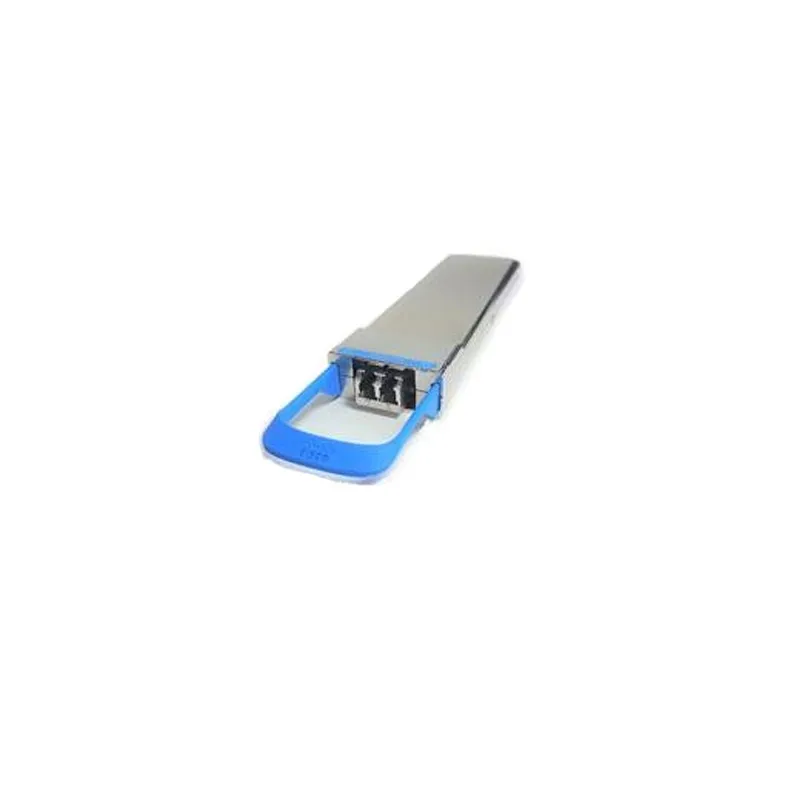

CPAK-100G-SR4 = CPAK оптический трансивер sfp модуль 100GBASE-SR4 100 м
- Категория: Other Networking Devices >>>
- Поставщик: Shudun,Network,Technology,(suzhou),Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.21 $* | 0.62 $* |
| Aug-17-2025 | 0.45 $* | 0.43 $* |
| Jul-17-2025 | 0.72 $* | 0.57 $* |
| Jun-17-2025 | 0.6 $* | 0.54 $* |
| May-17-2025 | 0.51 $* | 0.72 $* |
| Apr-17-2025 | 0.8 $* | 0.12 $* |
| Mar-17-2025 | 0.12 $* | 0.27 $* |
| Feb-17-2025 | 0.39 $* | 0.62 $* |
| Jan-17-2025 | 0.14 $* | 0.81 $* |
Характеристики
Product Description
CPAK-100G-ER4L= Overview
CPAK® 100GBASE fiber modules for switches and routers offer a selection of high-density 100-Gbps connectivity solutions.
The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.
The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.
Specification
CPAK-100G-SR4= Specification | ||||||
Description | 100GBASE-SR4 CPAK Module for MMF | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) | |
Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) | |
CPAK port cabling specifications | 62.5 | 200 (OM1) | 275 (902 ft) | |||
Wavelength (nm) | 850 | 50 | 400 (400/400) | 500 (1,640 ft) | ||
Cable Type | MMF (12 fibers) | 50 | 500 (OM2) | 550 (1,804 ft) | ||
Core Size (Microns) | 50.0 50.0 | 50 | 2000 (OM3) | 1000 (3281 ft) | ||
Modal Bandwidth (MHz*km) | 2000 (OM3) 4700 (OM4) | MMF* | 62.5 | 500 | 550 (1,804 ft) | |
Cable Distance | 70 m 100 m | 50 | 400 | 550 (1,804 ft) | ||
Optical transmit and receive specifications | 50 | 500 | 550 (1,804 ft) | |||
Type | 100GBASE-SR4 850 nm MMF | SMF | -** | - | 10,000 (32,821 ft) | |
Transmit Power | Max:+2.4 per lane Min:-8.4 per lane | SMF | -** | - | 40,000 (131,234 ft) | |
Receive Power (dBm) | Max:+2.4 per lane Min:-5.2 per lane | SMF | - | - | Approximately 70 km depending on link loss | |
Transmit and Receive Center Wavelength Range (nm) | Four lanes: 840 to 860 nm | SMF | -** | - | 10,000 (32,821 ft) | |
Supported Mode | 1x100G | SMF | -** | - | 10,000 (32,821 ft) | |
Supported Protocol | IEEE 802.3ba | |||||
Environmental conditions and power requirements | ||||||
Storage temperature | -40 to 85° C (-40 to 185° F) | |||||
Operating temperature | 0 to 70° C (32 to 158° F) | |||||
Power consumption | At 70° C: <9.0W maximum | |||||
