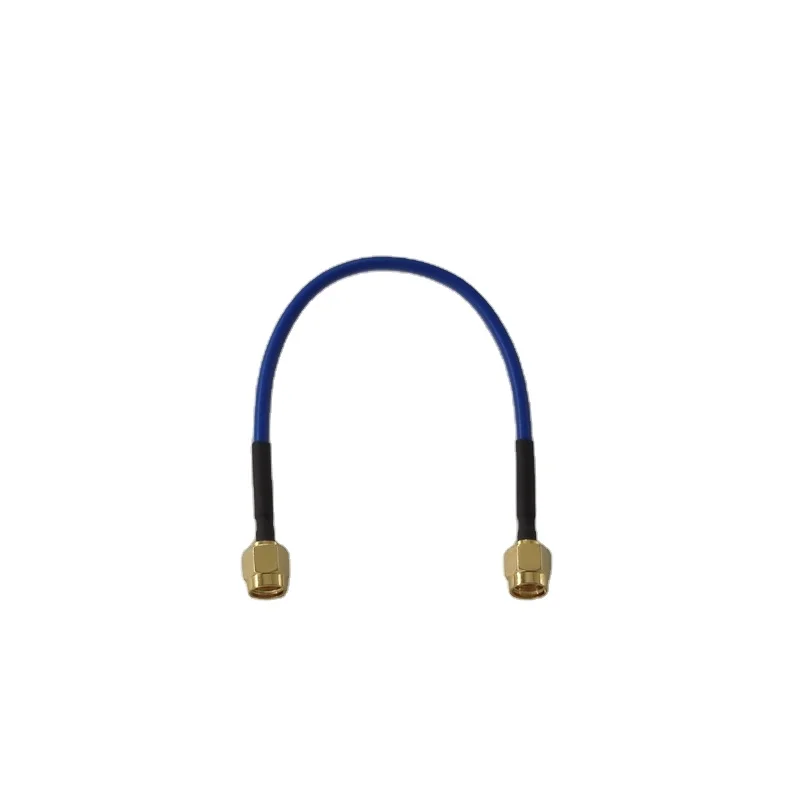

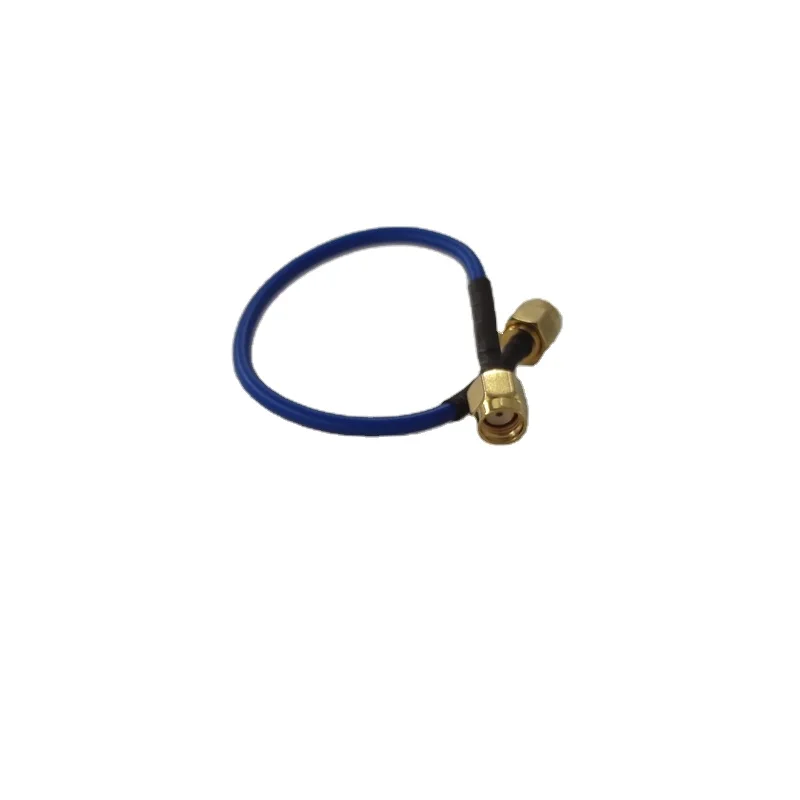

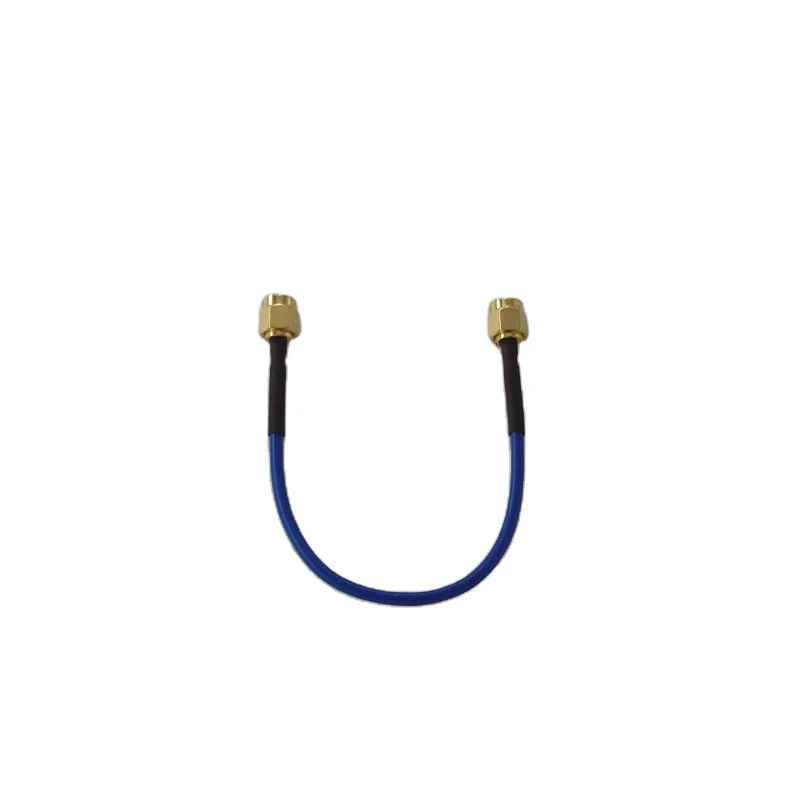

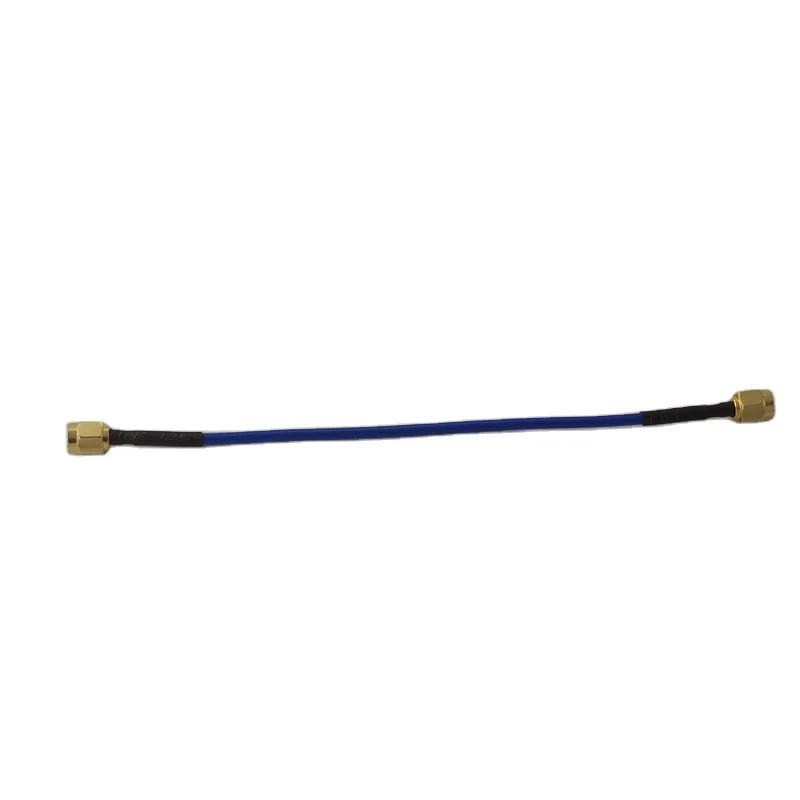

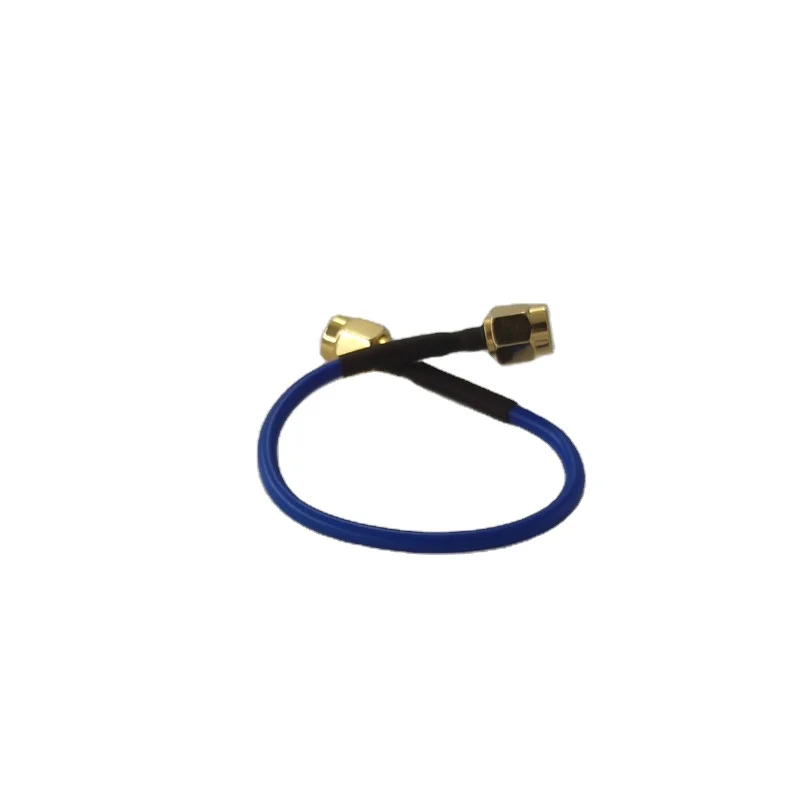

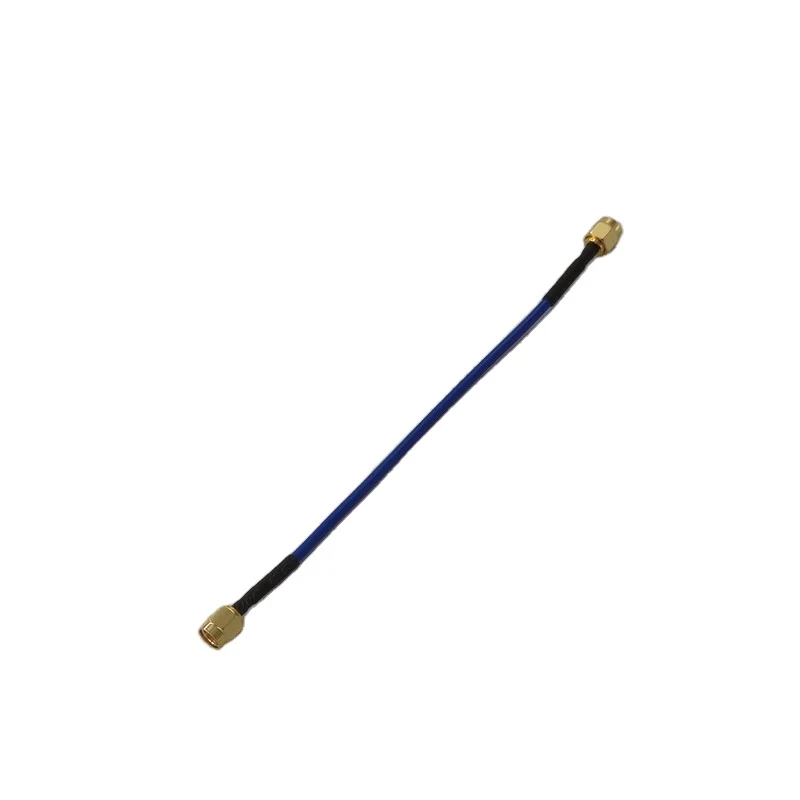

Semi-flexible RG405 Cable Assembly(Jumper)With SMA Reverse Polarity Male To SMA Reverse Polarity Male Connectors
Specification
Model No.
SMA-JRB2/SMA-JRB2-160D
Interface
IEC 60169-15
Electrical
Characteristic Impedance
50ohm
Typical Frequency Range
DC-12.4GHz
VSWR
≤1.20@DC-6GHz
Insertion loss
≤0.55dB@5GHz
Dielectric Withstanding Voltage
≥1000V r.ms.at sea level
Working Vlotage
≤335V RMS,50Hz,at sea level
Mechanical
Durability
Mating cycles ≥500
Material and Plating
Parts Name
Material
Plating
Body
Brass
Au
Insulator
PTFE
—
Center conductor
Brass
Au
Coupling Nut
Brass
Au
Gasket
Silicone rubber
—
Shrink tube
EVA
—
Environmental
Operating Temperature Range
-55℃~+155℃
RoHS
Compliant
Cable Family
Semi-flexible .086”Coaxial Cable (KTRFBU-086-50 )
Packing & Delivery
Our services
1.Reply your enquiry within 24 hours.
2.Payment model: T/T, L/C,Paypal and Western Union
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...)
4.Lead(Delivery) time: Normally 14 days after getting order
5.Port of loading: Shanghai, Ningbo and Shenzhen.
6.Guarantee Period : Within 12 months after shipment.
7.Operating guide(Instruction)upon request.
8.Customized drawing ,sample and package can be done.
FAQ
Q:What about the quality of your products?
A: Our production process is in conformity with ISO 9001:2008. All products we supplied are strictly tested by our QC department before shipment.
Q:Can you offer samples to test before placing one formal order?
Samples for test purpose can be presented free provided that you bear the shipping cost.
Q:How long is usually your delivery time?
A: Our delivery time is usually within 14 days after we receive your order .
Q:What’s your Shipping Methods?
A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7 business days.
Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products . You can send us the artwork by email in JPEG or TIFF format.
Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
Company Profile
Information
Founded in 1994, Four Star Communication Parts Co., Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components. Our products range: RF coaxial connectors Series: F, SMA, SMB, SMC, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43), QMA, FME, UHF, MCX, MMCX, EIA Flange, 4.3/10 etc. RF coaxial Cable assembly (Jumper Cable) Micro-wave Components: Dummy Load (Terminator), Attenuator, Surge Arrestor (Surge Protector), Power Splitter (Divider), Directional Coupler.
